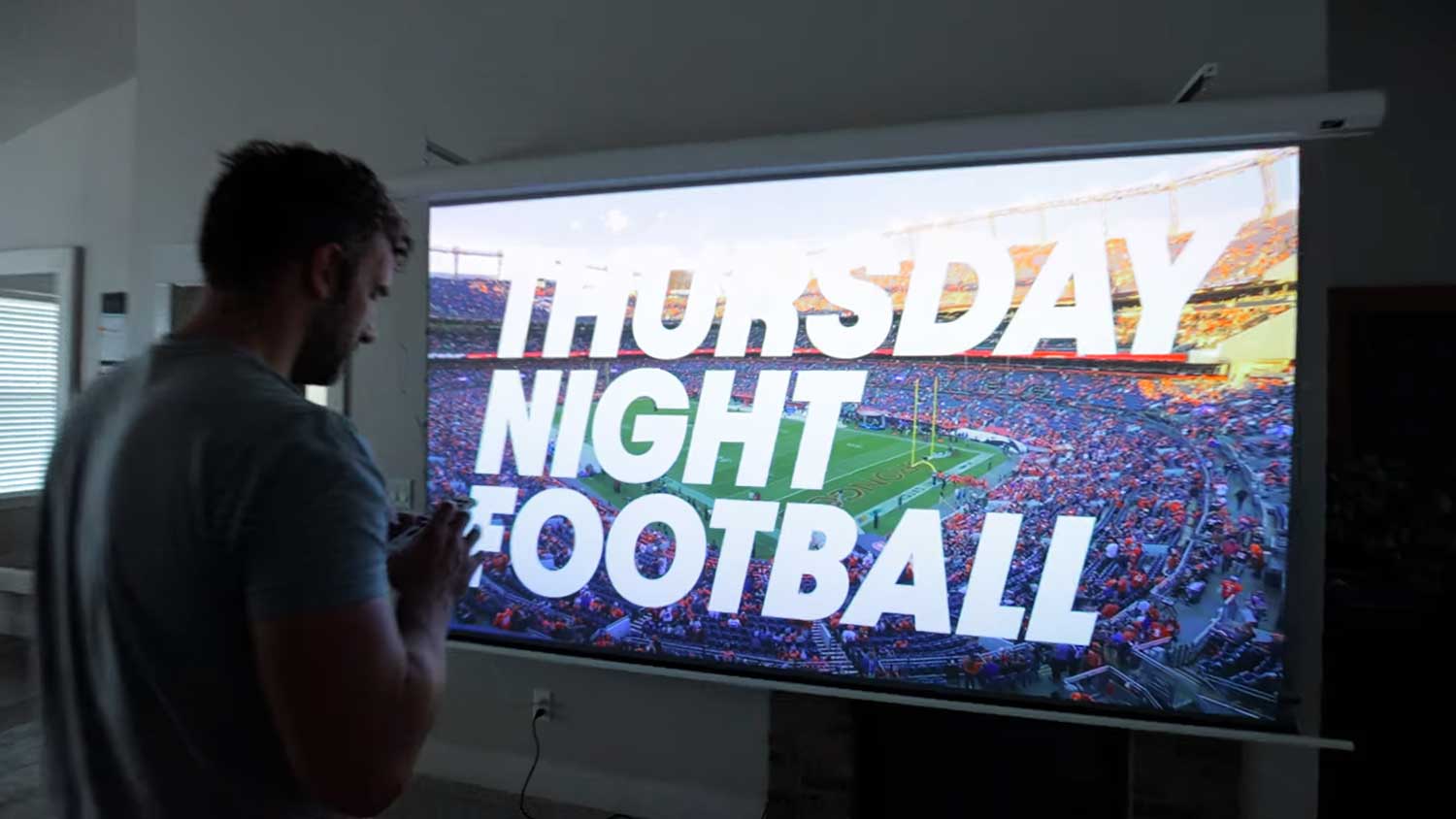

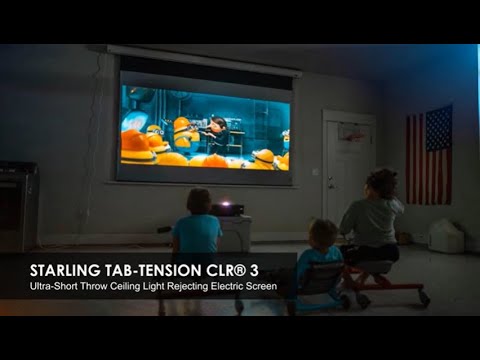

[Elite Screens] Starling Tab-Tension CLR® 3 Series

Description

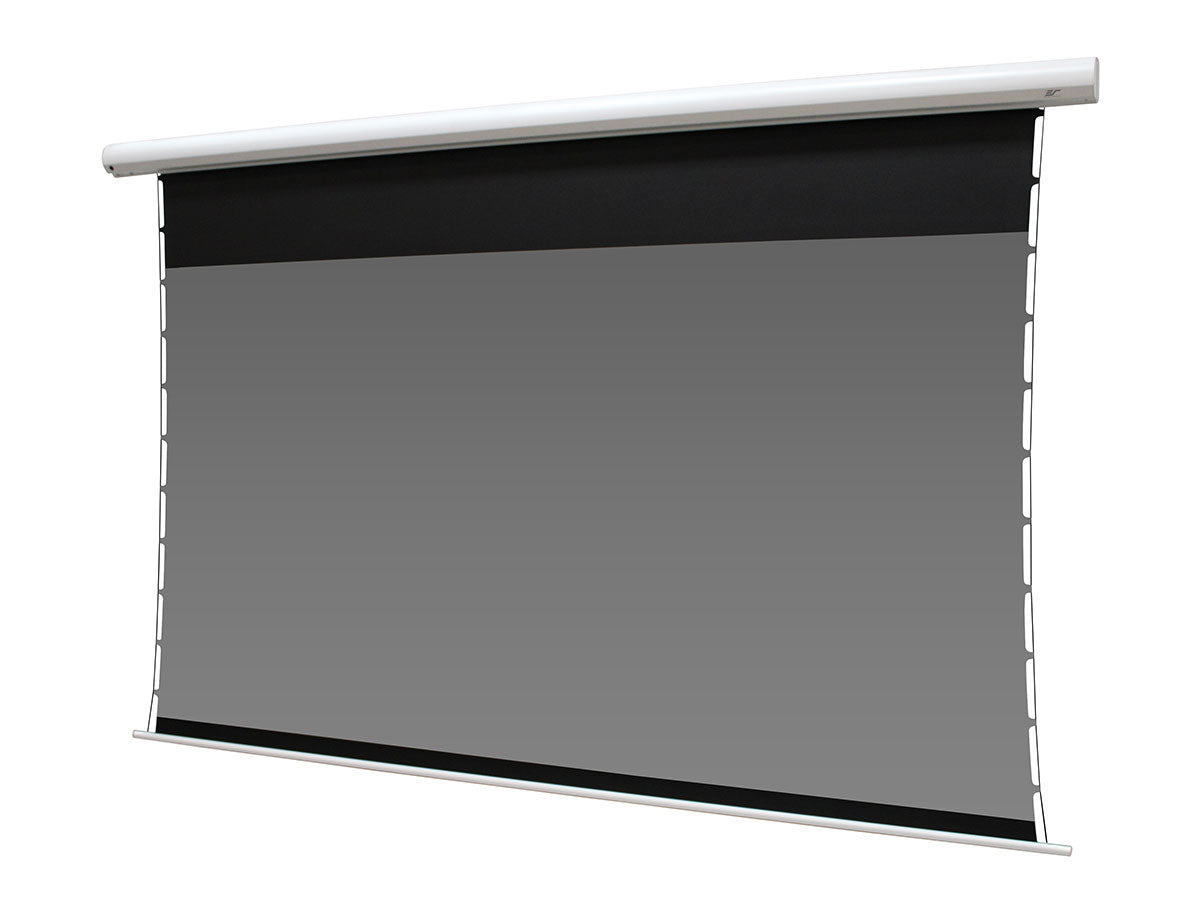

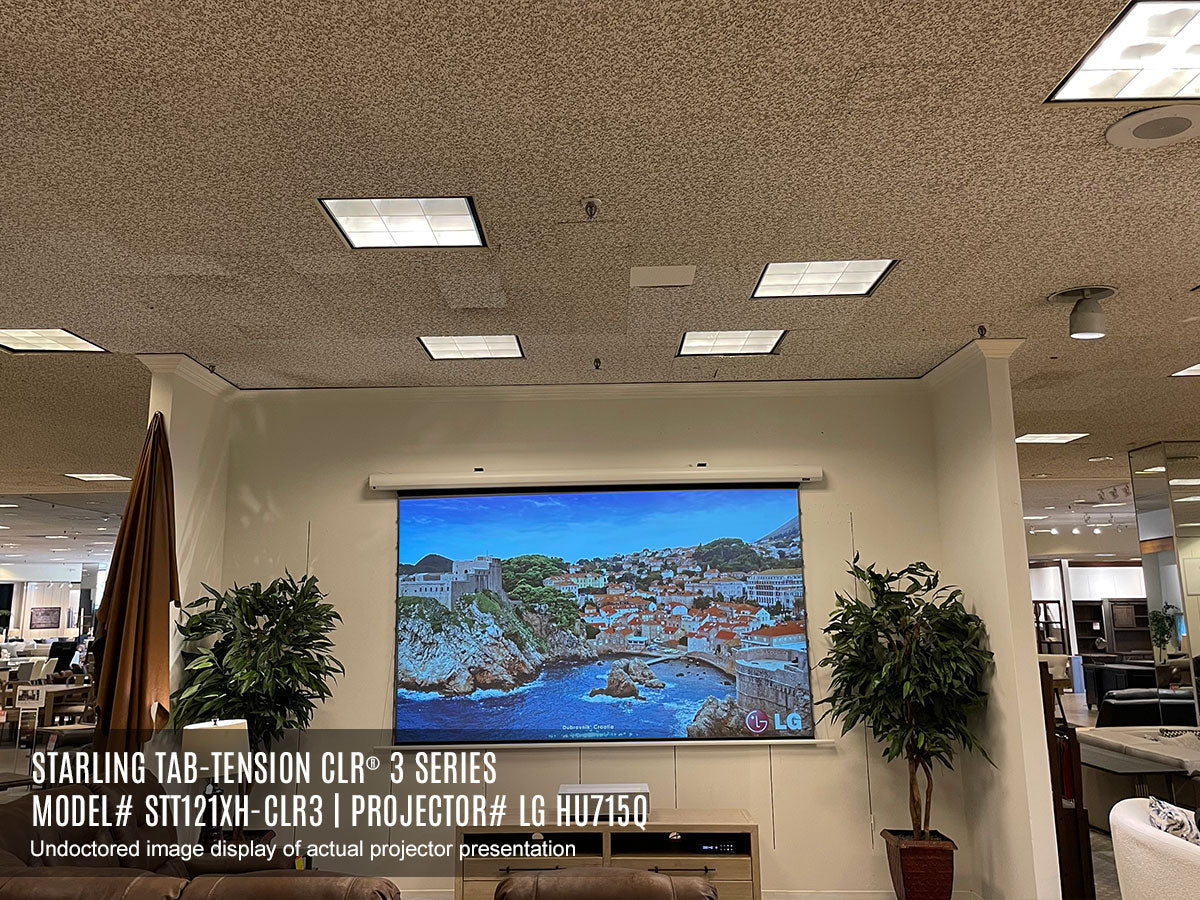

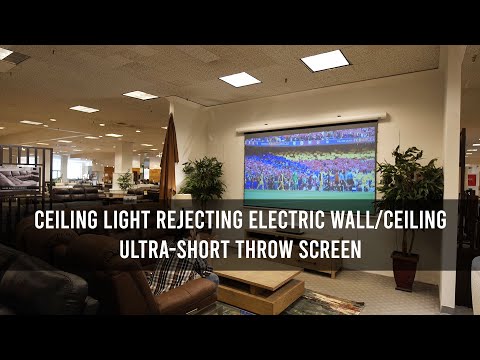

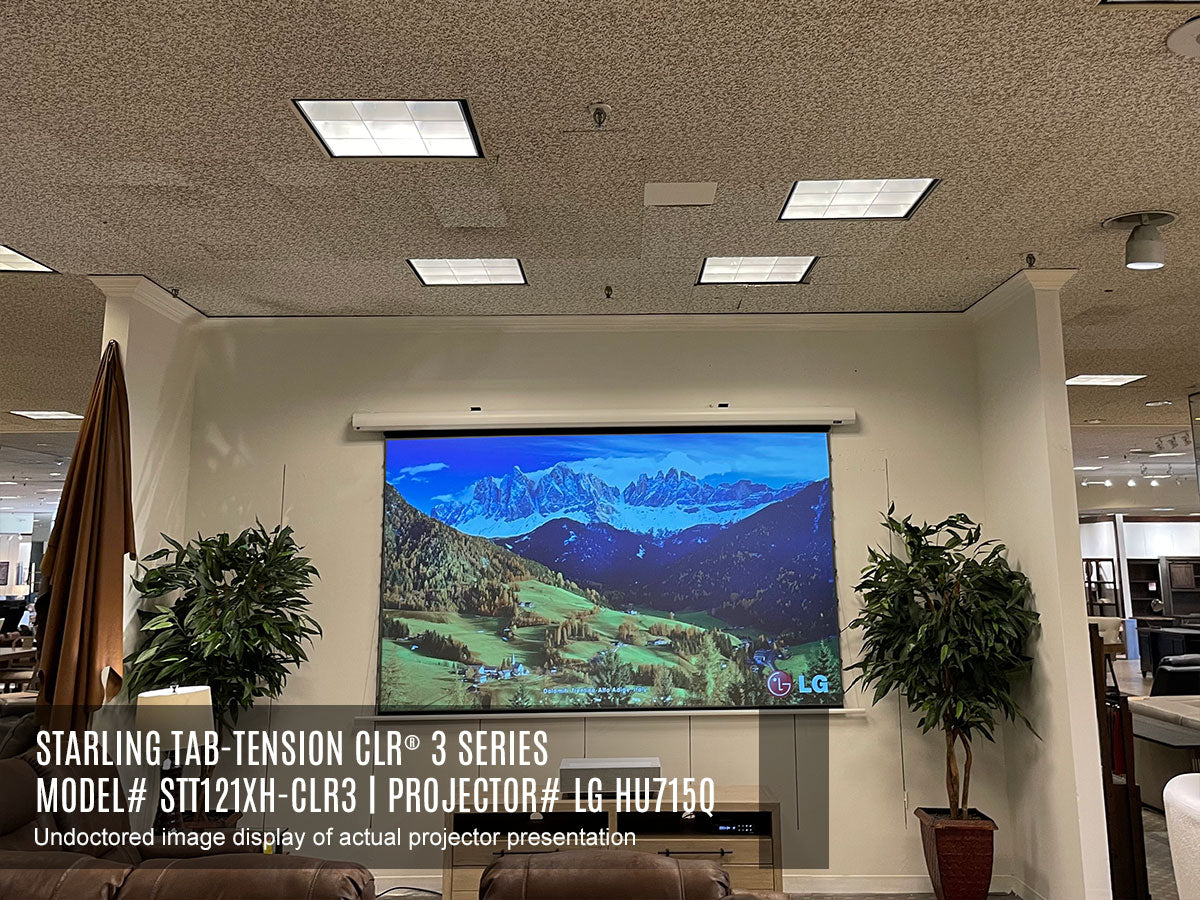

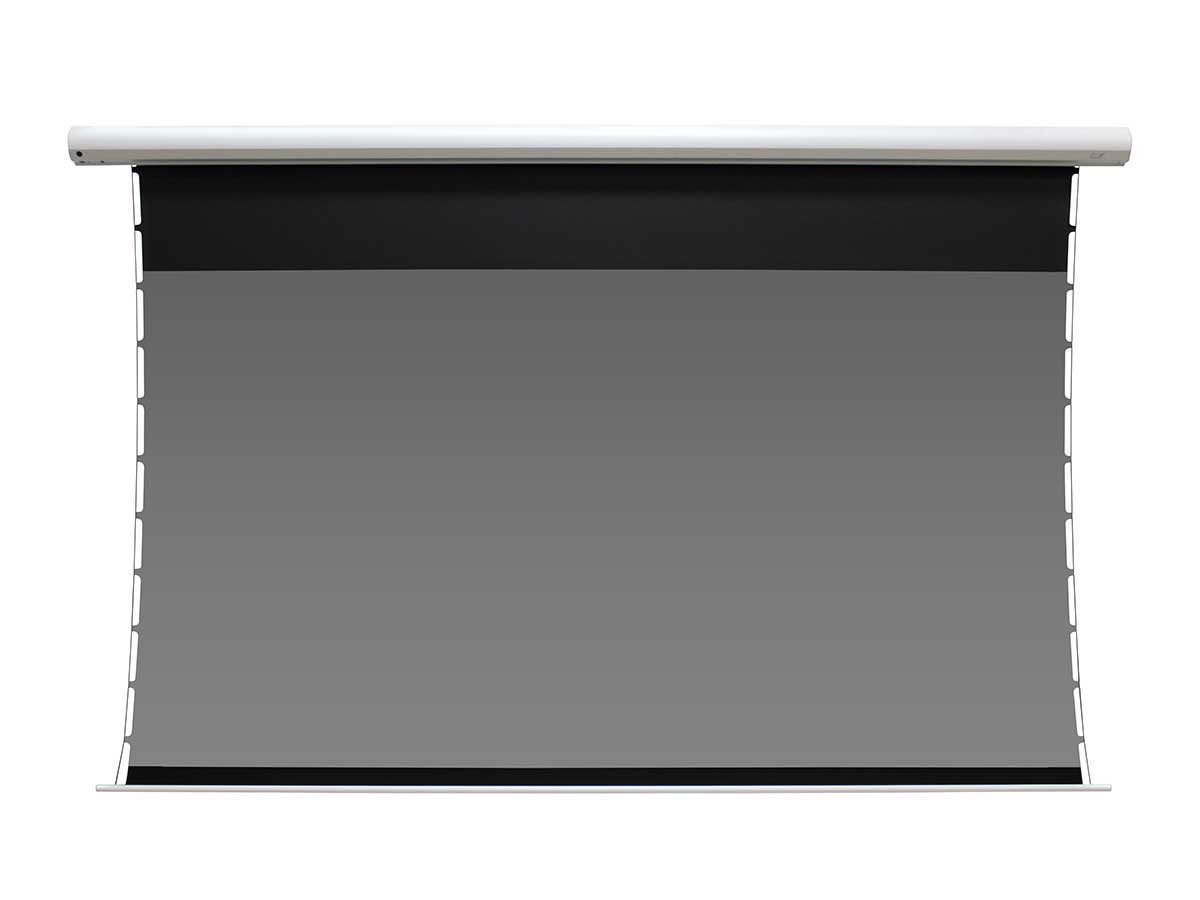

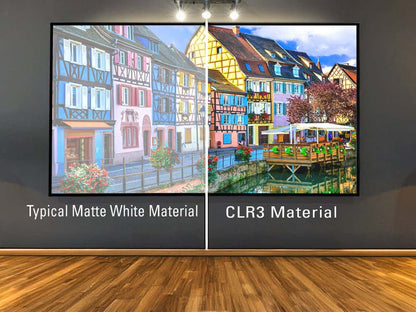

The Starling Tab-Tension CLR® 3 Series is an electric retractable ultra-short throw front projection screen with Ceiling Light Rejection® technology.  Its tab-tension design assures a flat and taut projection surface that produces exceptional images that are ripple-free. The StarBright™ CLR® 3 (SBCLR™ 3) absorbs overhead light to prevent the washout out effect commonly experienced with conventional matte white materials. This allows projector presentations to have contrast-rich images.

It includes a pair of wall brackets for a flush wall/ceiling installation. Also included is a pair of eye-bolt screws that attach to the top of the case for a suspended ceiling installation.  Standard features include a wireless 12-volt trigger, IR/RF remote control package, and a detachable manual keypad switch.

Product Features

Screen Material

• StarBright™ CLR® 3 (SBCLR™ 3) Ceiling Light Rejecting front projection material absorbs up to 90% of overhead light
• Crafted for use with Ultra-short Throw (UST) tabletop/bottom mounted projectors (NOT compatible with short or standard throw projectors)
• Lenticular sawtooth micro-structure filters out ambient light for superior image brightness and contrast
• Dedicated reflective and absorbent layers maximize projector performance in ambient light room environments
• Wide diffusion uniformity allows viewers to see a clear bright picture from any angle
• Improves black levels in bright and dark room environments
• Reflective layer concentrates projected light back to viewer’s field of vision and negates light scatter
• Black-backing (non-opaque) enhances image brightness for a sharper and clearer picture

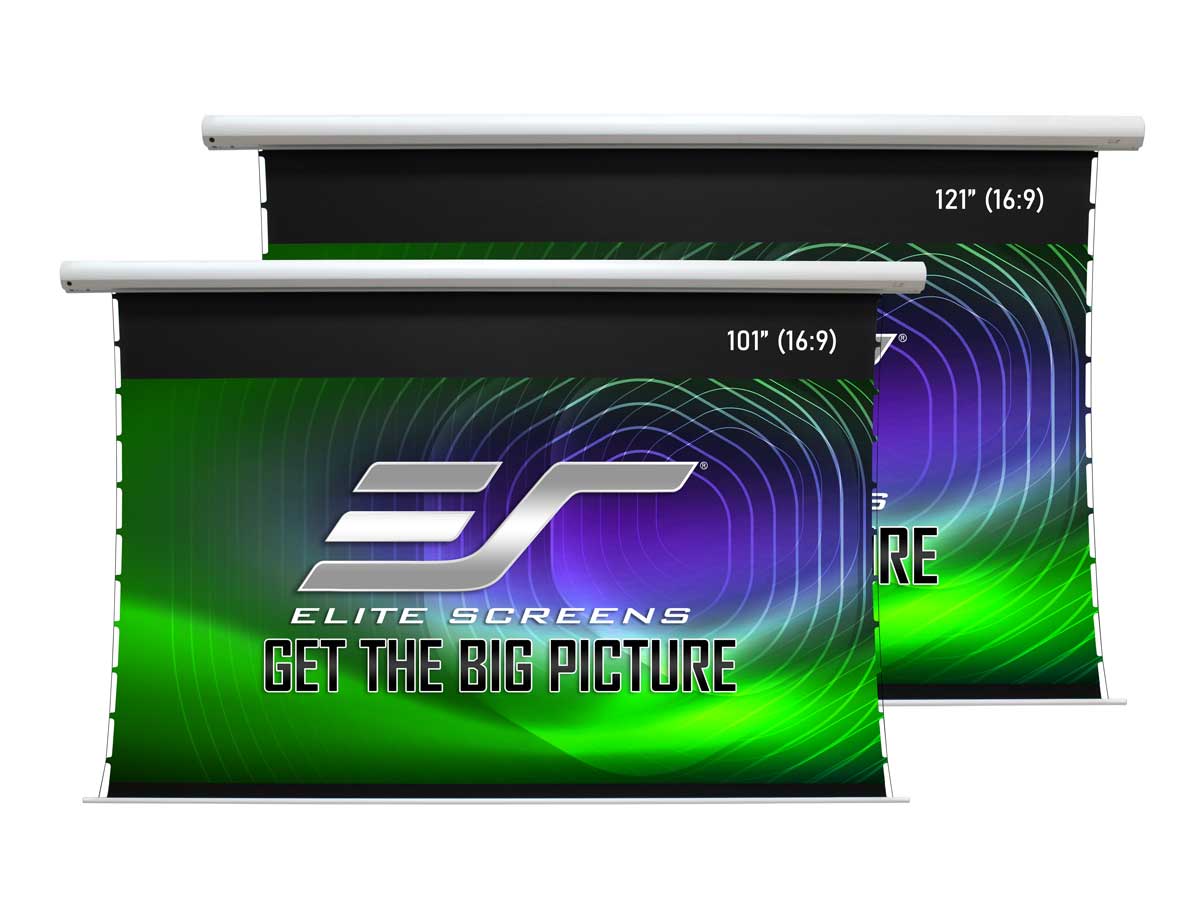

• Available in the following range of diagonal sizes:
• 101″ and 121″ in 16:9 aspect ratio

Control, Design and Installation

• Flush wall/ceiling mounts permit wood stud installation and allow screen to slide horizontally for proper centering
• Tab-tension design helps maintain a flat, taut, and ripple-free projection surface
• Projector from a short distance without shadowing the picture

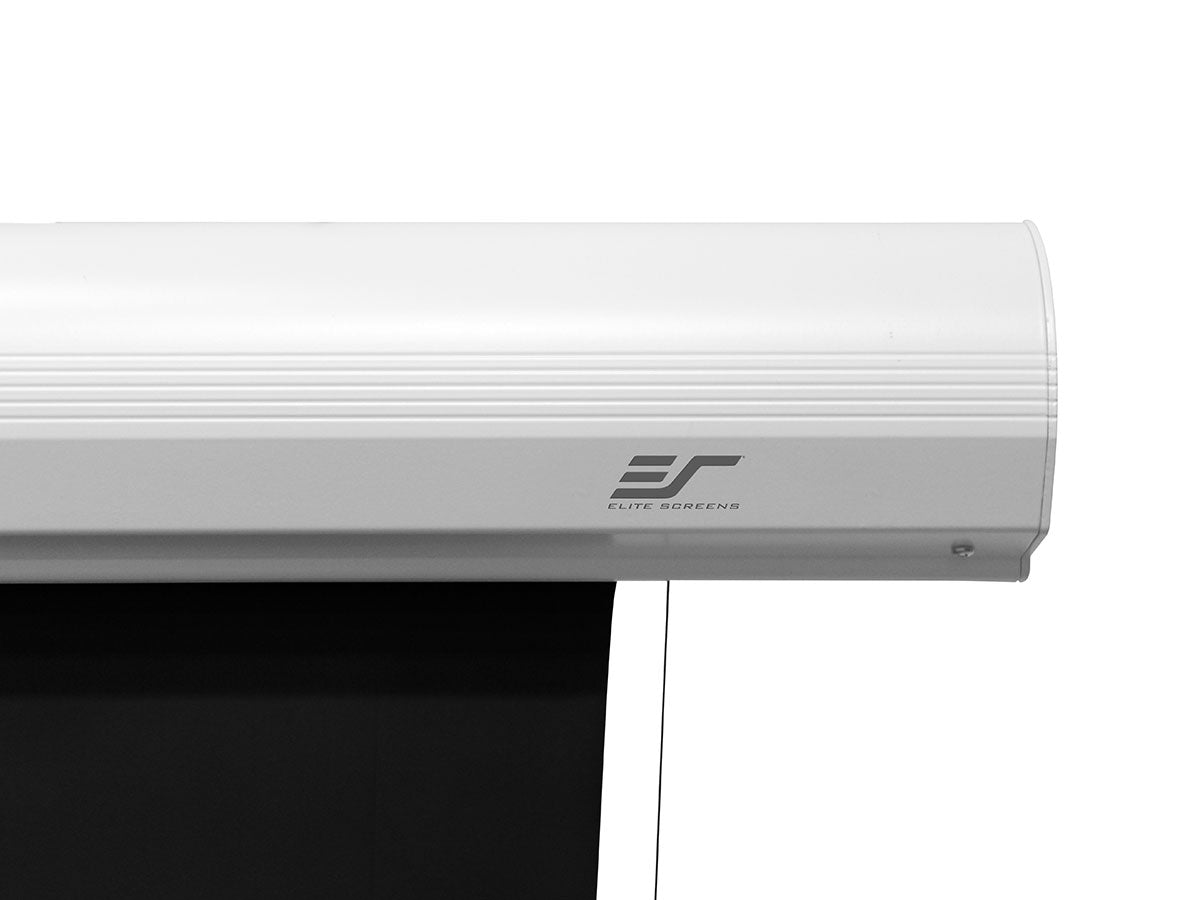

• Curved aluminum enamel white case is moisture resistant
• Plug & Play design with built-in low voltage control system, no hardwire installation required

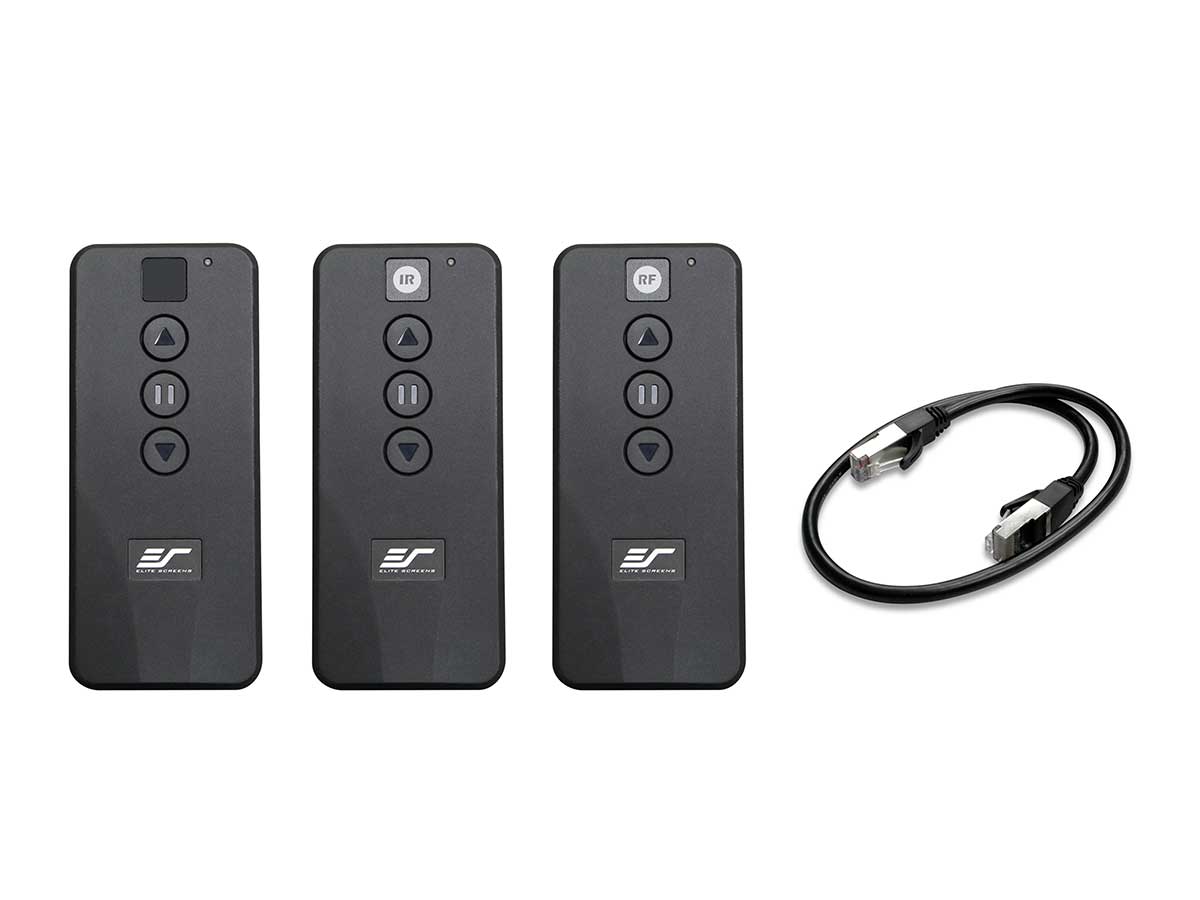

• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
  • Wired 12v trigger capability via wall box controller
  • Wireless 12v trigger capability via Radio Frequency remote control

Quality and Reliability

• 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
• Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
