[Elite Screens] Starling Tab-Tension CLR® Series

Description

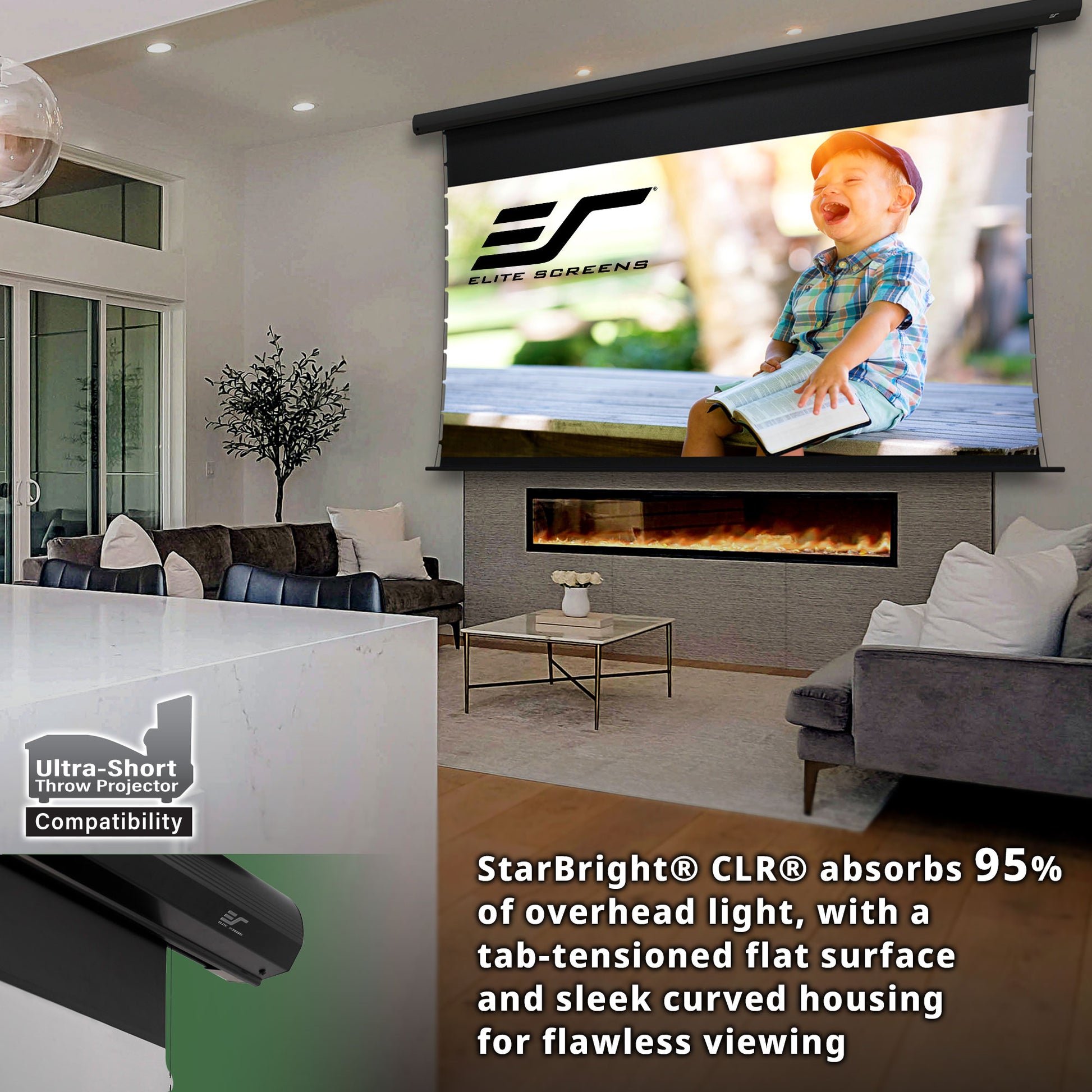

The Starling Tab-Tension CLR® Series is a Ceiling Light Rejecting front projection screen for ultra-short throw projectors.  Its tab-tension design assures a flat and taut projection surface for ripple-free images. The StarBright CLR® material absorbs overhead light to provide contrast-rich images that won’t wash out. This is ideal for environments that require the lights being on such as boardrooms, training facilities or living/family rooms.

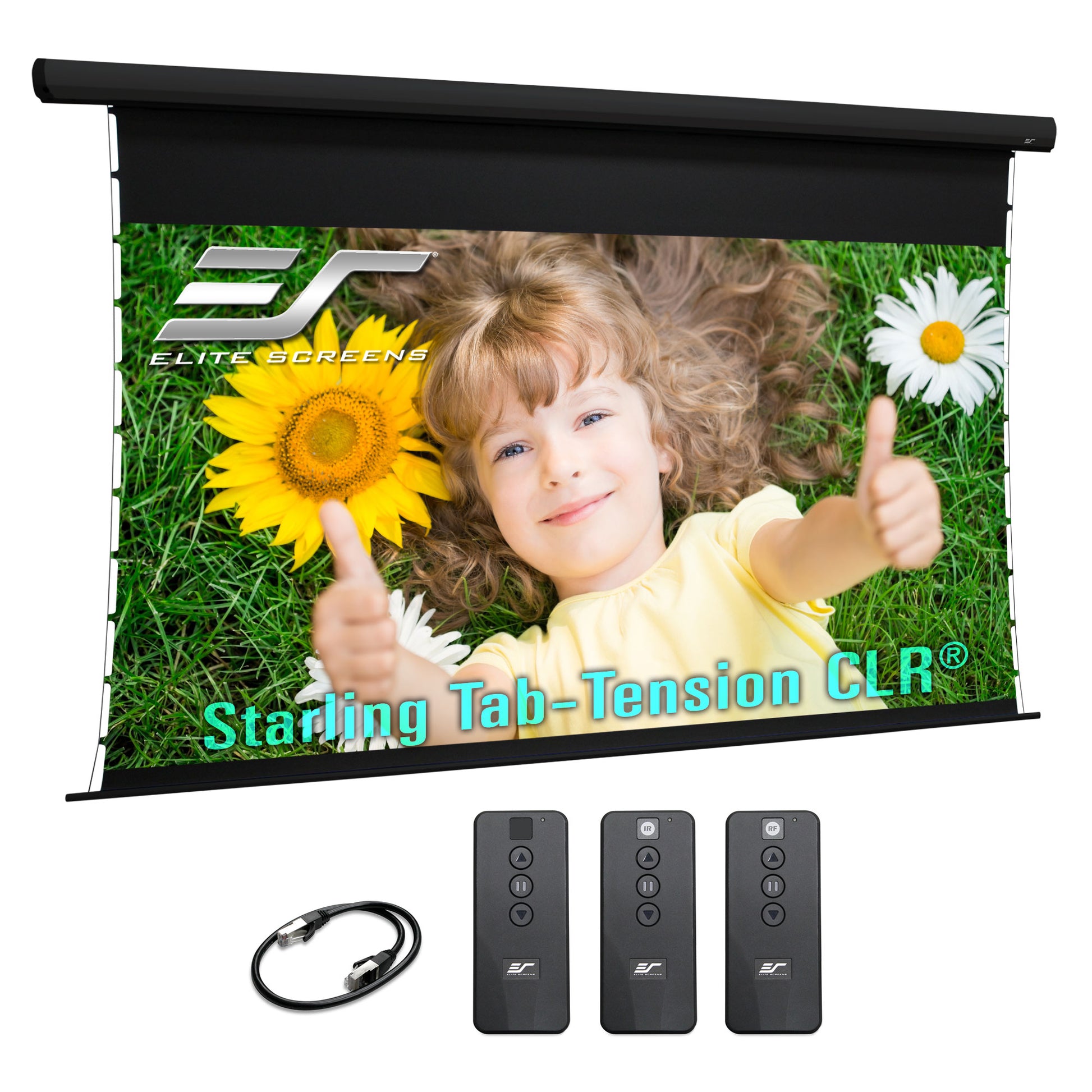

It includes a pair of wall brackets for a flush wall/ceiling installation. Also included is a pair of eye-bolt screws that attach to the top of the case for a suspended ceiling installation. Standard features include a wireless 12-volt trigger, IR/RF remote control package, and a detachable wall box controller.

Product Features

Screen Material

• StarBright CLR® Ceiling Light Rejecting front projection material absorbs up to 95% of overhead light

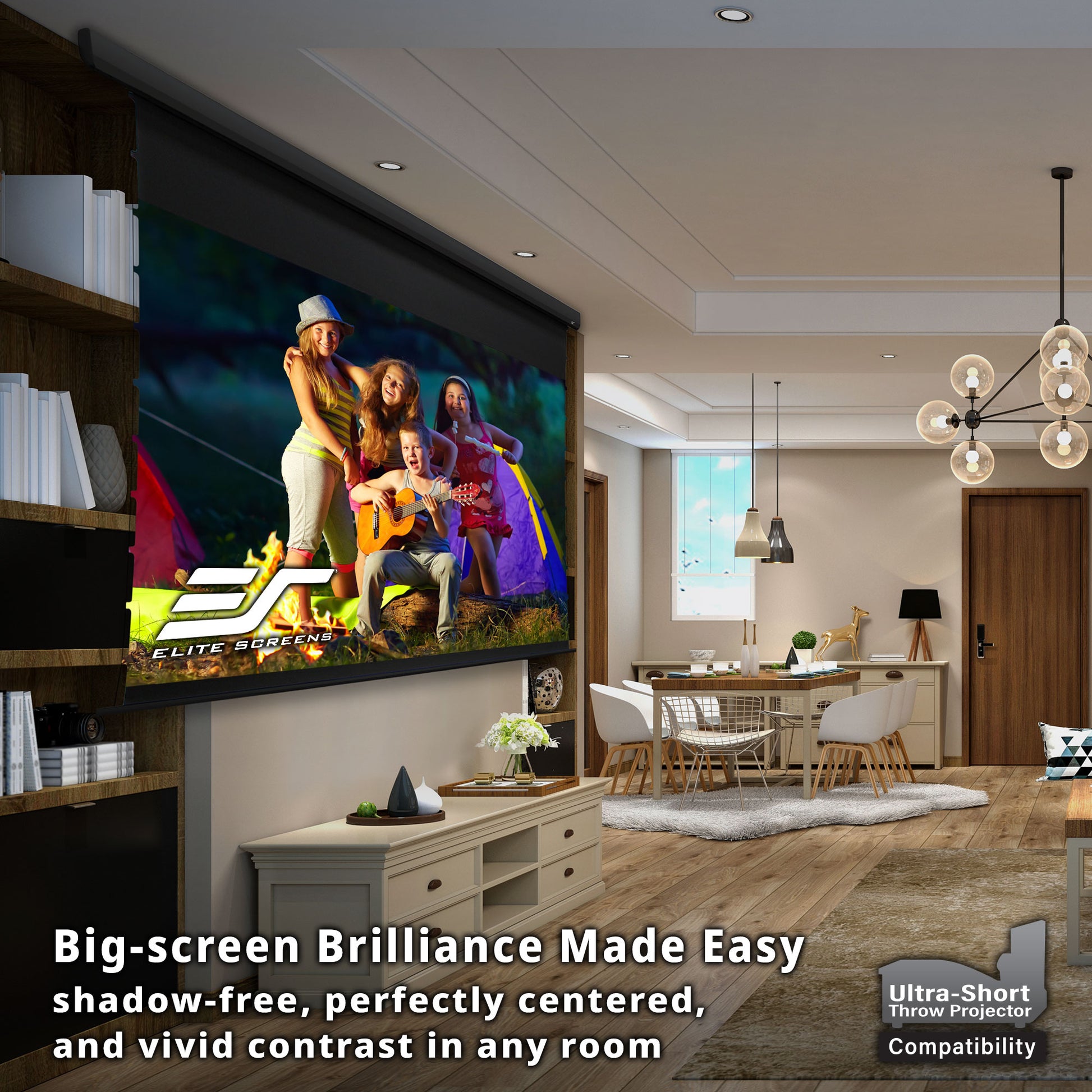

• Crafted for use with Ultra-short Throw (UST) tabletop/bottom mounted projectors (NOT compatible with short or standard throw projectors)

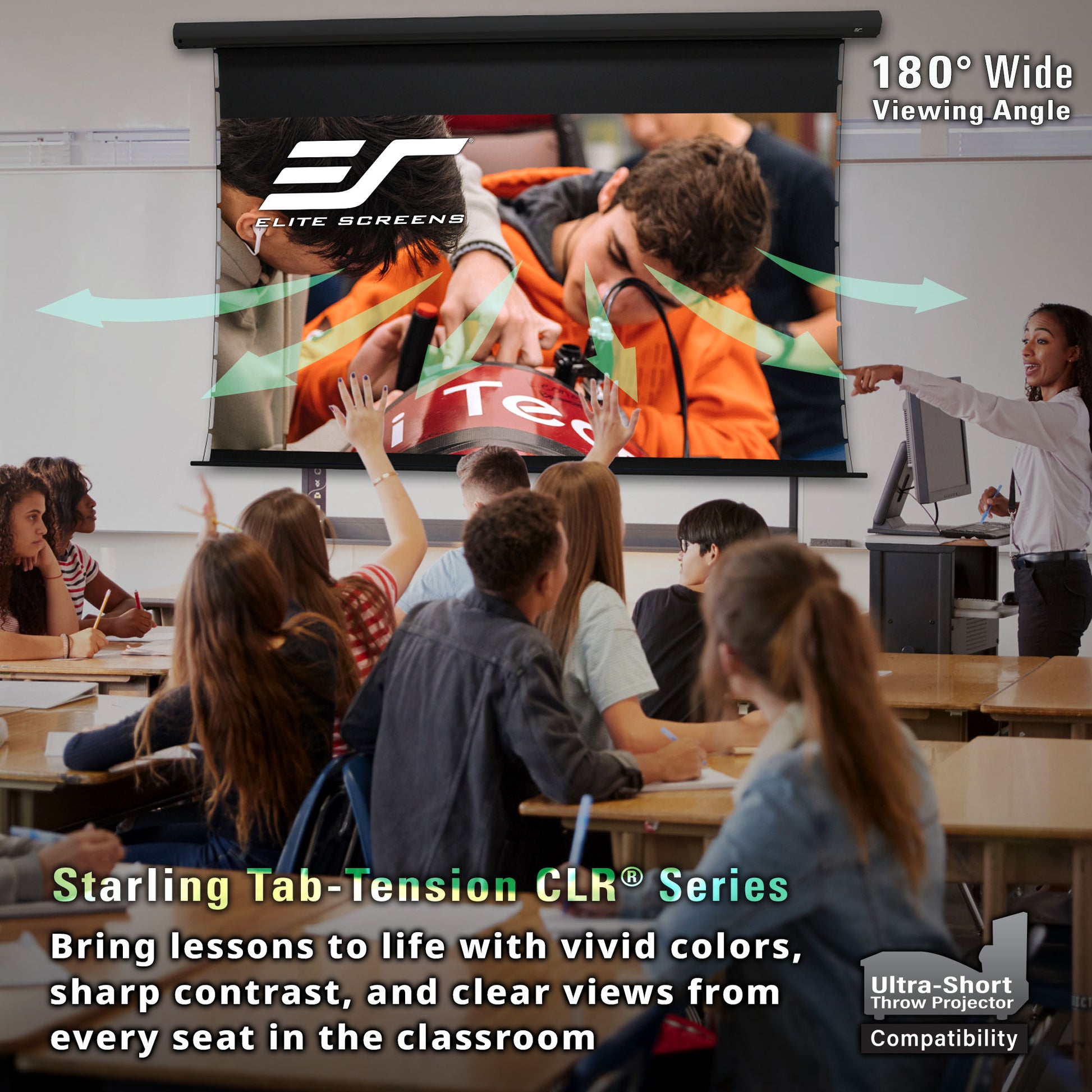

• Wide diffusion uniformity allows viewers to see a clear bright picture from any angle
• Multi-layer optical micro-structures filter out ambient light for superior image brightness and contrast
• Black absorbent layer improves black levels in bright and dark room environments
• Reflective layer concentrates projected light back to viewer’s field of vision and negates light scatter
• Special lenticular surface provides super color fidelity, contrast, and black/white dynamic range
• Black-backing (non-opaque) enhances image brightness for a sharper and clearer picture

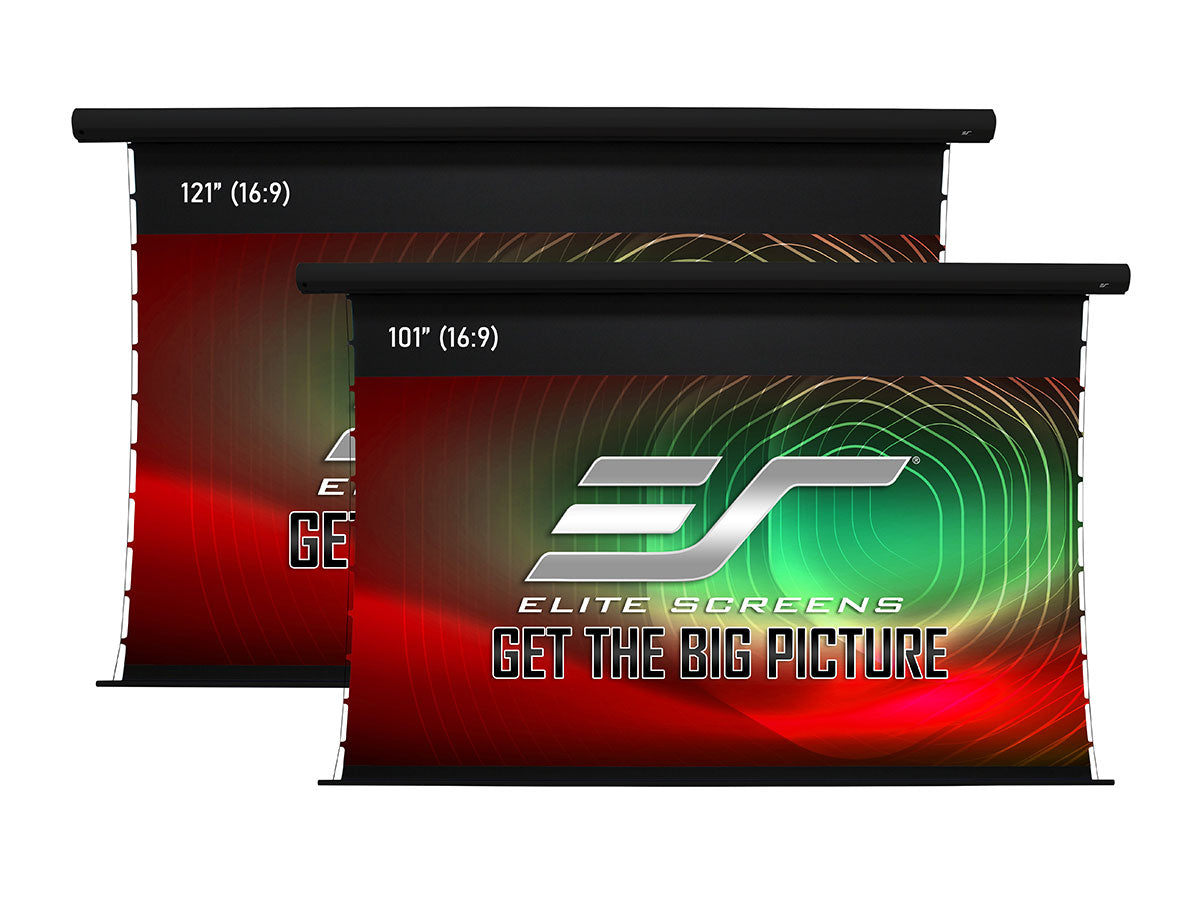

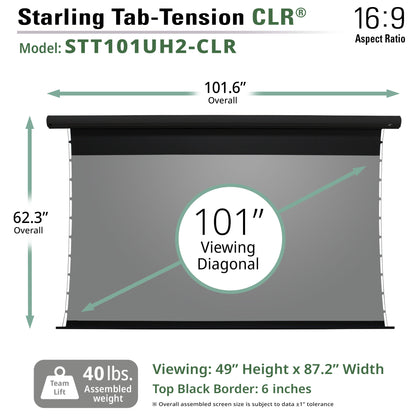

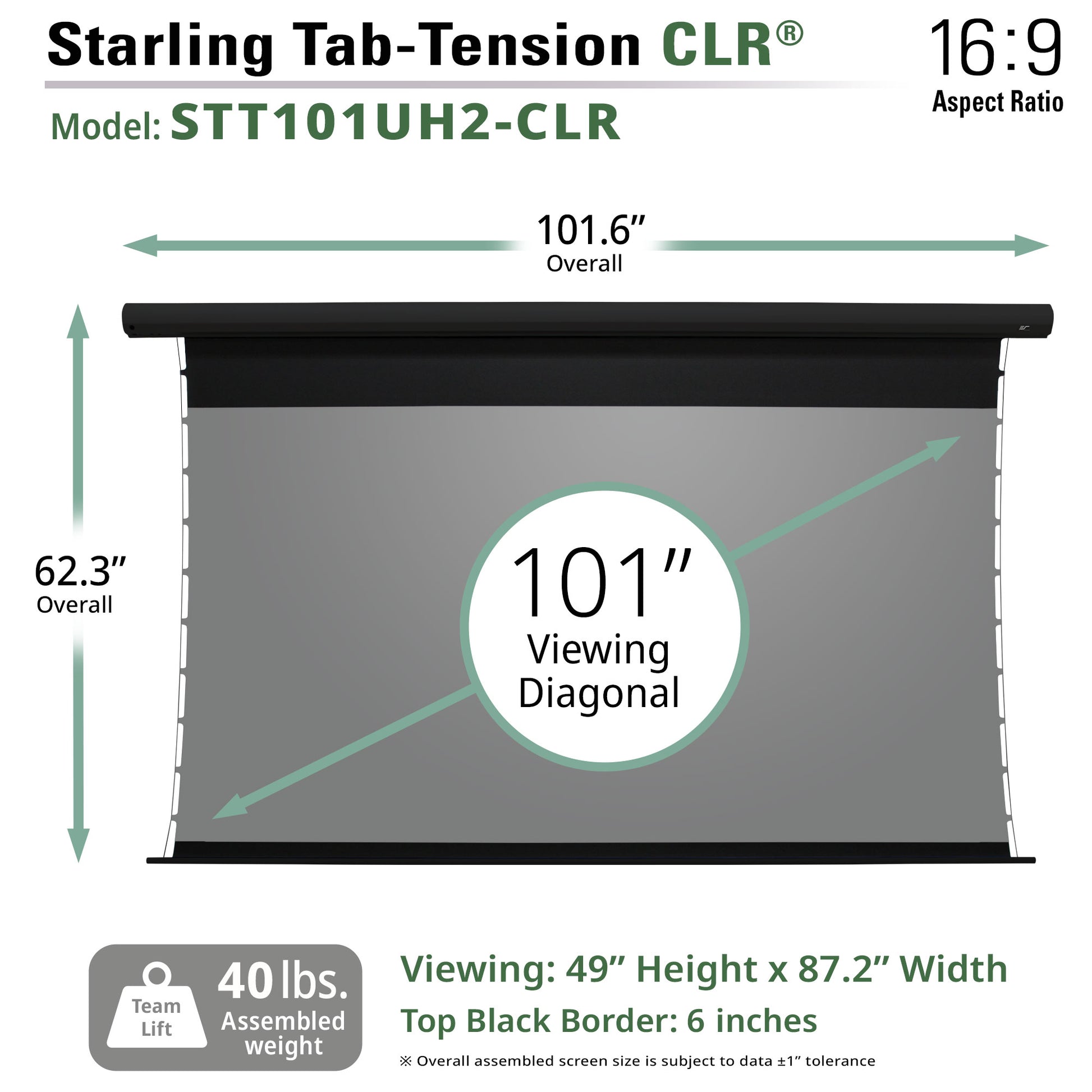

• Available in the following range of diagonal sizes:
  101″ and 121″ in 16:9 aspect ratio

Controls, Design and Operation

• Flush wall/ceiling mounts permit wood stud installation and allow screen to slide horizontally for proper centering

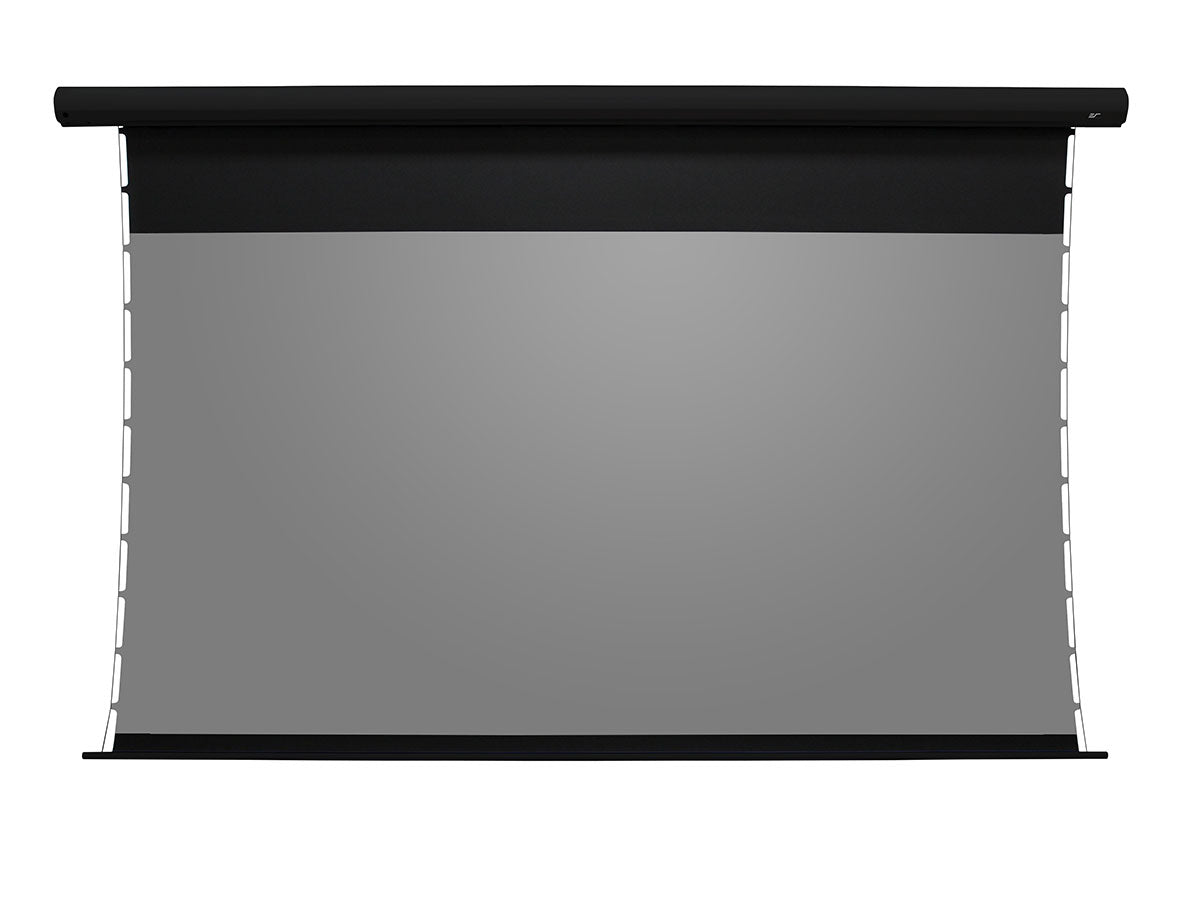

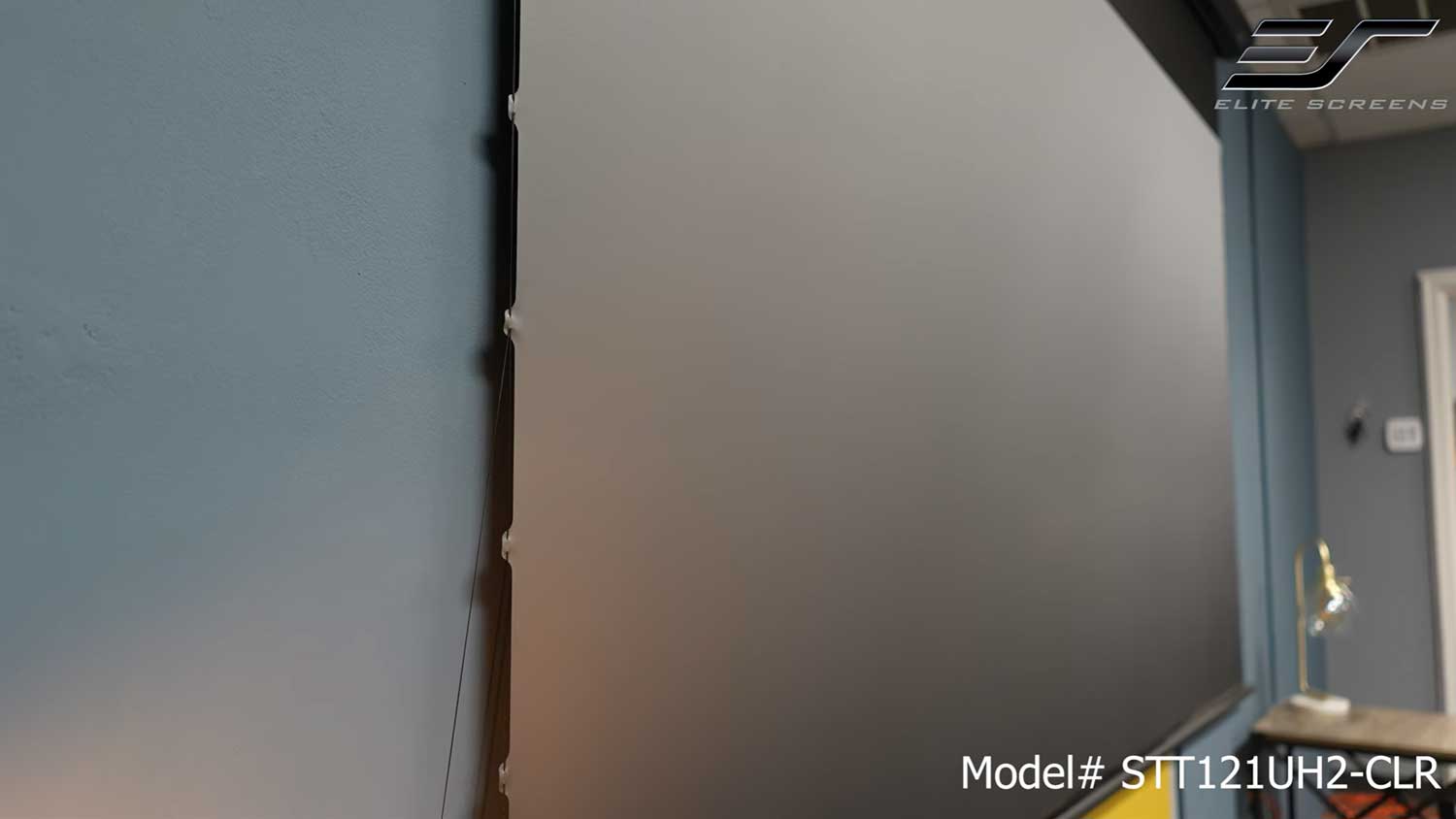

• Tab-tension design helps maintain a flat, taut, and ripple-free projection surface
• Project from a short distance without shadowing the picture

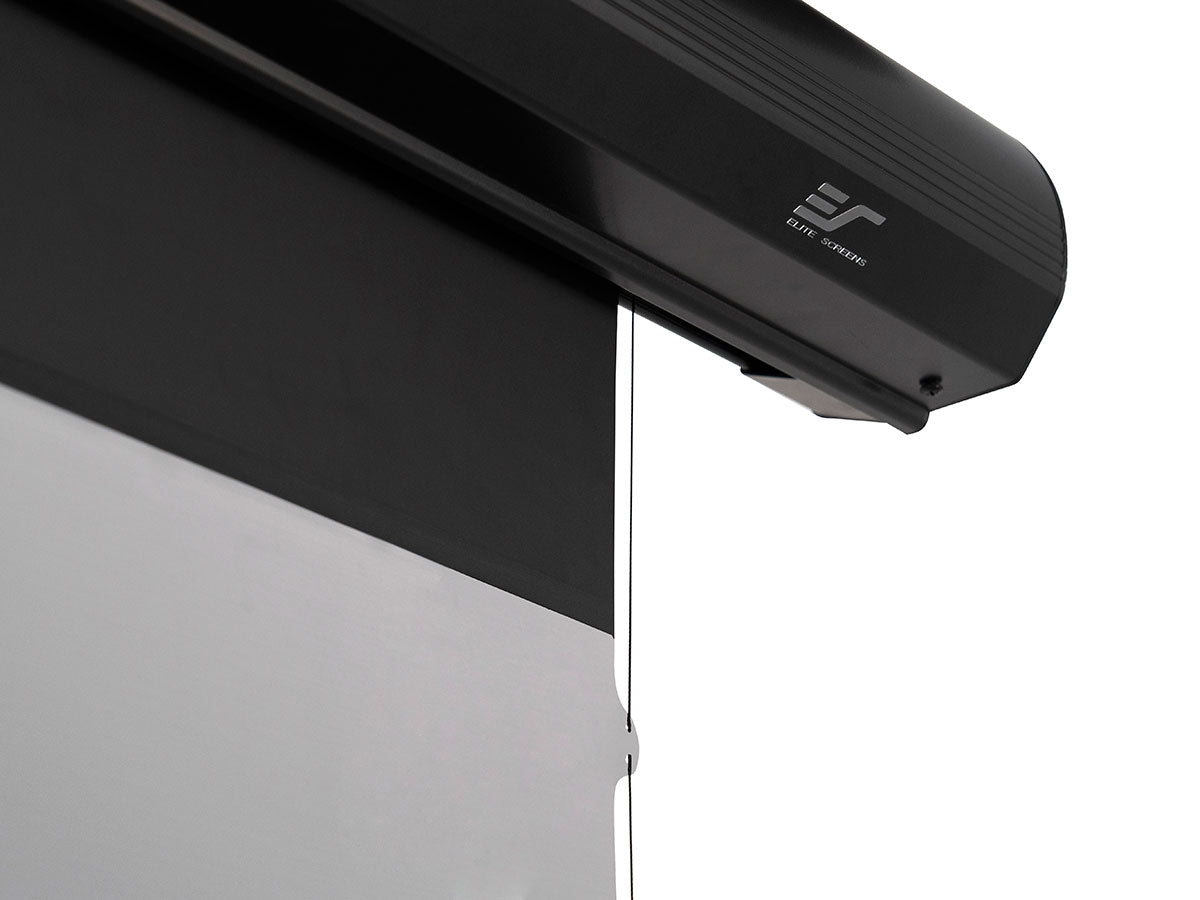

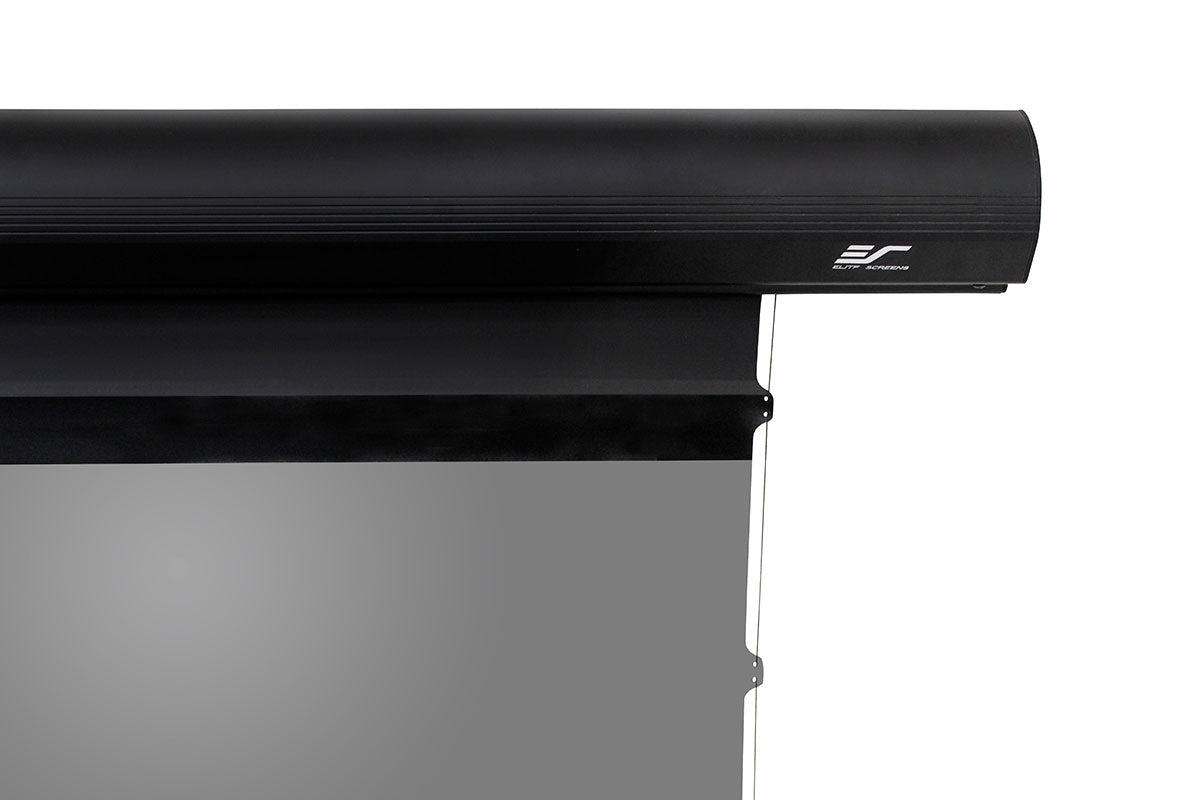

• Curved aluminum enamel black case is moisture resistant
• Plug & Play design with built-in low voltage control system, no hardwire installation required

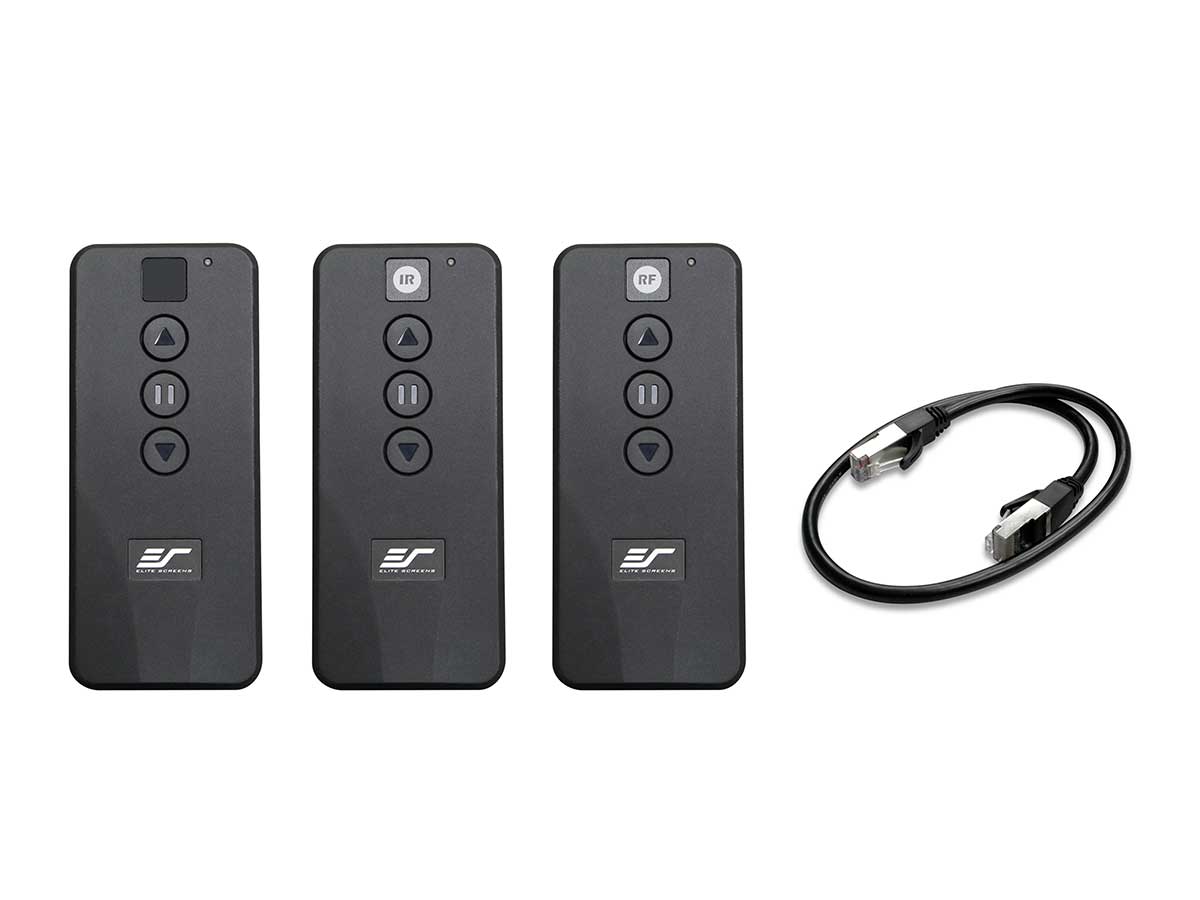

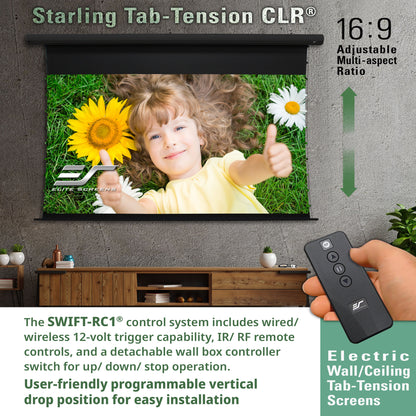

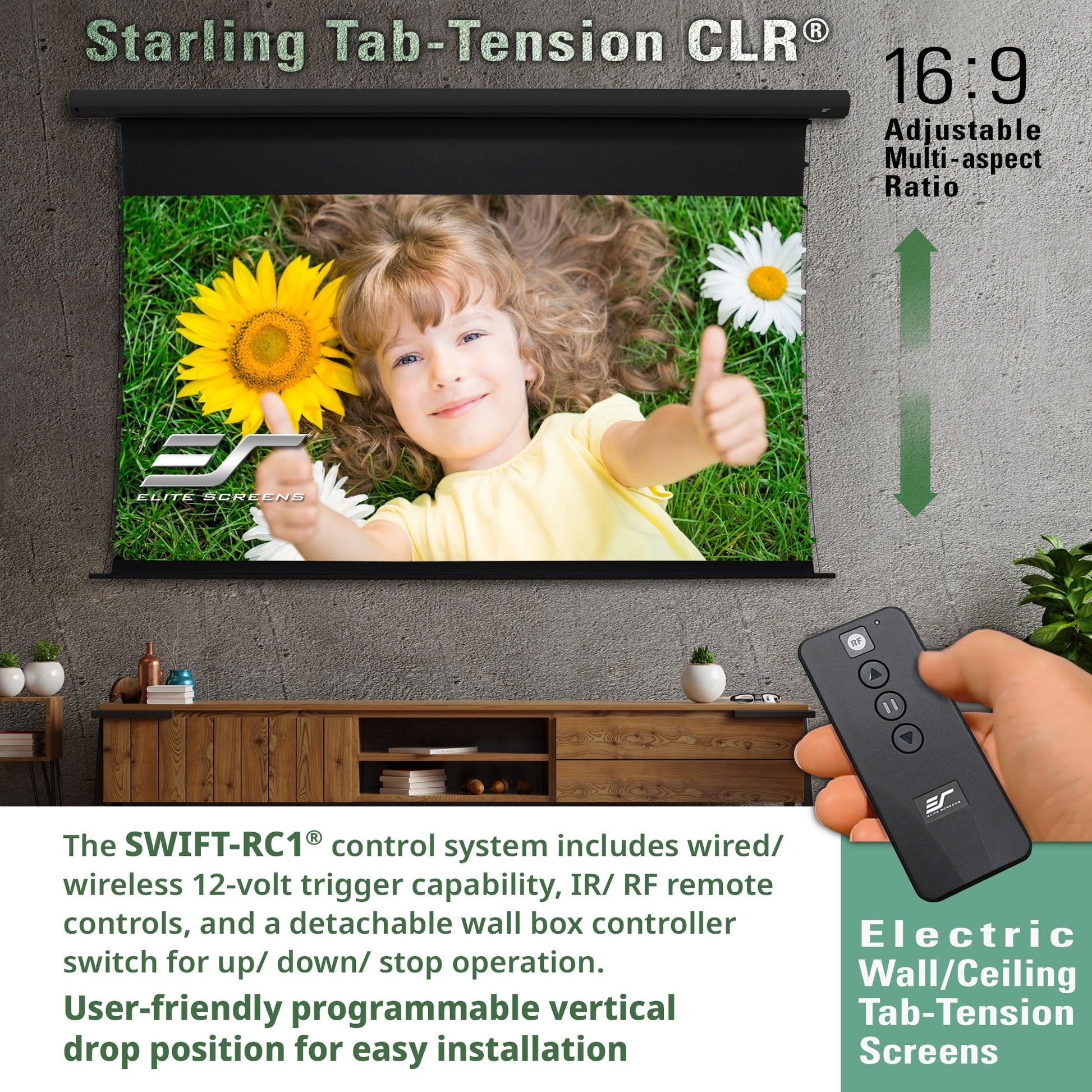

• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation (RC1 Version Only)
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference (RC1 Version Only)
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
  • Wired 12v trigger capability via wall box controller (RC1 Version Only)
  • Wireless 12v trigger capability via Radio Frequency remote control
