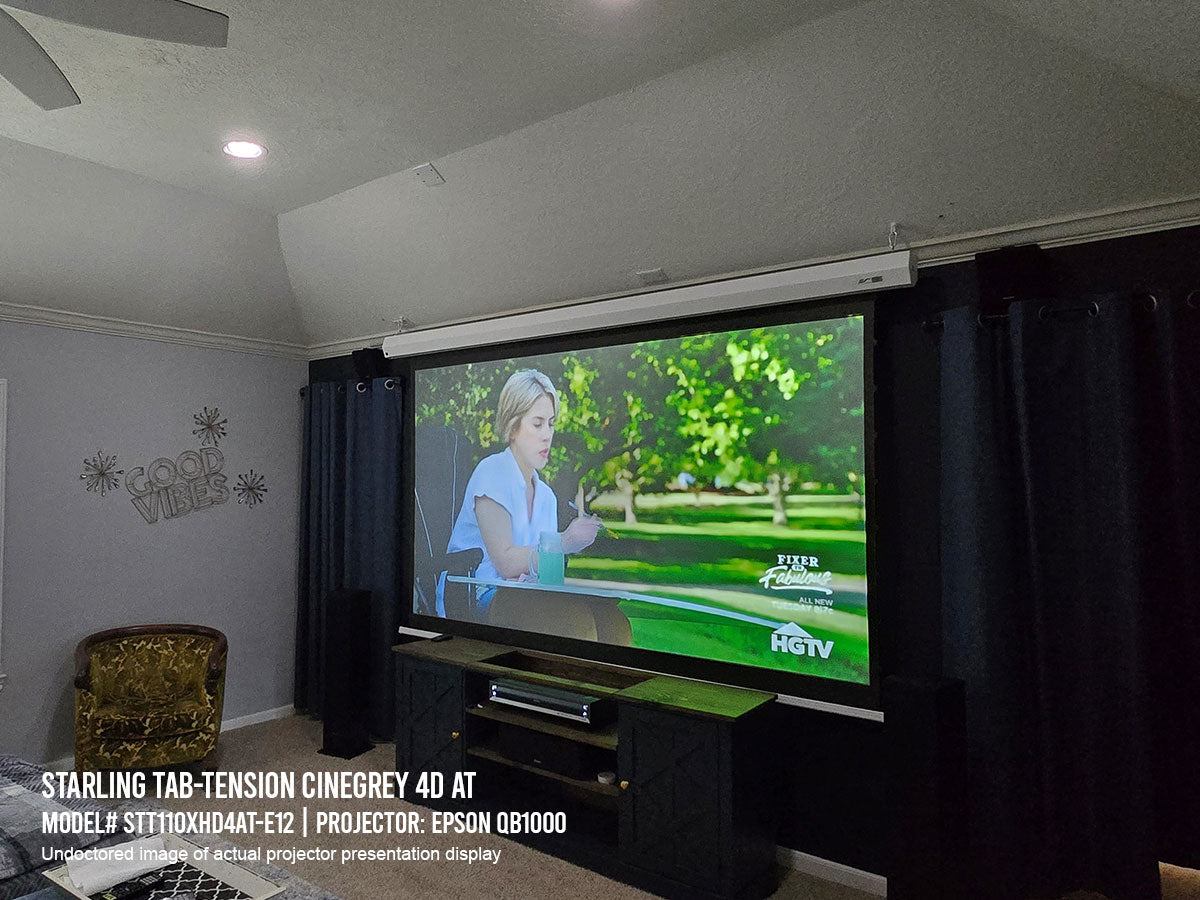

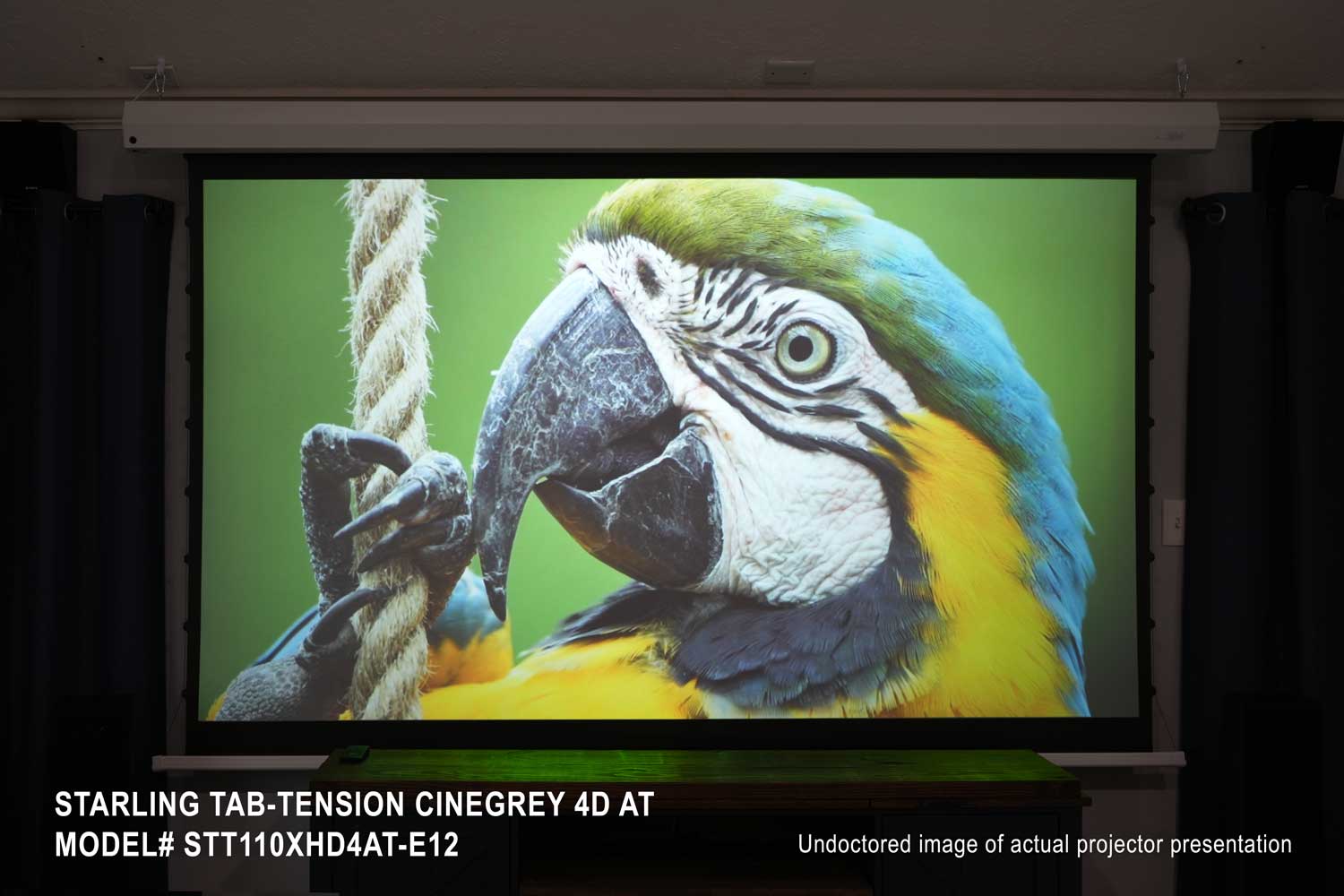

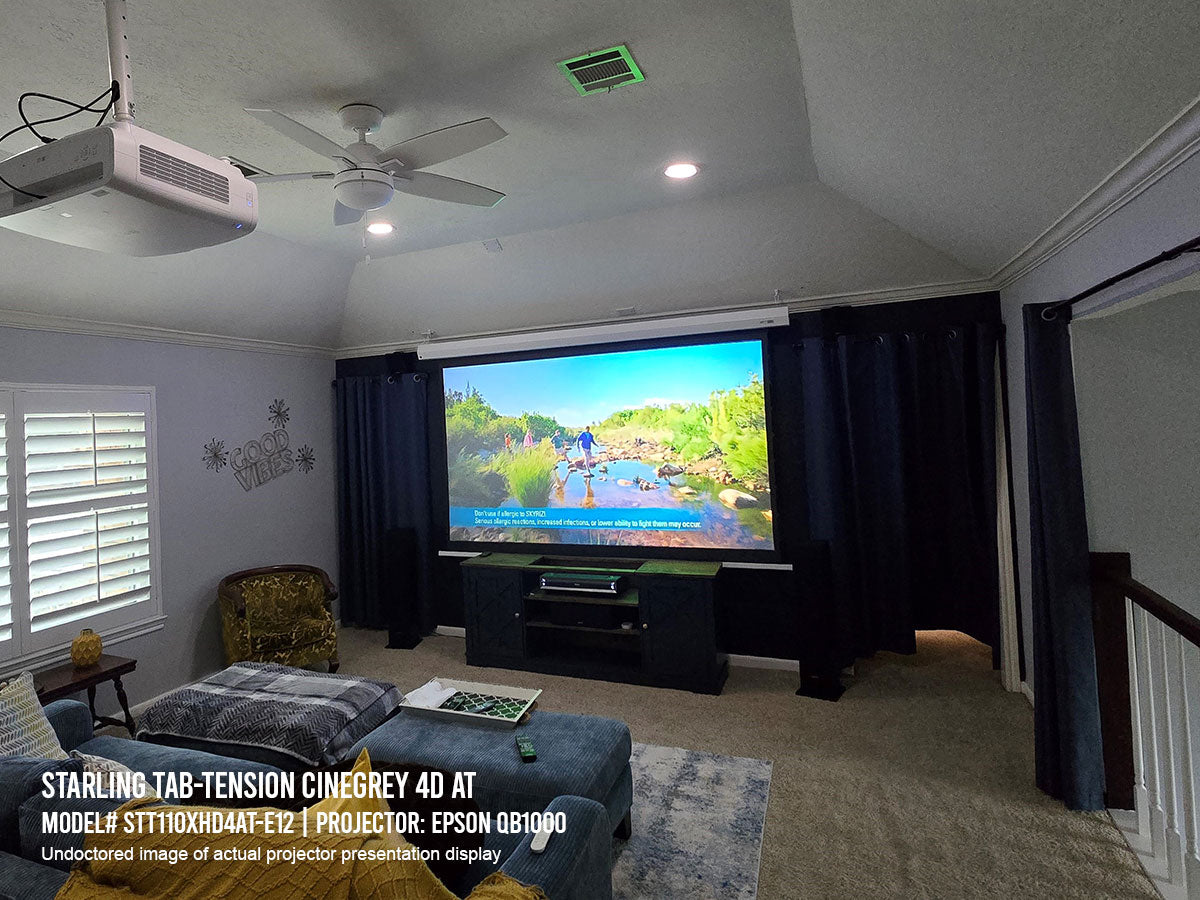

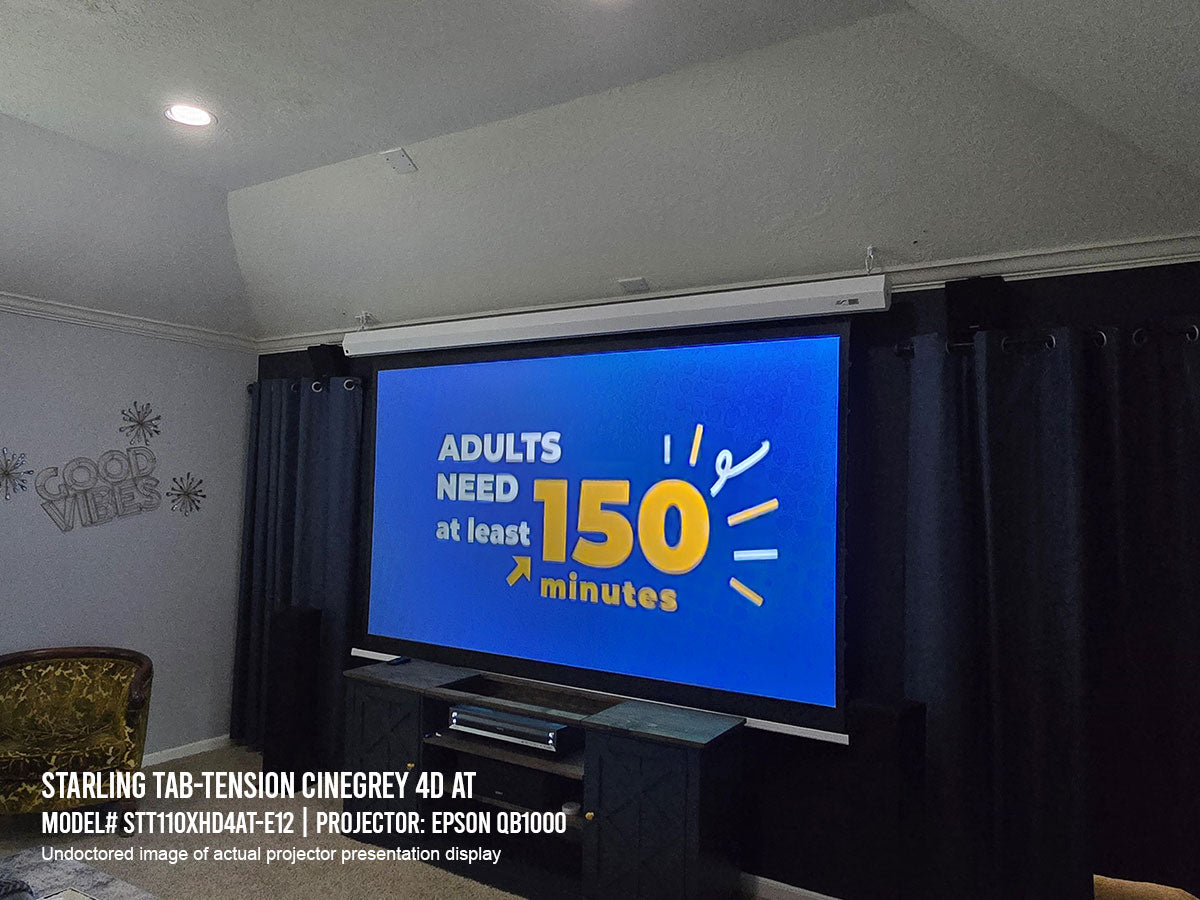

[Elite Screens] Starling Tab-Tension CineGrey 4D AT Series

Description

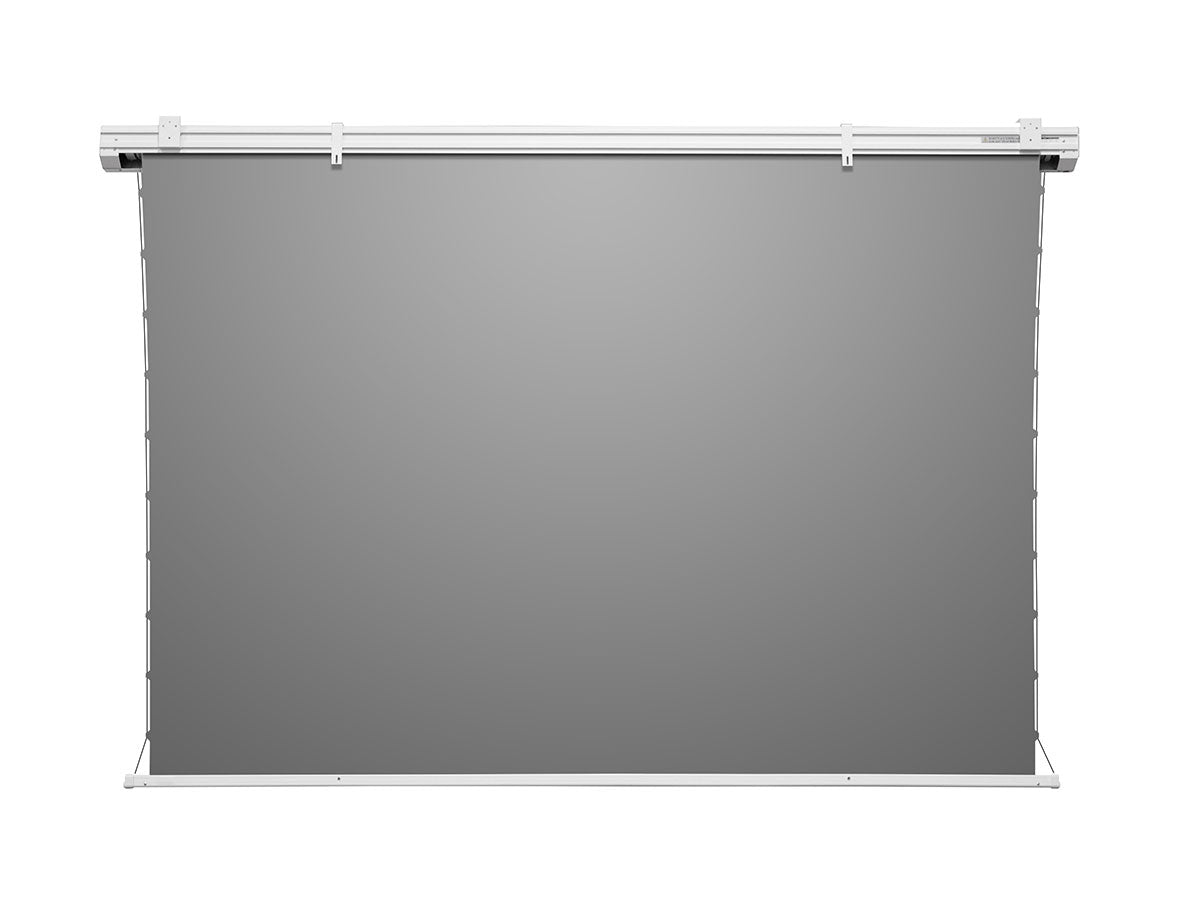

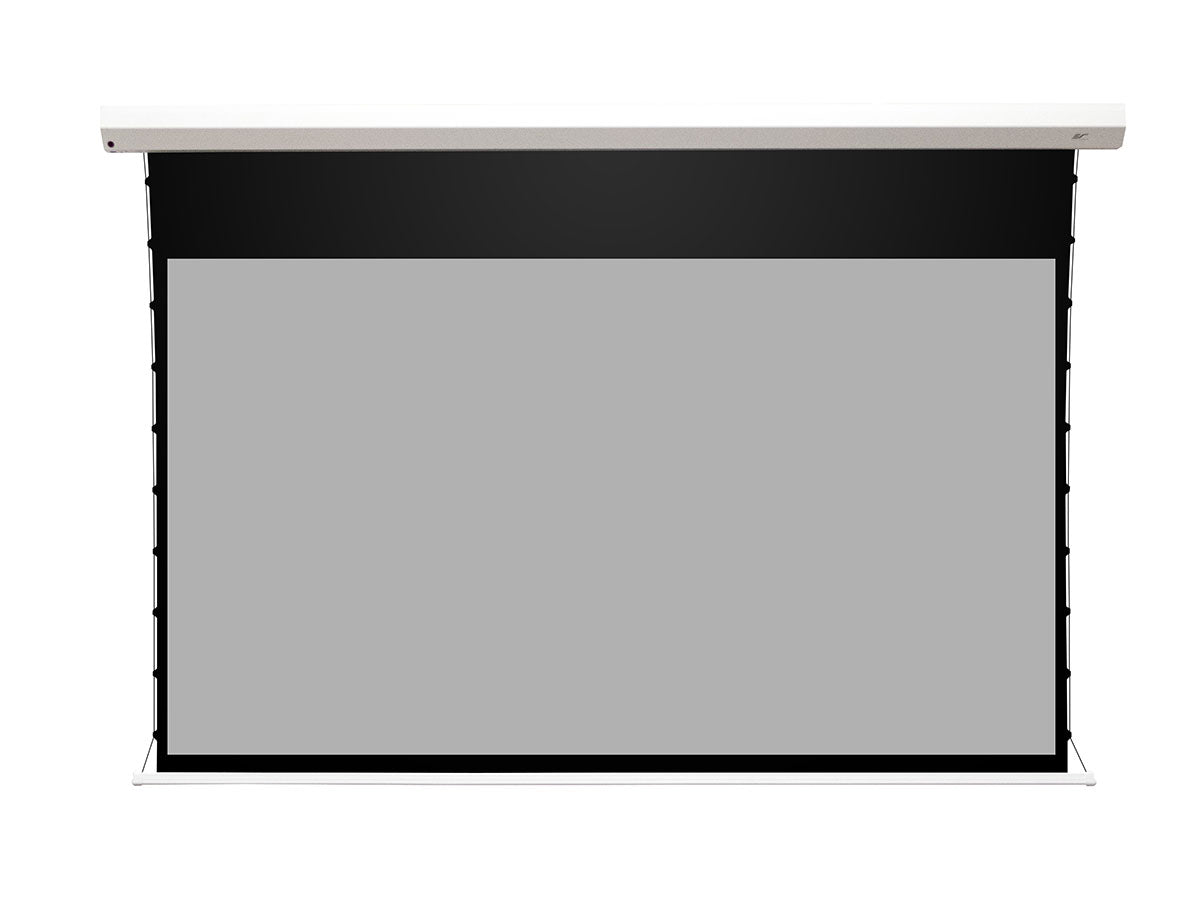

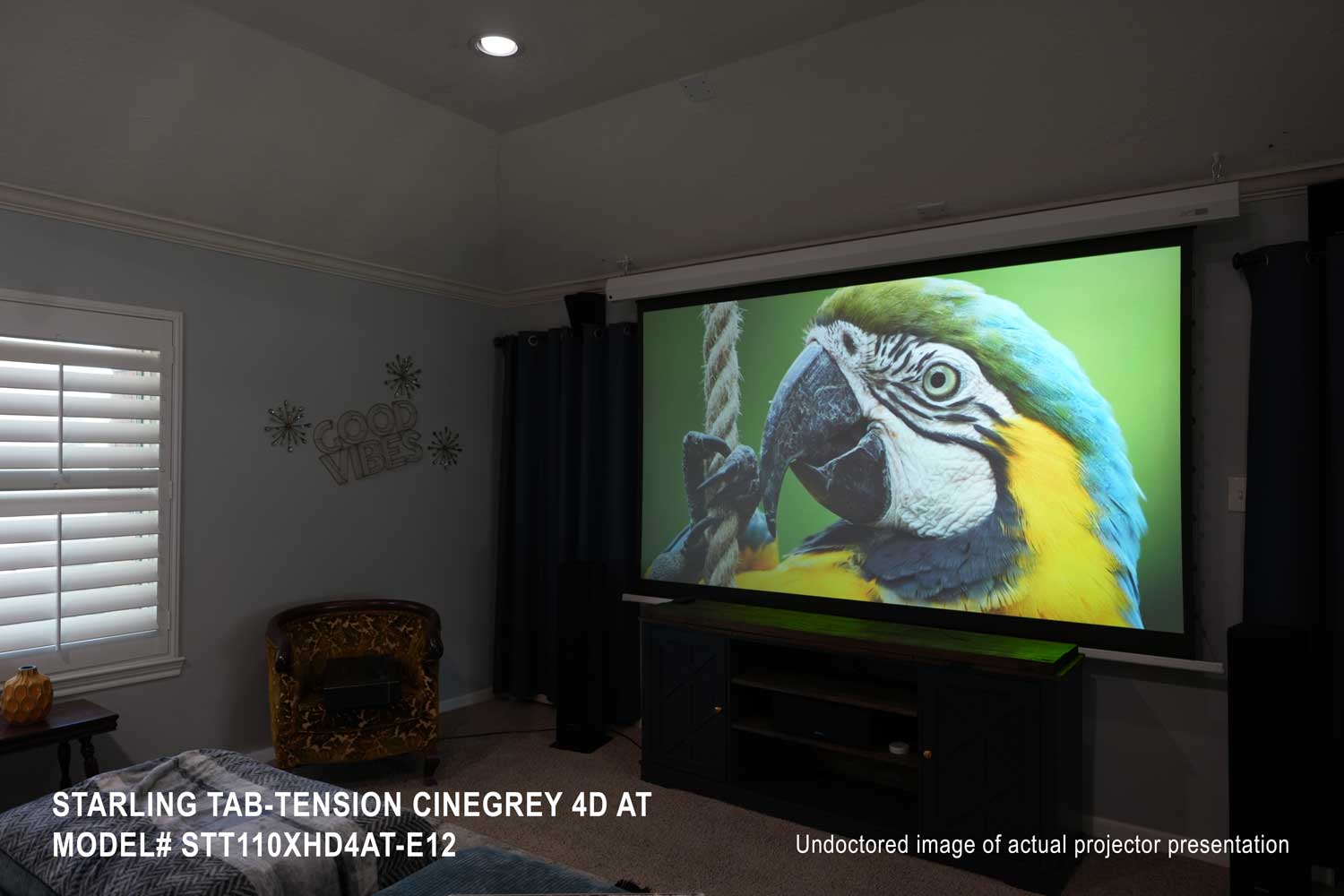

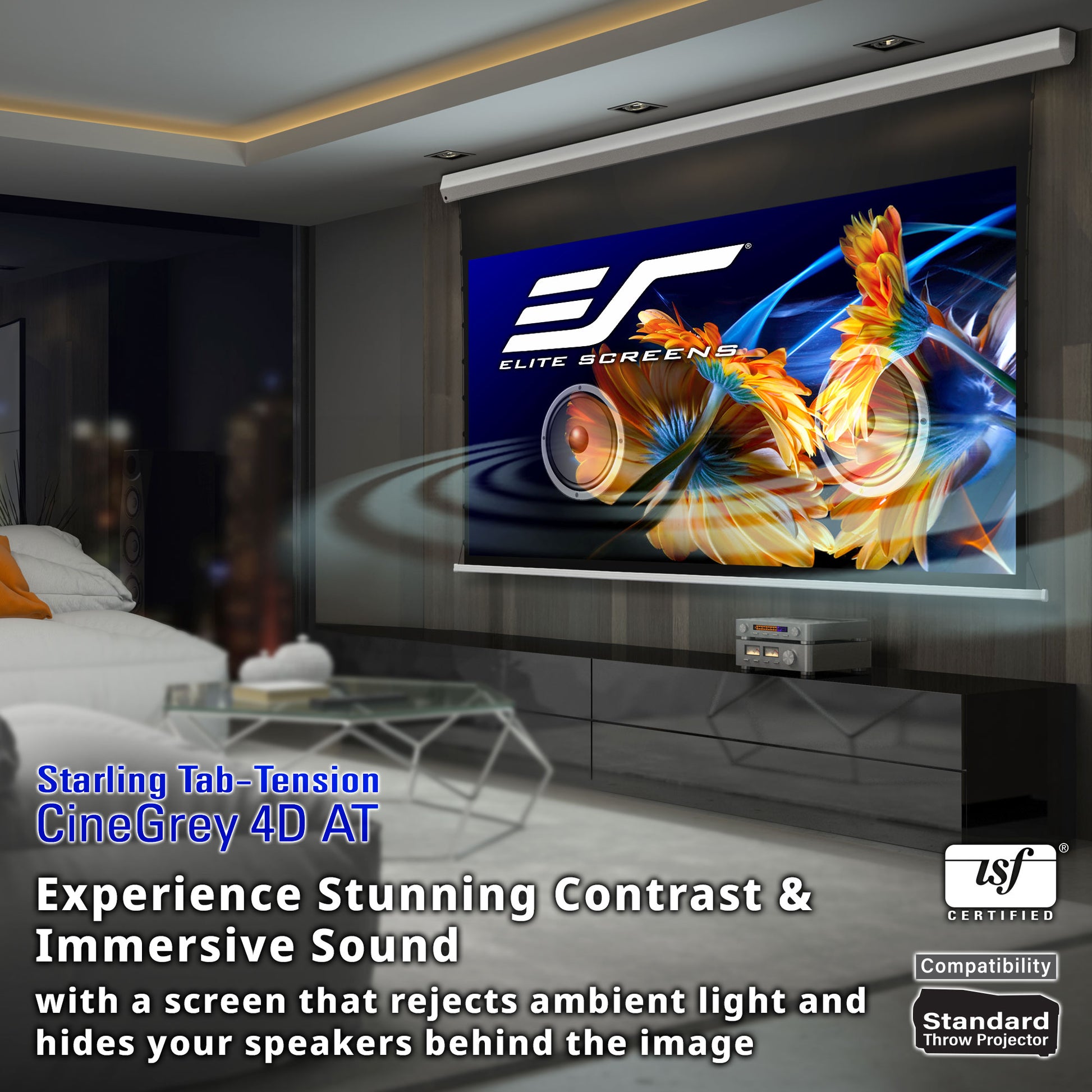

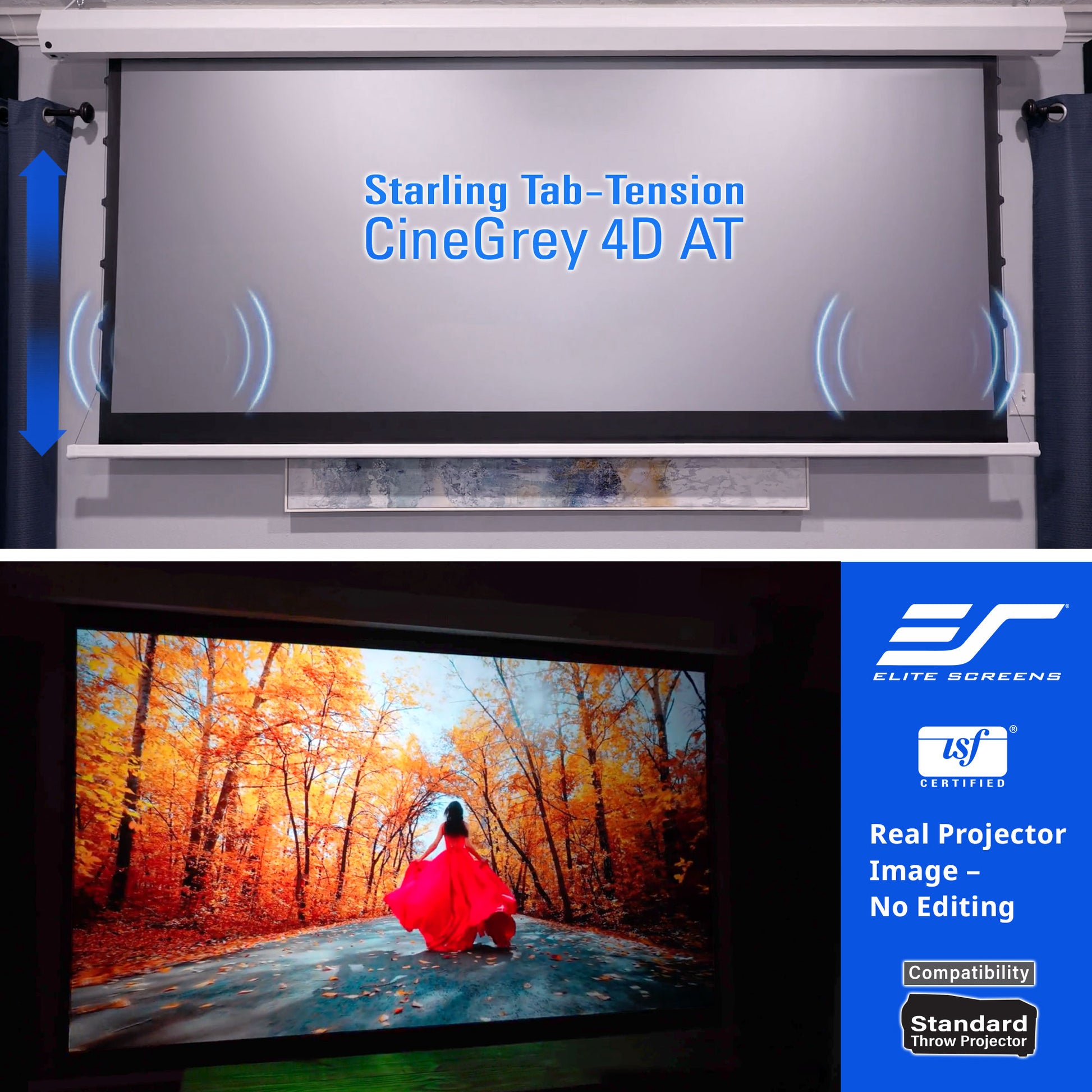

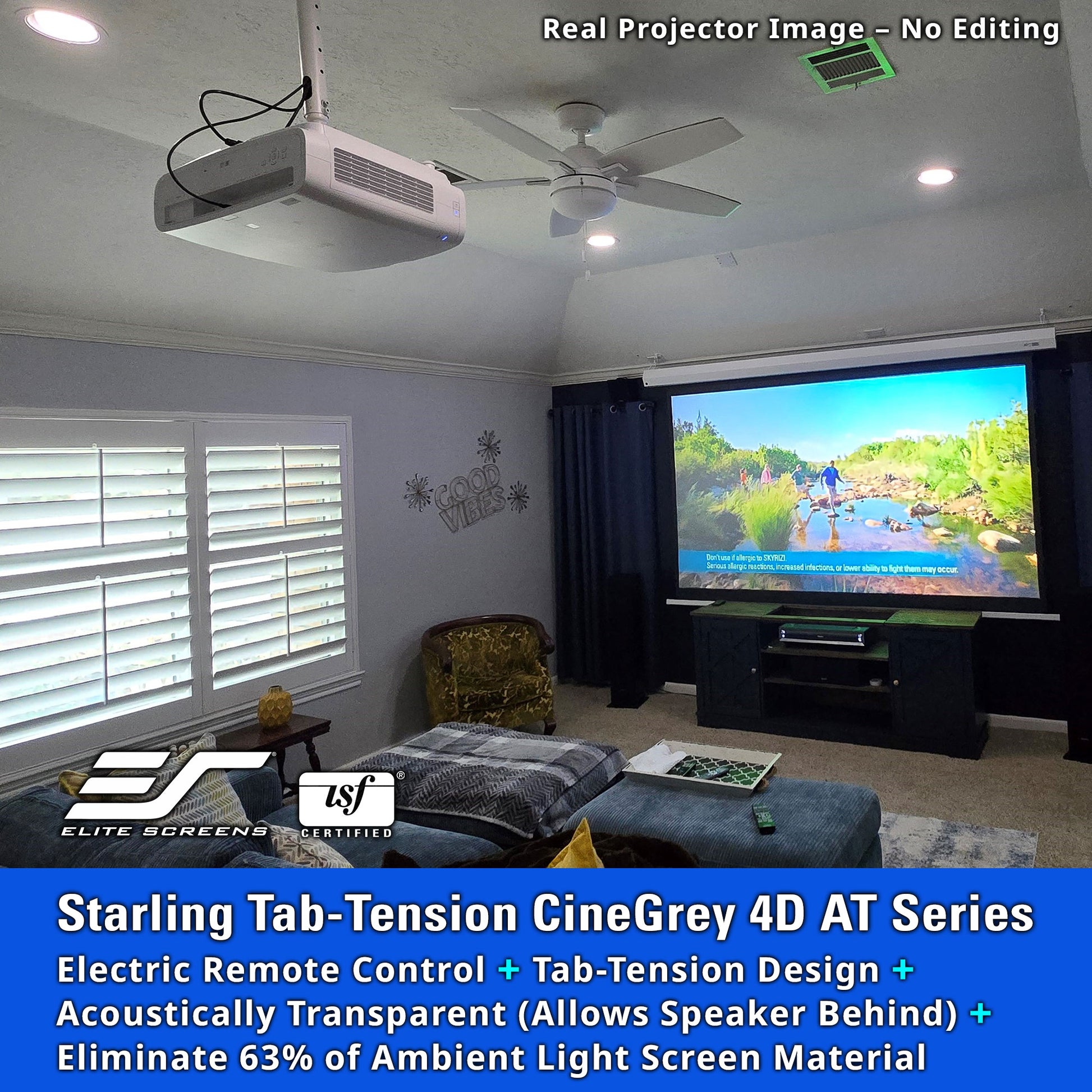

The Starling Tab-Tension CineGrey 4D AT is an electric tab-tensioned motorized screen that is draped with an acoustically transparent ambient light rejecting front projection surface. The material allows for speaker placement behind the screen while rejecting ceiling/ambient light to provide high-contrast images.

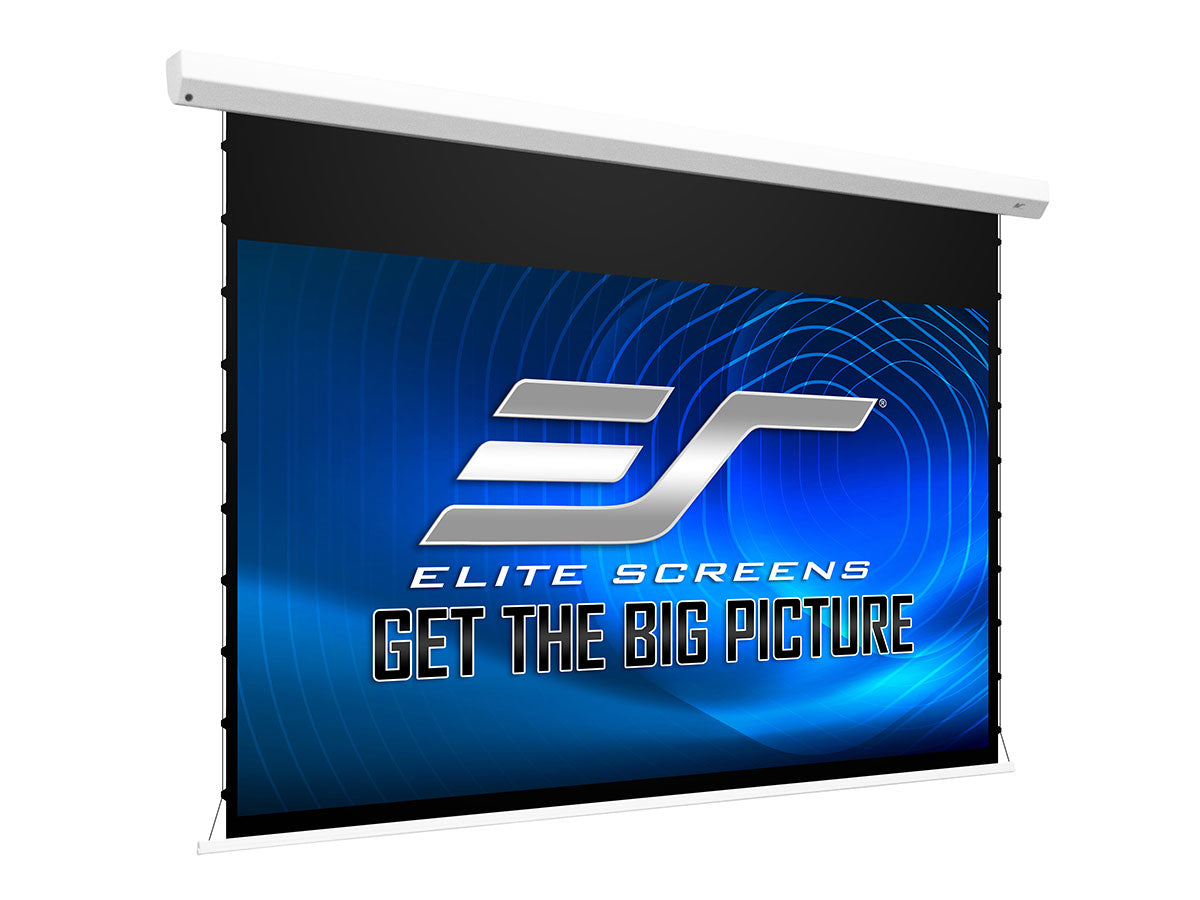

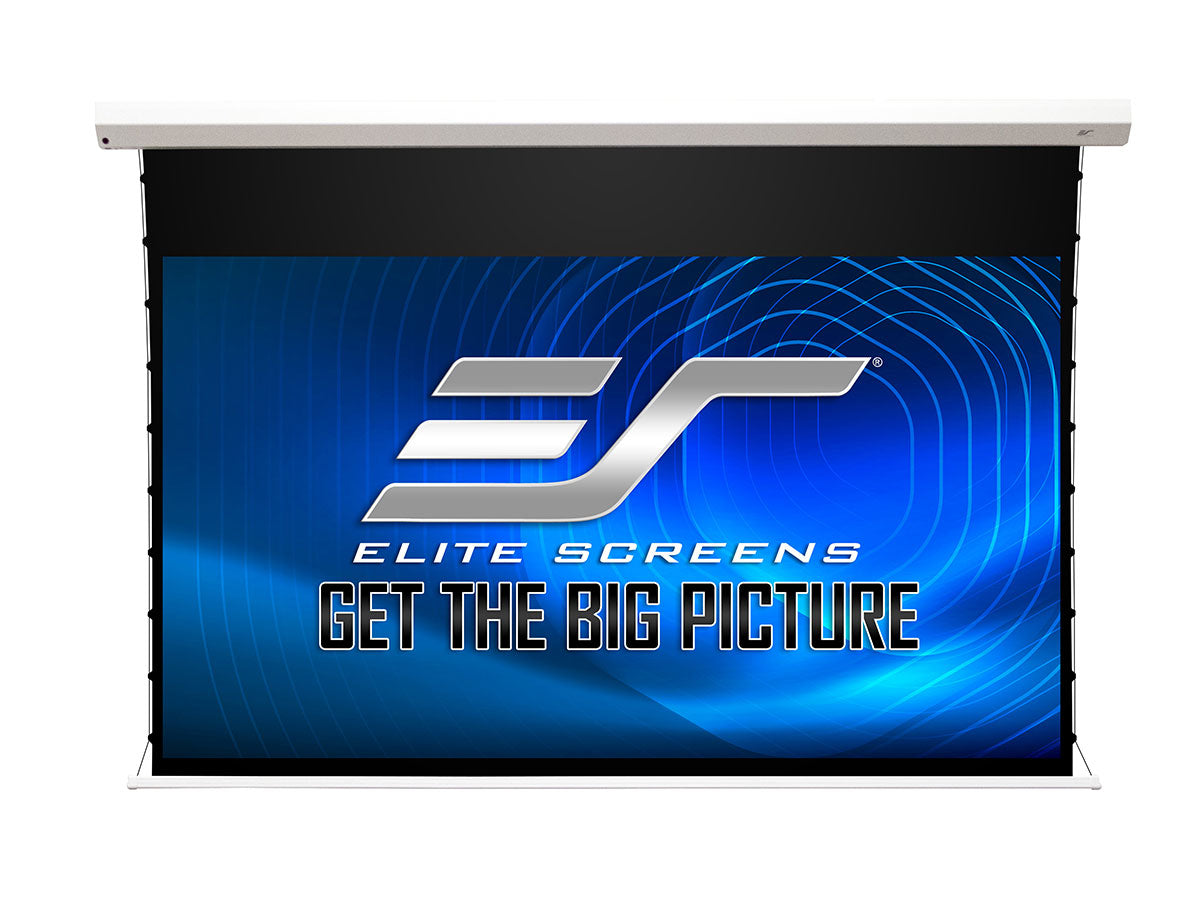

Its elegant white housing fits any décor and includes a pair of wall/ceiling brackets that attach to the back for a quick and easy installation for wood stud alignment.

Product Features

Screen Material

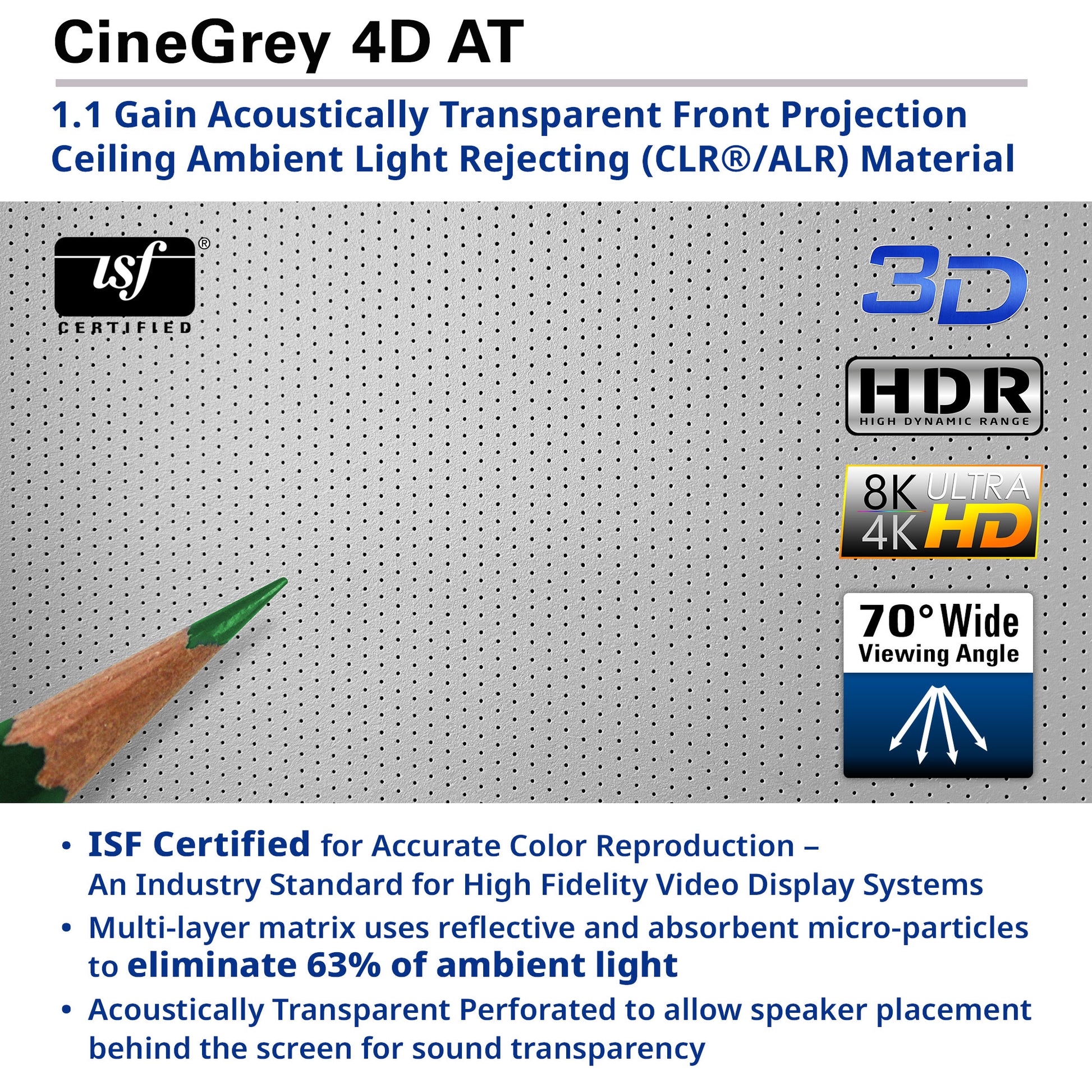

• CineGrey 4D AT 1.1 Gain Acoustically Transparent Ceiling Ambient Light Rejecting Material
• Angular Reflective CLR/ALR Front Projection Surface for Standard Throw Projectors (Not compatible with Ultra-Short/Short-Throw Projectors)
• Multi-layer matrix uses reflective and absorbent micro-particles to eliminate 63% ambient light

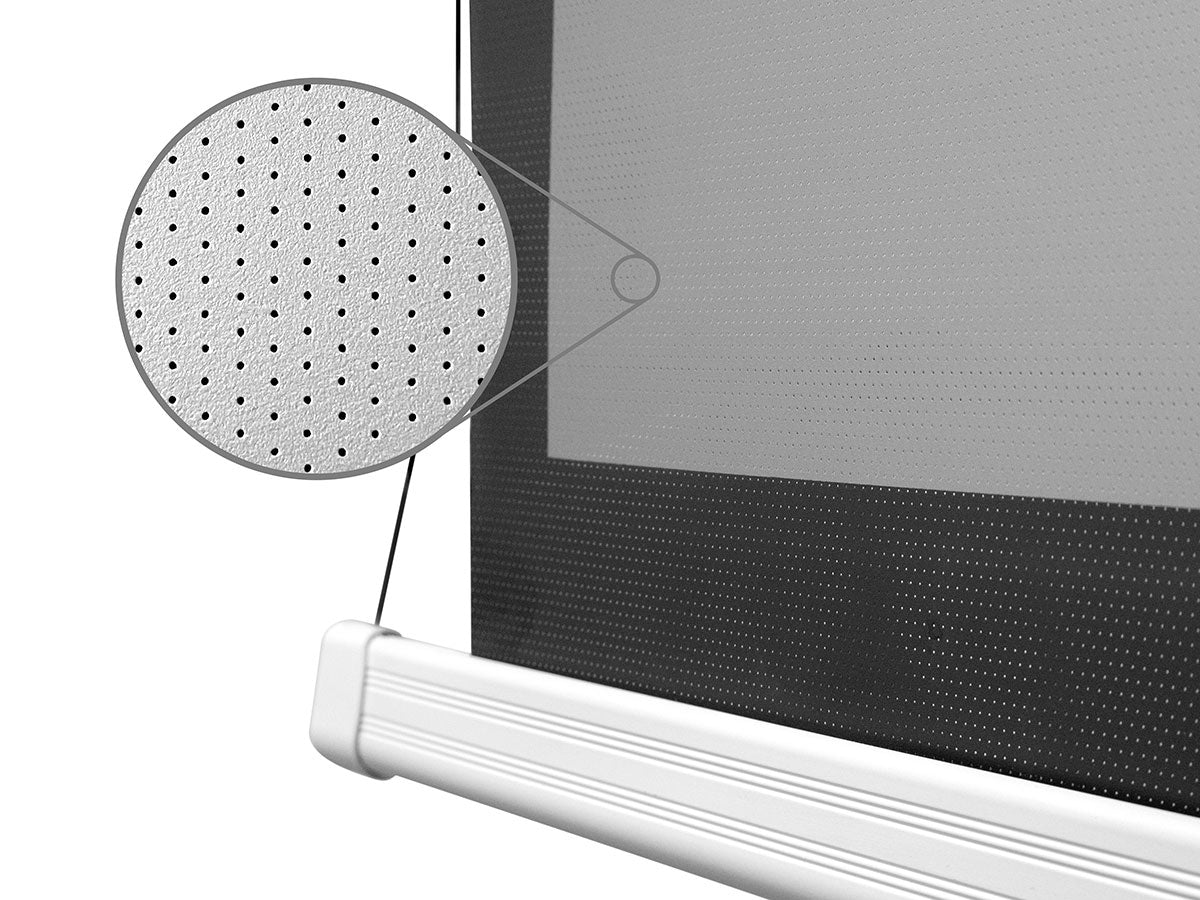

• Excellent sound transparency with minimal attenuation – 0.55mm perforations.

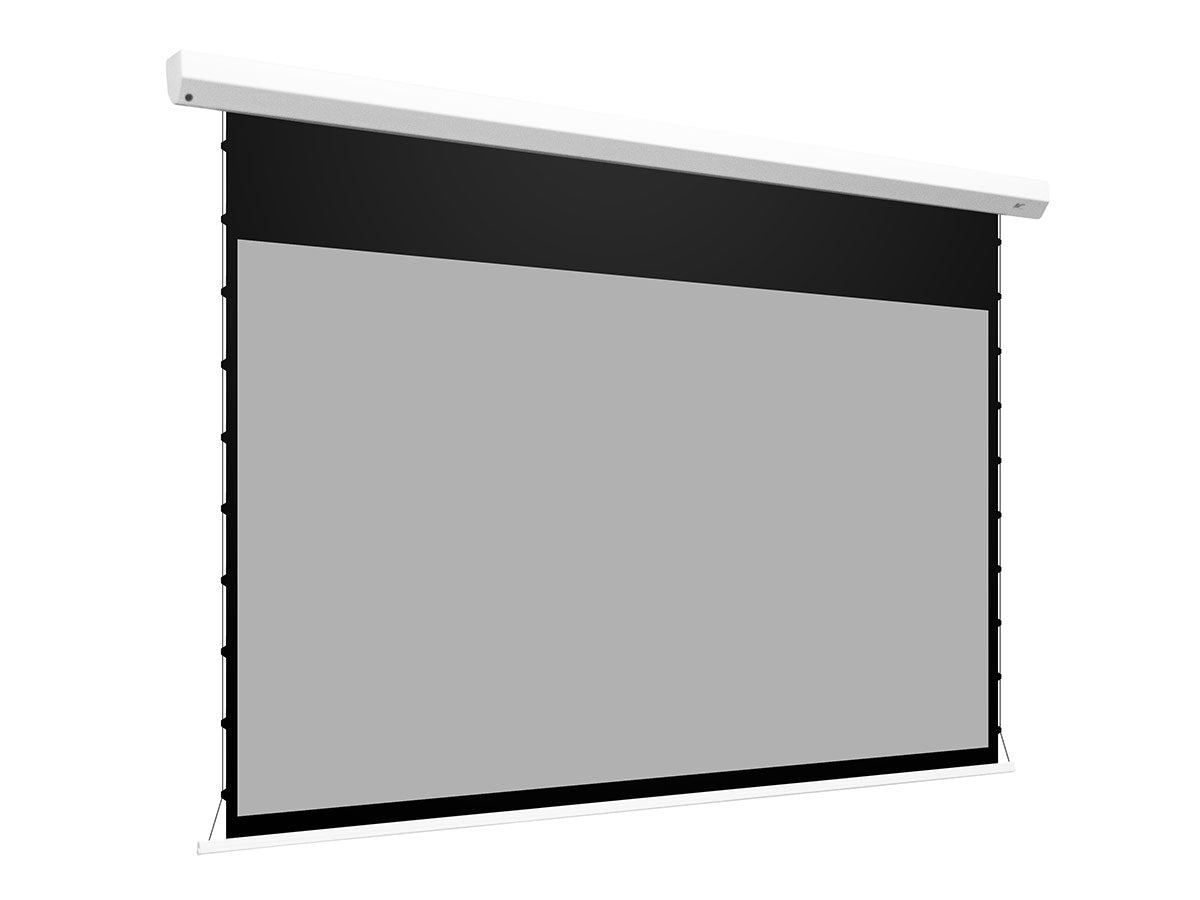

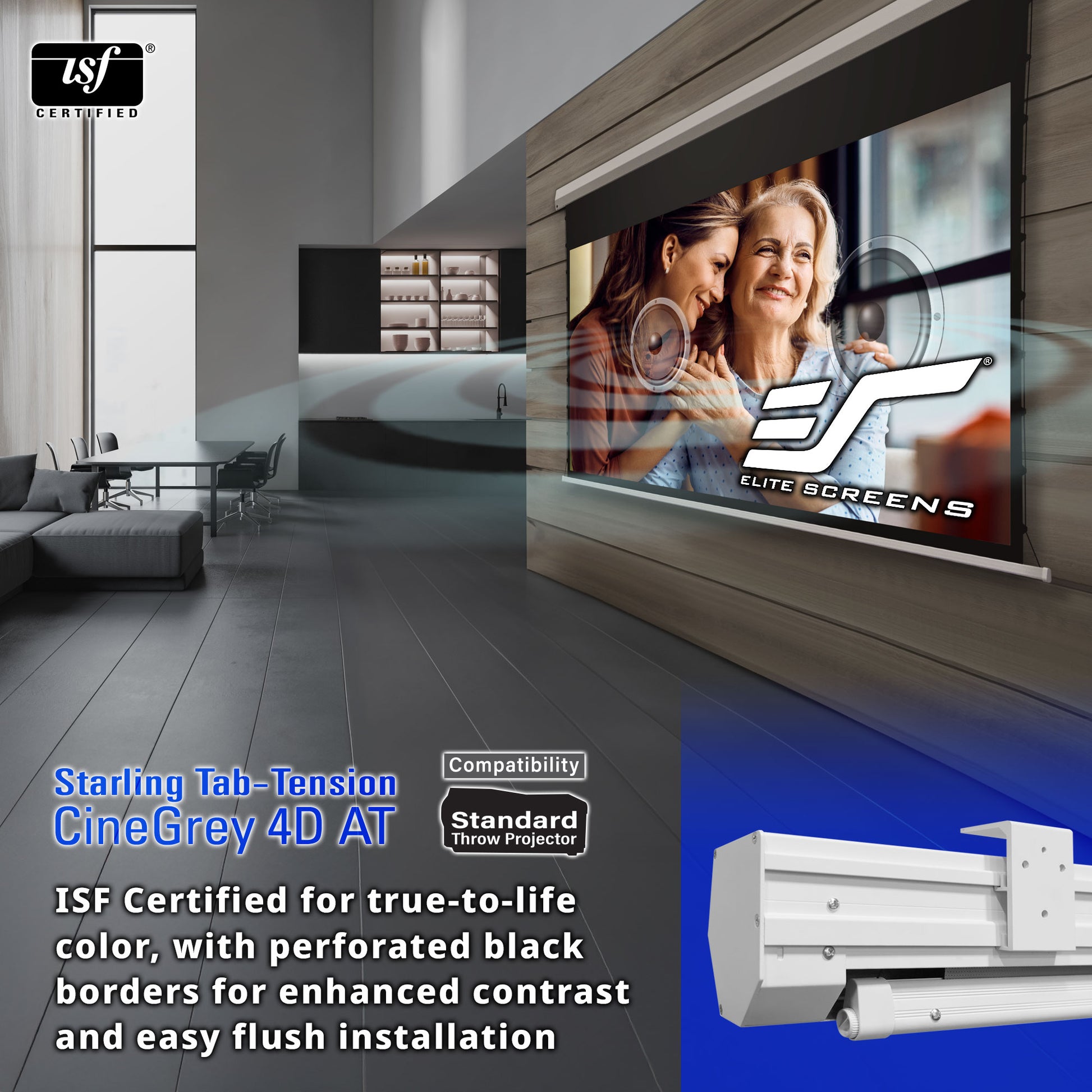

• 4-sided black masking borders enhance picture contrast and are also perforated
• ISF Certified for accurate color reproduction – An industry standard for high-fidelity video display systems
• 4K Ultra HD, HDR and Active 3D compatible

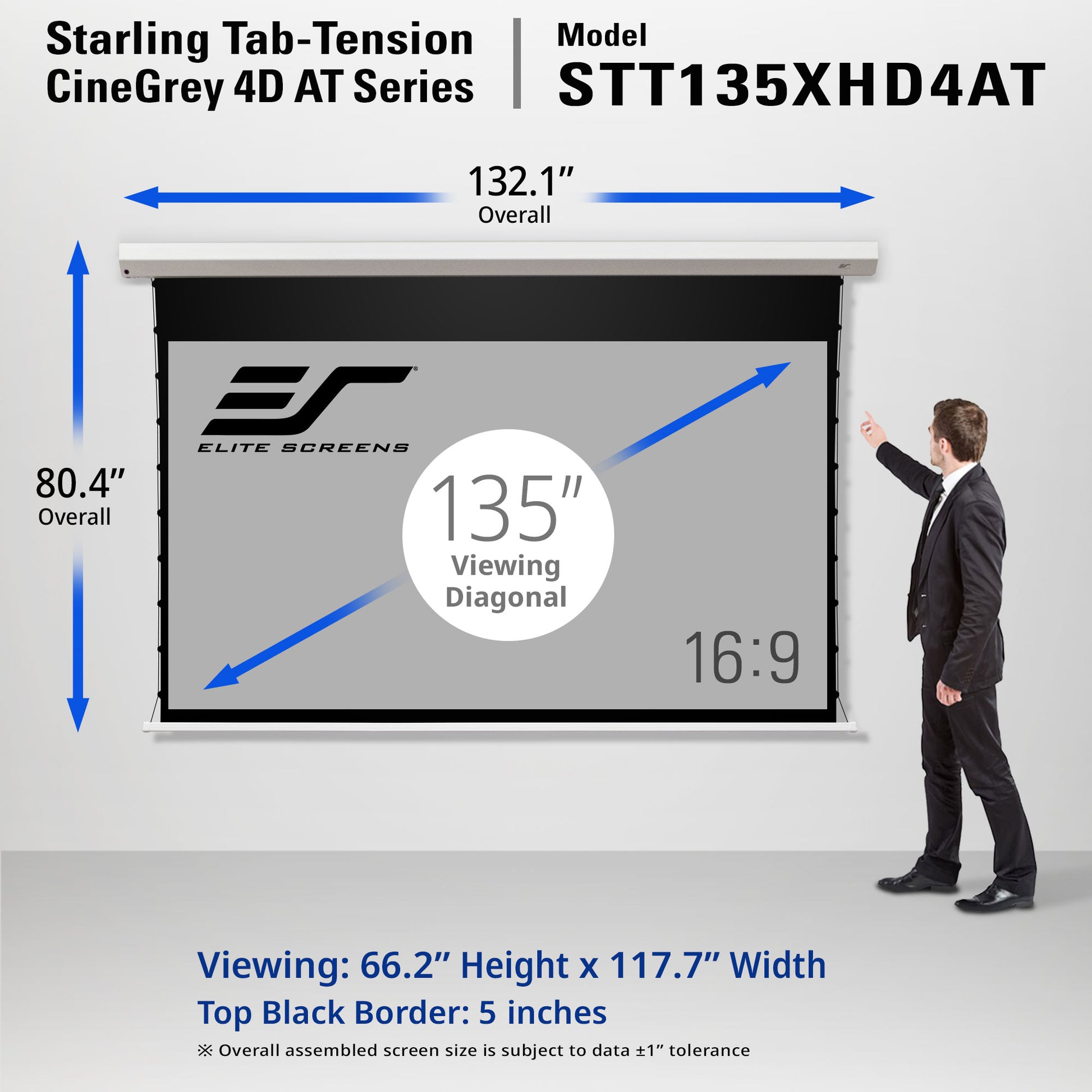

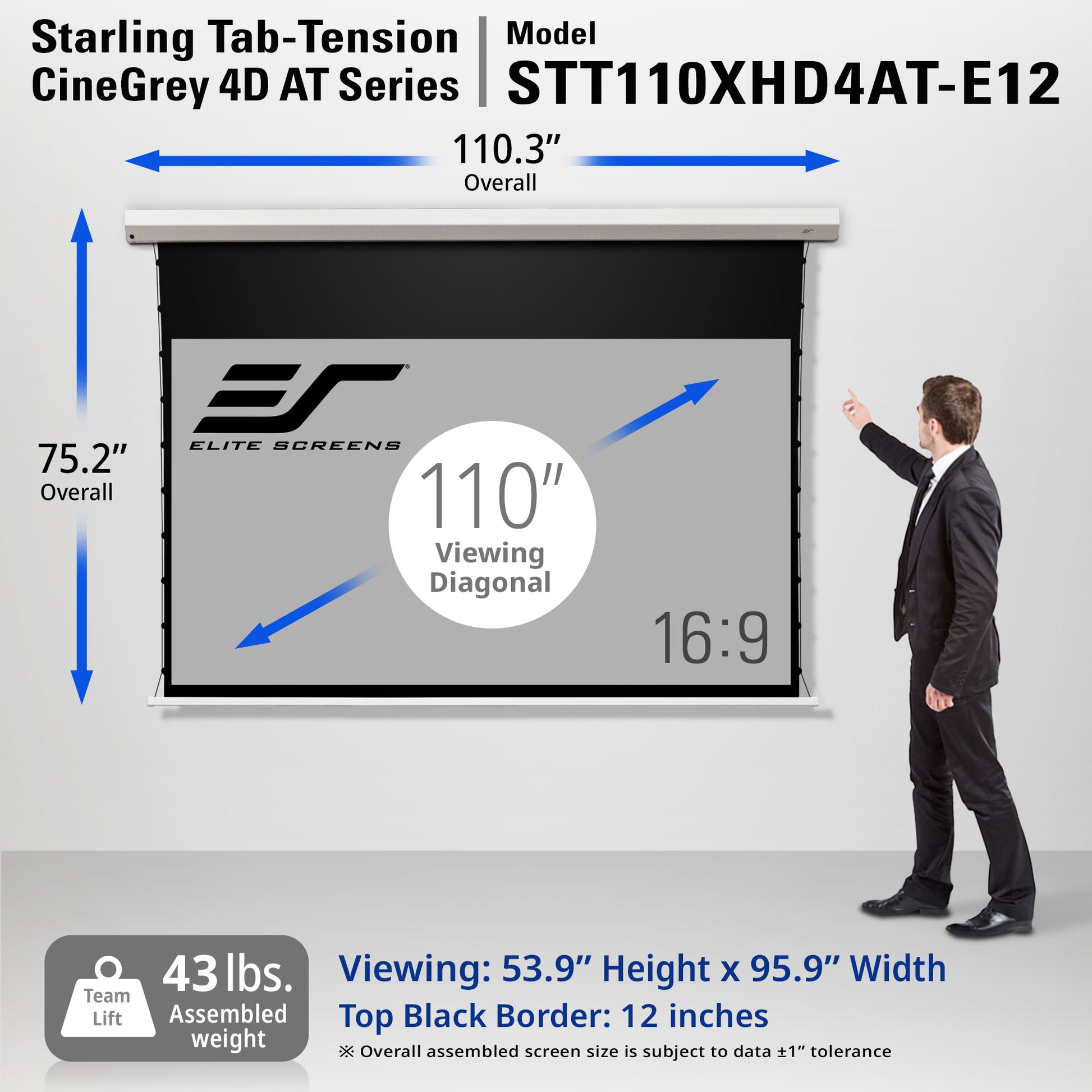

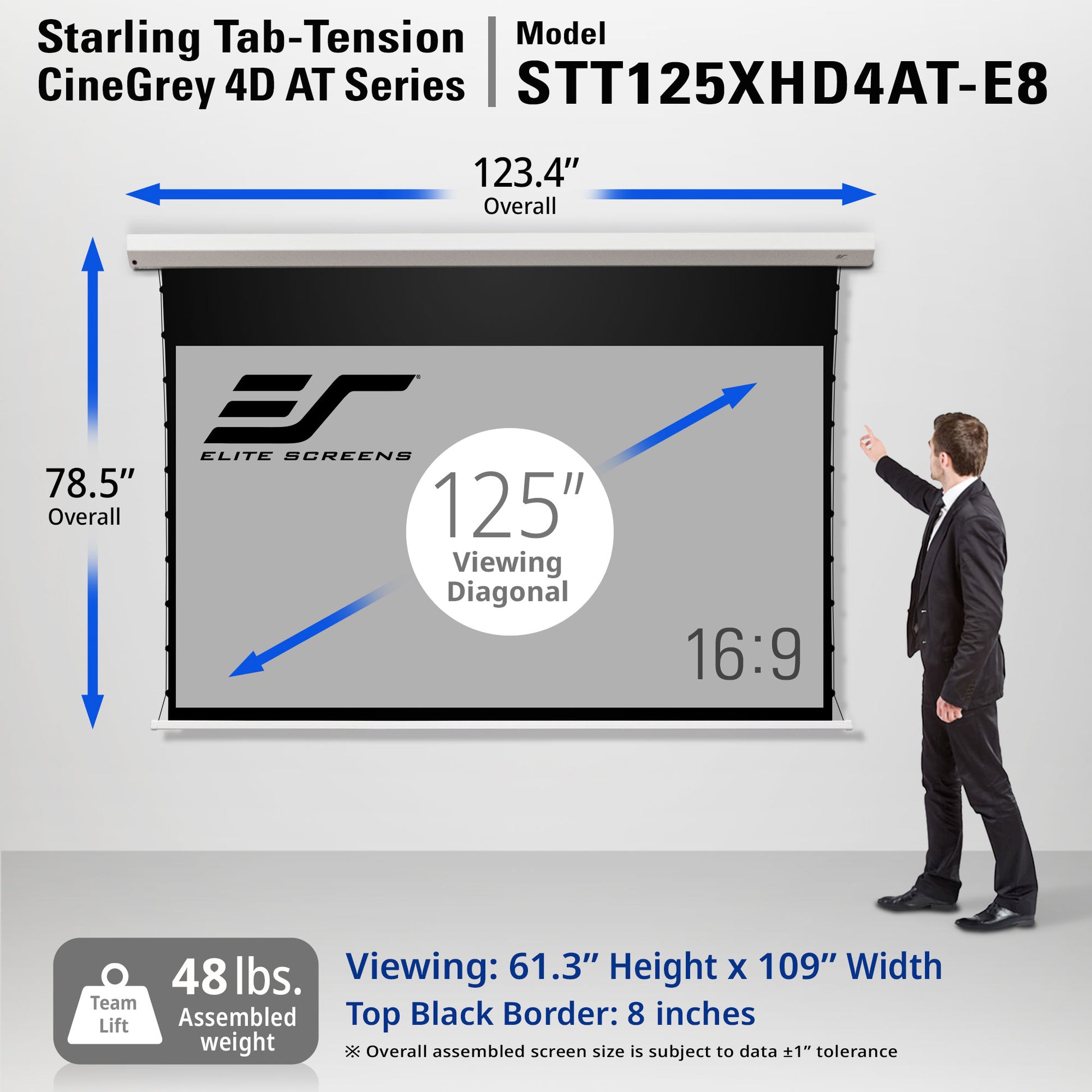

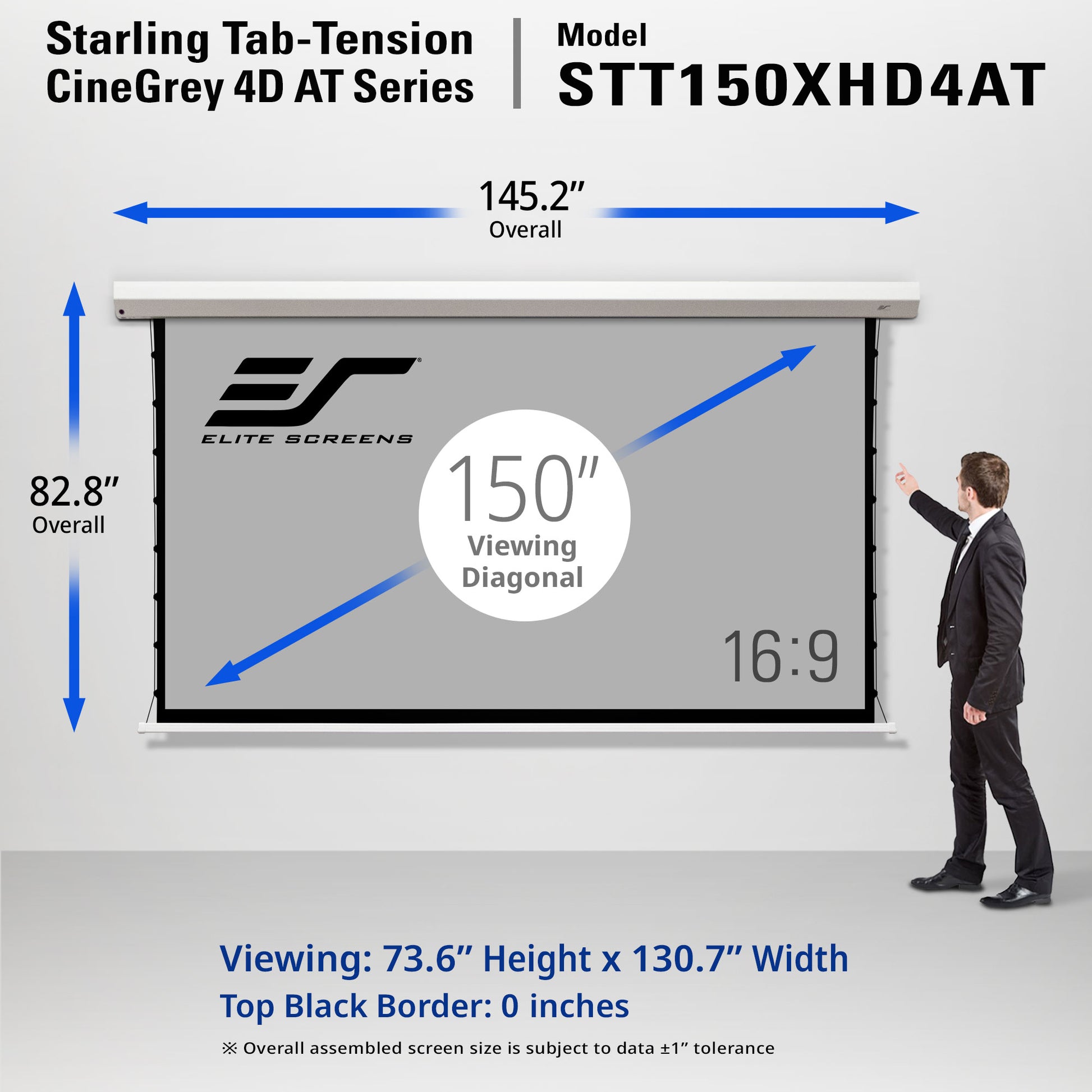

• Available in diagonal sizes: 110″ and 125″ in a 16:9 aspect ratio

Design and Installation

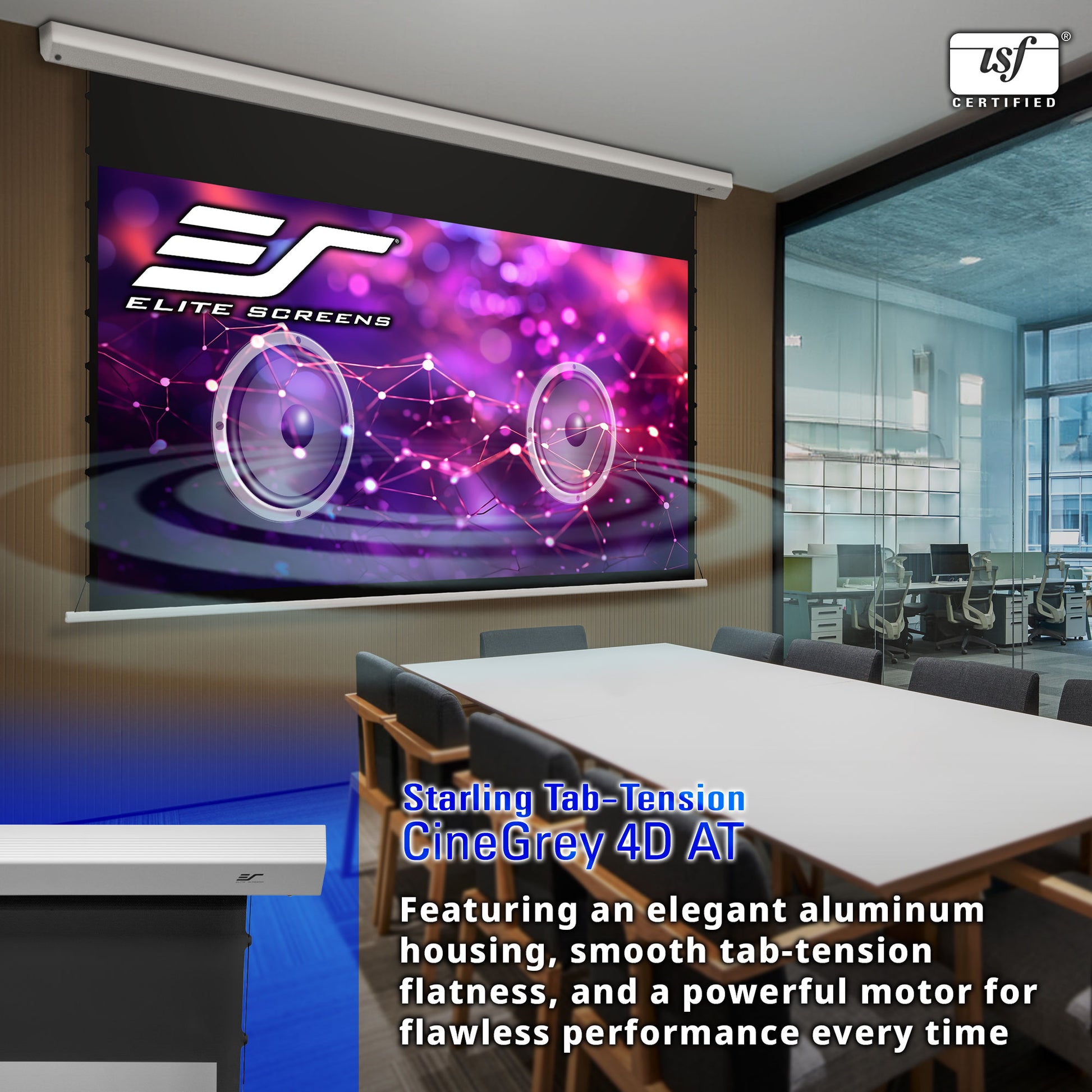

• Elegant aluminum white housing is moisture resistant

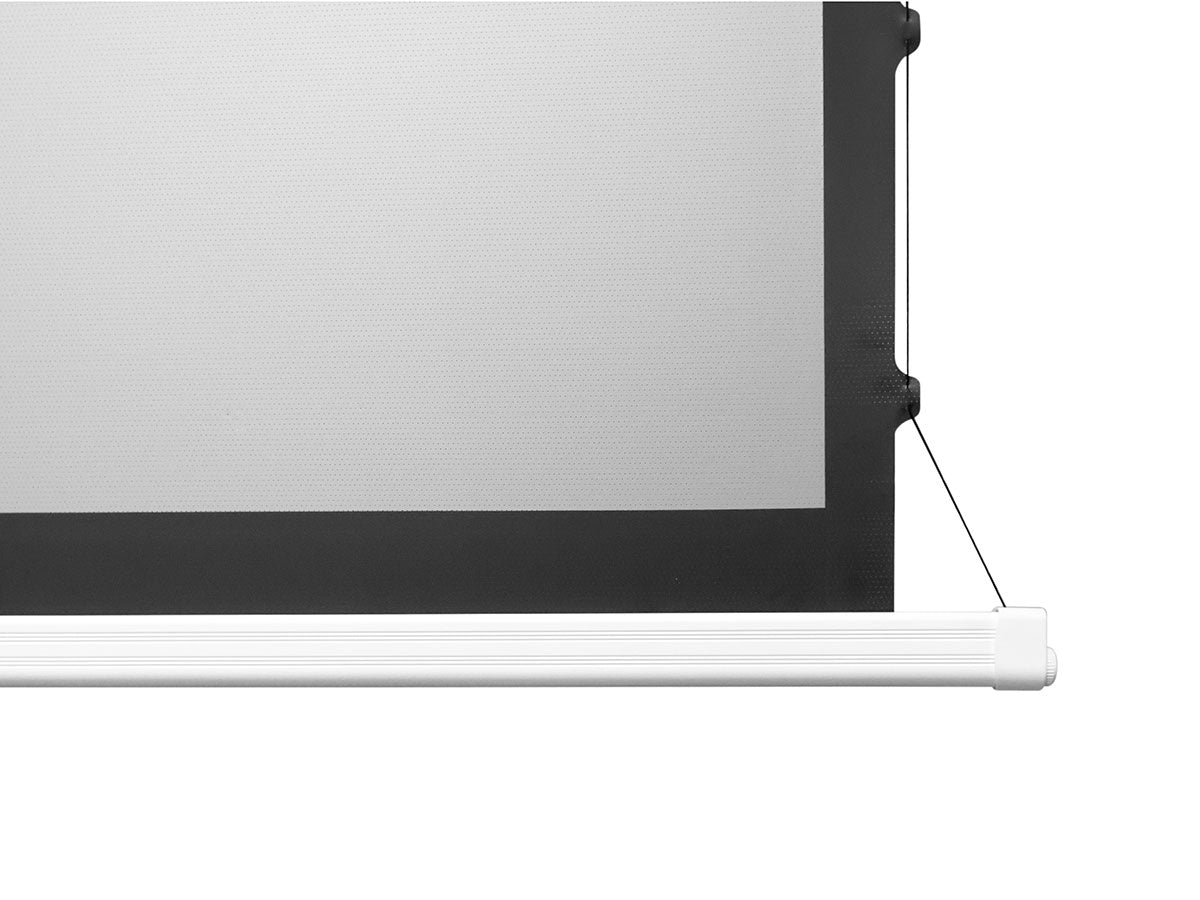

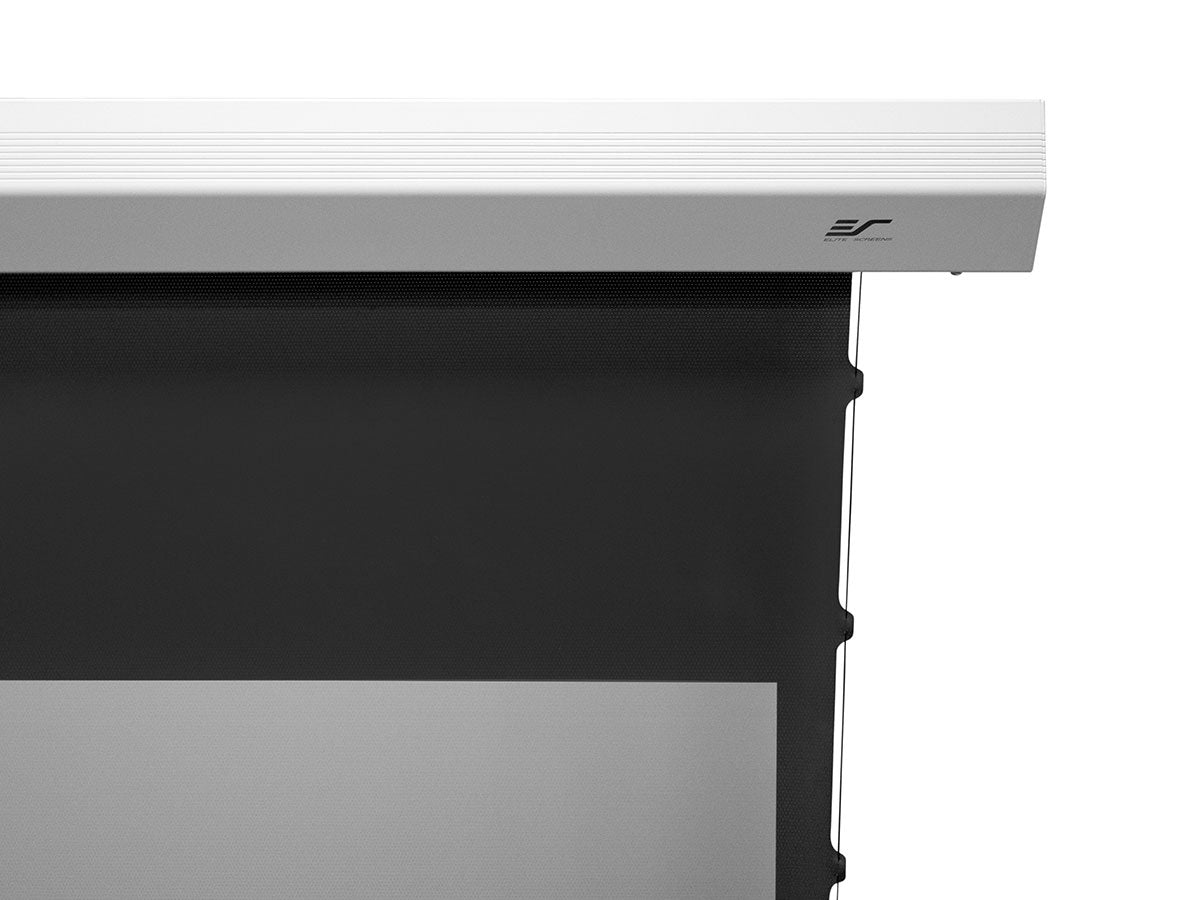

• Tab-tension design helps maintain a flat and taut projection surface
• Ceiling suspended capable using included eyebolts

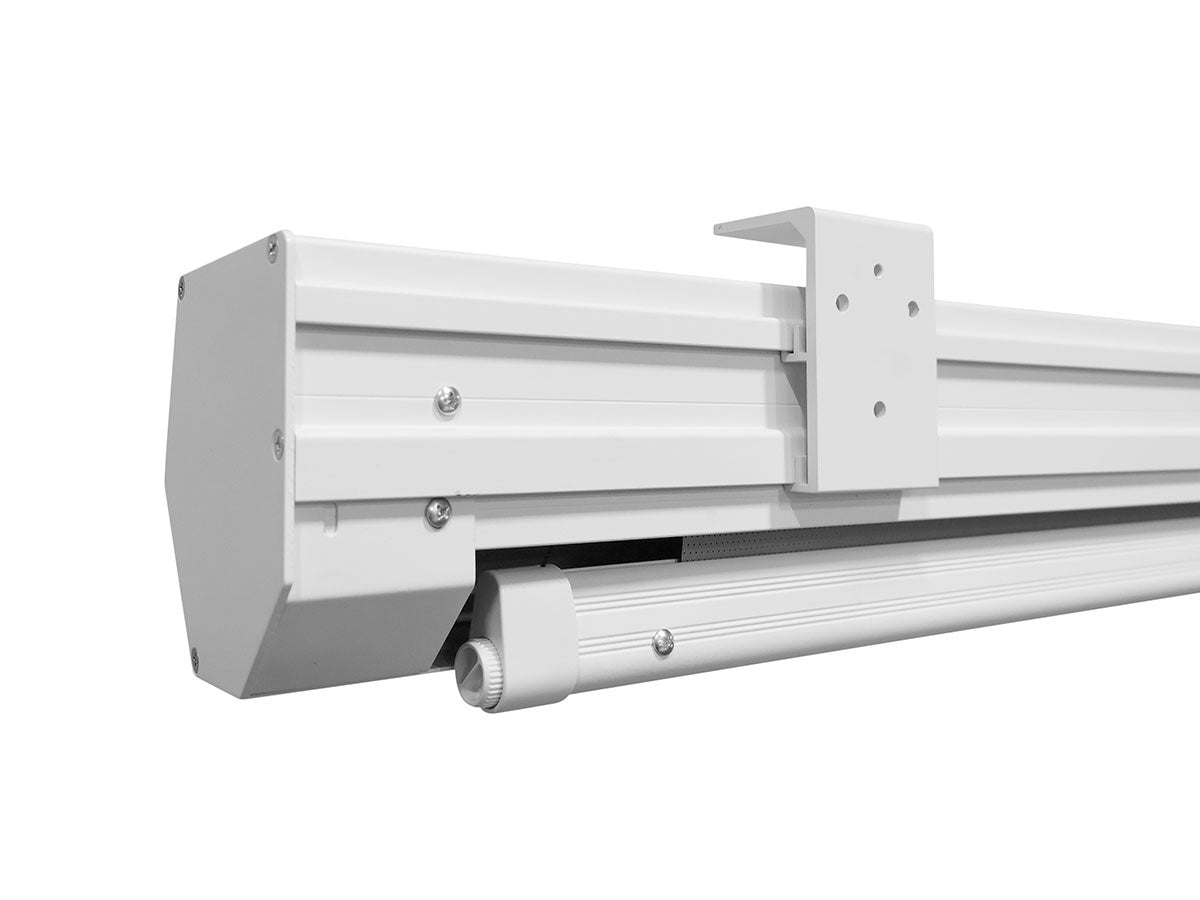

• Flush wall/ceiling floating brackets included permit wood stud installation and slide horizontally for proper centering

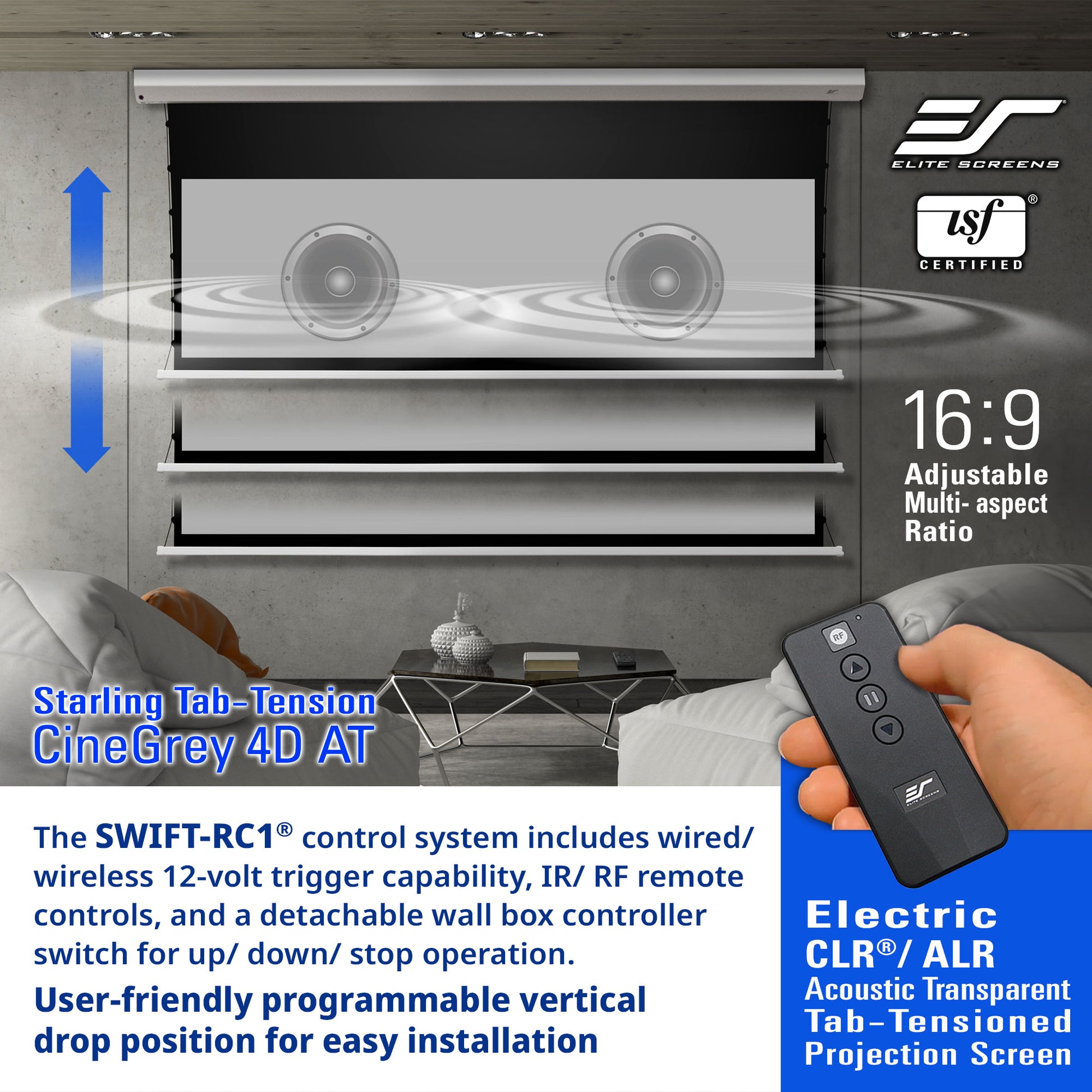

Control System: SWIFT-RC1

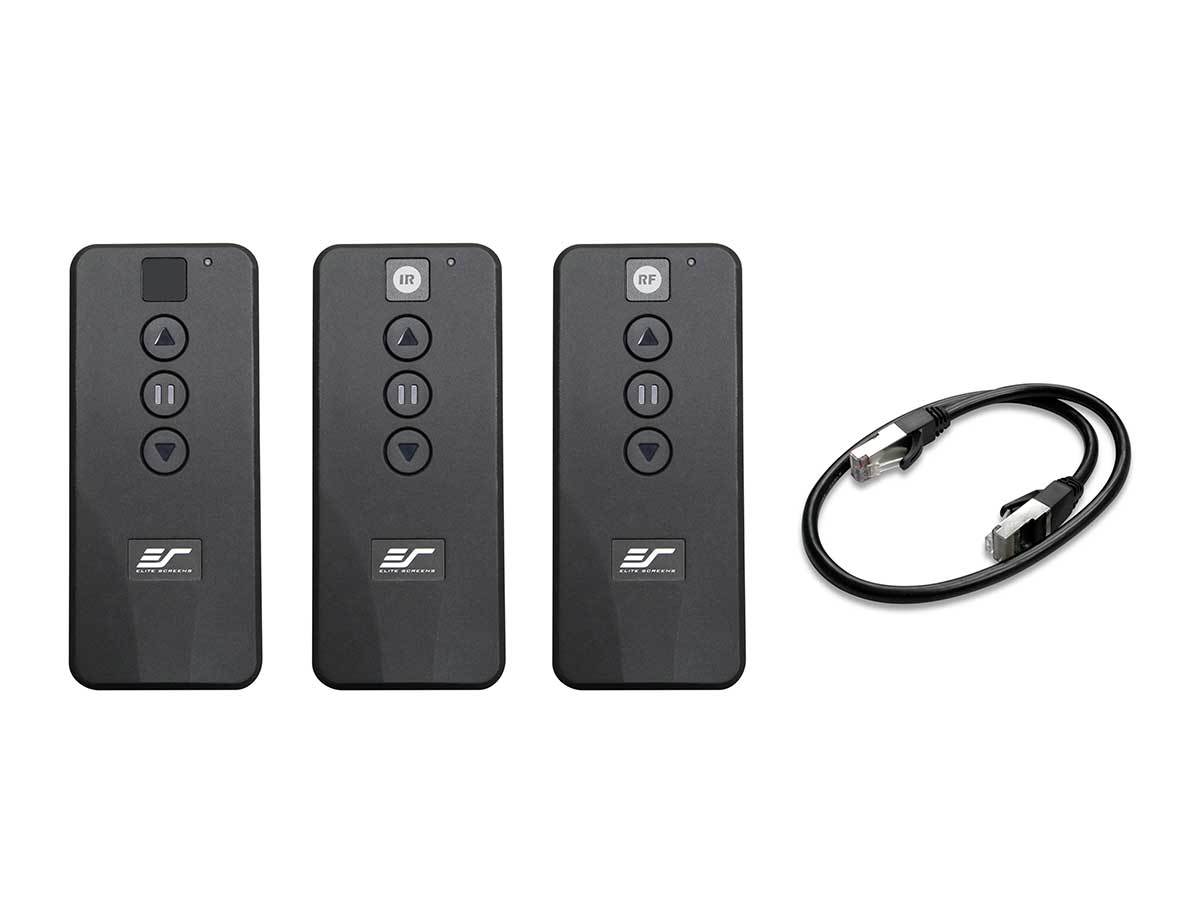

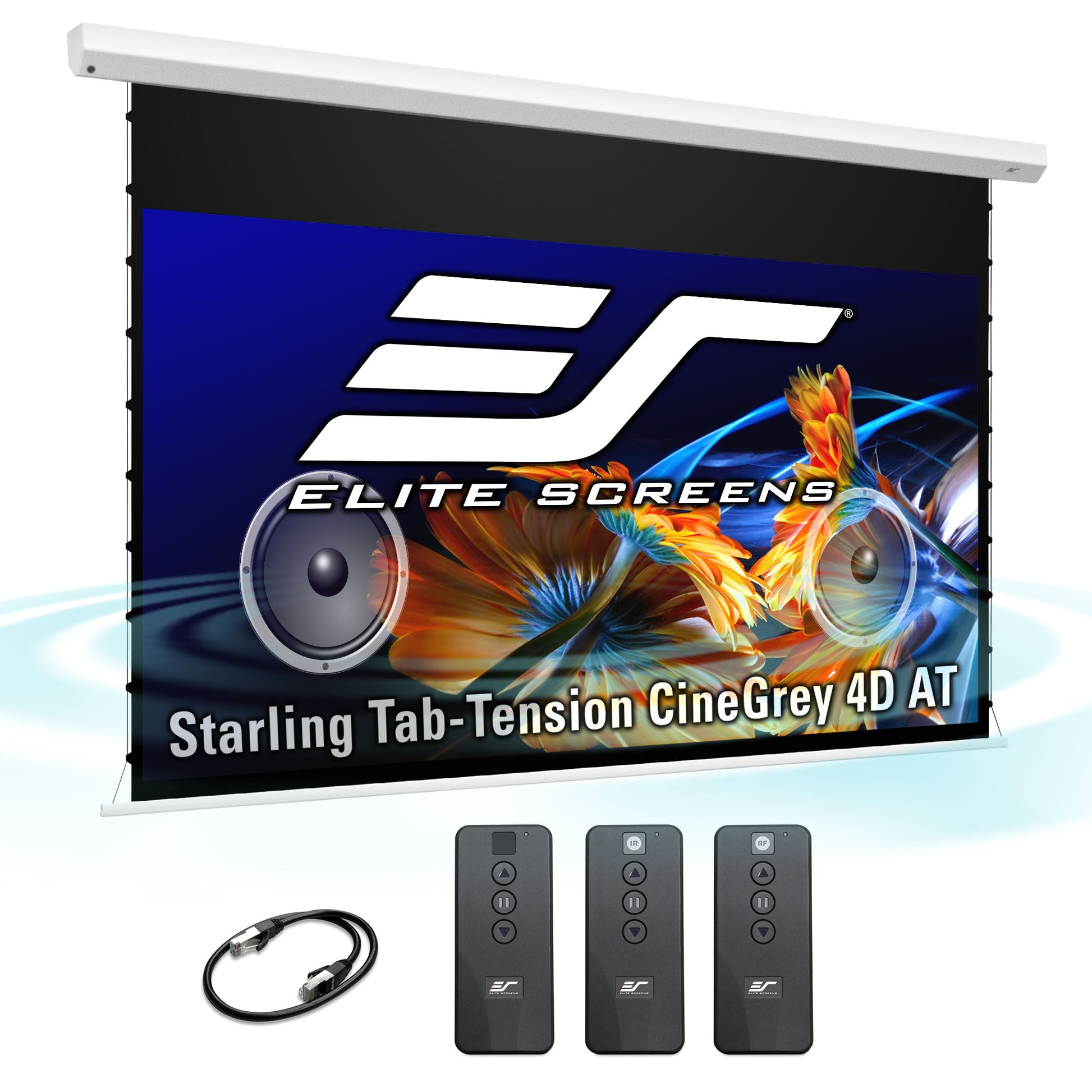

• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation
• User-friendly programmable vertical drop position for easy installation
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference.
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
  • Wired 12v trigger capability via wall box controller
  • Wireless 12v trigger capability via Radio Frequency remote control
• Plug & Play design with built-in low voltage control system, no hardwire installation required

Quality and Reliability

• Fast acting tubular motor with superior weight tolerance
• Standard 2-year premium warranty
• 3-year ENR-G warranty for Education, Non-profit, Religious, and Government organizations
