[Elite Screens] VMAX Tab-Tension 3 Series - CineGrey

Description

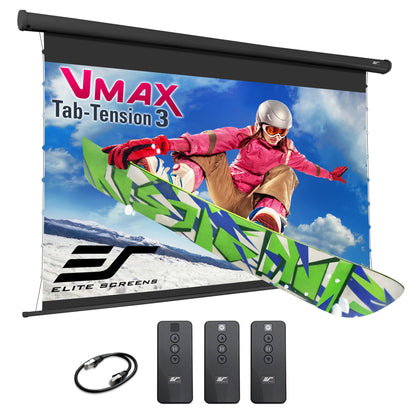

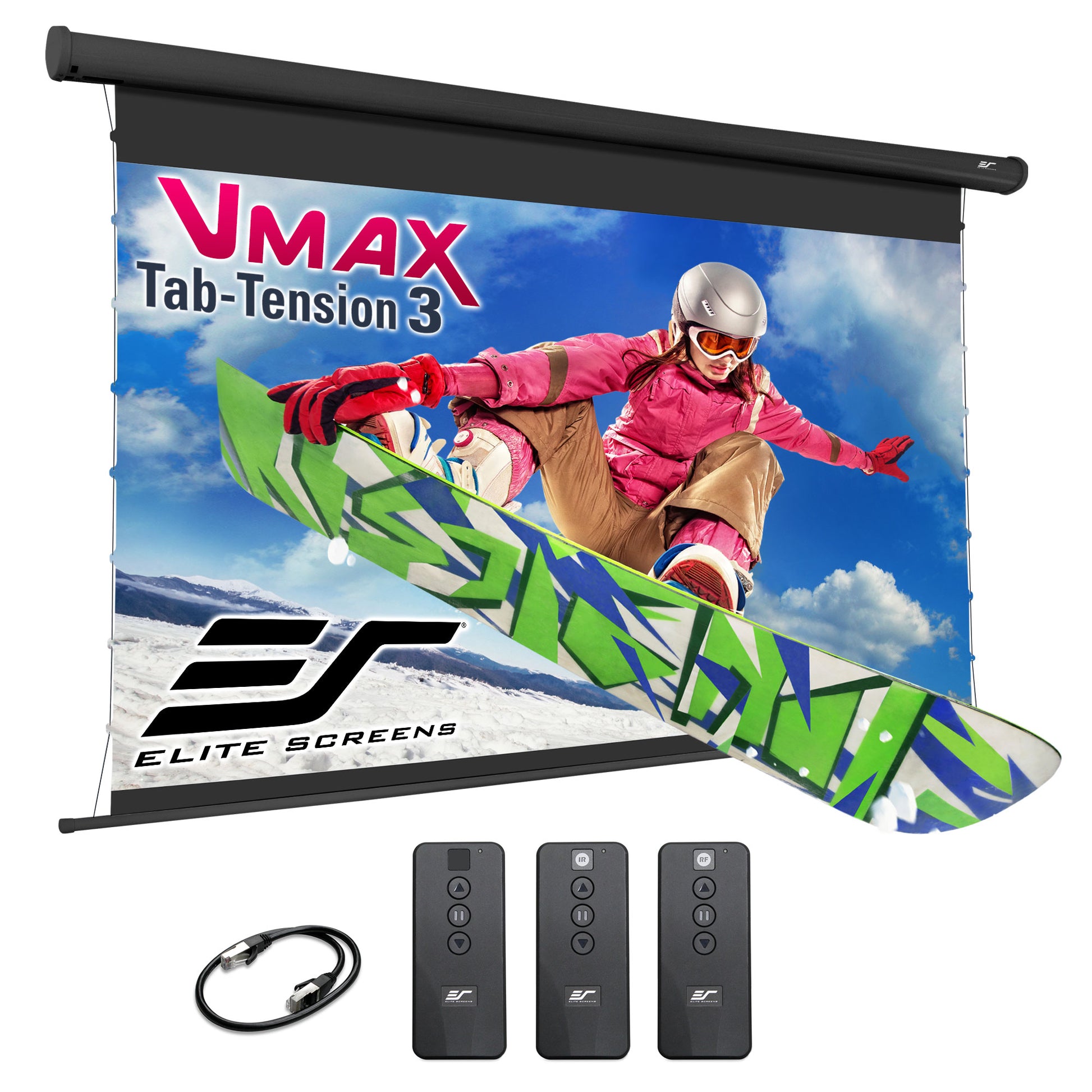

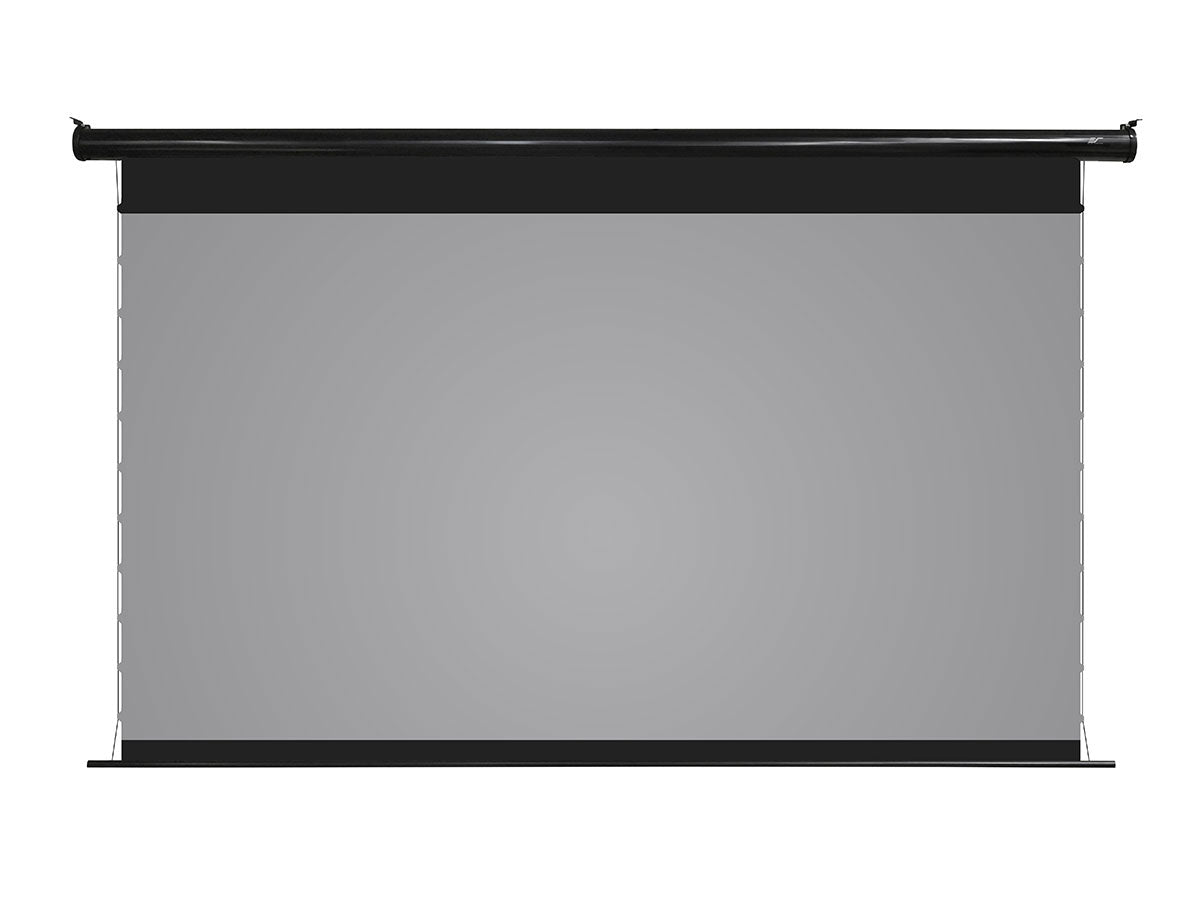

Elite Screens' VMAX Tab-Tension 3 is an electric/motorized projection screen with CineWhite ISF matte white flexible material. It has a tab-tension design to pull and stretch the surface on all sides to achieve a flat and taut projection surface suitable for ultra, short, and standard throw projectors. The material CineGrey (Tension High Contrast Grey) is designed for low contrast DLP and LCD Home Cinema Projectors.

Its elegant white arc-shaped housing allows it to be flush mounted on a wall and includes a pair of brackets for flush ceiling installation. Full control kit included to operate the screen right out of the box for a true plug and play solution.

Product Features

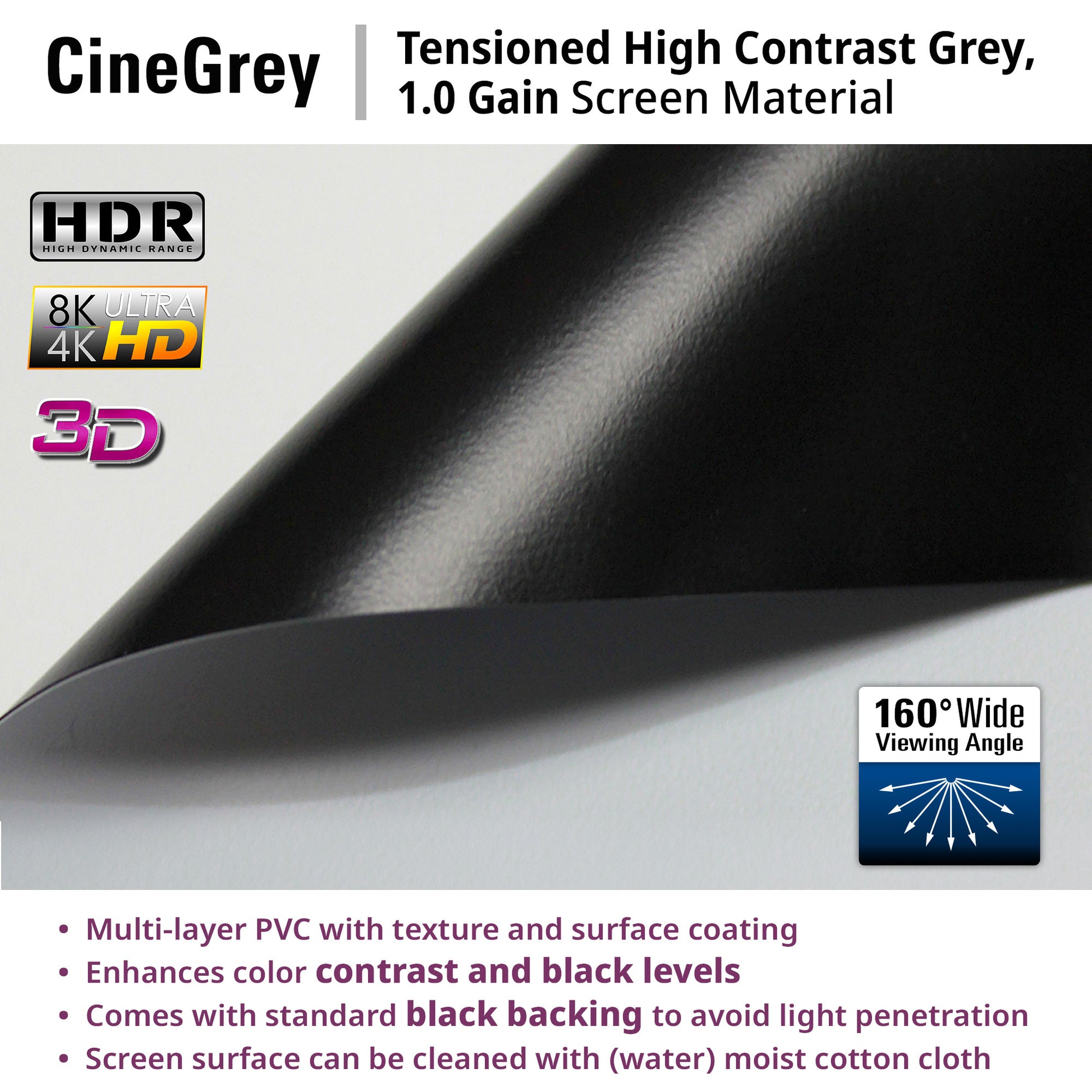

Screen Material

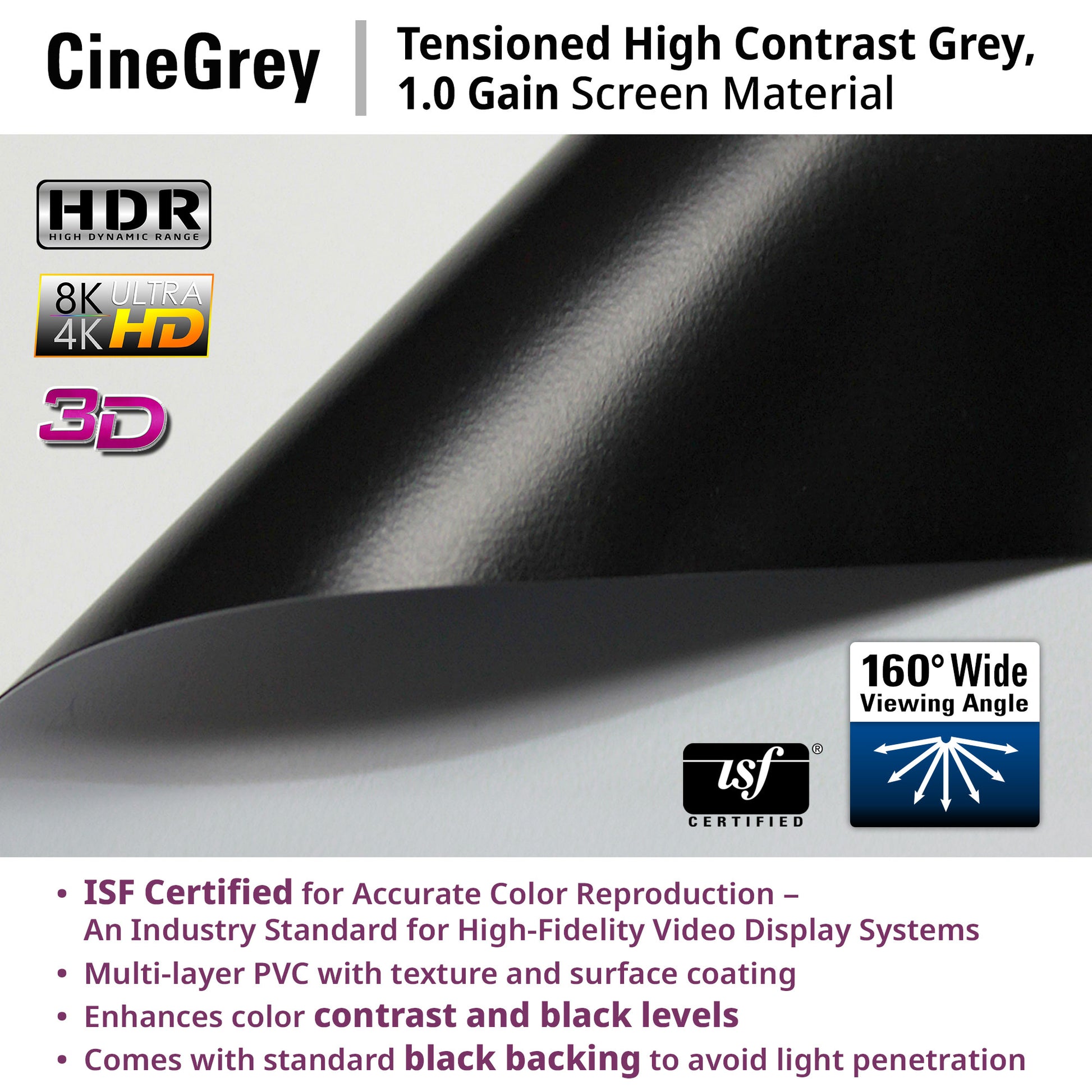

• CineGrey (Tension High Contrast Grey) is designed for low contrast DLP and LCD Home Cinema Projectors. Its superior flatness makes the CineGrey ideal for home theater use. It enhances black levels while minimizing loss in color reproduction.
• Multi-layer PVC with texture and surface coating
• Enhances color contrast and black levels
• Gain: 1.0

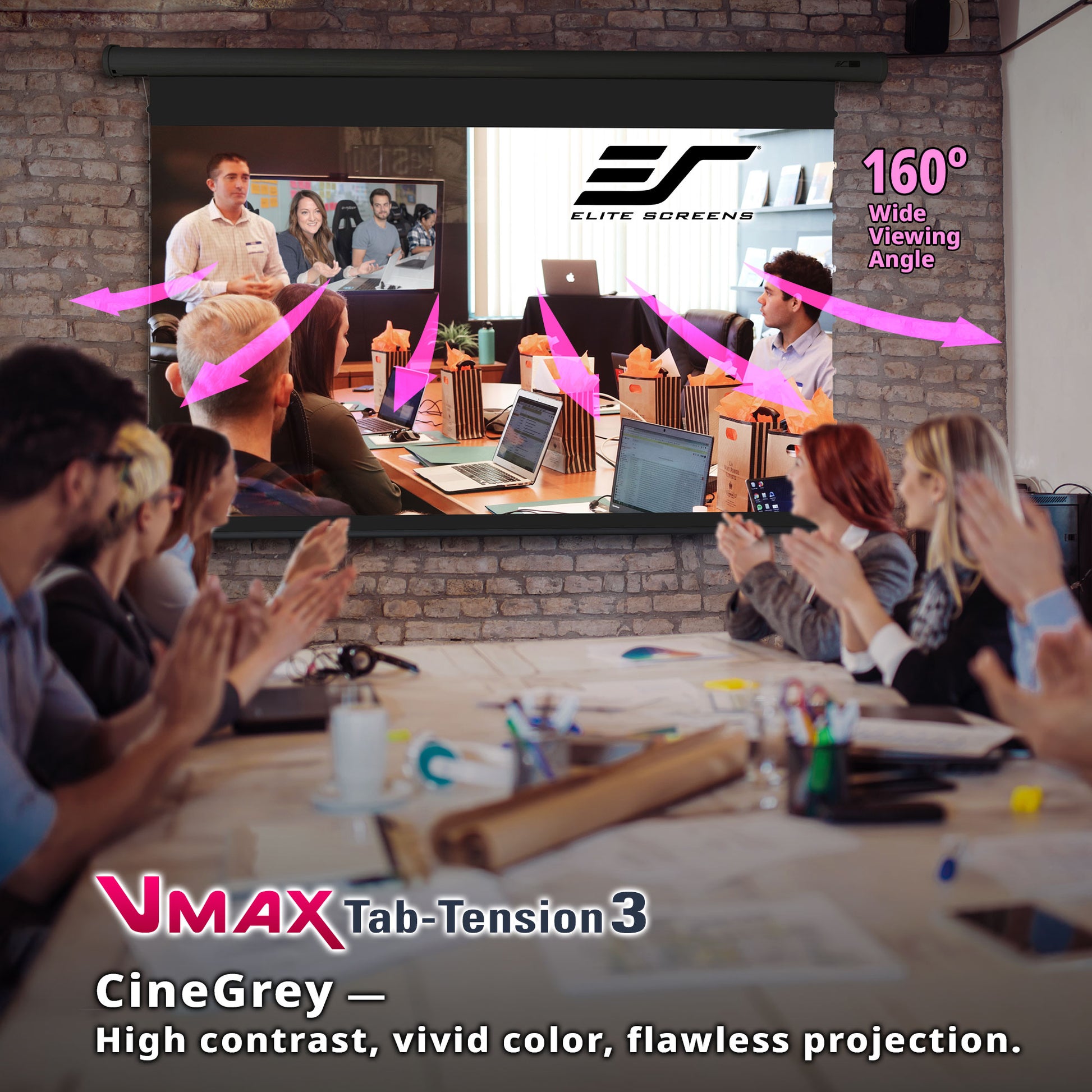

• View Angle: 160° (80° ±LR)
• Mildew Resistant
• Black backing
• Surface can be cleaned with (water) moist cotton cloth
• Active 3D, 4K Ultra HD, and HDR ready


Control System- SWIFT-RC1

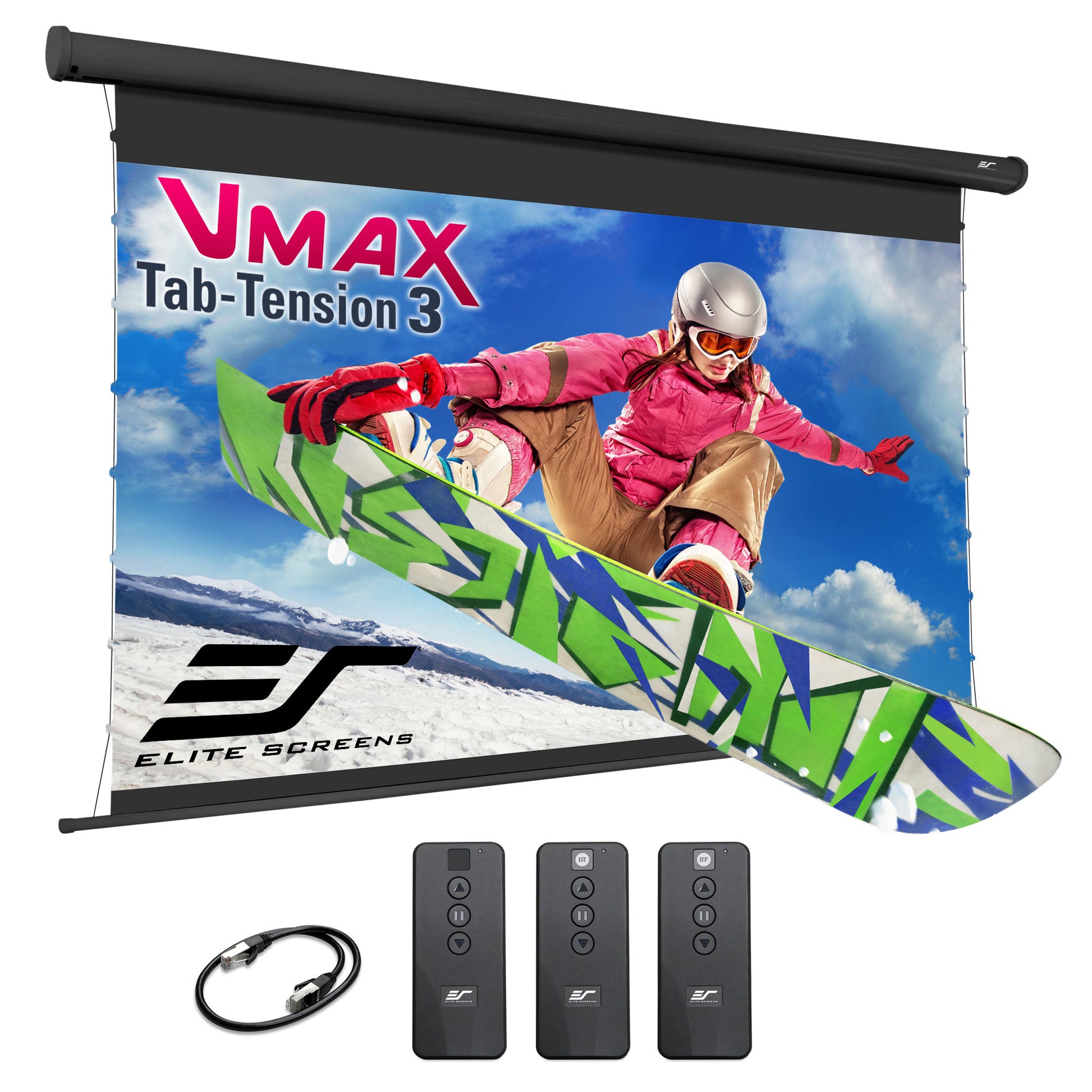

• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation
• Wall box controller is detachable for a clean look while maintaining RF &IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference
• 12v trigger feature allows the screen's UP/DOWN operation to synchronize with the projector's power cycle
  • Wired 12v trigger capability via wall box controller
  • Wireless 12v trigger capability via Radio Frequency remote control

Design and Installation

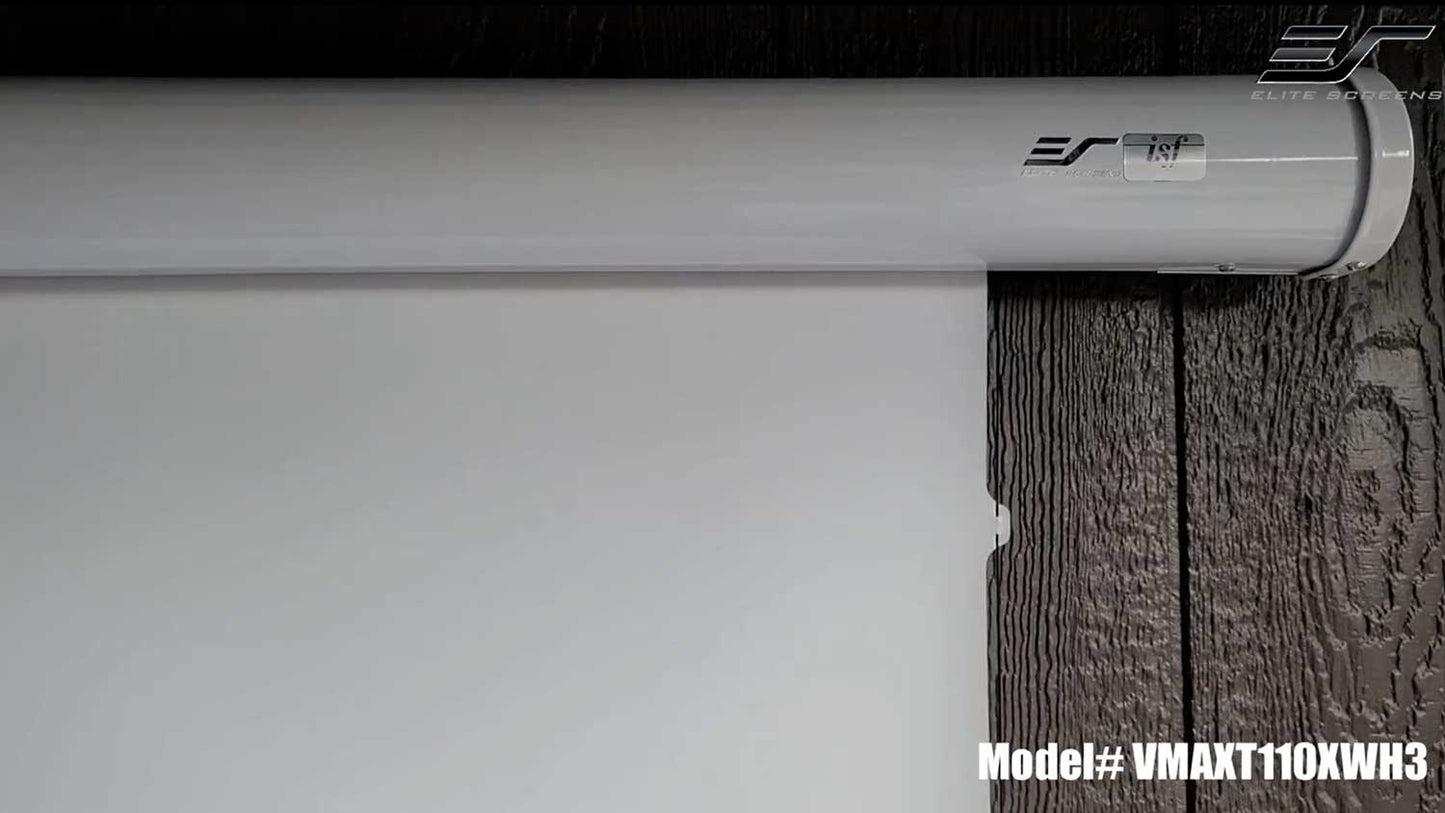

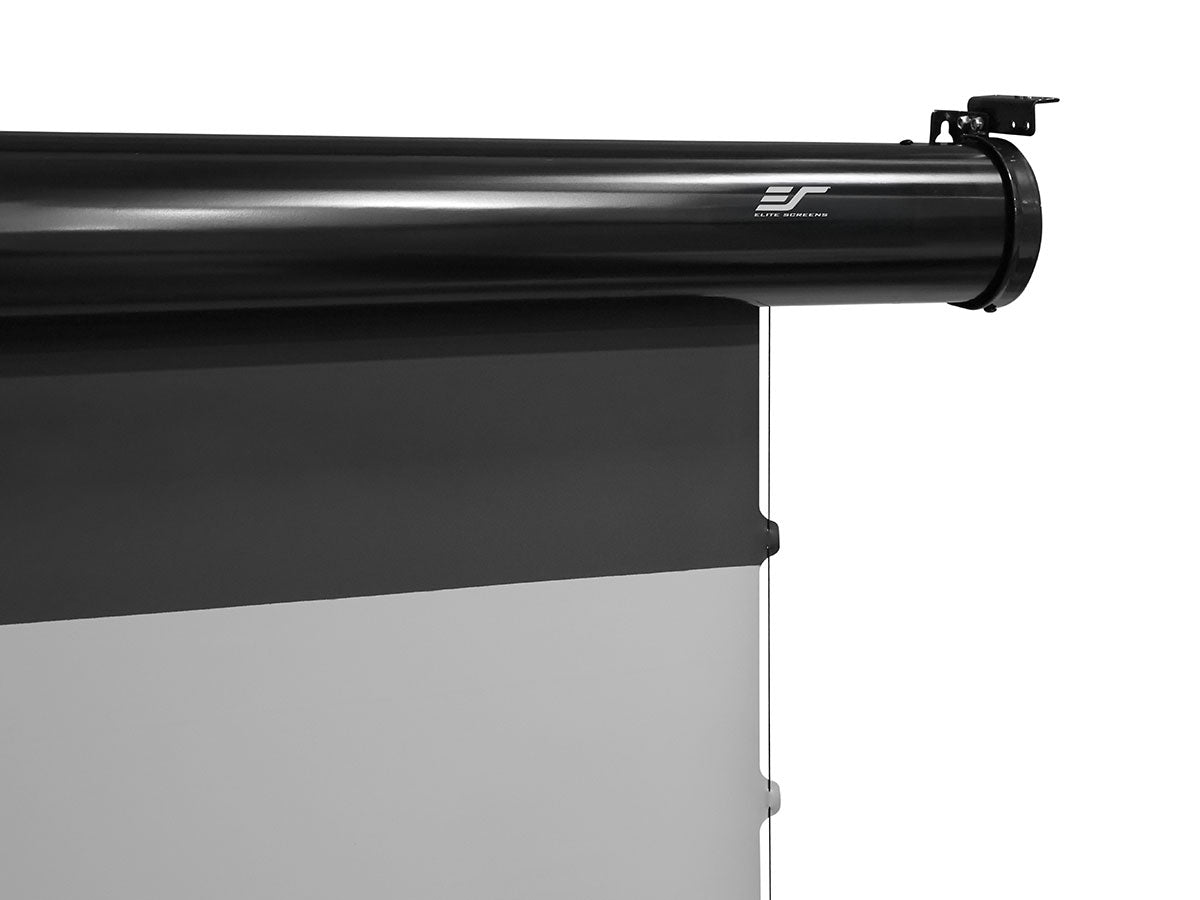

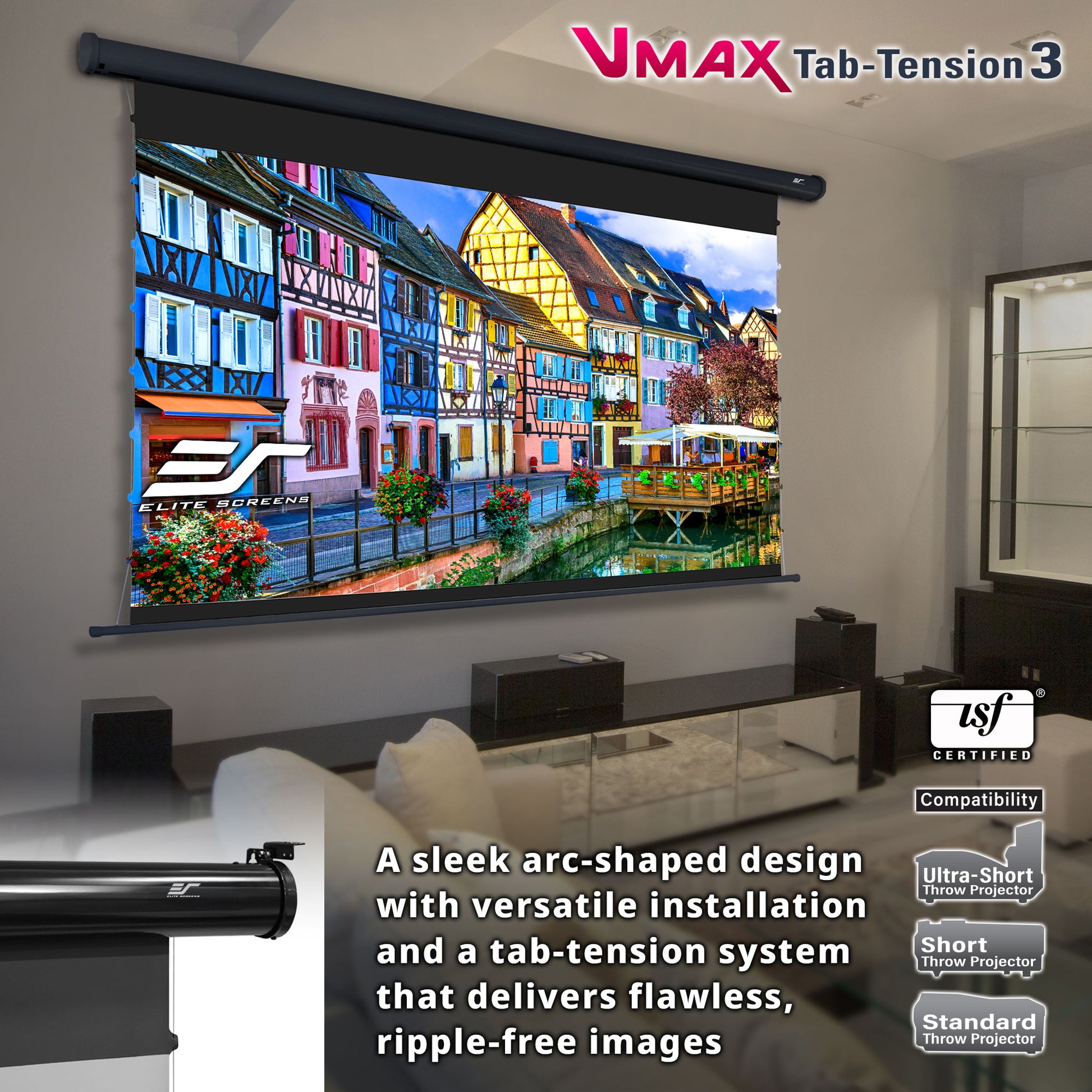

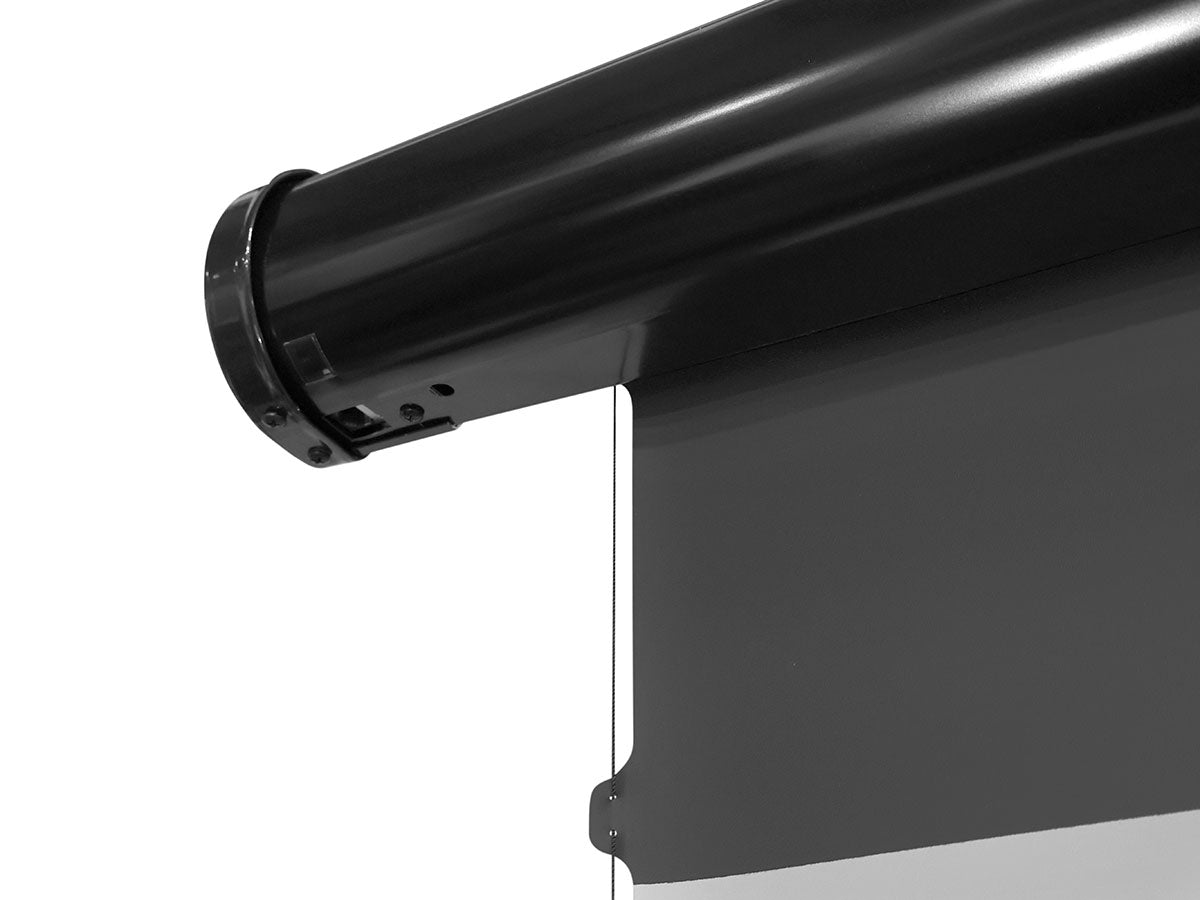

• Durable arc-shaped white enameled housing is moisture resistant

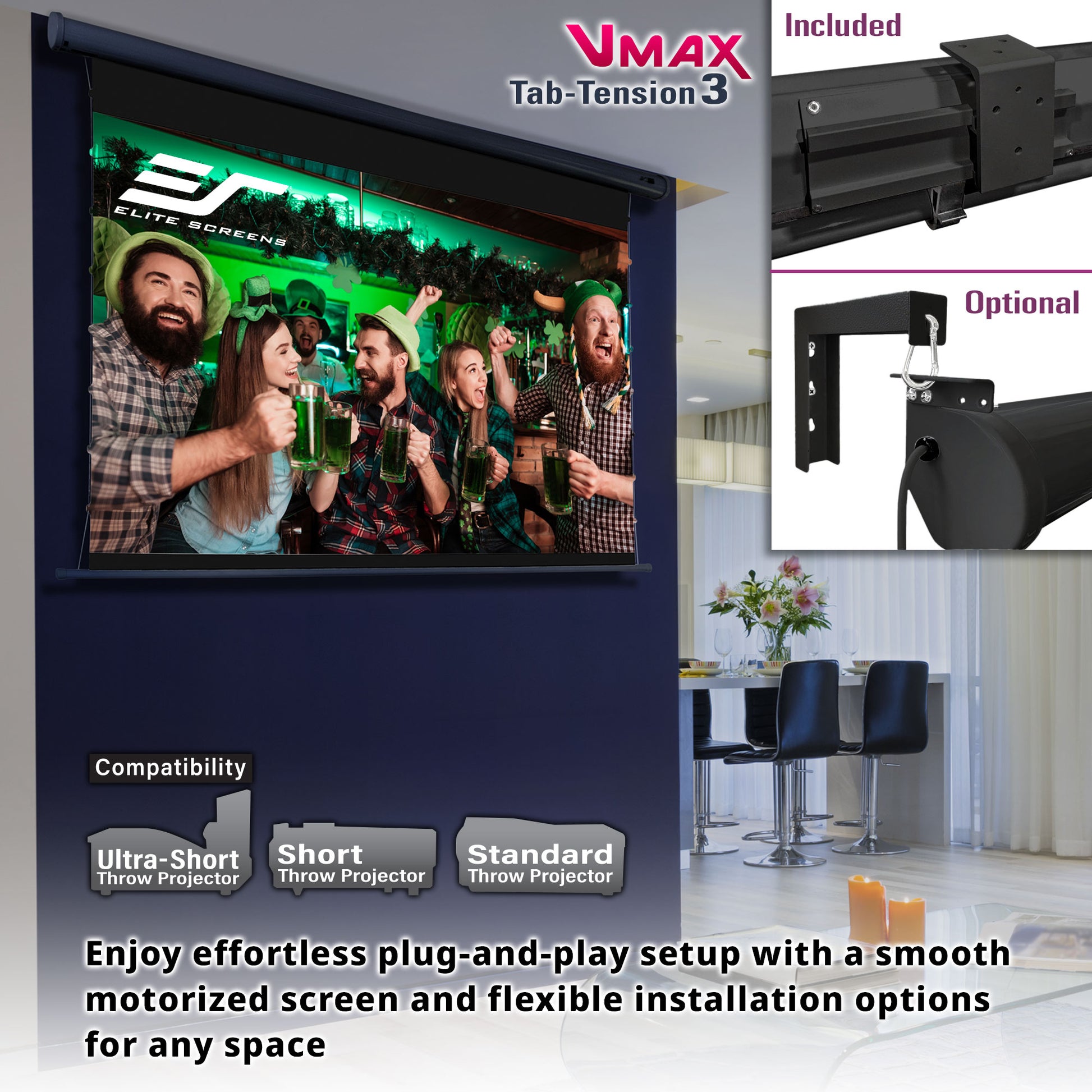

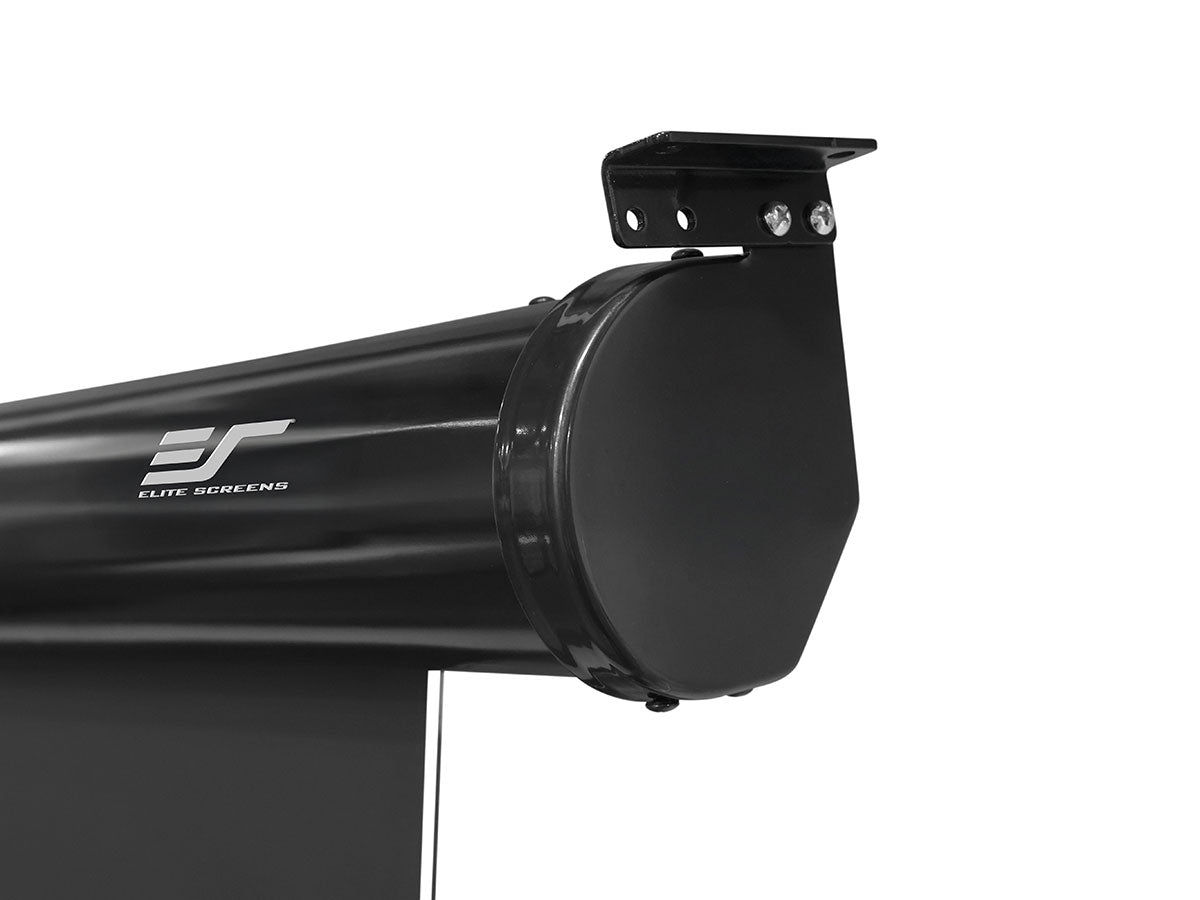

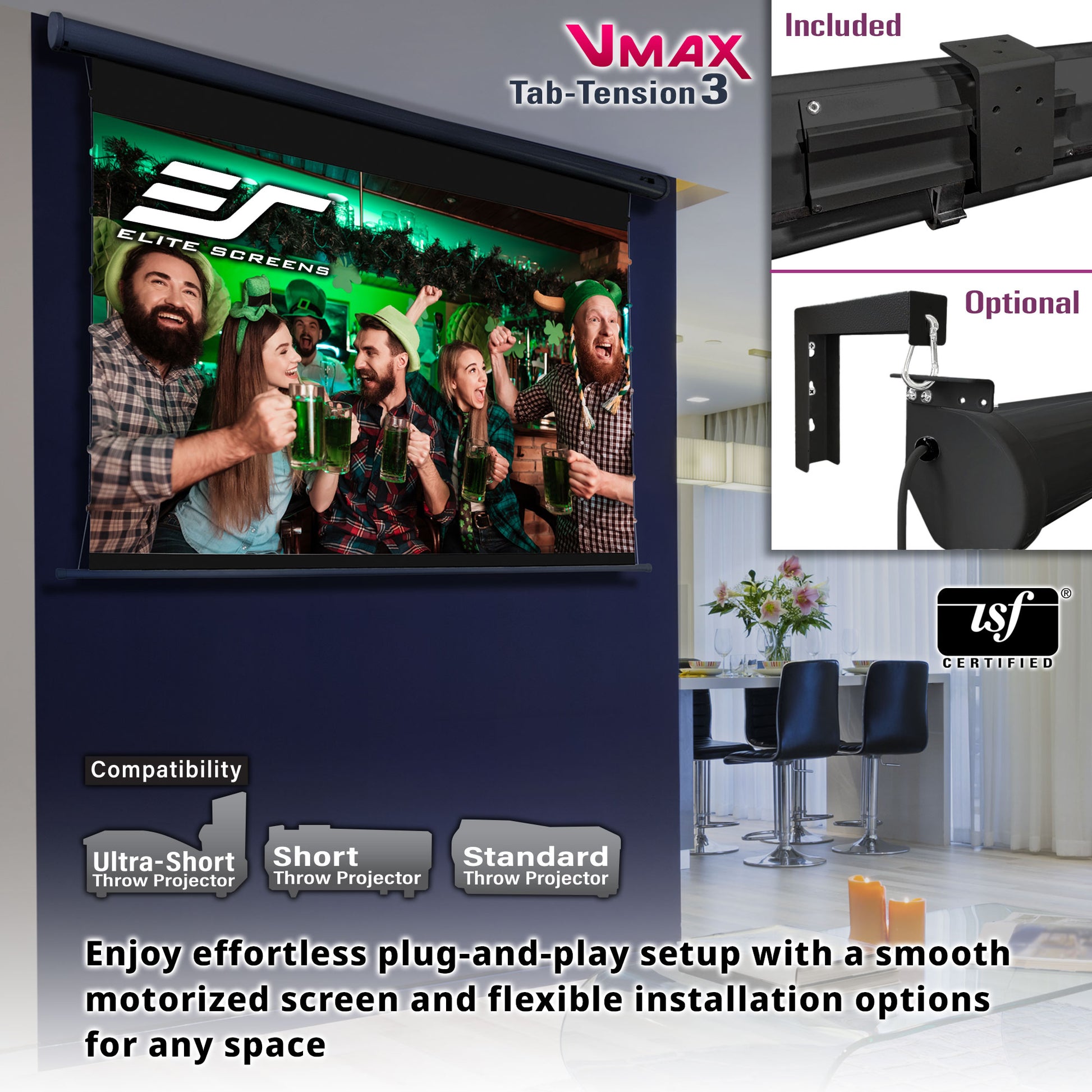

• Versatile flush wall or ceiling installation options to suit your environment and application
• Floating brackets also included for wood stud installation

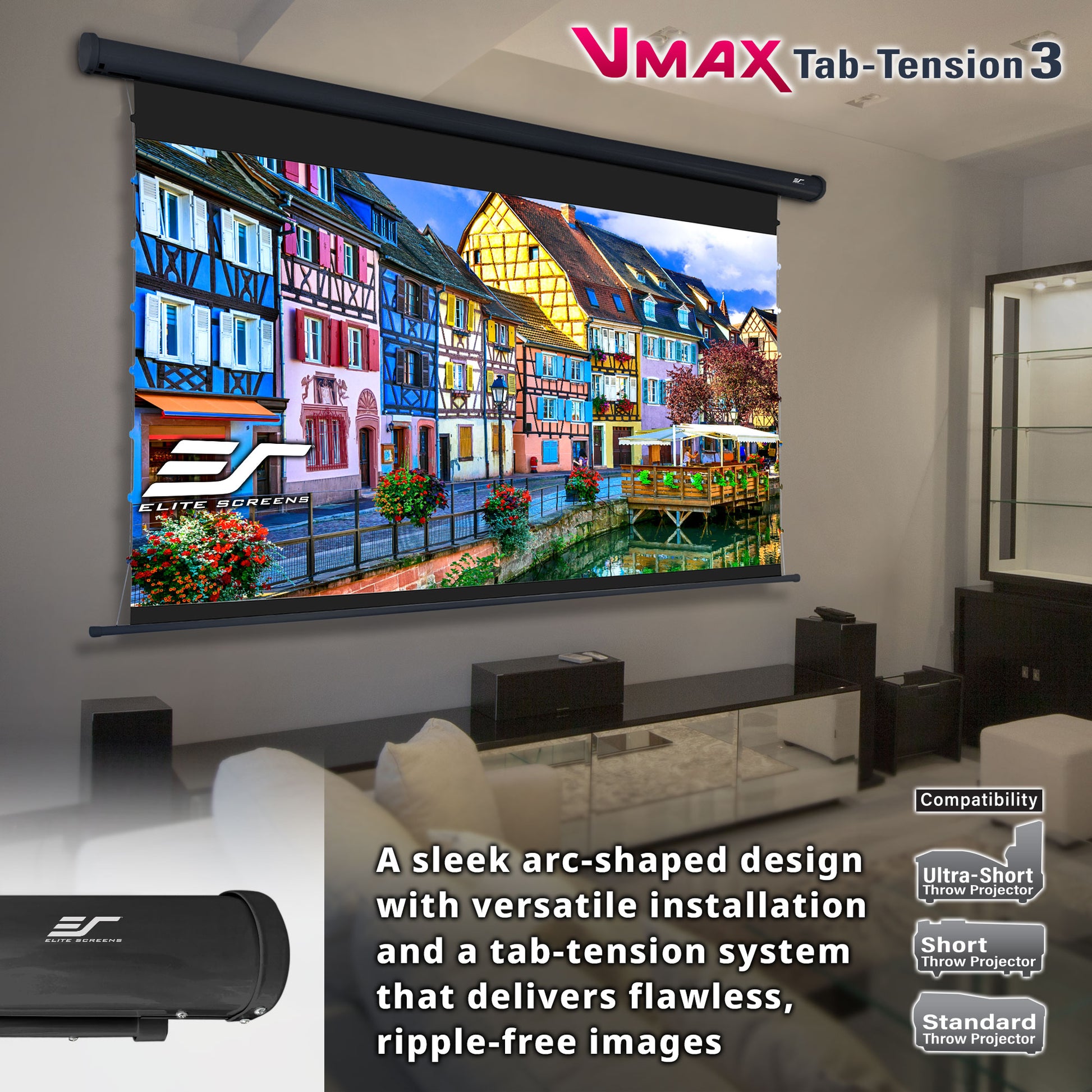

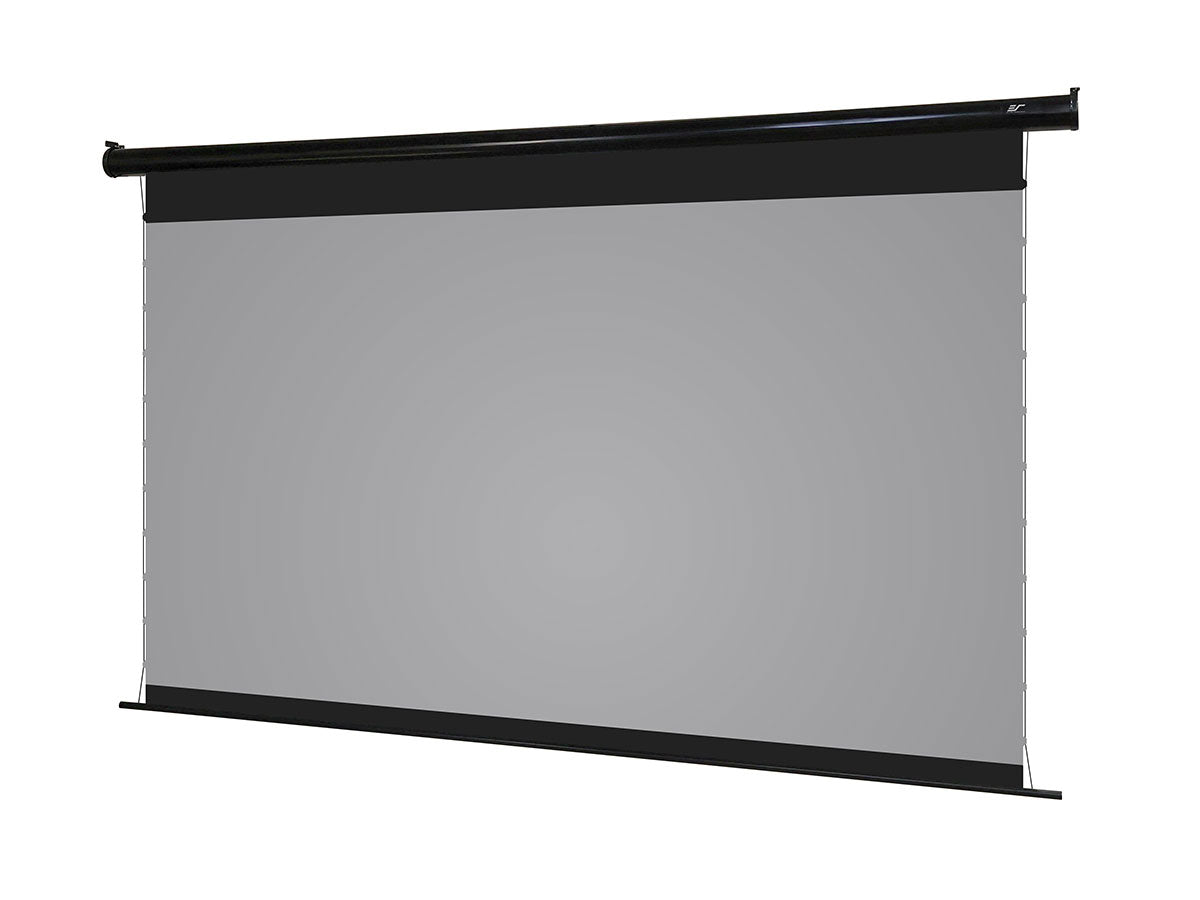

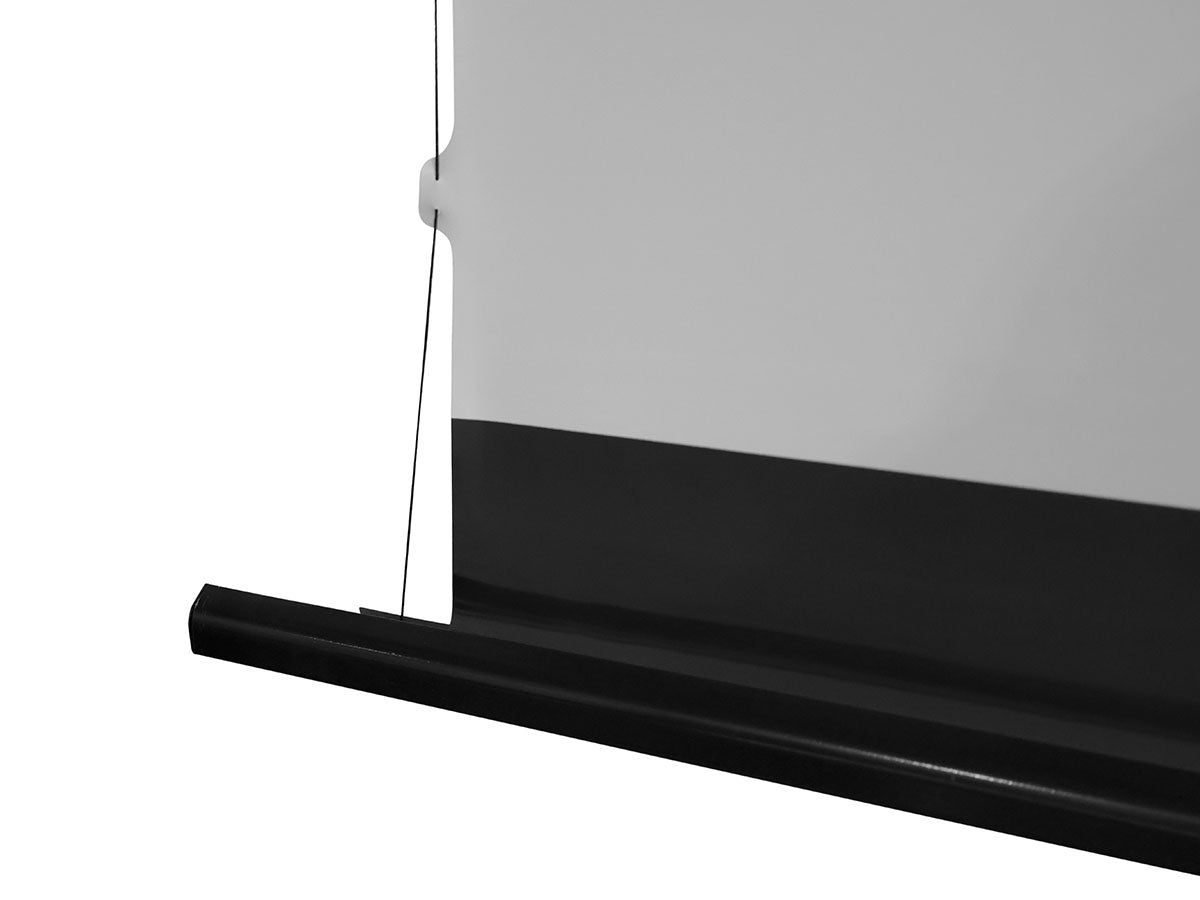

• Tab-tension design helps maintain a flat, taut projection surface that is ripple-free
• Ships fully assembled with standard 3-prong power connection ready to plug and play
• Optional 6" &12" extension brackets available  sold separately

Quality and Reliability

• Fast acting tubular motor with superior weight tolerance
• 2-year limited warranty, and 3-year warranty for ENR-G  Education, Non-profit, Religious and Government/Military organizations
• Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.

Downloads

• Screen Material Care Sheet
• Electric Screens Accessories Chart

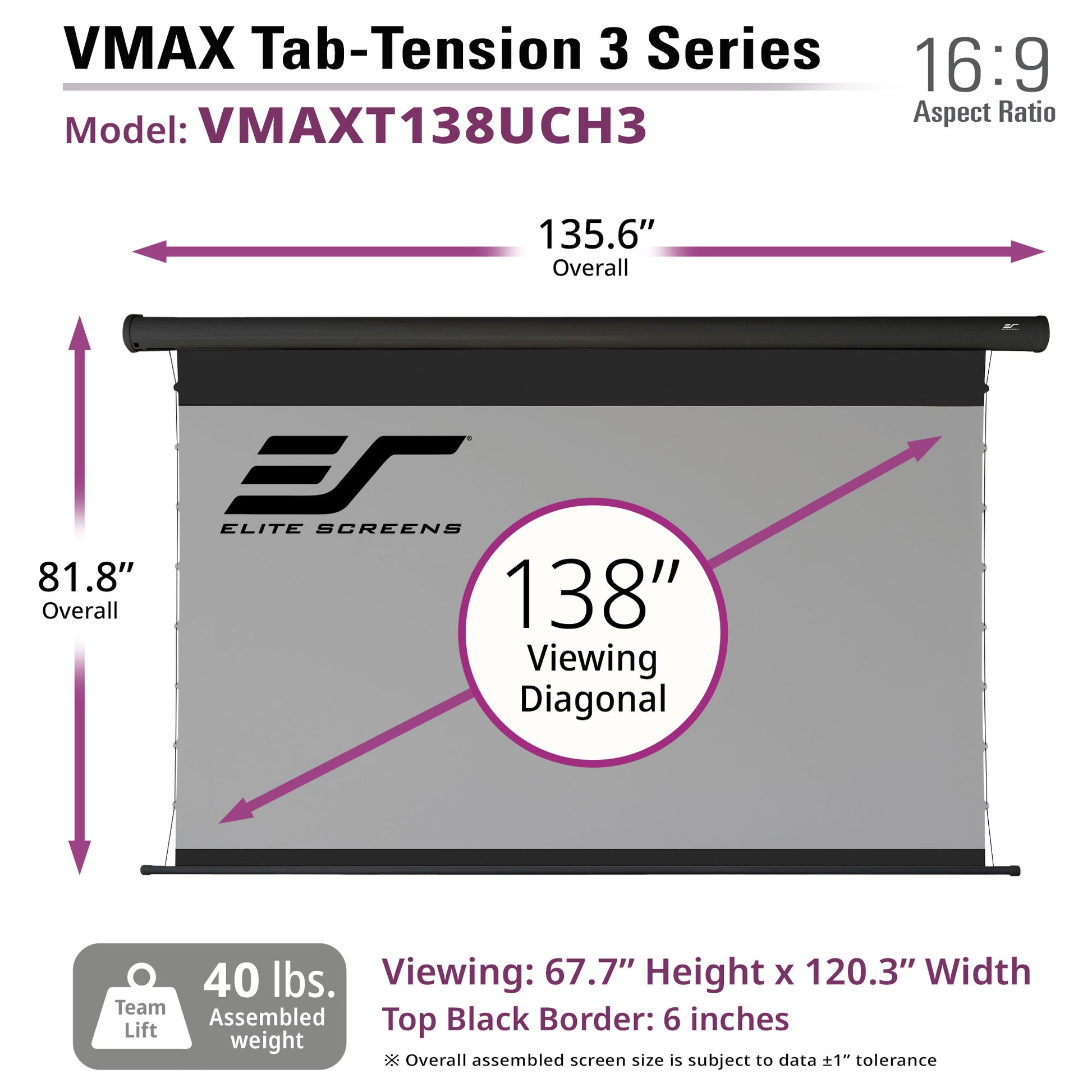

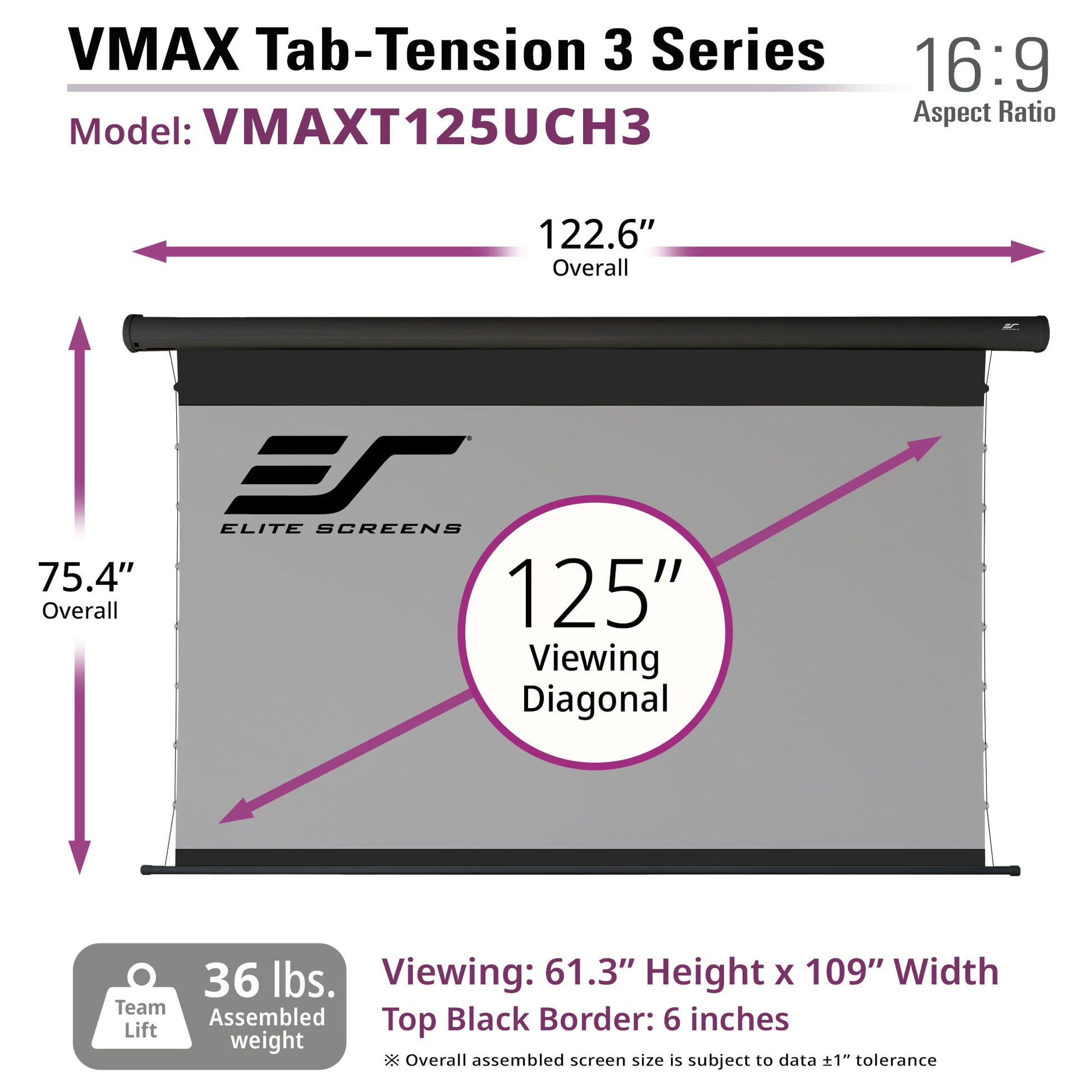

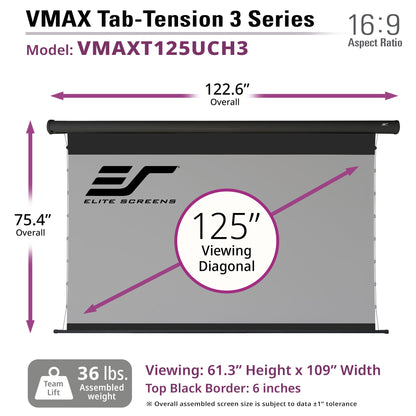

• Dimensions Table (PDF)
• Product Cut Sheet (PDF)
• User Guide RC1 (PDF)
• User Guide (PDF)  DISCONTINUED
• Comparison Table (PDF)
