[Elite Screens] Starling Tab-Tension 2 CineGrey 4D Series

Description

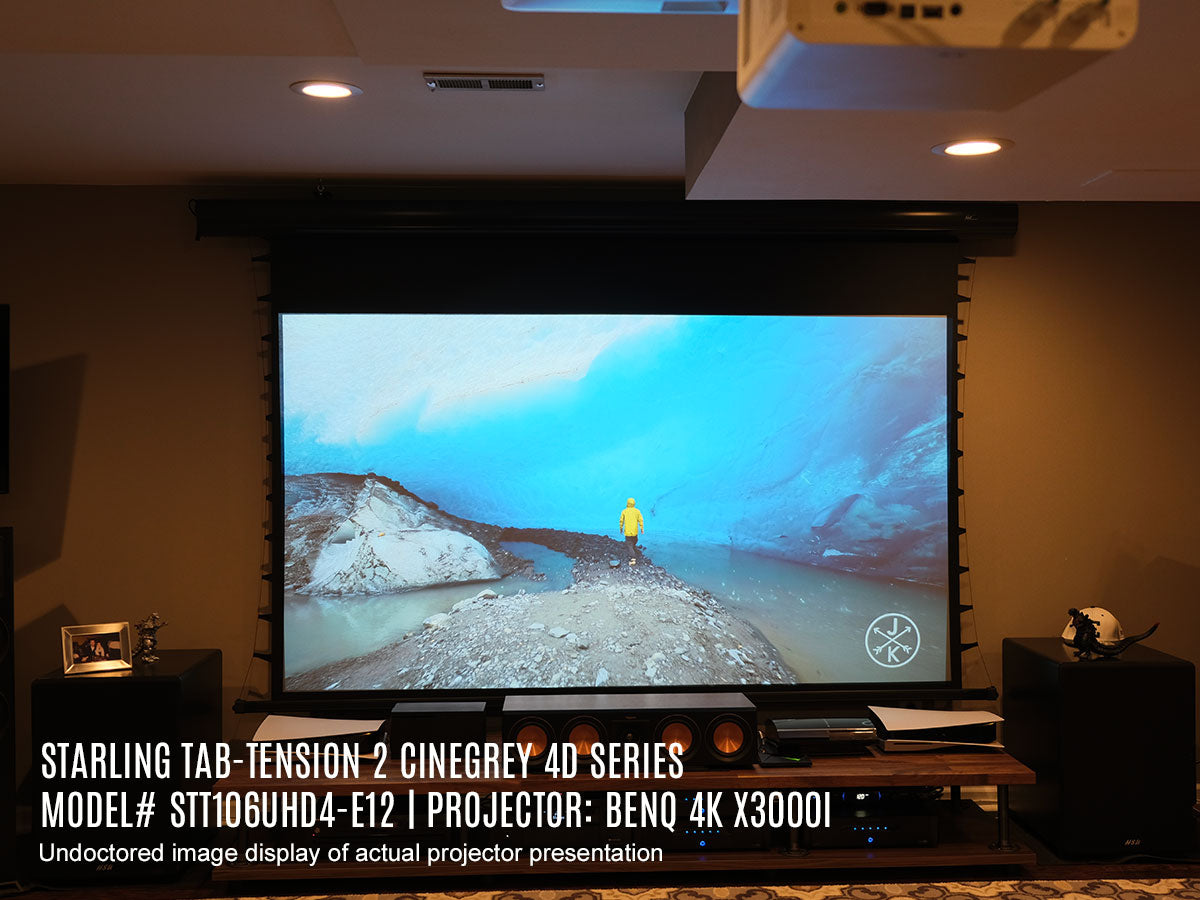

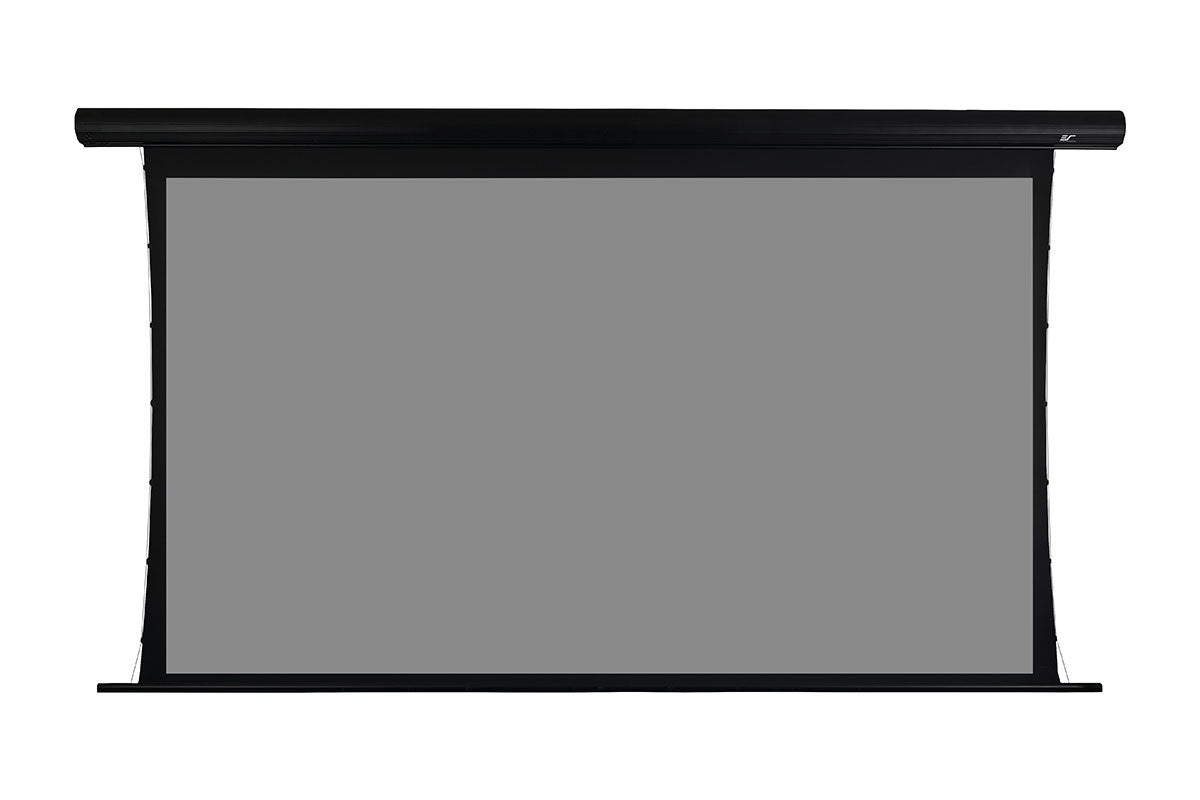

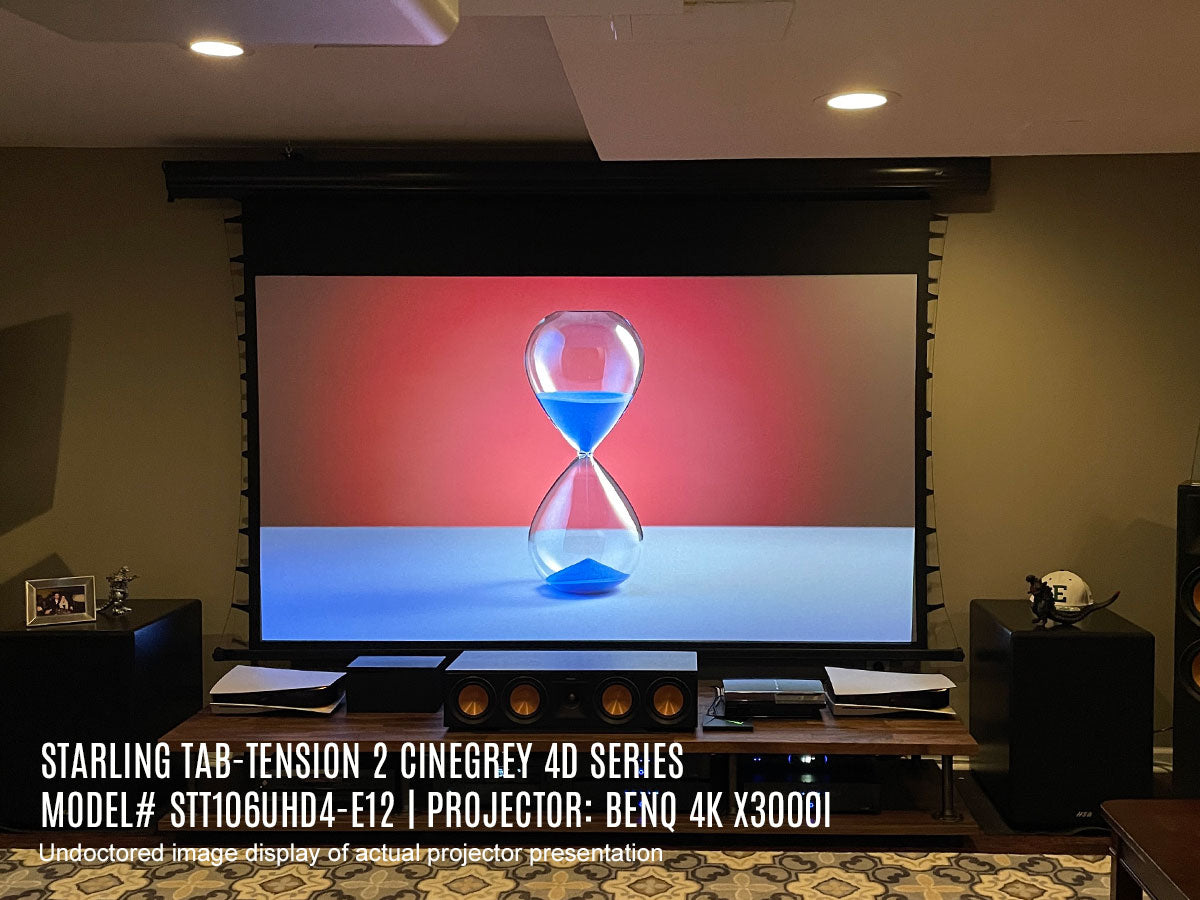

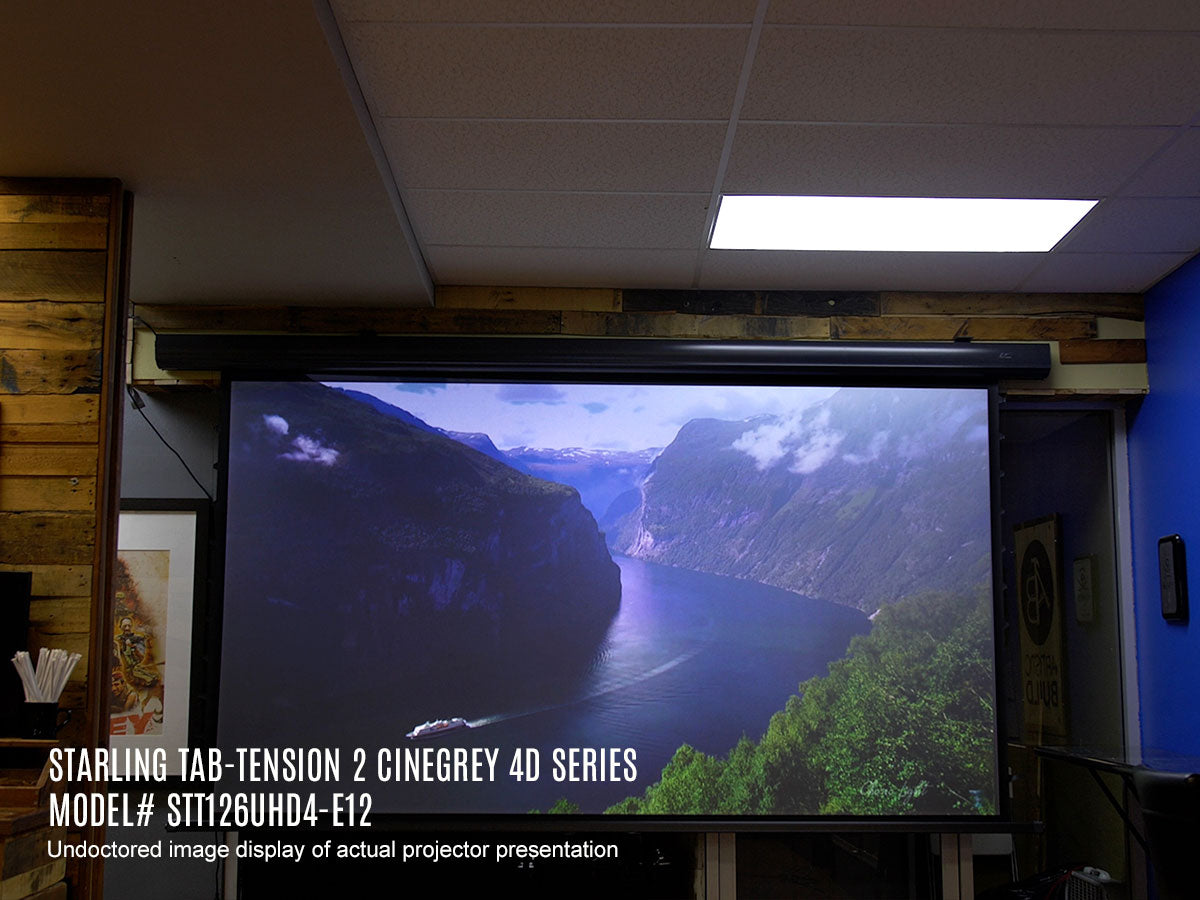

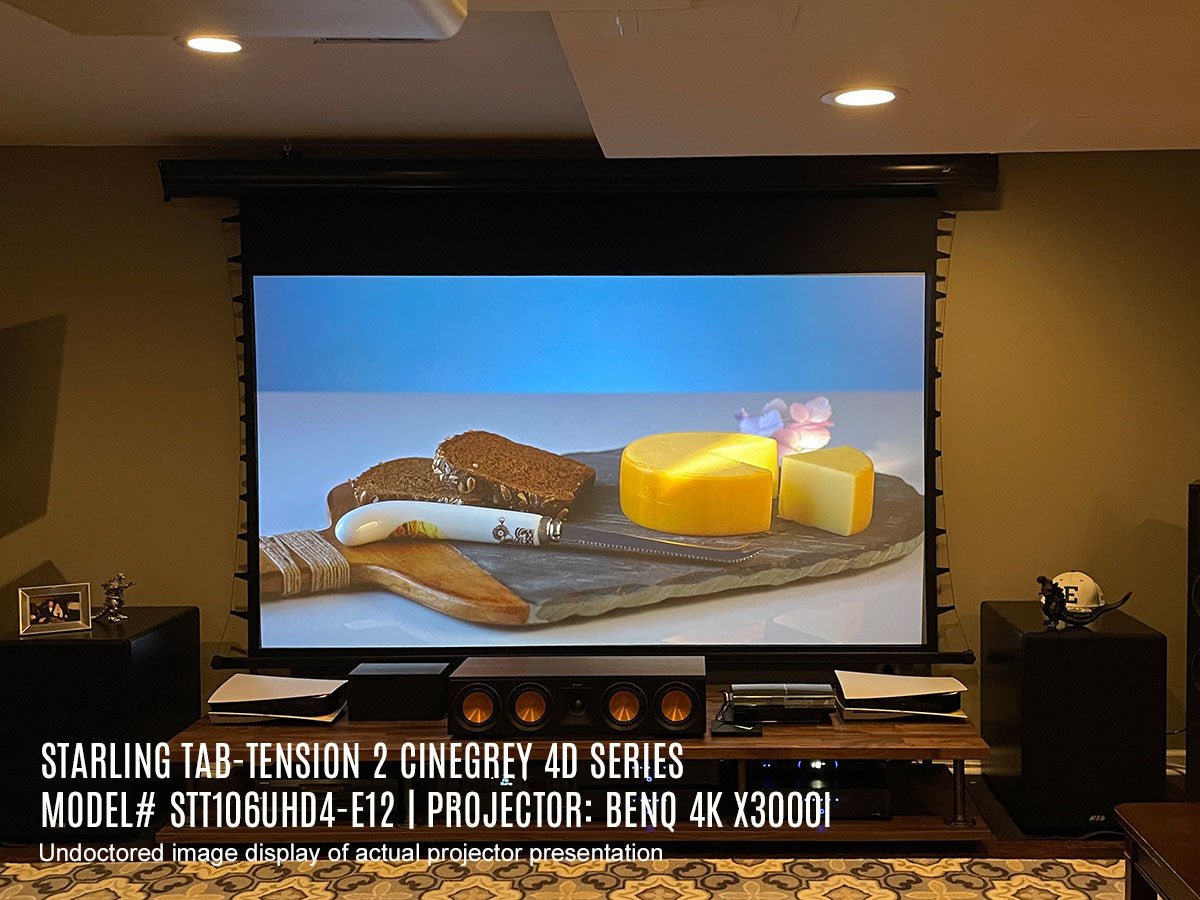

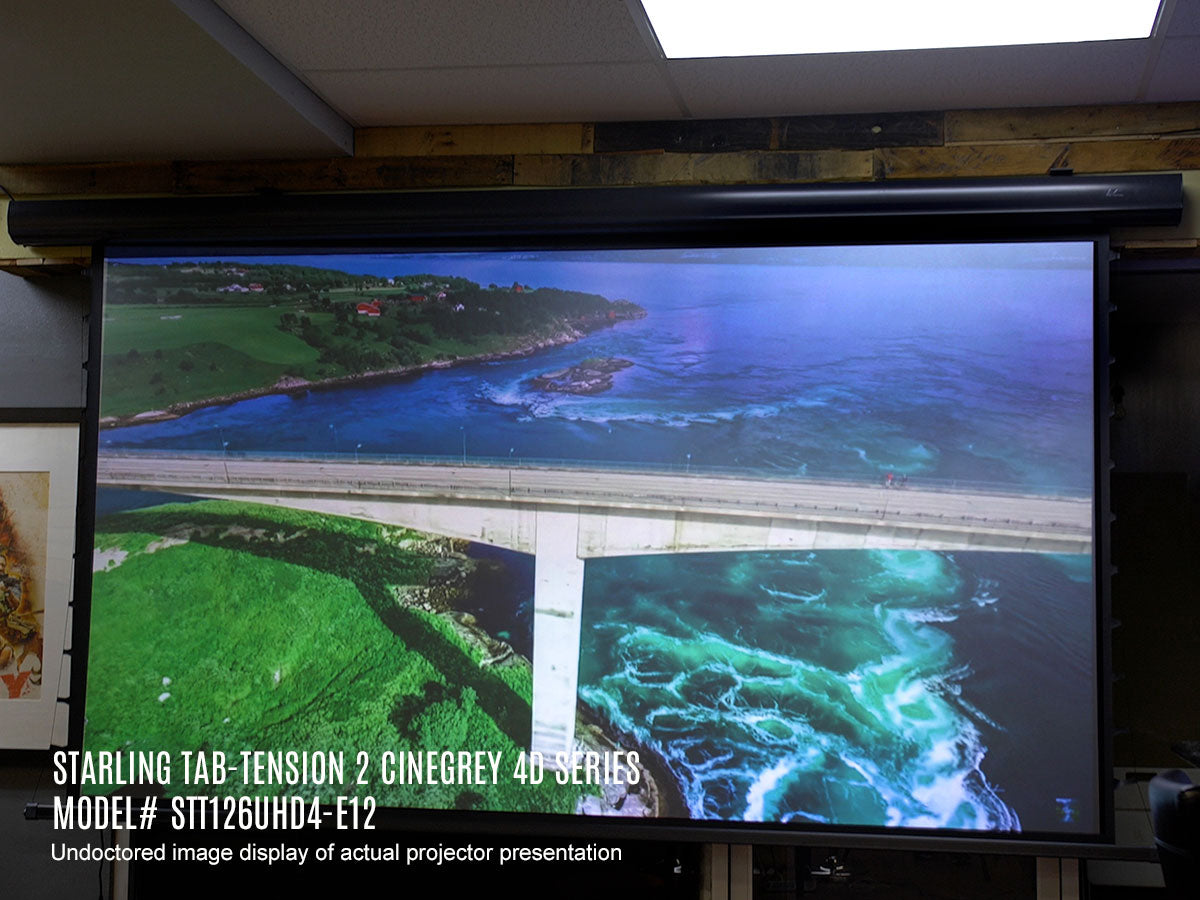

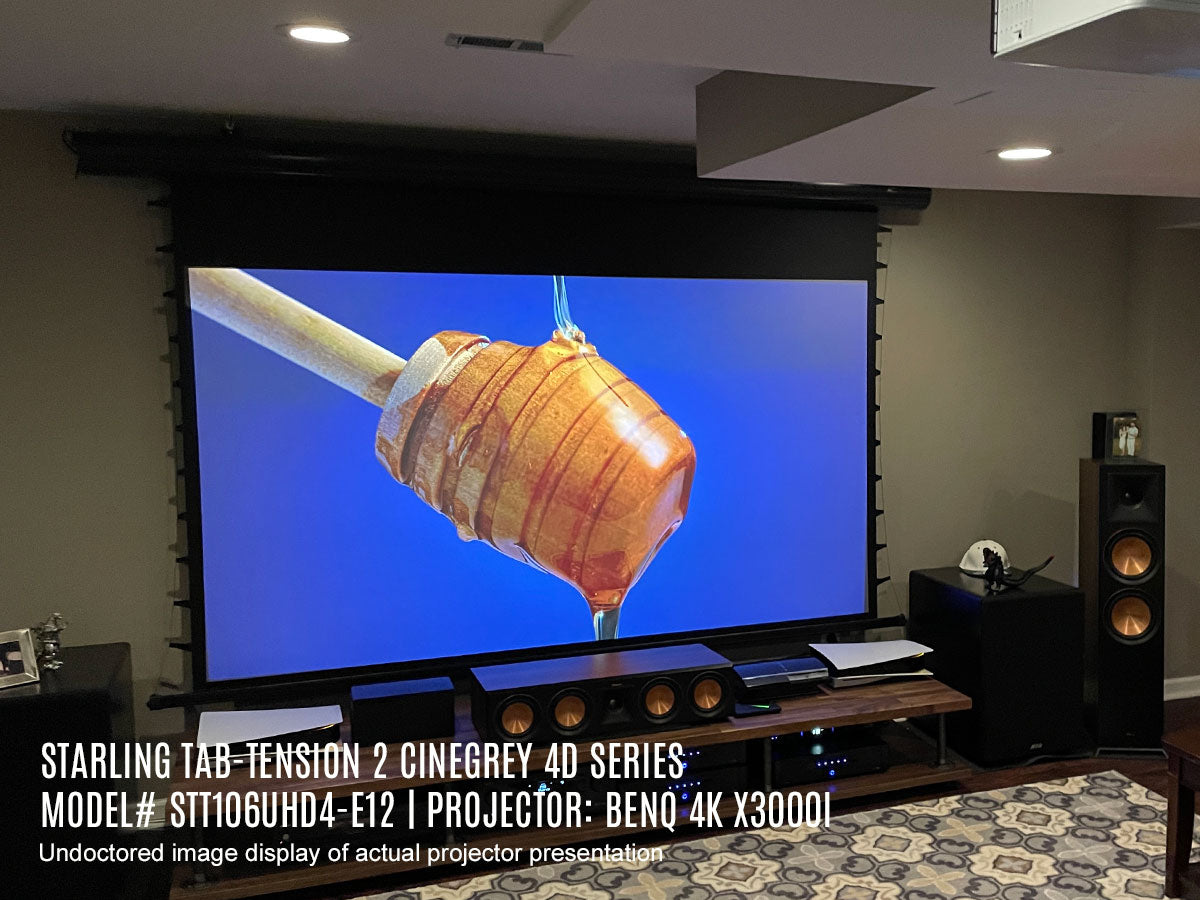

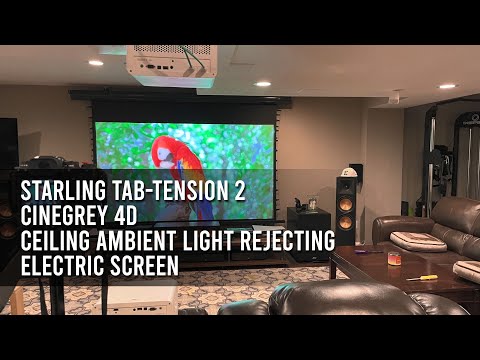

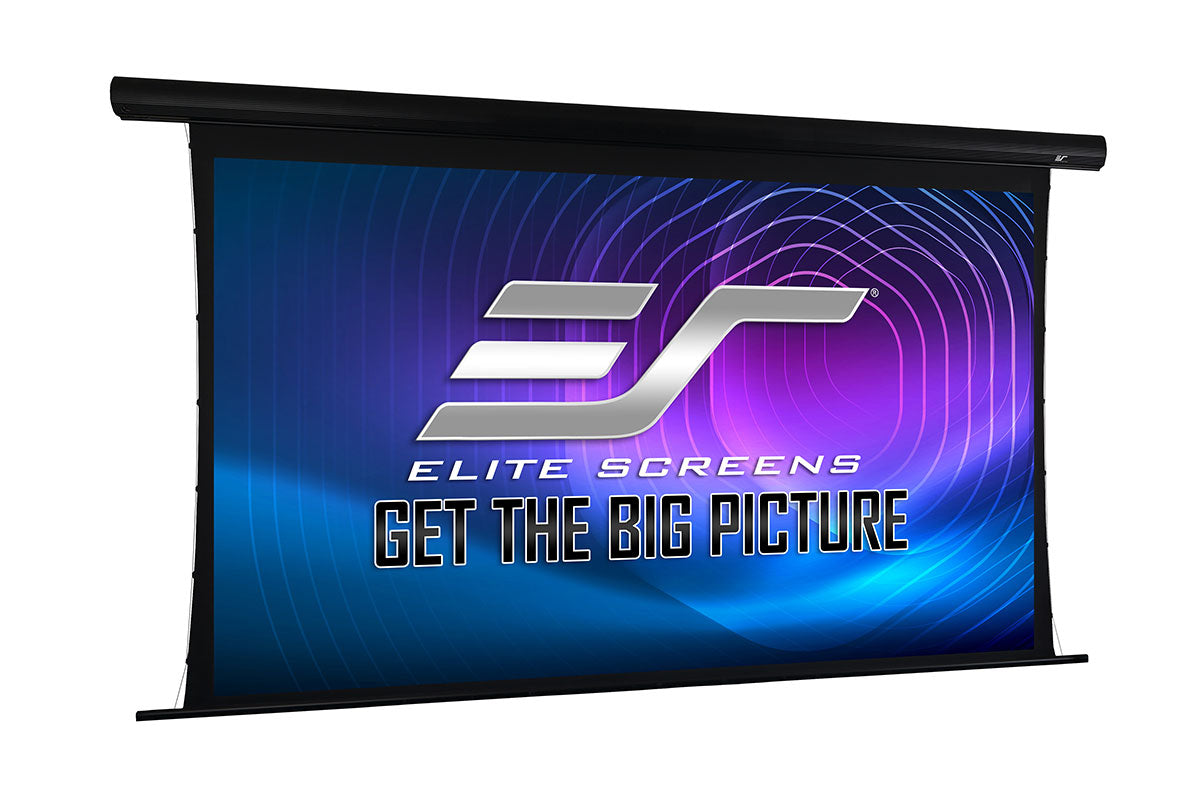

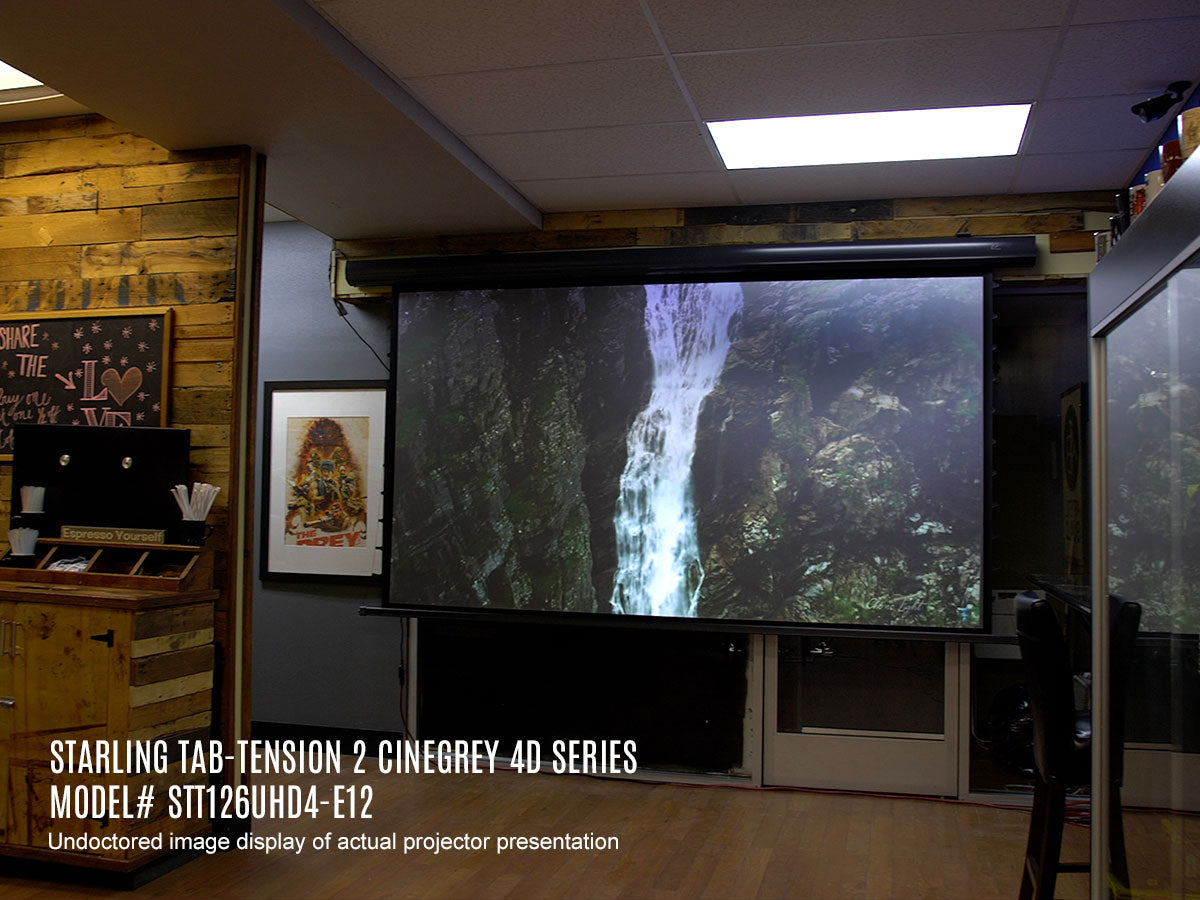

The Starling Tab-Tension 2 CineGrey 4D is a high-quality electric tab-tensioned motorized screen. It utilizes our CineGrey 4D, which is a ceiling ambient light rejecting front projection surface. It has an elegant arcuate shaped aluminum housing in a black finish that allows floating brackets to attach to the back for a quick and easy installation for wood stud alignment. The Starling Tab-Tension 2 includes a handful of control options and has a tab-tensioned system to maintain a taut and ripple-free projection image.

Product Features

Screen Material

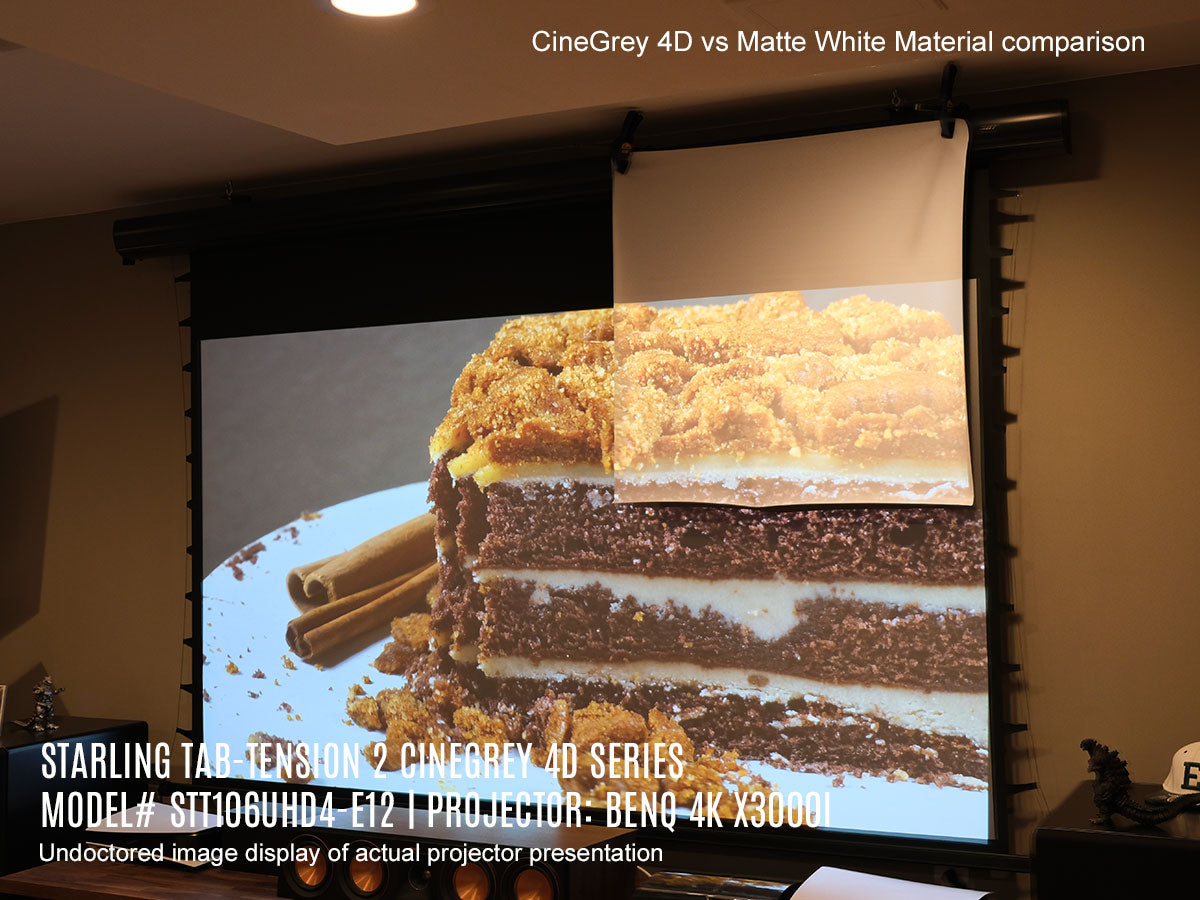

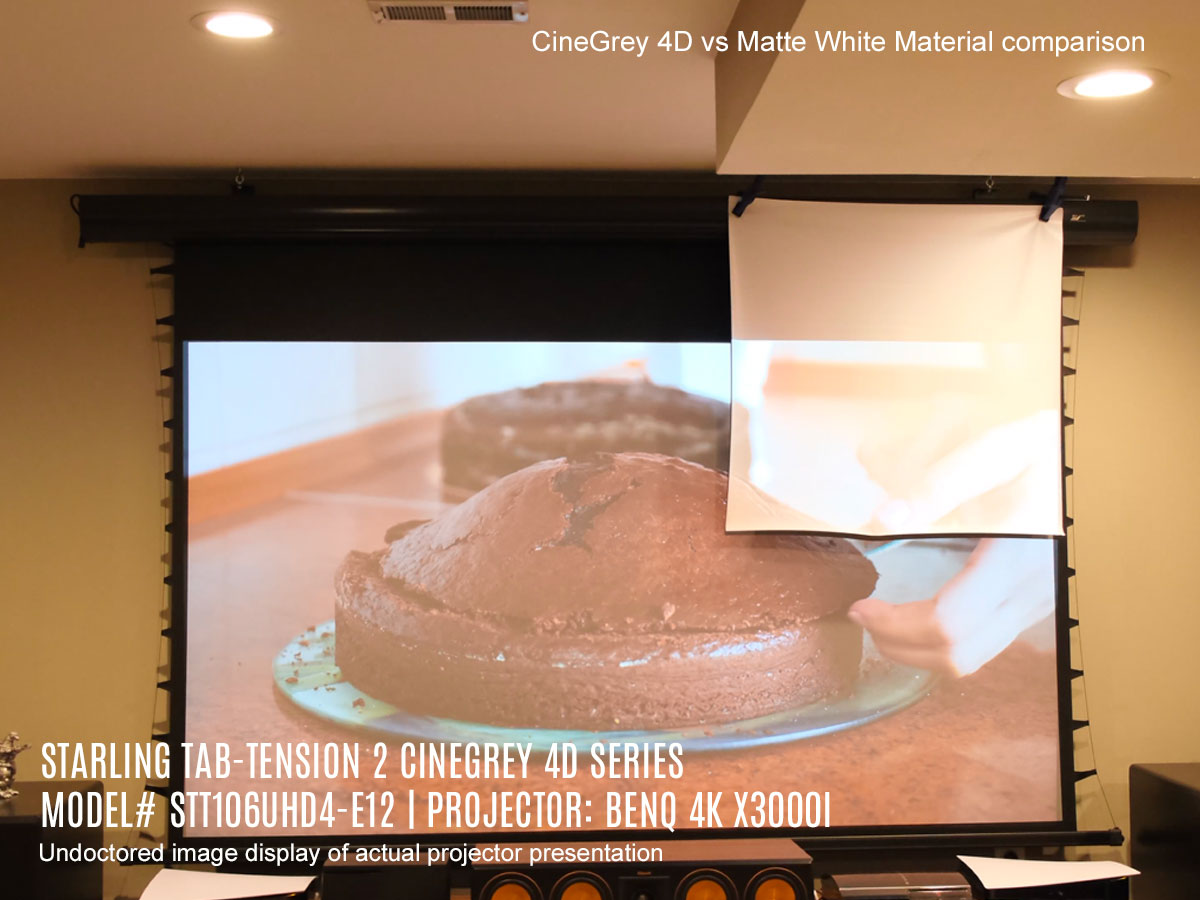

• CineGrey 4D 1.1 Gain Ceiling Ambient Light Rejecting Material
• Angular Reflective CLR/ALR Front Projection Surface for Standard “long” Throw Projectors
• Multi-layer matrix uses reflective and absorbent micro-particles to eliminate 63% ambient light
• ISF Certified for Accurate Color Reproduction – An Industry Standard for High-Fidelity Video Display Systems
• Enhances color contrast with excellent fidelity and uniformity
• 4-sided black masking borders enhance picture contrast
• 4K Ultra HD, HDR and Active 3D compatible
• Available in diagonal sizes: 106″, 126″, and 140″ in 16:9 aspect ratio

Design and Installation

• Elegant arcuate shaped case in black finish is moisture resistant

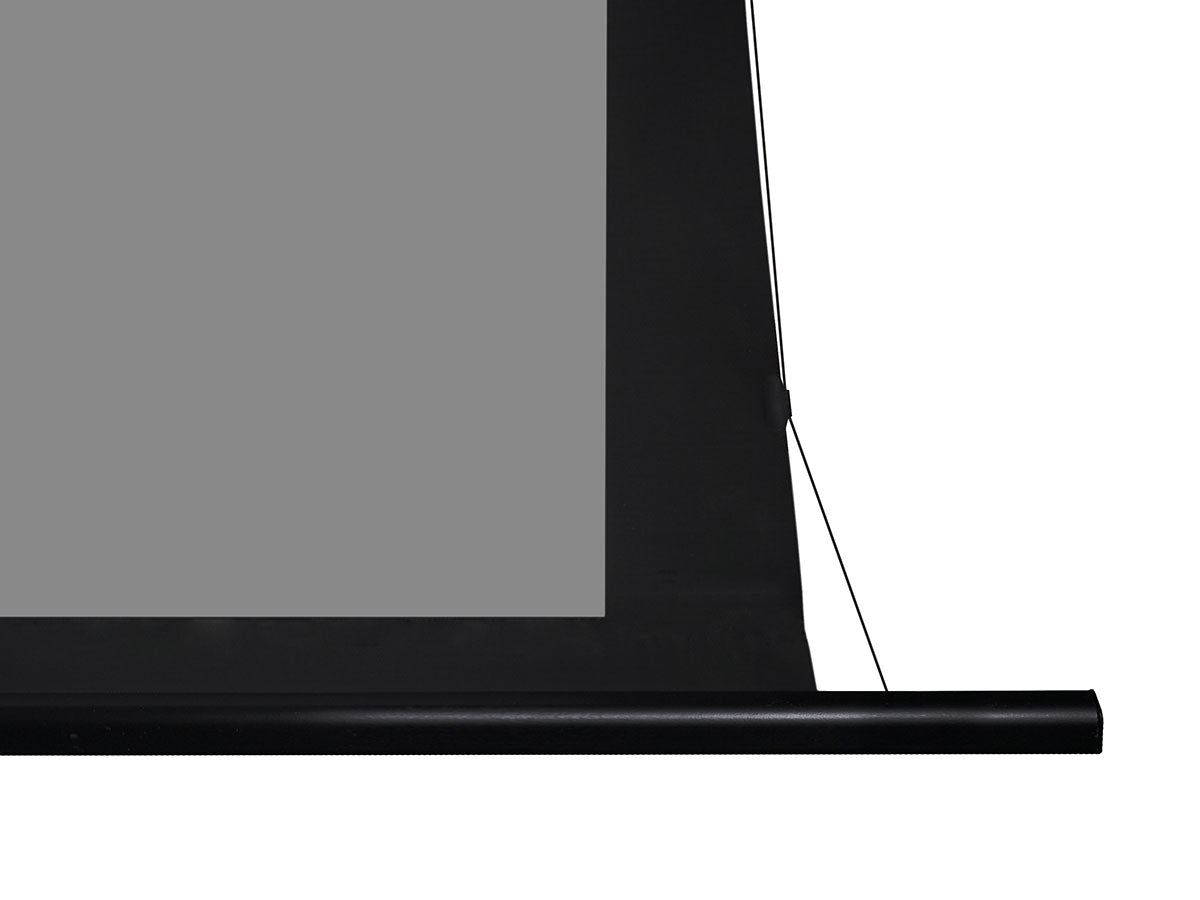

• Tab-tension design helps maintain a flat and taut projection surface
• Ceiling suspended capable using included eyebolts
• Flush wall/ceiling floating brackets included permit wood stud installation and slide horizontally for proper centering
• Ships fully assembled with standard 3-prong power connection ready to plug and play

Control System- SWIFT-RC1

• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
  • Wired 12v trigger capability via wall box controller
  • Wireless 12v trigger capability via Radio Frequency remote control
• Plug & Play design with built-in low voltage control system, no hardwire installation required

Quality and Reliability

• Fast acting tubular motor with superior weight tolerance
• 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
• Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.

Downloads

Dimensions Table

• Dimensions Table – H Type (PDF)
• Dimensions Table – J Type (PDF) – DISCONTINUED

User Guides

• User Guide – H Type (PDF)
• User Guide – J Type (PDF) – DISCONTINUED

Comparison Tables

• Comparison Table (PDF)
• Electric Tab-Tensioned ALR Wall/Ceiling Screens Comparison Table
• CLR®/ALR Materials Comparison
• CineGrey 3D® / 4D / 5D® Comparison Table

Others

• Screen Material Care Sheet
• Installation Tip (PDF)
• Product Cut Sheet (PDF)
• CineGrey 4D Material Sheet
