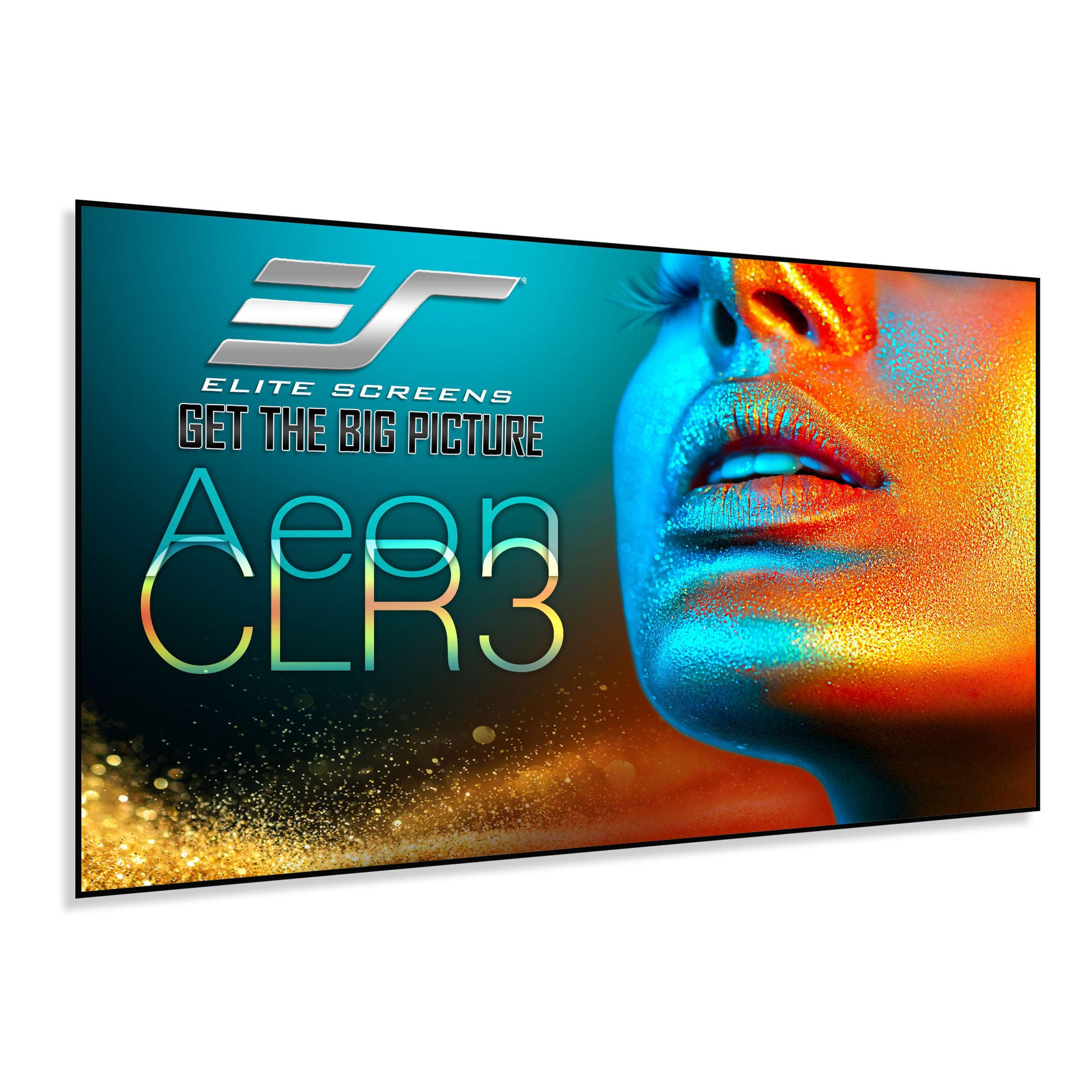

[Elite Screens] Aeon CLR 3 | ALR/CLR EDGE FREE Fixed Frame Projection Screen, 103/123" in 16:9 Format

[Elite Screens] Aeon CLR 3 | ALR/CLR EDGE FREE Fixed Frame Projection Screen, 103/123" in 16:9 Format

A circular icon of a ceiling light fixture with radiating lines, commonly used as a placeholder or category icon.
A circular blue and red logo with white text reading 'TAA COMPLIANT'.
• Screen Material : StarBright CLR 3
• Gain : 0.8
• Viewing Angle : 170°
• Compatible Projection :
Ultra Short Throw
Triple Laser

Description

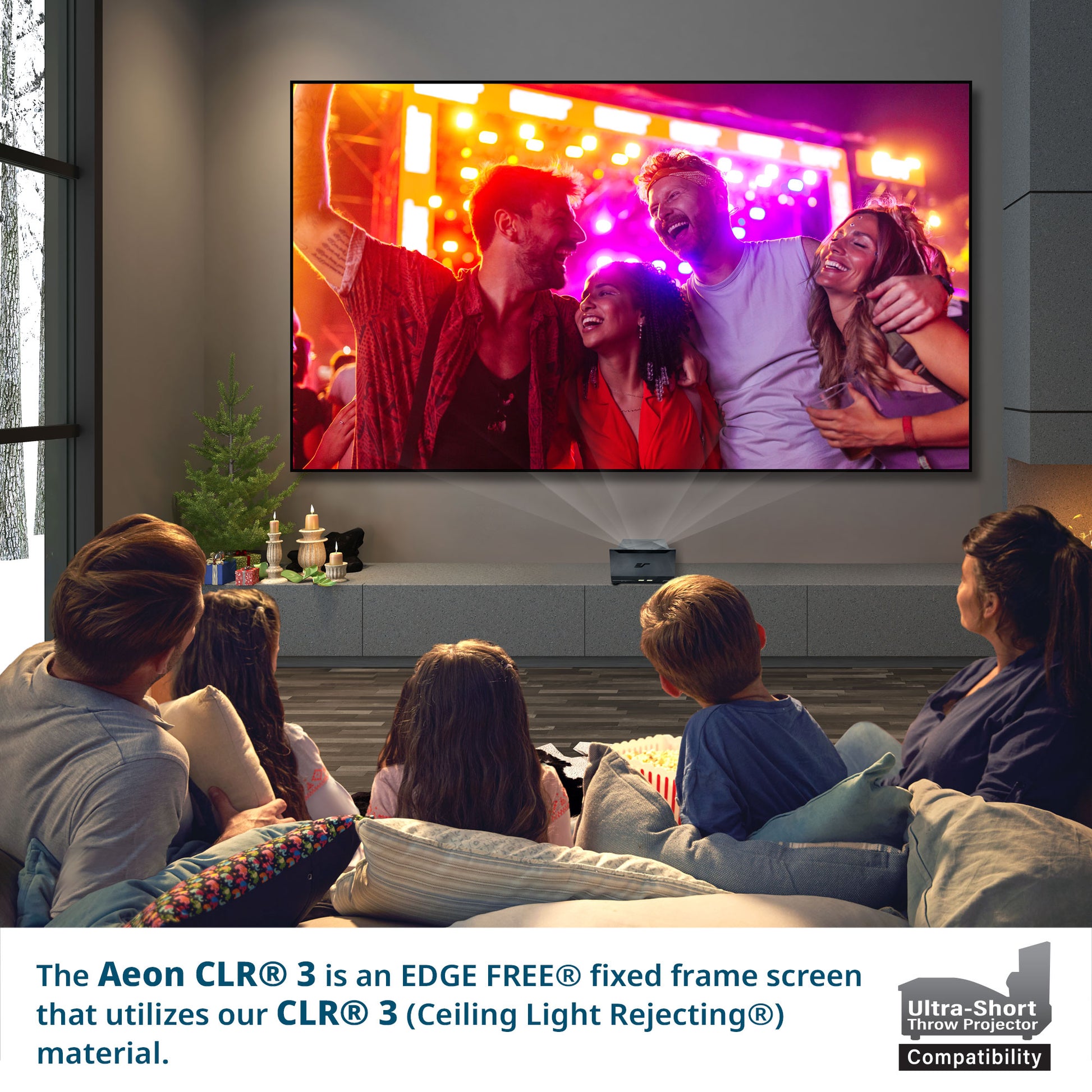

The Aeon CLR® 3 is an EDGE FREE® fixed frame screen that utilizes our CLR® 3 (Ceiling Light Rejecting®) material. Its serriform optical surface lens microstructure negates the washout effect of ambient light especially from overhead sources. This also enables the material to provide contrast levels that are 75 times greater than that of standard matte white projection screens.

CLR® 3 is specifically designed for ultra-short-throw projectors to provide a large-screen performance in the close quarters of most residential or training room environments. CLR® 3 offers a wide viewing angle, neutral color temperature, and enhanced picture contrast in a theater-grade image.

EDGE FREE® means there is an internal framework with wraparound material bordered with an ultra-thin bezel. The screen uses a Ceiling Light Rejection® technology.

Product Features

Screen Material

  • CLR® 3 (Ceiling Light Rejecting®) material absorbs 90% of overhead lighting

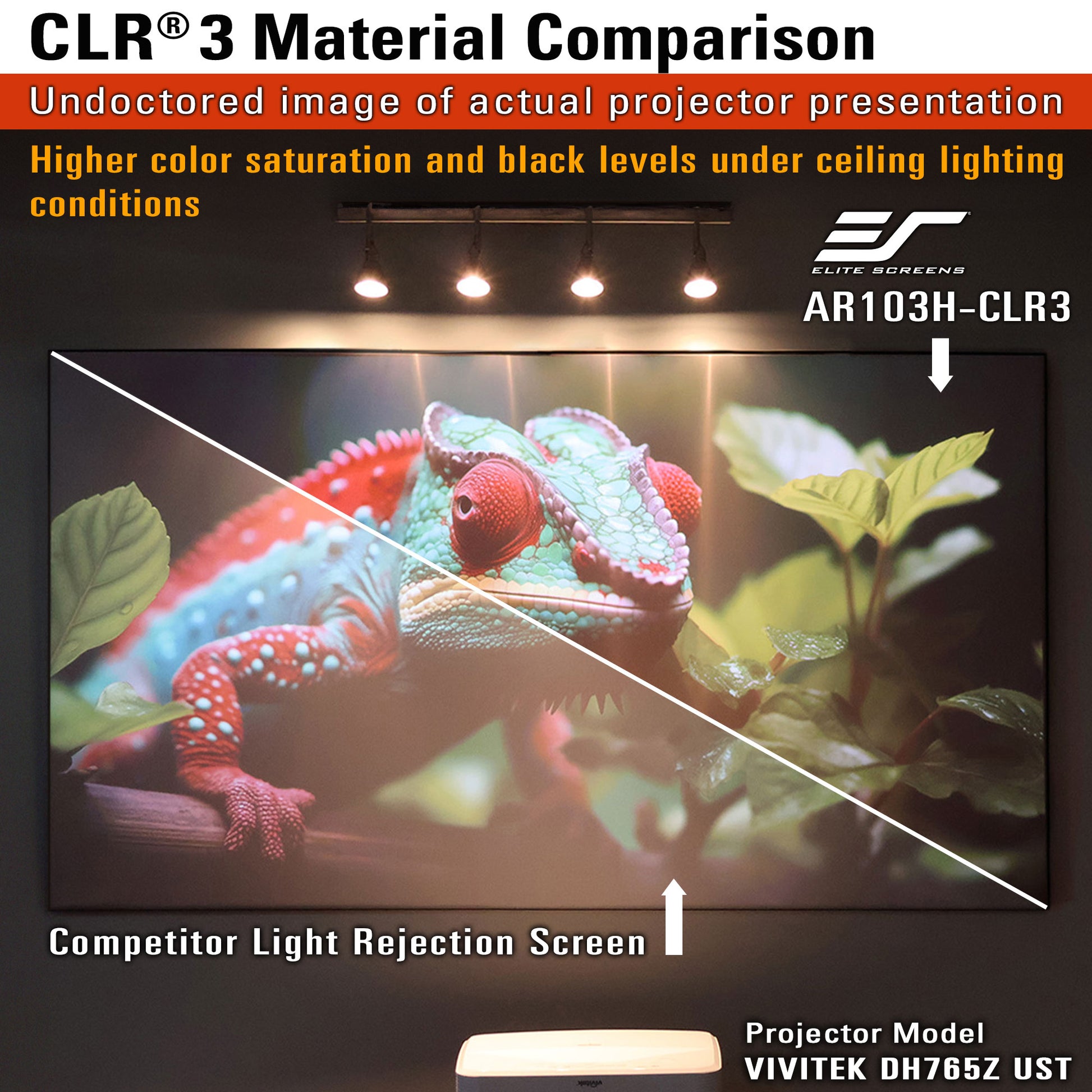

  • Improves color saturation and black levels under ambient light conditions

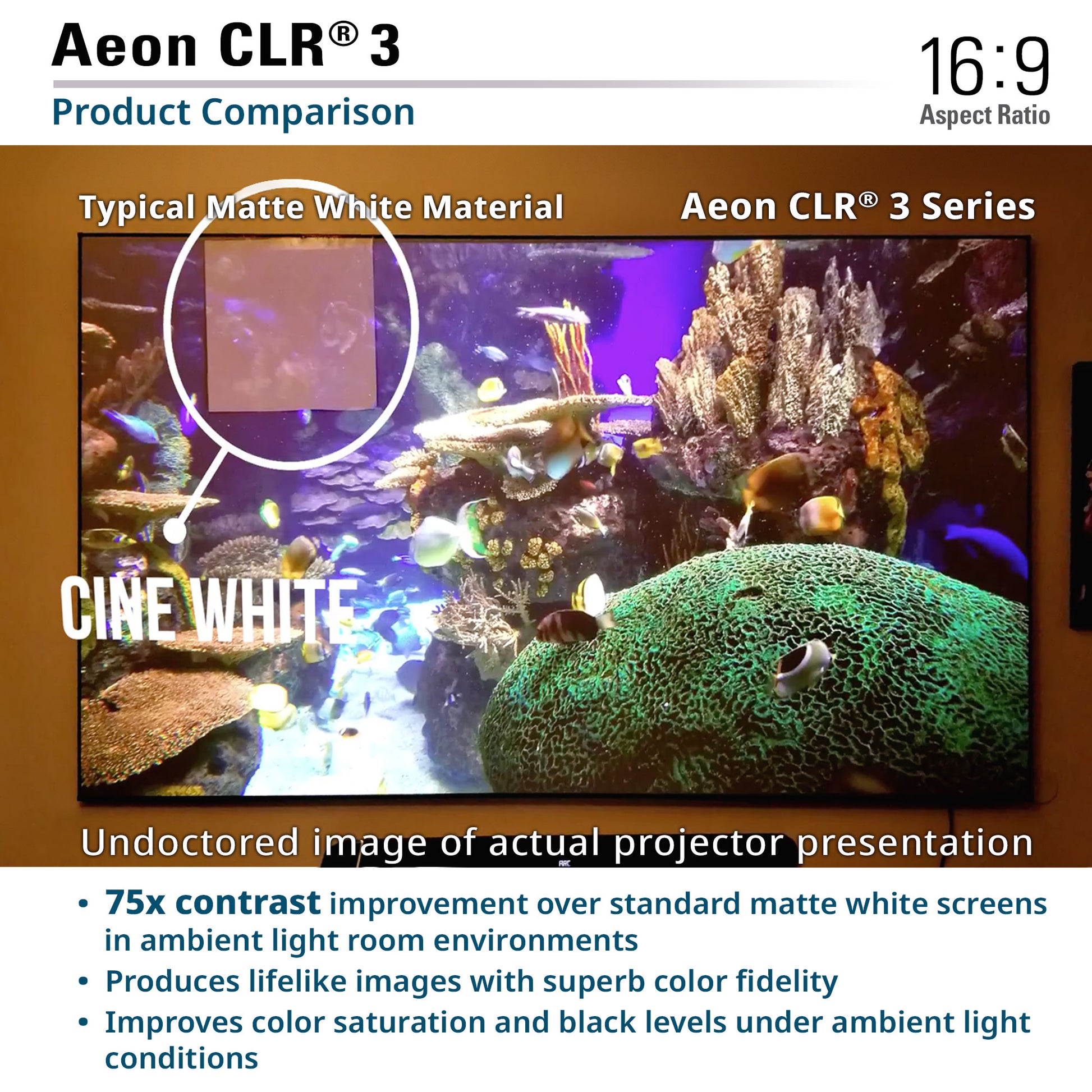

  • 75x contrast improvement over standard matte white screens in ambient light room environments

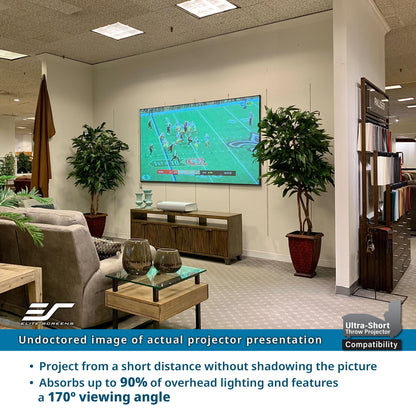

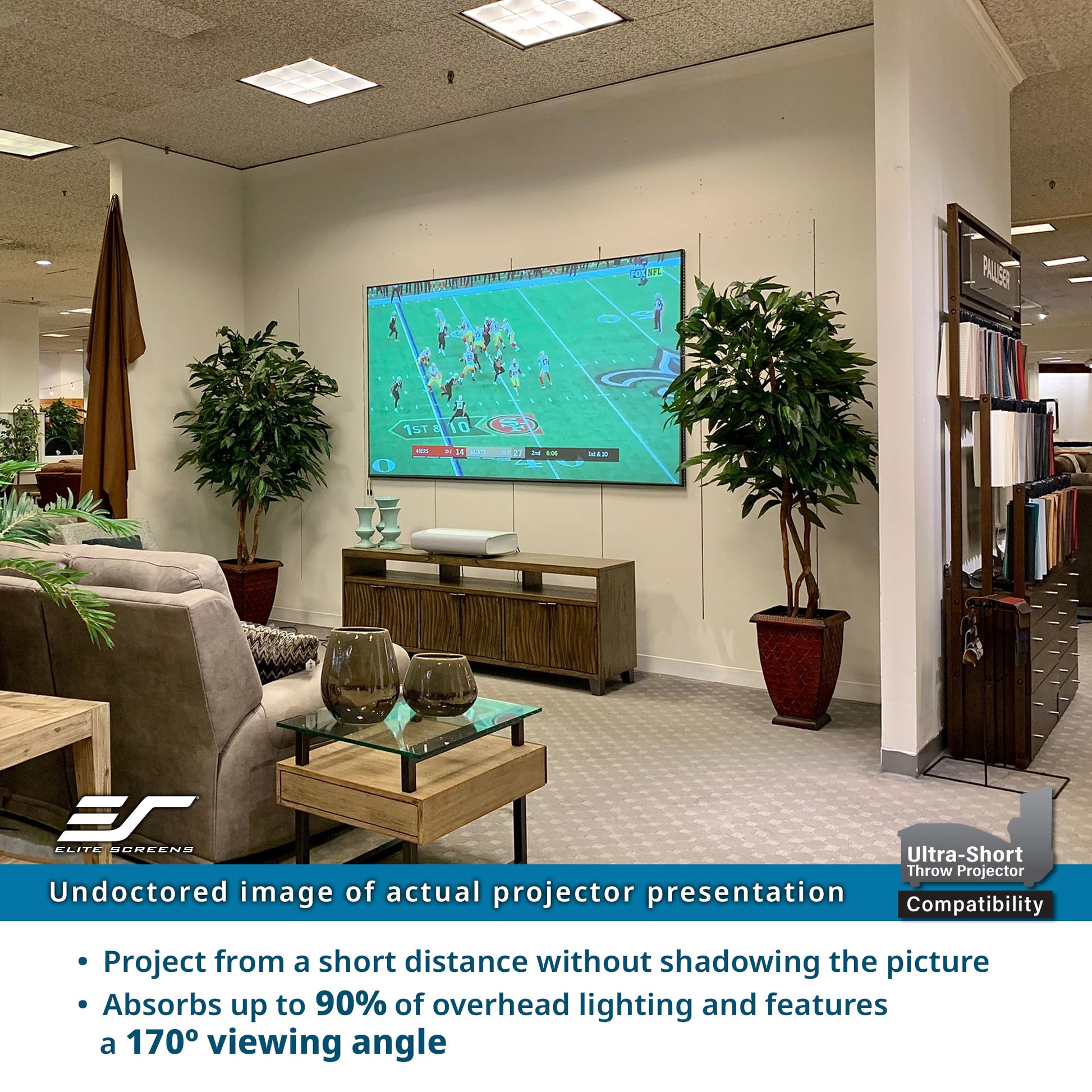

  • Project from a short distance without shadowing the picture
  • 170° viewing angle (85° L/R) – Allows viewers to spread out while maintaining brightness uniformity
  • Black-backing (non-opaque) enhances image brightness
  • Micro-serriform optical structure filters out ceiling light for superior picture quality
  • 4K/8K Ultra HD, HDR Ready

Design and Installation

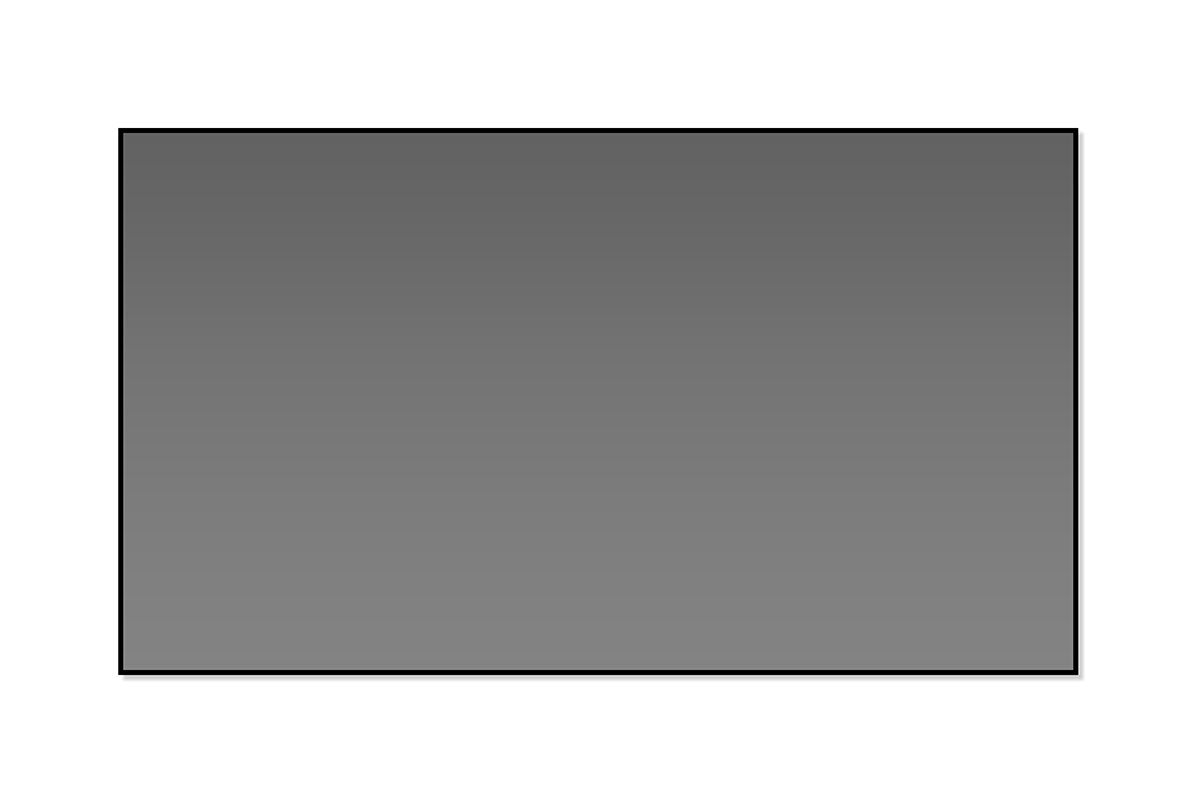

  • Sleek EDGE FREE® Fixed Frame resembles a flat panel TV
  • Lightweight aluminum split-frame design
  • Wraparound design maximizes viewing area and reduces overall footprint
  • Ultra-thin black bezel trim
  • LED Backlight kit included
  • Project within a short distance without shadowing the picture
  • Designed for table-top ultra-short throw projectors

Quality and Reliability

  • 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
  • Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.

Downloads

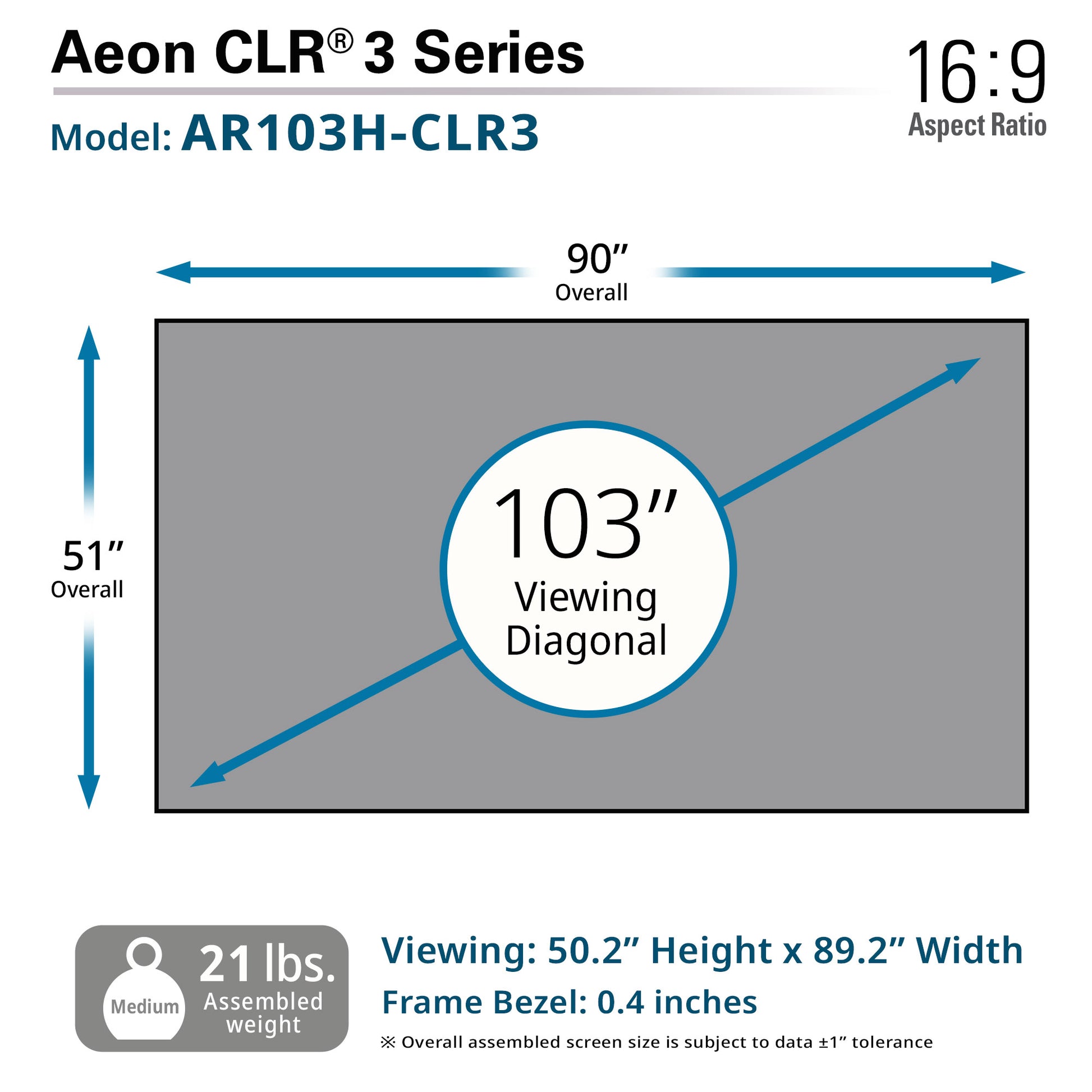

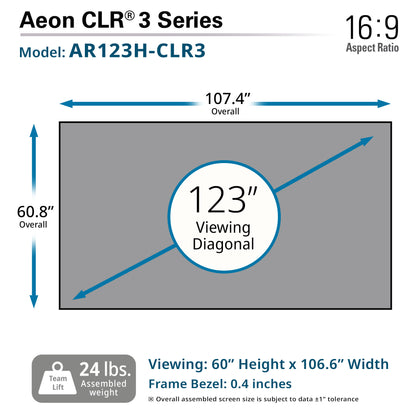

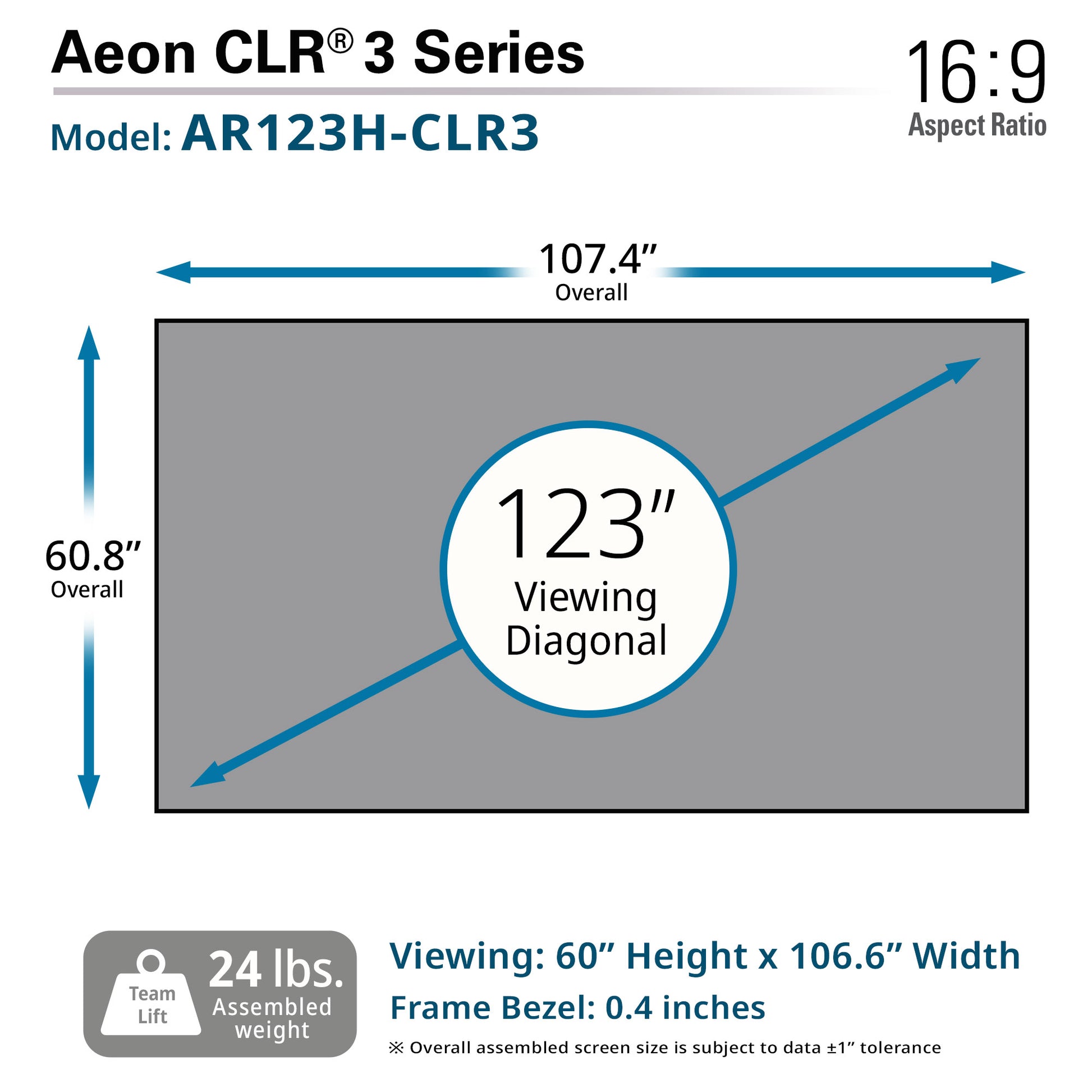

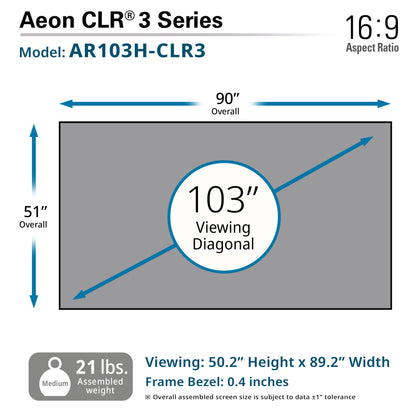

Dimensions Tables

User Guides

Comparison Tables

Others

Shipping & Returns

📝 Our Shipping & Return Policy

📩 Request a Shipping Quote (AK, HI, PR and Canada)

  • Purchase Orders for GROUND shipping service received by 5:00 PM (PST) are processed to be shipped from Elite’s warehouse within 2-5 business days. You will receive an email confirmation when your order has shipped.
  • All orders are fulfilled Monday through Friday, excluding weekends and holidays. We are not responsible for unexpected shipping delays caused by circumstances related to the courier, weather or state of emergency.
  • Oversize Shipping : If your order is shipped via Pilot Freight Services, they will contact you to schedule a delivery.

Regular price $728.00 USD
Regular price Sale price $728.00 USD
Sale Sold out
Free Shipping To The Continental U.S 48 States | Shipping Policy

SKU:AR103H-CLR3

Size
Quantity
Distances From Your Screen

Screen Material Information

Screen Material Name CLR® 3
Description The CLR® 3 is a ceiling ambient light rejecting front projection material designed specifically for tabletop-mounted ultra-short throw projectors. It uses optical microstructures to absorb up to 90% of overhead lighting while producing exceptional image brightness, color saturation and contrast for superior picture performance.
Type of material Gray (TPU)
Reflective technology type Retro-Reflective
Ambient Light Rejecting Yes (up to 90%)
Gain 0.8
Viewing Angle 170°
Minimum Throw 0.1 - 0.4 x Image Width
Black backing Yes
3D Ready Active
Scatch-resistant No
4K/8K Ultra HD Ready Yes
ISF Certified No
Projection Type Front
Projector Type Compatible Ultra-short Throw (tabletop only)
Best for environments Moderate ambient light control rooms and dark rooms
Recommended for Excellent black level performance in dark rooms and preserving color purity under ceiling lights.
  • 5 stars: 23 (62%)
  • 4 stars: 8 (22%)
  • 3 stars: 3 (8%)
  • 2 stars: 3 (8%)
  • 1 star: 0 (0%)
J
Joseph E.Y.

Worth the cost

m
mark l.d.
Incredible UST projector screen! Don't doubt it.

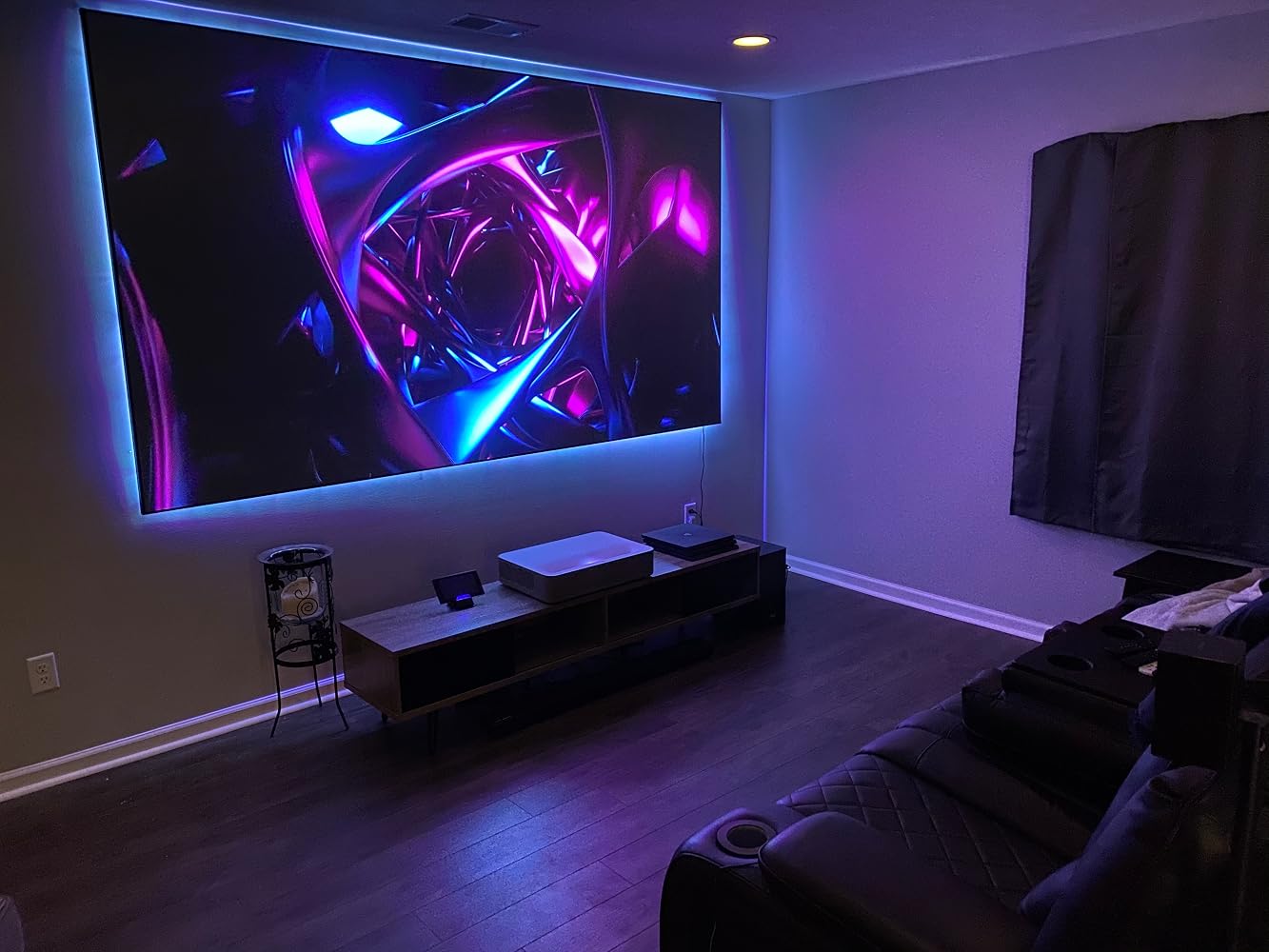

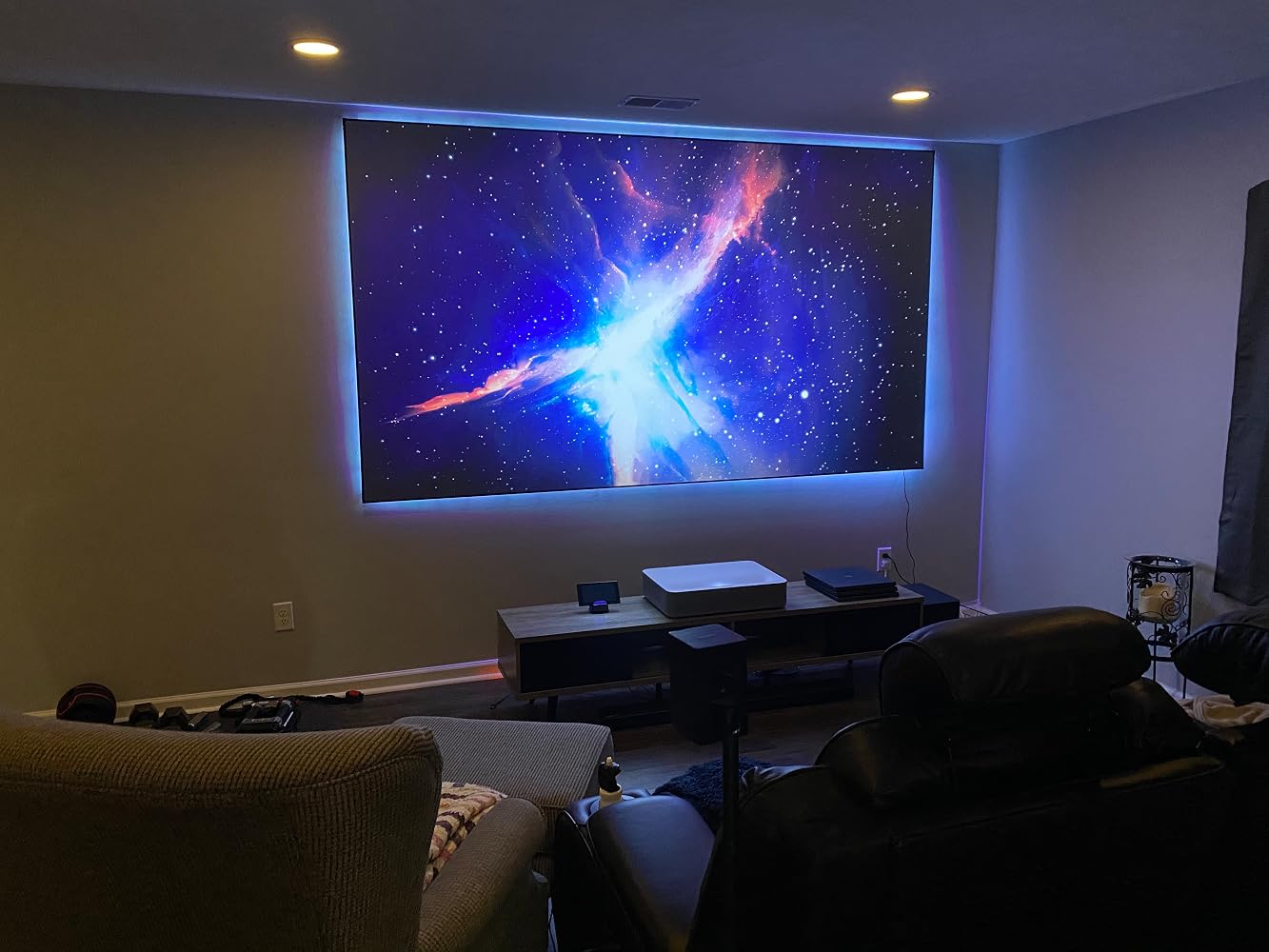

This screen is absolutely everything I hoped. Attached are a couple pictures and a video with lights on and Windows open. Great picture with lights off or on. Great quality and easy assembly. Very happy! Video taken with garbage cell phone. Picture quality better than it shows here.
