[Elite ProAV] Manual Tab-Tension Pro Series

Description

The Manual Tab-Tension Pro by Elite ProAV® is a tab-tensioned manual pull-down projection screen. It has a tab-tension system to keep the screen material flat and taut uniformly. It is offered in a matte white front projection surface for light controlled environments that is compatible with ultra/short/standard-throw projectors. A ceiling/ambient light rejecting option is also available for rooms with minimal light control.

The aluminum housing for the Manual Tab-Tension Pro projection screen is moisture resistant. The screen comes fully assembled and ready to mount. Floating wall brackets allow the screen to slide into perfect alignment with wood studs for a perfectly centered installation. Eyebolts are included to facilitate suspended ceiling installations.

Product Features

Screen Material

• CineWhite® (for light controlled environments)
  • Tensioned Matte White 1.1 Gain front projection material
  • Wide diffusion uniformity allows viewers to enjoy a clear bright picture from any angle
  • Compatible with Ultra/Short/Standard “long” throw Projectors
  • Black backing eliminates light penetration which prevents picture degradation
  • Ceiling/Ambient Light Rejecting material option available
  • 4K Ultra HD, Active 3D, and HDR Ready
  • ISF Certified for Accurate Color Reproduction
  • Black masking borders enhance picture contrast and absorb projector overshoot
  • Available in diagonal sizes 113″, 123″ and 130” in 16:10 aspect ratio

• CineWhite® P (for light controlled environments)
  • Gain: 0.9
  • Viewing Angle: 180°
  • Black backing layer enhances picture contrast
  • Superior performance while maintaining true color purity with excellent contrast to display precise presentations.
  • ISF Certified for accurate color reproduction – An industry standard for high-fidelity video display systems.
  • Wide viewing angle provides a clear, bright, and uniform picture from any angle.
  • Compatible with 4K Ultra HD high resolution Ultra-Short, Short-Throw, and Standard Throw Projectors
  • Available in 110” and 125” in 16:9 and 100” in 16:10 aspect ratio

Design and Installation

• Premium grade white-enameled aluminum housing
• Tab-tension design helps maintain a flat and taut projection surface

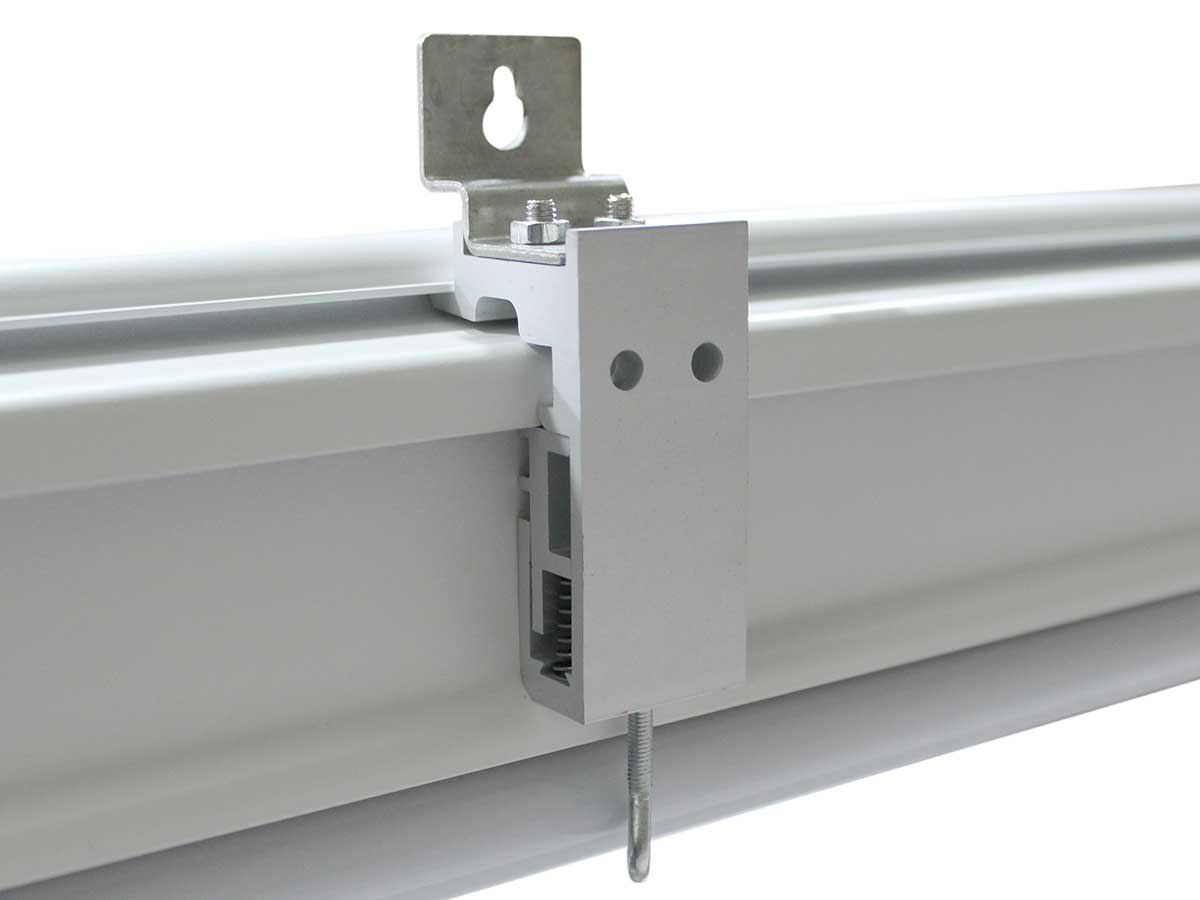

• Floating brackets permit a sliding flush wall installation
• Includes eye-bolts for a suspended ceiling installation (not available for the MT100NWX3, MT110HE12 and M125HE12)
• Auto-locking mechanism provides variable height settings
• Built-in SRM (Slow Retract Mechanism) function for hands-free and safe retraction into housing – MT100NWX3, MT110HE12 and M125HE12
• Optional 6” and 12” Extension L brackets – Sold Separately

Quality and Reliability

• 5-Year Premium Warranty
• Lifetime Tech Support by Elite’s professional Service Team through Email or Phone Call

Downloads

Dimensions Tables

• Dimensions Table – Z Type (PDF)
• Dimensions Table – H Type (PDF)
• Dimensions Table – MT100NWX3 (PDF)
• Dimensions Table – H Type – MxxxHE12 (PDF)

User Guides

• User Guide (PDF)
• User Guide – H Type (PDF)
• User Guide – H Type – CineWhite P Models (PDF)

Others

• Product Cut Sheet (PDF)
• Screen Material Care Sheet
• Manual Screens Comparison
