[Elite Screens] Designer Cut CineGrey 4D AT | Acoustically Transparent ALR/CLR DIY Screen, 139"(16:9) 151"(4:3)
[Elite Screens] Designer Cut CineGrey 4D AT | Acoustically Transparent ALR/CLR DIY Screen, 139"(16:9) 151"(4:3)
• Gain : 1.1
• Viewing Angle : 70°
Description
The Designer Cut Series is Elite Screens selection of pre-cut projection screen material swatches. The swatches are prepared for use in custom solutions and other improvised installations according to the integrator's needs.
*We consider our impact screens a wearable item and the life of them will vary according to their use. Avoid using golf balls with scuffs or markings to maximize the life of the screen. If possible, use new golf balls. Some creasing may occur but may be removed with a steamer and/or light ironing set to no higher than Polyester.
Product Features
Screen Material Options
-

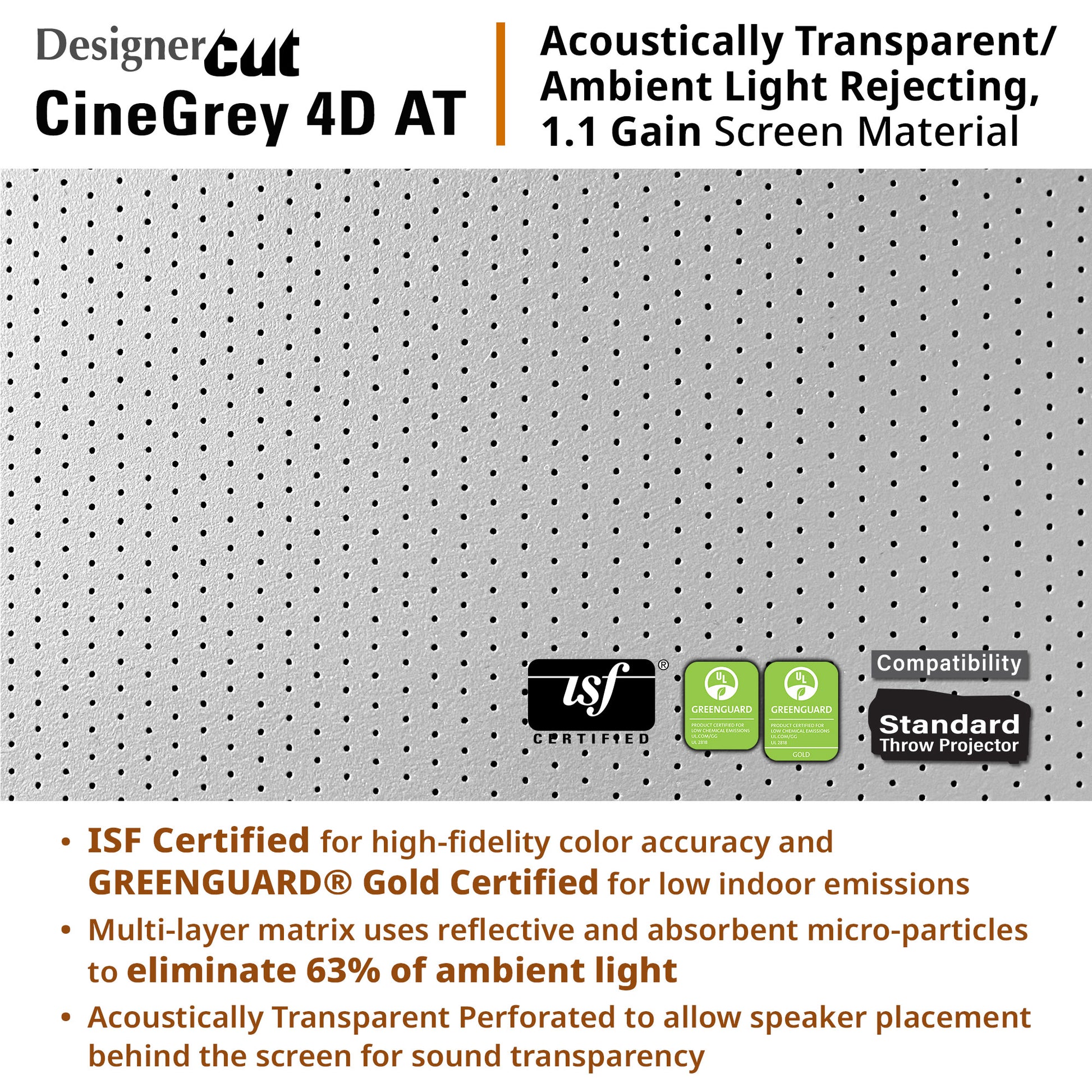

- CineGrey 4D AT, Acoustically Transparent front projection Ceiling Ambient Light Rejecting (ALR/CLR) material, ISF certified,1.1 gain.
Design and Installation
- Pre-cut materials for custom sized architectural or DIY projects

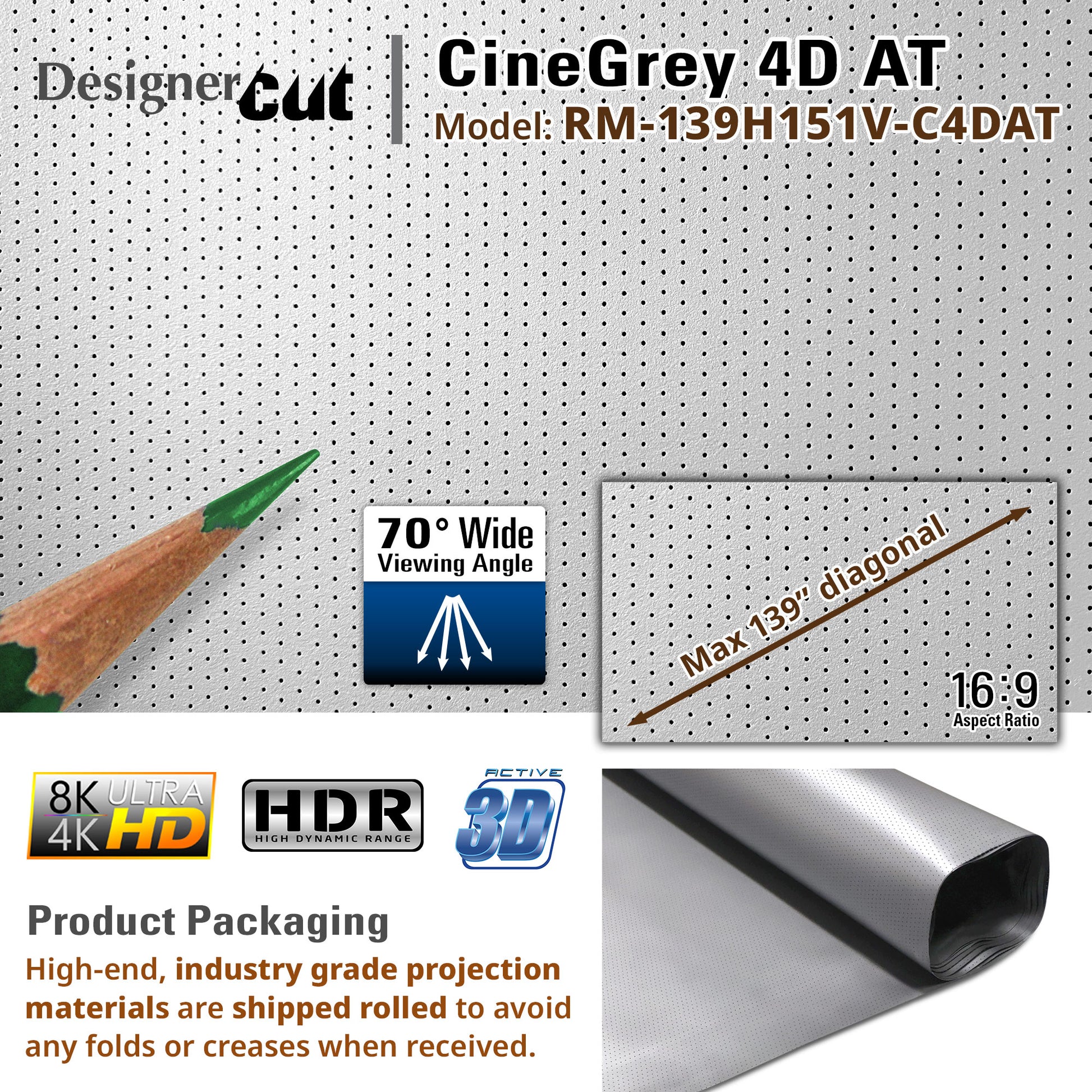

- Rolled material helps maintain a flat and wrinkle-free viewing surface (ImpactWhite 1145 and 360 materials are folded in small box packaging)
- Stretches over a standard or designer made framework
- High-end, industry grade projection materials
- 4K Ultra HD, Active 3D, and HDR Ready
Quality and Reliability
- 2-year limited warranty, and 3-year warranty for ENR-G Education, Non-profit, Religious and Government/Military organizations
- Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
To learn more, click here to visit our general screen materials section.
Click here for a comparison chart of Designer Cut Materials.
Downloads
Dimensions Tables
- Dimensions Table – E/EN Type (PDF)
- Dimensions Table 150″ and Above – E/EN Type (PDF)
- Dimensions Table – Z Type (PDF) – DISCONTINUED
- Dimensions Table 180 Model – Z Type (PDF) – DISCONTINUED
- Leg Adjustment Dimensions – DISCONTINUED
User Guides
- User Guide – E/EN Type (PDF)
- User Guide – 150″ Above – H Type (PDF)
- User Guide – Z Type (PDF) – DISCONTINUED
- User Guide (150″/180″) – Z Type (PDF) – DISCONTINUED
- User Guide (PDF) – DISCONTINUED
Comparison Tables
Others
Shipping & Returns
Shipping & Returns
📝 Our Shipping & Return Policy
📩 Request a Shipping Quote (AK, HI, PR and Canada)
- Purchase Orders for GROUND shipping service received by 5:00 PM (PST) are processed to be shipped from Elite’s warehouse within 2-5 business days. You will receive an email confirmation when your order has shipped.
- All orders are fulfilled Monday through Friday, excluding weekends and holidays. We are not responsible for unexpected shipping delays caused by circumstances related to the courier, weather or state of emergency.
- Oversize Shipping : If your order is shipped via Pilot Freight Services, they will contact you to schedule a delivery.
SKU:RM-139H151V-C4DAT
Special Promo Price:
The extra 0% off applies automatically to this variant when you add it to your cart.
Couldn't load pickup availability
Screen Material Information
| Screen Material | CineGrey 4D AT |
|---|---|

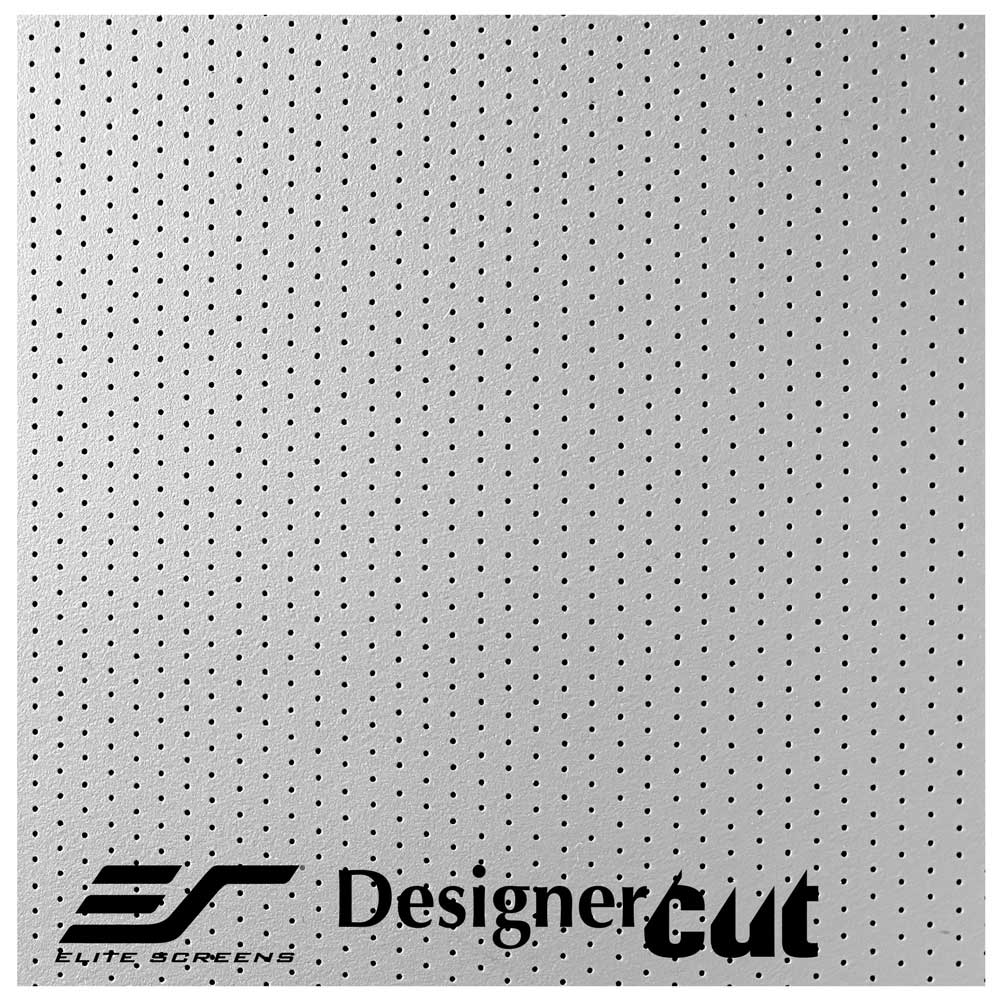

| Description | The CineGrey 4D AT is an acoustically transparent front projection angular reflective material with ambient light rejecting technology for standard throw proejctors.Its perforations permit speakers to be placed behind the screen with minimal attentuation. It is ISF Certified for acurrate color reproduction. |
| Type of material | Silver Gray - Acoustically Transparent |
| Hole Size | 0.55 mm |
| Composition | PVC - Perforated |
| Projection Type | Front |
| Ambient Light Rejecting | Yes - 63% |
| Gain | 1.1 |
| Viewing Angle | 70° |
| Black backing | Black scrim included on Aeon only |
| 3D Ready | Active 3D |
| 4K/8K Ultra HD Ready | Yes |
| Minimum Throw | 1.5 x Image Width |
| Ultra/Short-throw projector compatible | No - Standard throw only |
| Acoustic Transparency (Mean attenuation) | - 6.98 dB |
| Best for environments | In-wall speaker or behind speaker placement for high-resolution HD/UHD projectors in a ambient light room environment. |
- 5 stars: 35 (80%)
- 4 stars: 6 (14%)
- 3 stars: 2 (5%)
- 2 stars: 1 (2%)
- 1 star: 0 (0%)
First off this screen is awesome, comes well packaged and is even marked for which side is the back. I got the A4K at 163” so there was plenty of material to over-lap to the back of my frame. Note: That you have to have an acoustically transparent black backing behind this so that the light doesn’t go through the screen and create a double image on the wall. Silver ticket offers one from their website for around $80. I have my Sonos soundbar mounted behind my screen and I can vouch for the acoustic transparency, no noticeable loss of sound and the screen does not move with the sound pressure waves if you’re concerned about that. Visually it’s stunning, I’m so happy with it, my projector has an issue with creating a lot of laser speckle and this material is supposed to help reduce it and it certainly does, I can’t even notice it anymore.

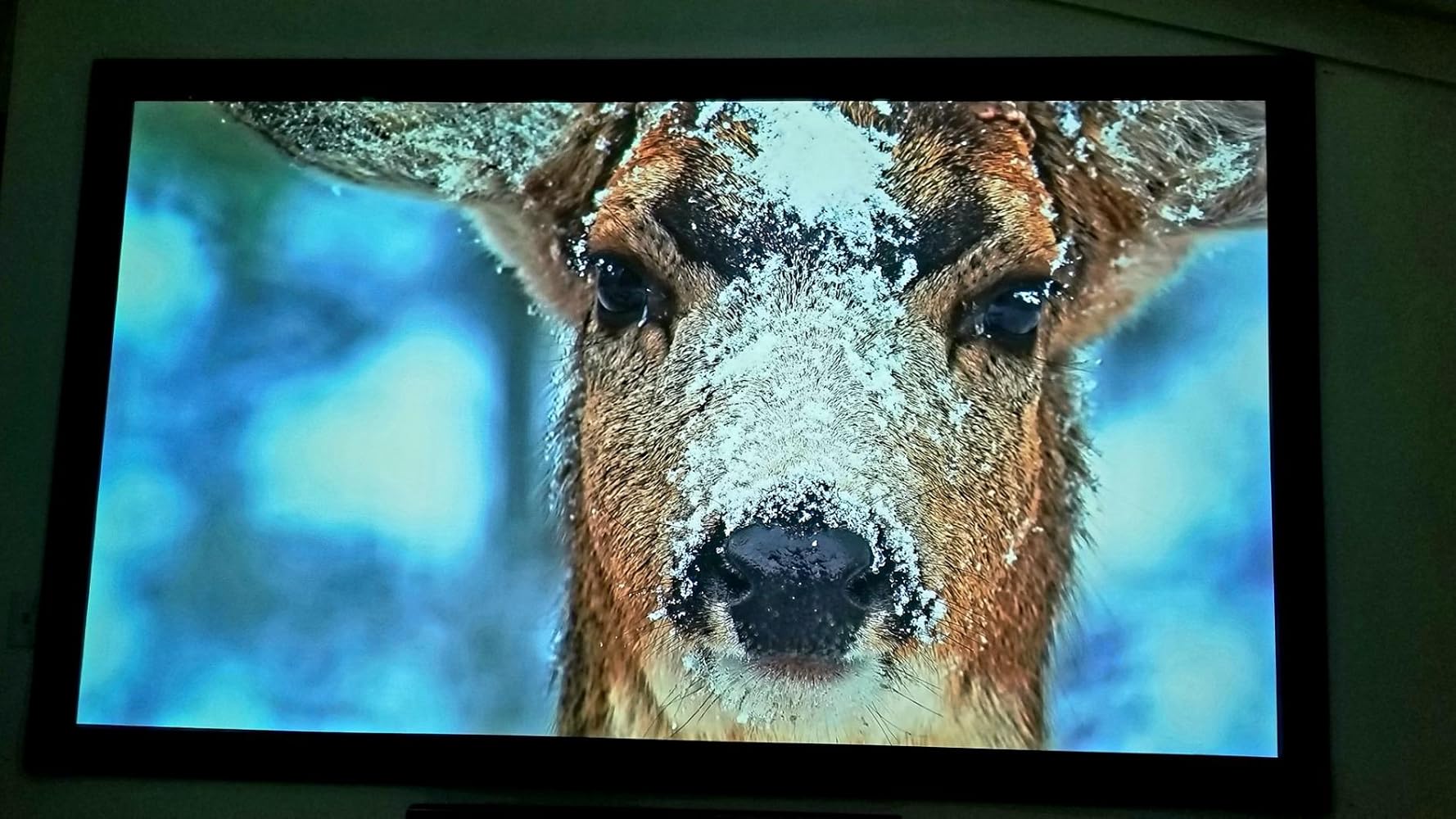

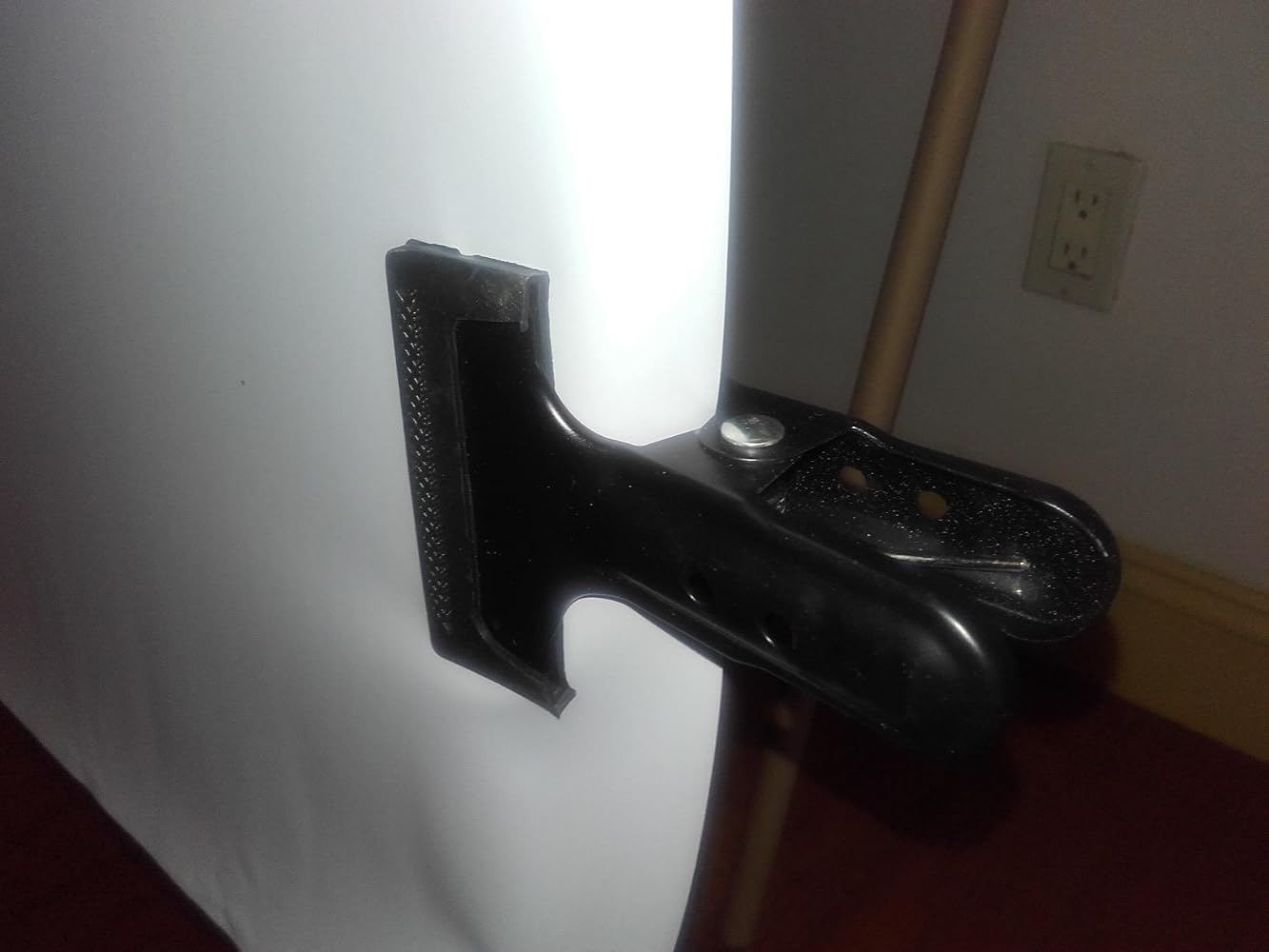

I love this screen. I also bought a cheap and sturdy backdrop background and some metal clamps, so now have a foldable screen that I can use anywhere indoors. The quality of this screen is very good and movies do look better than on my white wall. I'm attaching some pictures of the screen fully extended, its "only" 125 inches because the sides are folded so I could hold the screen in place with the metal clamps. I'm very happy with my purchases.
Brought CINEGREY, for my Epson 2040. I built a 110" wood frame screen and stapled the material it to the back. I couldn't be more pleased. What I can say is that it does look washed out when all the lights are on and I have the blinds opened during the day.The good thing for me is I never have the blinds open, only did that to test the ambient light rejection feature, and my room has a modest amount of light control. Bottom line i couldn't be happier.
Very pleased with the picture quality. I purchased the Cinegray custom cut. I built a wooden frame 115" diagonal. Used heavy duty stapler to affix the screen material. Used 4" inch felt border on the edges.Great colors and contrast. Minimal washout when the room lights were on which was critical for me as this is a living room set up with lots of ambient light. Would highly recommend and buy again.
I’m really happy with this CineGray screen material. It has a black backing so there’s no light penetration. It’s made from a high quality, durable gray vinyl. The colors and the contrast really pop on this as opposed to some of the others that I’ve tried.I built my own 120” inch frame and didn’t do a perfect job, but it turned out just fine and really enhances the television experience. I would highly recommend this screen over the cheaper ones.I’m using it with the Reeder 4K projector that I also purchased here on Amazon.
I previously purchased the vine white from elite screens and loved it so much that I also purchased the cine grey. I custom made a 90” projector screen with the material and it looks amazing with my ultra short throw projector.
Package arrived without any damage so that’s always a plus. Stretching the material around the frame was very simple. I didn’t apply duct tape to the back of the screen until after I got it stretched into place. Then I applied the duct tape and ran a lot more staples through it. I felt if the duct tape was applied before stretching it that the material wouldn’t stretch very well or maybe not at all. I don’t have a super large space, but what I do have I love it.
Had to dock a star because it didn't come with a foam sheet like I was thinking it would. I read a review that claimed theirs came with one, so I had to buy an $18 giant nylon blanket. So this was my first screen I decided to staple to the back of my frame so I could have a borderless design due to my wall being black. I had no idea it would be so difficult. I had to get help to pull the corners, because at first they had big wrinkles. You seriously have to pull it super tight with all your might. Once I got it setup and wrinkle free I was very pleased. It looks exactly how I imagined. The material is great, pretty durable, nice gain, no complaints from me about it.[Update] I do have one complaint about this material, when you have a bright or white image projecting onto it, you can see very tiny specs of grain (like almost like a film grain) which doesn't look all that great. I believe this is due to my short throw projector being so bright that it causes the grain material to reflect more than it normally should. So this will probably only be a problem for you if you have a short throw as well.
The screen material itself was nice, and the contrast was was great.. however do not purchase for a laser projector because it creates crazy amounts of laser speckle. Even so I would have kept it, except.....My material arrived with roller imprints. It also had evenly spaced creases. Now the creases didn't bother me so much, ash that can be somewhat expected, and once the material is stretched and left to "relax" they do go away, and after two weeks of being stretched out they did go away/become way less visible. The roller imprints did not go away at all. (Roller imprints circled in red, crease in cyan) there was more than one row of the imprints, but one of them wasn't as obvious as the other in photos. I'm pretty sure there were 3 rows of them, but one them wouldn't have actually been on my screen since I ordered larger than i needed.Honestly I'm surpised by this. It was packaged well. How they managed to get that one the roll and no one noticed the imprints/creases is beyond me. But for the amount of money spent on a few yards of material that's unacceptable.Now to see how much Hassel they give me about the return condition. Since it was so large and the material is so sensitive it was impossible to get back on the roller for shipping without causing "trauma" to it. But I never should have had to re-roll it in the first place if the product didn't arrive the way it did.Other than the roller divits and creases from the machinery, it is a great screen material. Oh well.
I was scared it would have creases because of some reviews, and it did come out of the packaging that way. But once I stretched it out on the frame I made, it was flawless. It does look gray, but I thought it might be a little darker; either way, it's amazing. Movie nights are insane.
This is excellent quality for the price and considering its a diy material, the image quality is more than you could ask for. Depending on the projector lumens, this can get very bright as its a 1.3 gain meaning it can make the projector light reflection more brighter. All in all this thing turned out very well.
we’ll packaged and protected, could have come with install instructions, but that is easy enough to find online. great quality product, easy to work with and install, was actually quite easy to avoid wrinkles, which was my biggest fear. material is slightly stretchy, but not overly, and is quite thick. i was also afraid that the back braces would show through, but they don’t due to the black backing and nice taught fabric.i set up a 8’ wide 16/9 screen in a 10’x12’ room with 5.1 sound. picture quality of the screen is excellent and well worth the $. i was hoping for a bit less ambient light reflection in the room, but it is reduced from the temporary white wall.image is much less washed out during the day, but still not great without blackout curtains reducing 90+% of the outside light.

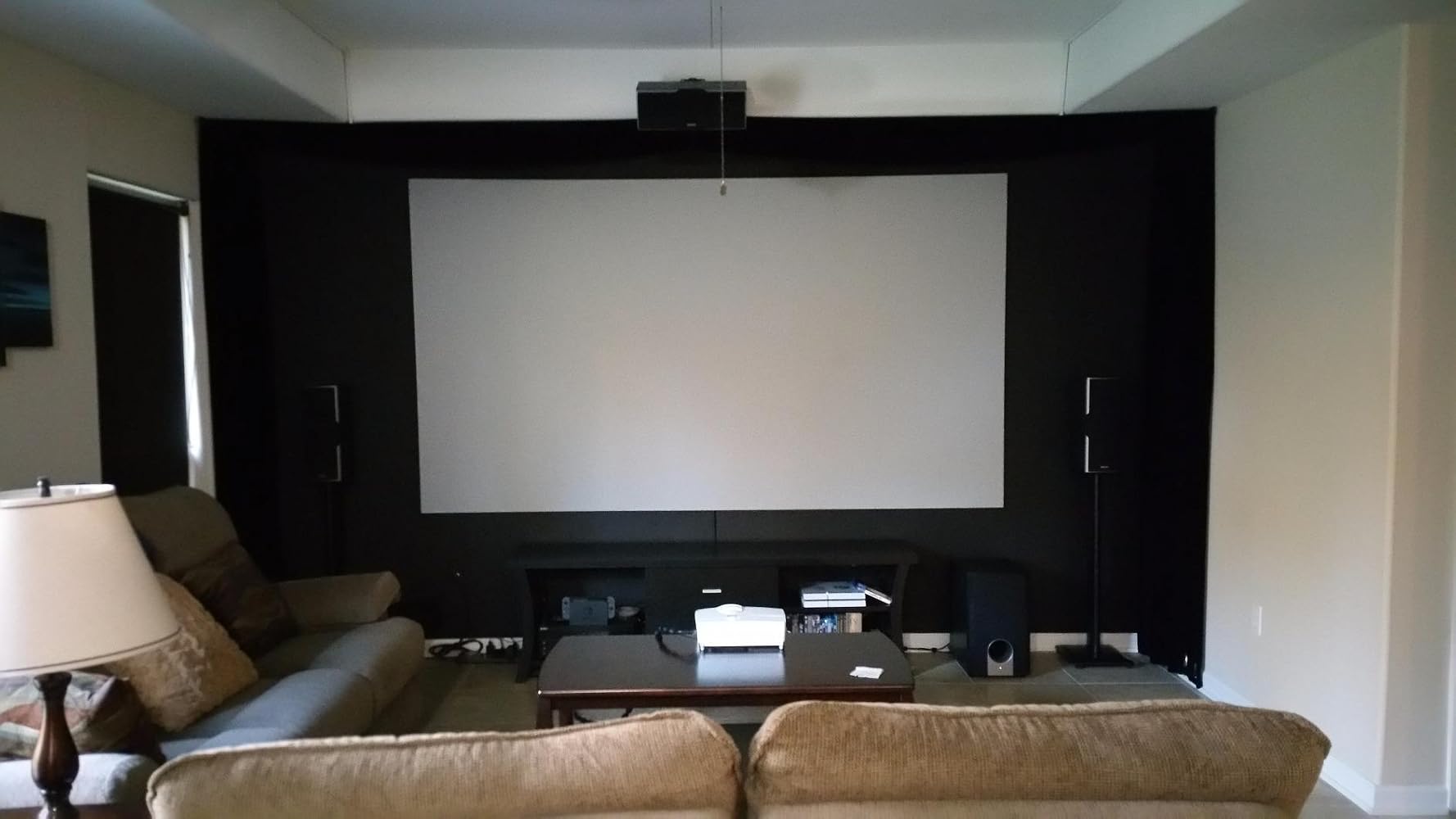

Item was well packed, delivered on time and perfect for my wall. This screen is permanent and I didn't want a frame. I wanted it flat against the wall. I used a very thin vinyl strip to attach it to the wall (top & sides). I wanted my screen to be as big as possible, and it is! It's almost as big as my wall. I have a 9' ceiling and my wall and ceiling is painted a flat black. I have a Sharp Vision XV-Z20000 in a 20x20 room that has no windows. The picture was great even with some lamps on!
Made a DIY projector screen and material works great and has good stiffness and stability. All the wrinkles are gone when I did steam press.
Great screen, worked perfectly for my needs. I no longer have the color bleeding i was getting from my spandex screen. Acousticly transparent and a superb image, paired with a Hisence C2. Highly recommend this screen for diy.
Purchased CL2 100” cut. Extremely well packaged. I opted to go the cheap route and mount it to a DIY wood frame and plywood sheet using contact cement (spray glue ) to secure it. Nails alone do not provide the required tension to keep the screen material perfectly flat (remember ULT projectors are unforgiving ). It was a trial and error processor which worked out in the end. Recommended!
Was bit wrinkle but once stretch disappear.

-
