[Elite Screens] Manual Series | Manual Pull-Down Projection Screen, 71"-170" in 1:1/4:3/16:9/16:10 Format, Wide Selection of Sizes & Aspect Ratio Formats
[Elite Screens] Manual Series | Manual Pull-Down Projection Screen, 71"-170" in 1:1/4:3/16:9/16:10 Format, Wide Selection of Sizes & Aspect Ratio Formats
• Gain : 1.1
• Viewing Angle : 180°
Description
The Manual Series features a wide selection of sizes and available aspect ratio formats make it the most complete line of Manual Pull Down screens. Most models are available in either a white or black case to fit your interior décor. Standard features include a lanyard for hard to reach applications, black-masking borders all around the entire viewing area, and a dual wall/ceiling mount design.
Product Features
Screen Material
- MaxWhite® 2 front projection material with 1.1 Gain
- Screen material is durable and easy to clean
- 180° wide viewing angle for commercial presentations or residential home cinema
- 4K Ultra HD, Active 3D, and HDR Ready
- ISF Certified for accurate color reproduction
- Compatible ONLY with Standard Long-throw Projectors
- Standard 4-side black masking borders
- Black backed screen material eliminates light penetration for superior color reproduction
- Available in the following range of diagonal sizes:
- 71″ – 170″ in 1:1 format
- 80″ – 150″ in 4:3 format
- 80″ – 150″ in 16:9 format
- 94″ – 139″ in 16:10 format
Design and Installation
- Dual wall and ceiling installation design
- Auto-locking system provides variable height settings in any position
- Screen lanyard for easy operation included – allows screen’s pull down handle to be reached from high areas
- Optional 6″ and 12″ L brackets available – sold separately
Quality and Reliability
- GREENGUARD® and GREENGUARD® Gold Certified | UL 2818
- 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
- Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
Downloads
- Product Cut Sheet (PDF)
- MaxWhite® 2 Material Sheet (PDF)
- Comparison Table
- UL2818 GreenGuard Certificate
- UL2818 GreenGuard Gold Certificate
Dimensions Tables
- Dimensions Table – E/EN Type (PDF)
- Packaging Dimensions Table (PDF)
- Dimensions Table – Z Type (PDF) – DISCONTINUED
User Guides
Shipping & Returns
Shipping & Returns
📝 Our Shipping & Return Policy
📩 Request a Shipping Quote (AK, HI, PR and Canada)
- Purchase Orders for GROUND shipping service received by 5:00 PM (PST) are processed to be shipped from Elite’s warehouse within 2-5 business days. You will receive an email confirmation when your order has shipped.
- All orders are fulfilled Monday through Friday, excluding weekends and holidays. We are not responsible for unexpected shipping delays caused by circumstances related to the courier, weather or state of emergency.
- Oversize Shipping : If your order is shipped via Pilot Freight Services, they will contact you to schedule a delivery.
SKU:M71XWS1
Special Promo Price:
The extra 0% off applies automatically to this variant when you add it to your cart.
Couldn't load pickup availability
Screen Material Information
| Screen Material Name | MaxWhite® 2 |
| Description | MaxWhite® 2 is a matte white front projection material that's been crafted to achieve precise white levels for full color temperature neutrality to produce accurate colors while maintaining a wide viewing angle. |
| Type of material | Matte White (multi-layer weave) |
| Projection Type | Front |
| Ambient Light Rejecting | No |
| Gain | 1.1 |
| Viewing Angle | 180° |
| Black backing | Yes |
| 3D Ready | Active 3D |
| 4K/8K Ultra HD Ready | Yes |
| Ultra/Short-Throw projector compatible | No |
| Minimum Throw | 1.2 x Image Width |
| Best for Environments | Versatile for multiple applications in a light controlled room |
| GREENGUARD Certified | Yes |
| ISF Certified | Yes |
- 5 stars: 56 (54%)
- 4 stars: 47 (46%)
- 3 stars: 0 (0%)
- 2 stars: 0 (0%)
- 1 star: 0 (0%)
I am very happy with this screen so far. I will update if anything changes. After a lot of research I was nervous about a pull down screen and the ripples it may come with. At 100$ It wouldn’t break me if it didn’t work out so I decided to pull the trigger. It came double boxed. I was pleasantly surprised this screen was very flat when I pulled it down! It has 2 very small ripples at the bottom but It doesn’t affect the image quality at all. As a white screen it is made for mostly dark room viewing. Rolls up and down easily. Has a slight marker smell I’m sure will dissipate but nothing like some other reviews complained about. I would recommend this for anyone looking for a pull down screen. This is shown using a epson 2150 1080p projector.
Works as expected, looks amazing and screen was in excellent condition. Screws were missing for installation but I had purchased a mounting bracket kit so not a big deal. There were two small dents in the frame which is disappointing but I imagine it happened during shipping. Hopefully Amazon will make reparations. I'd definitely recommend this screen. I tried another brand and this definitely seemed to be better quality.
In our family room, this size screen fits perfectly. The projected images look great in a room that is dark or has low lighting. With our 2200 lumen projector (XGIMI Horizon Pro 4K), the image is a little washed out in soft daylight but viewable and perhaps this unrelated to the quality of the screen. The soft close feature is not as soft as I would like but better than nothing. The screen is not perfectly flat but I find this undetectable from my regular viewing position, about 10' from the screen. In summary a very, very good product but perhaps not #1 in terms of quality or value.
Bought this 120 inch screen to use with the anker nebula 4k projector. I gotta say it makes the picture a lot better than using the wall. Now i gave it 4 stars because it does have a little wrinkle on it and the pull down tab fell off but other than that im pretty pleased with the purchase. I would highly recomend getting a screen for your projector,specially if its 4k. It was easy to install on the wall with the provided anchors.
I ordered this as an outdoor screen for our backyard. The quality was much better than I anticipated, it is very well built. We keep it outside all the time and has been about a month with no issues. For the money this has to be the best screen you can buy. I previously tried a cheaper version of another screen that I returned. My family is very happy with this screen!
Minor damage out of the box, possibly rough shipping and handling but for a 150” screen I’m very satisfied. Great colors and blocks a fair bit of ambient light from behind the screen. Using a Benq laser projector. Will be putting a rug down to get rid of the reflections.
Good picture quality.Upon Installing and slowly pulling the screen down, there are wrinkles in several areas of the screen which I hope will go away in time.Also, the screen appears to be pulling away from the weighted bottom bar near the center of the pull-down handle, since the bottom borders of the screen to the weighted bottom distances are greater near the center (pull-down handle) than the 2 ends. Not sure if this is normal but I hope the screen does not detach from the weighted bar with repeated pull-downs of the screen.Update: minor wrinkles went away within a few days.
I've had the screen a few months now. I have and still do experience a bit of a warp where the screen tension connections near the handle. Other than that, this screen has exceeded my expectations. I use a WXGA 3000 lumen projector and this screen really makes the colors pop. I originally was just using it against my white cement wall in the basement but after adding this screen, having the blackout areas to "crop" minor imperfections or alignments makes the images very professional. I use a HDMI switch with XBOX One, PS4, and PC connected. On the PS4 there is a "display area" in the video settings that I use to calibrate focus and zoom on the projector. Once done, it looks great with any other inputs I use. In the photo I attached I am using Slingbox on the PC to watch TV on the screen. I recently added some LEDs for extra effects. I normally keep the screen down at all times but find the tension and lock system in the screen is solid when I do make changes. This is my first screen as well as projector for that matter so I don't have anything else to compare with but I think the picture speaks for itself. If you have a HD projector I can only imagine it'll look even better.
When setting up my budget home theater, I considered building my own tensioner screen. Upon discovering this product, I opted to go the pull down screen route.Picture quality is very good. I have added a few photos and a video for reference. I’ve tested in low light and brighter conditions. Overall very pleased with it.Installation is straightforward. I used concrete anchors to mount to the wall without incident. In hindsight, I wish I would have gotten the ceiling anchors to avoid drilling into my foundation.The biggest issue with pull down screens is creasing. I let the screen hang for several days hoping it would work itself out. There is a distinct V shape. In the bottom middle you can see a little picture distortion. One site suggested direct sunlight. Others suggested a towel over the back of the screen and a hair dryer on low heat.My solution was to purchase the 3M Command picture hanging strips. I planned to leave the screen down all the time anyway. Using these I was able to create enough tension to work most of the creases out.Again, for the money, this is a good product. Just make sure you have the correct expectations.
I purchased the elite screens 142” manual pull down to replace a 12’ fixed frame screen that I had for about 15 years. I was reluctant to buy a retractable screen after reading many reviews about pull down screens not being flat. My wife was tired of the huge fixed screen on the family room wall so I decided to buy one anyway fully expecting to be disappointed with the viewing experience on a wavy surface. Well, I was pleasantly surprised with this screen. The screen is not perfectly flat (has some wavy-ness) as I expected, but surprisingly it doesn't take away from the viewing experience. I mostly watch movies in a darkened room about 15’ away from the screen and I really don't notice any degradation in image quality due to the waves. The picture is nice and bright and color reproduction is great. And best of all it rolls up when we are done watching. The only available case color when I bought it was black (would have preferred white) so I built a wood frame around the screen case to make it look nicer in our light colored room. I would recommend this screen as a good value to anyone looking for a reasonably priced manual pull down screen. Don’t expect the surface of any roll down screen to be totally flat so if that is a must for you a fixed frame is the only way to go. I don’t miss my old screen at all.
Update 2/17/18 : I’m giving it 4 stars instead of the initial 2, this because some part of the wrinkles were lest noticeable after some days.First review:Well I bought this 84 inch screen around 2 weeks ago mainly to have family movie nights and of course watching The Super Bowl in something bigger than my 50 inch tv.The quality you get from projecting onto this screen is good, but It has some issues.The packaging came out good, no dents or nothing regarding the shipping, but after hanging this screen so it could vent the odor which for me is tolerable, I started inspecting the screen and found three things concerning me.First was the bottom center part of the screen where it has some wrinkes, the second one was the right side that looks kind of bent and the third one is on the sides that tends to fold towards the inside, i let it stay down for 2 days and the screen remains the same without any noticeable changes.I will be keeping this screen since the issues for me are tolerable by 60-40 and it won’t hold me back from watching movies on this screen, but definitely not the quality I was looking for especially for the reputation that elite screens has. (I used to install night clubs audio, lighting and video systems in México)I know what I was getting for the price and for being a pull down screen, but given that Elite screen is a top brand, I trusted i wouldn’t have this kind of issues even having read some bad reviews here.I am happy with my purchase but not completely satisfied, in the future I will go with a fixed screen instead of a pull down and avoid this type of situations.I will keep updating, in the meantime Enjoy the show.
I purchased this screen on Wirecutter’s recommendation to accompany my new TCL A1 projector. It’s excellent quality, very sturdy, and quite heavy. The size was perfect for my space and my projector’s picture is as good as can possibly be on this screen. I needed to enlist additional upper-body strength to get this screen set up in my space because it is large, unwieldy, and heavy, but once it was installed, it pulls down and retracts with ease. Yes, it’s pricey, but I’m confident it will outlast my projector and I’m very pleased with the purchase.

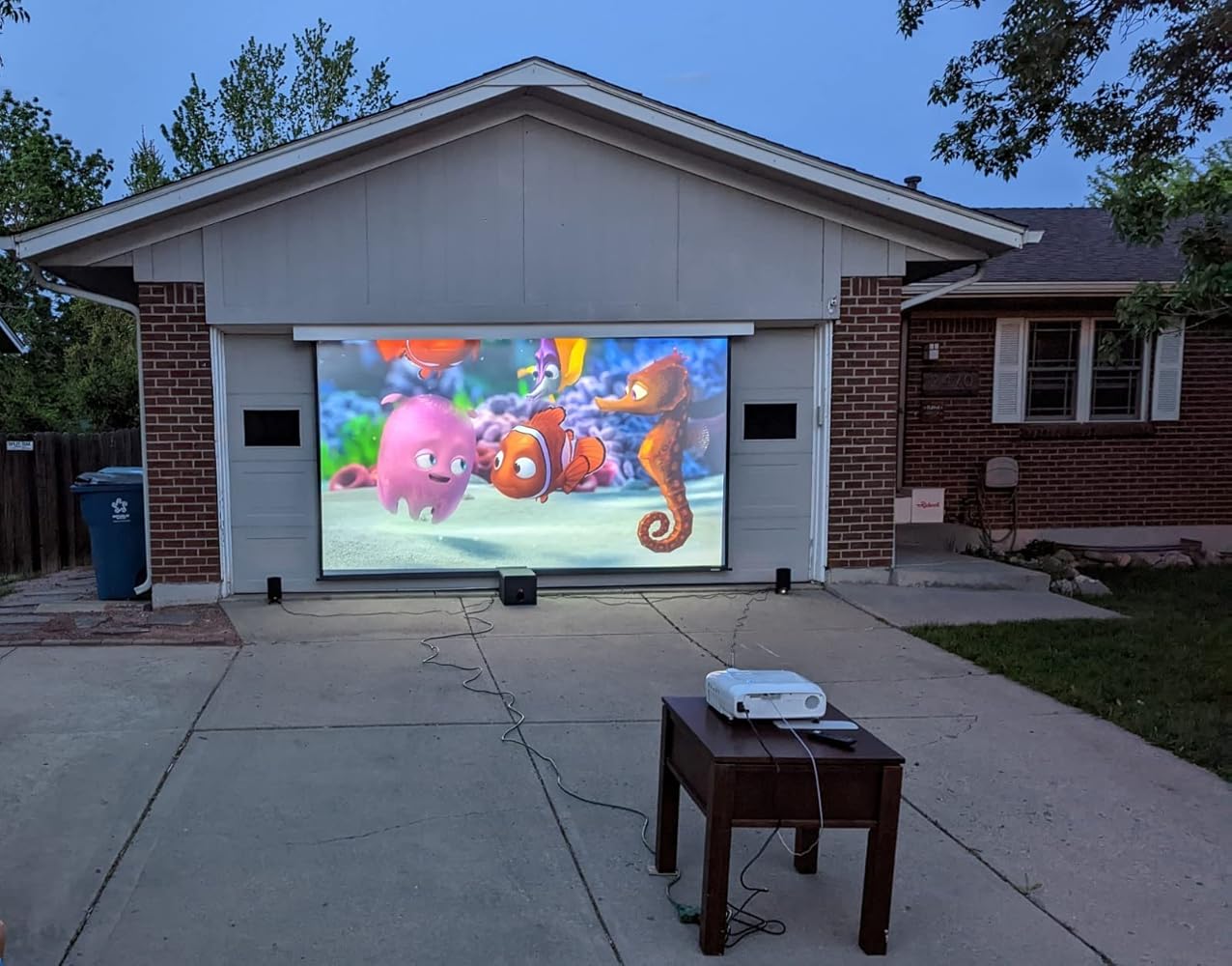

Installed the 150" screen over my garage door and set up a quick movie (rhymes with "Blinding Temo") just to see how it would look with some ambient light still. As you can see - even with the sun setting behind me, there was PLENTY of contrast and overall picture quality got a lot of "wows" from the neighbors. Two of their kids grabbed chairs and just posted up for the duration. I'd say that's an instant-win.The screen initially didn't retract all the way and was veeery slow to go back up. I contacted Elite Screens customer service and they sent me the instructions to add tension back into the rod. Took me 5 minutes with an extra set of hands from my wonderful wife. Tossed it back up and *boom*, worked like a charm. Retracts fully unassisted at a reasonable pace and locks in place.I was able to pull it down and have it "lock in" at plenty of intervals (maybe around an inch per "step"?), so I wasn't sure what the other reviewers were having trouble with...mine dialed in nicely.I'd say it's a genuine win. Good customer service (they got back to me in less than a day) and good quality screen for the money. Neighborhood movie night and game night just went to a whole new level.
This screen is simple and good quality. The retract function works easily. When I first opened it, the screen had a slight curl at the edges from being coiled up for so long. But those smoothed out after a day or two of hanging open.
I don't have very much experience with projection screens, as this is the first one I've ever owned. But as far as I can tell, it's a great screen. The resistance when extending it is pretty good, I guess, since I can get it to stop just about anywhere. Video and photos look fantastic, but again I don't have much to compare it to.Installation was very easy. Two screws in the wall, hopefully level and lined up well. I climbed on a stool with a pencil and a screwdriver (drink) and a screwdriver (tool) and was able to get the damn thing hung all on my own. I only spilled a little bit, and even that was just on my sleeve so I was still able to drink it. Not too shabby.Go ahead and get yourself one. It's a well-built screen (I think) and the price is great. So why not, right?
For years I’ve used homemade screens for my projector but found this and the price was way better than I expected. Image looks great although there is a bit of a sag on either side that’s visible in regular light but I don’t see it in the projection. The one thing I don’t care for is the top case is a gloss black and the image reflects off it along the top edge.
If u r looking for a screen for ur basement/theatre room and don't want to spend so much then this is the perfect screen for u. I bought this a month back and put it in my basement where i have a theater set up and this screen is perfect for the place. Easy to mount but u need to buy couple of things from the hardware store as the brackets/u- nails doesn't come with the screen. One drawback with the screen is u can see some ripples at the bottom when there is a white light projected on it but don't even realize when watching a movie. on the whole i can say screen is worth the money
The 150" screen is awesome! I was a bit nervous ordering it because it states it's not for short-throw projectors, and some reviews mention waviness and damage in shipment. The box is 12 feet long, so either way returning it would be a royal pain. But none of this was an issue. It hangs straight, and my projector works just fine with it.Shipping is done very well. It comes in a padded box in a box, and the outer box has full-length corner guards made of the hardest cardboard I've ever seen. I initially thought it was angle iron.I leave it down, but the action seems smooth. Picture quality is outstanding.No complaints whatsoever.
