[Elite Screens] Kestrel Tab-Tension 3 CineGrey 4D Series

Description

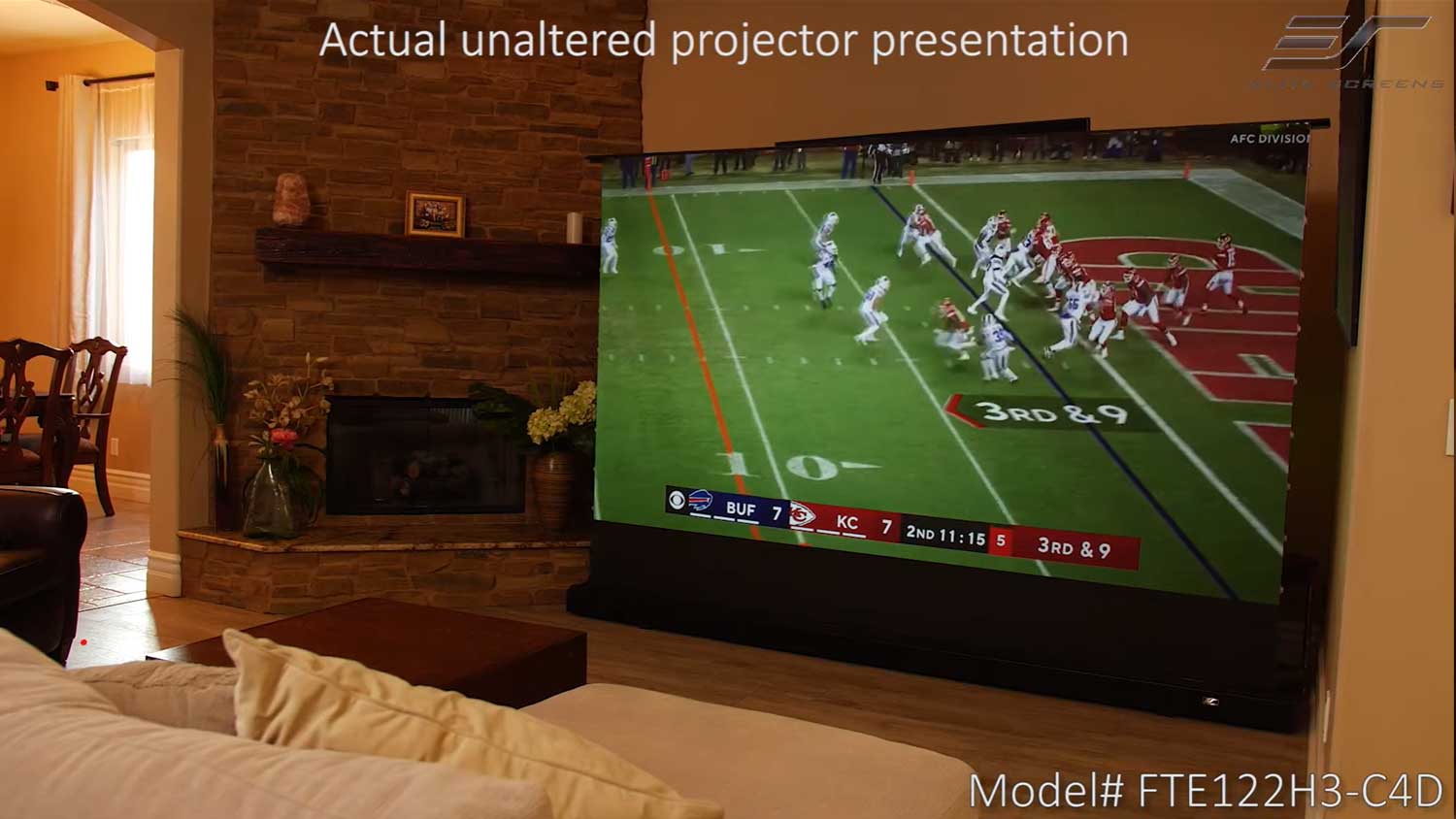

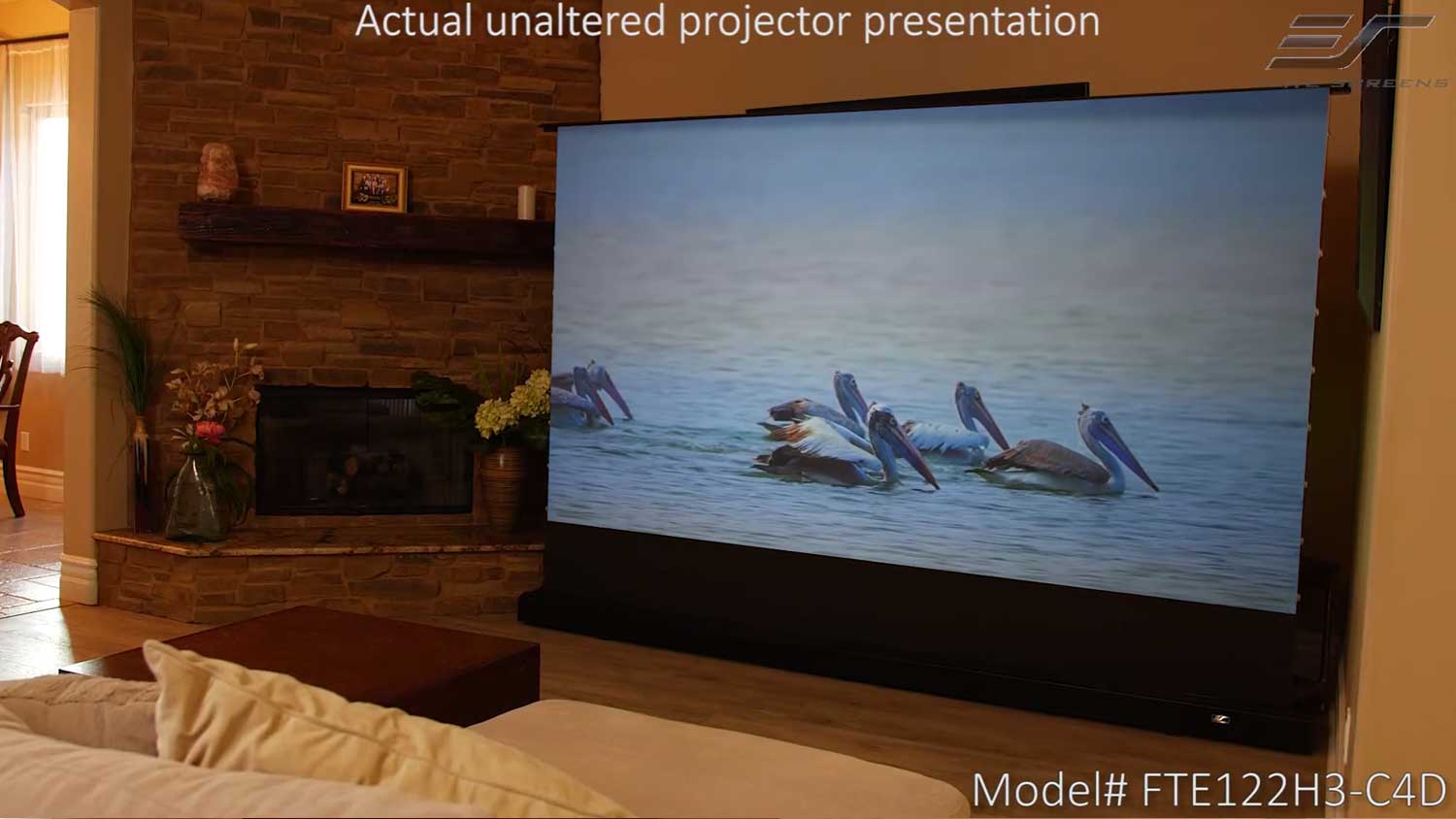

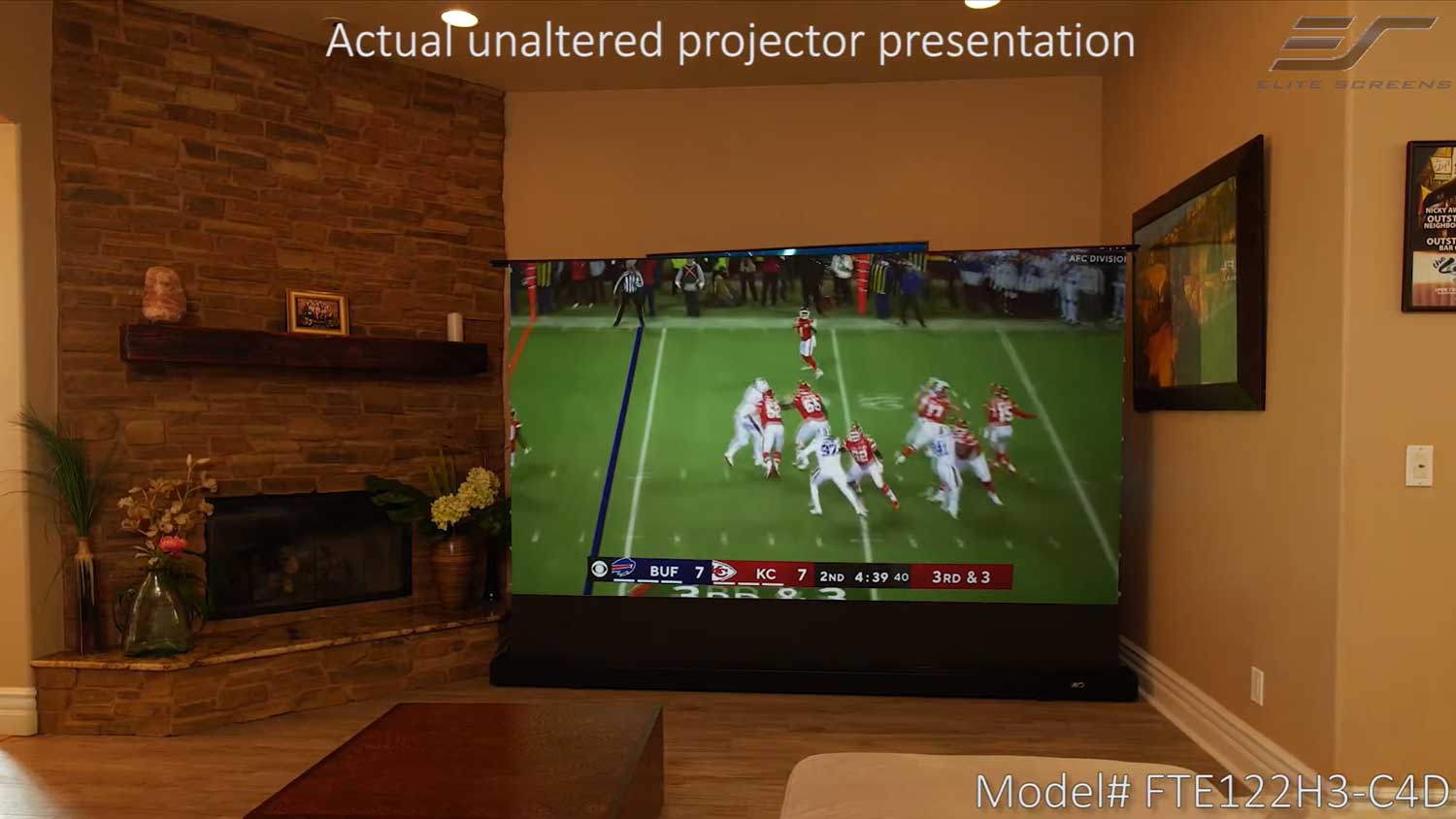

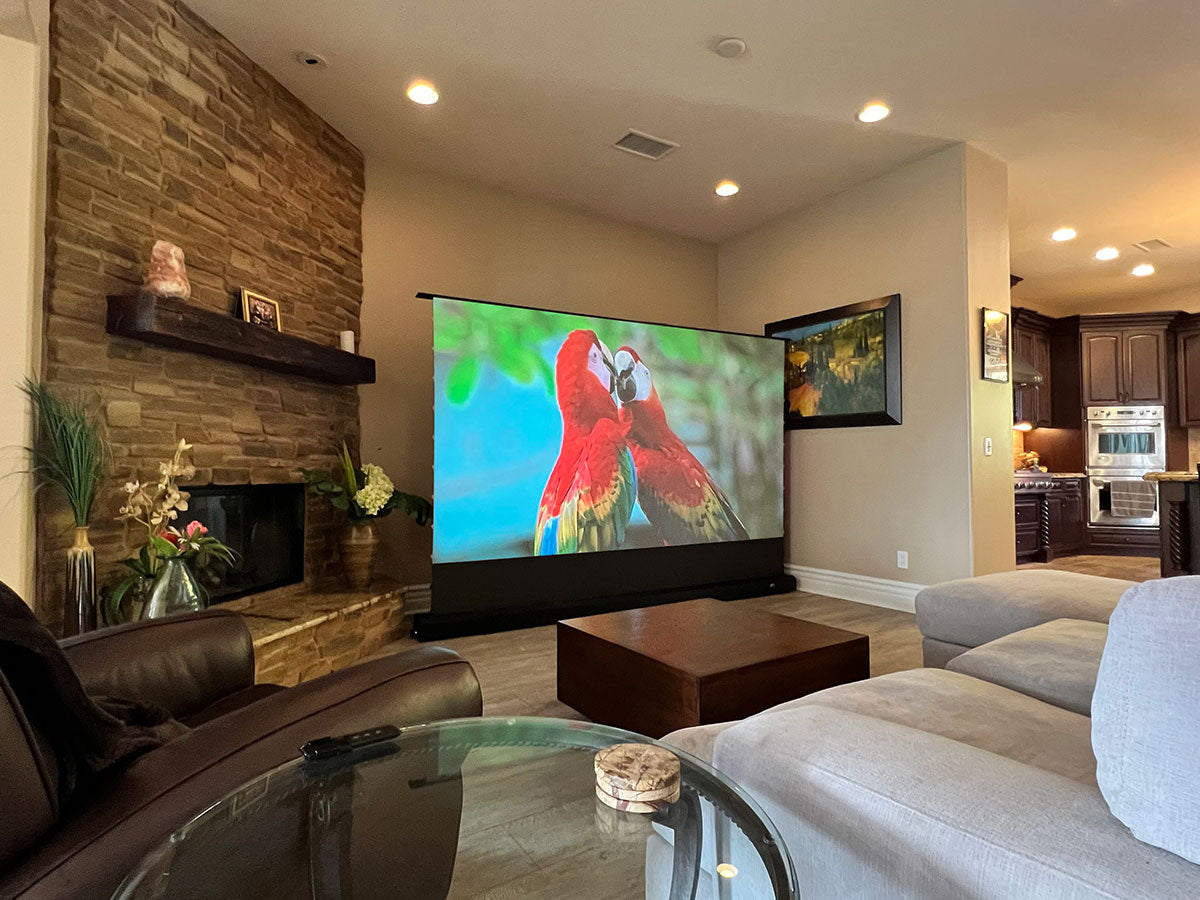

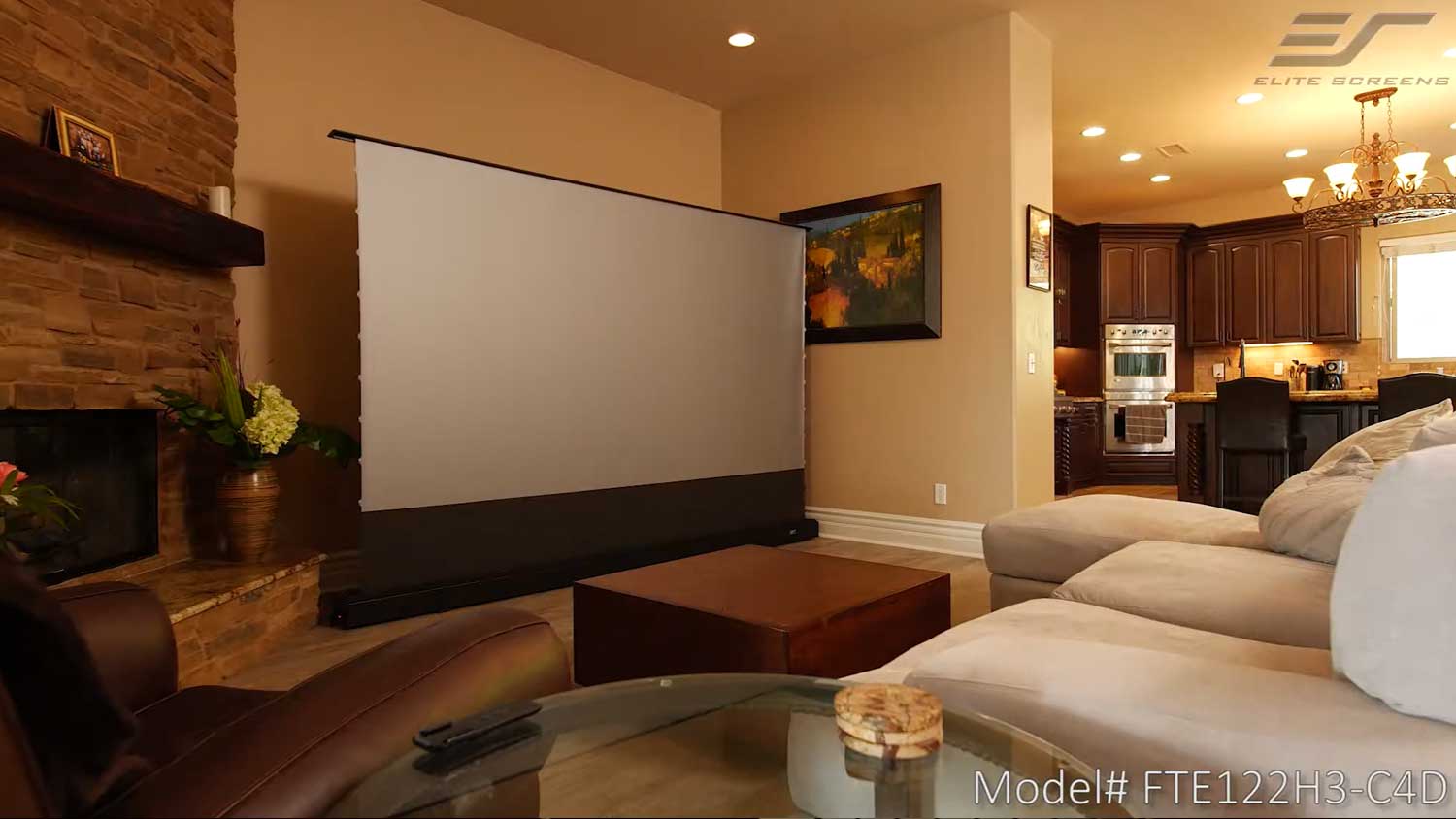

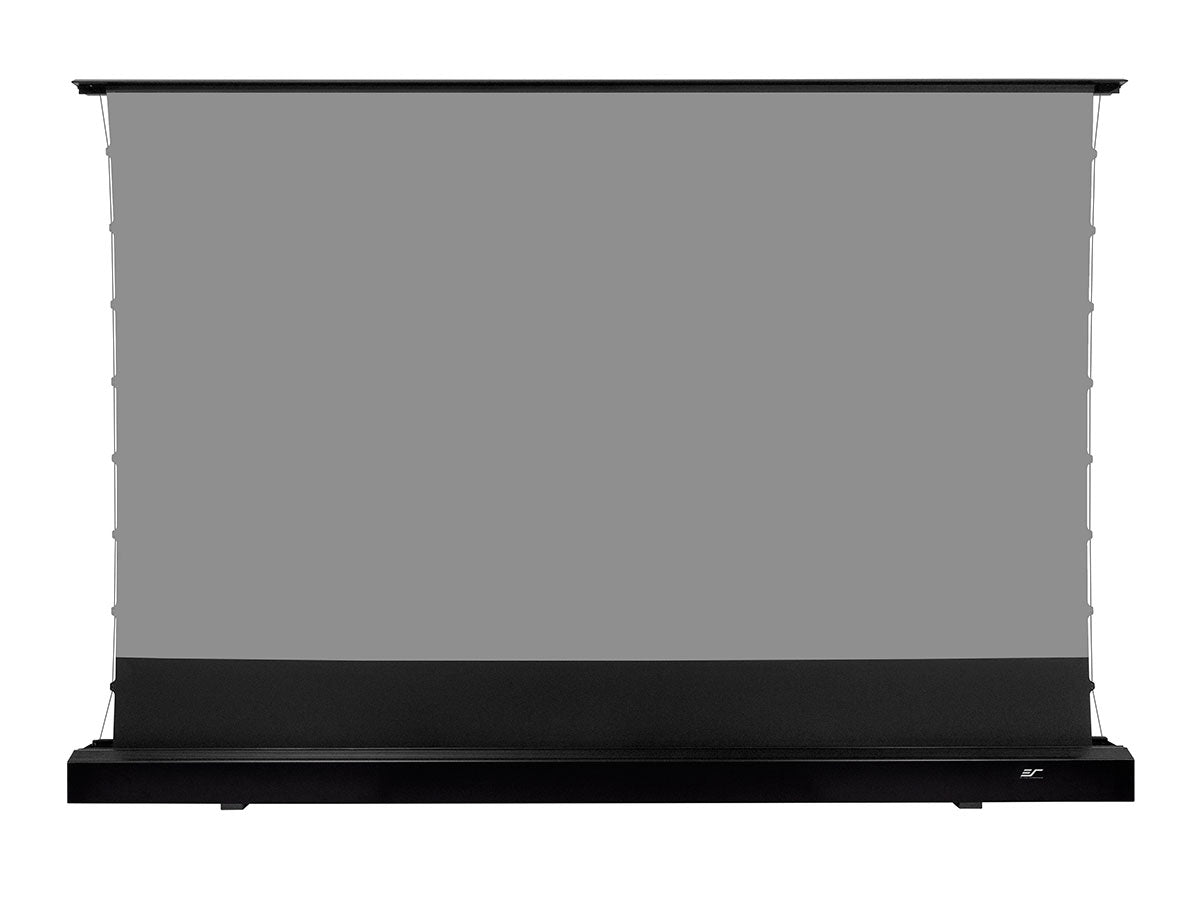

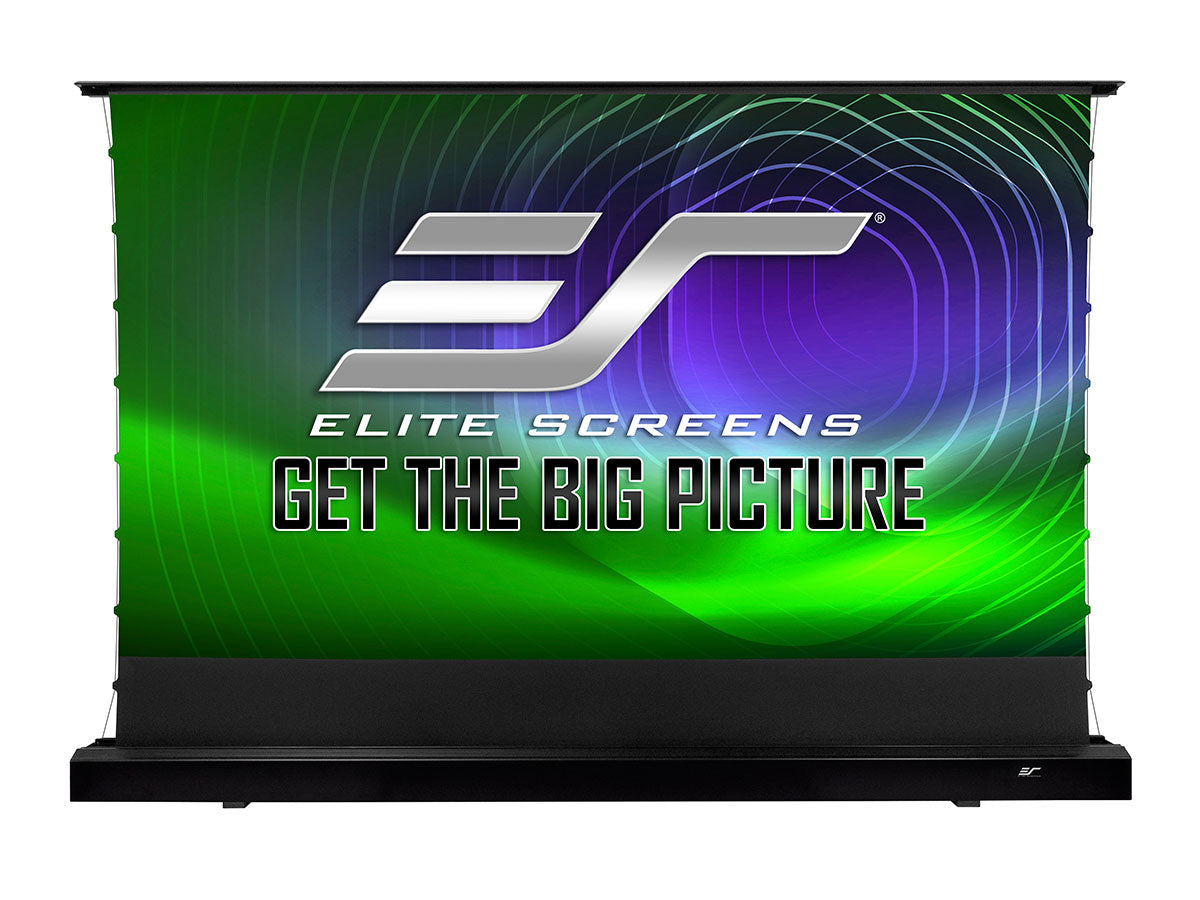

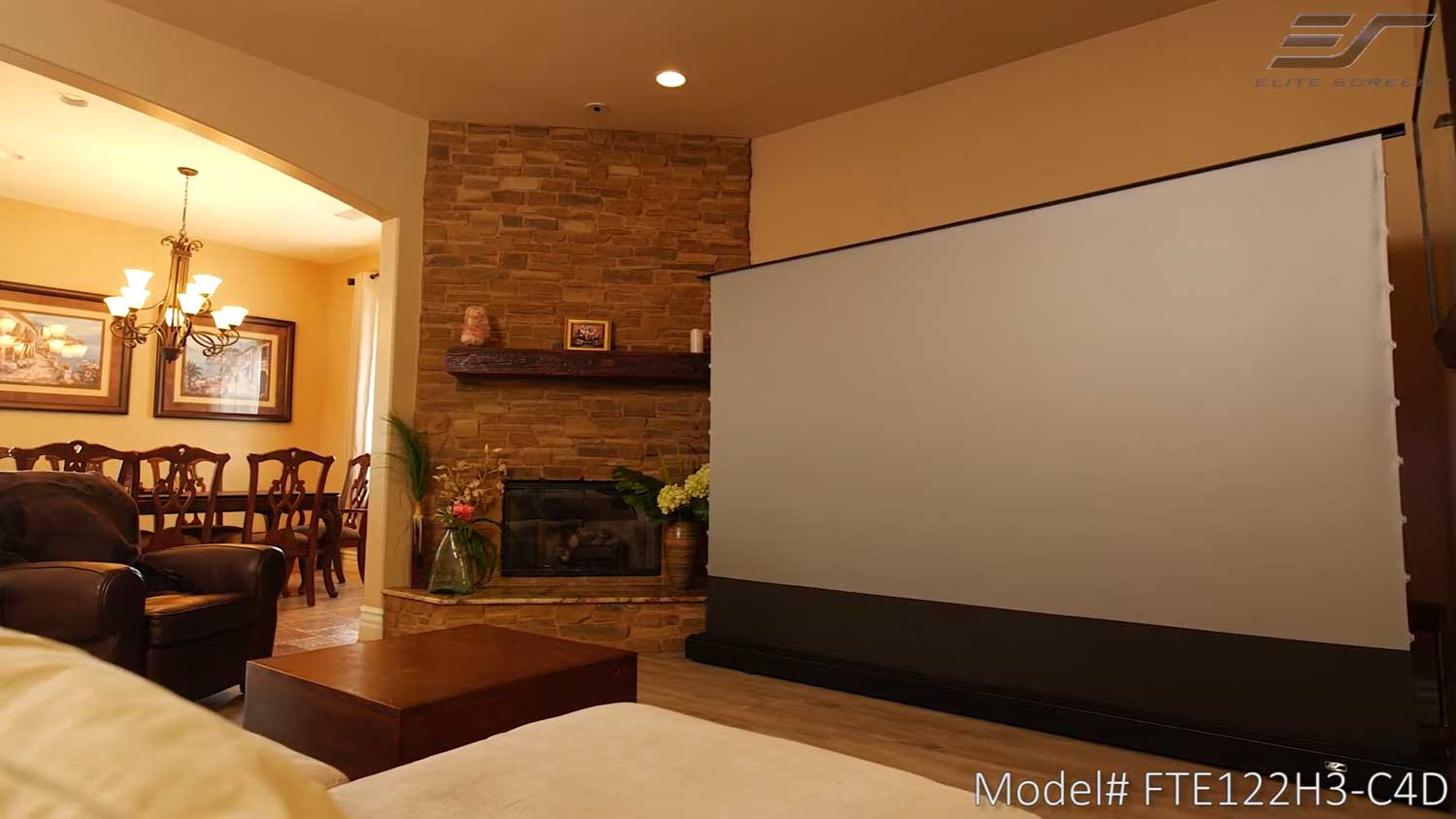

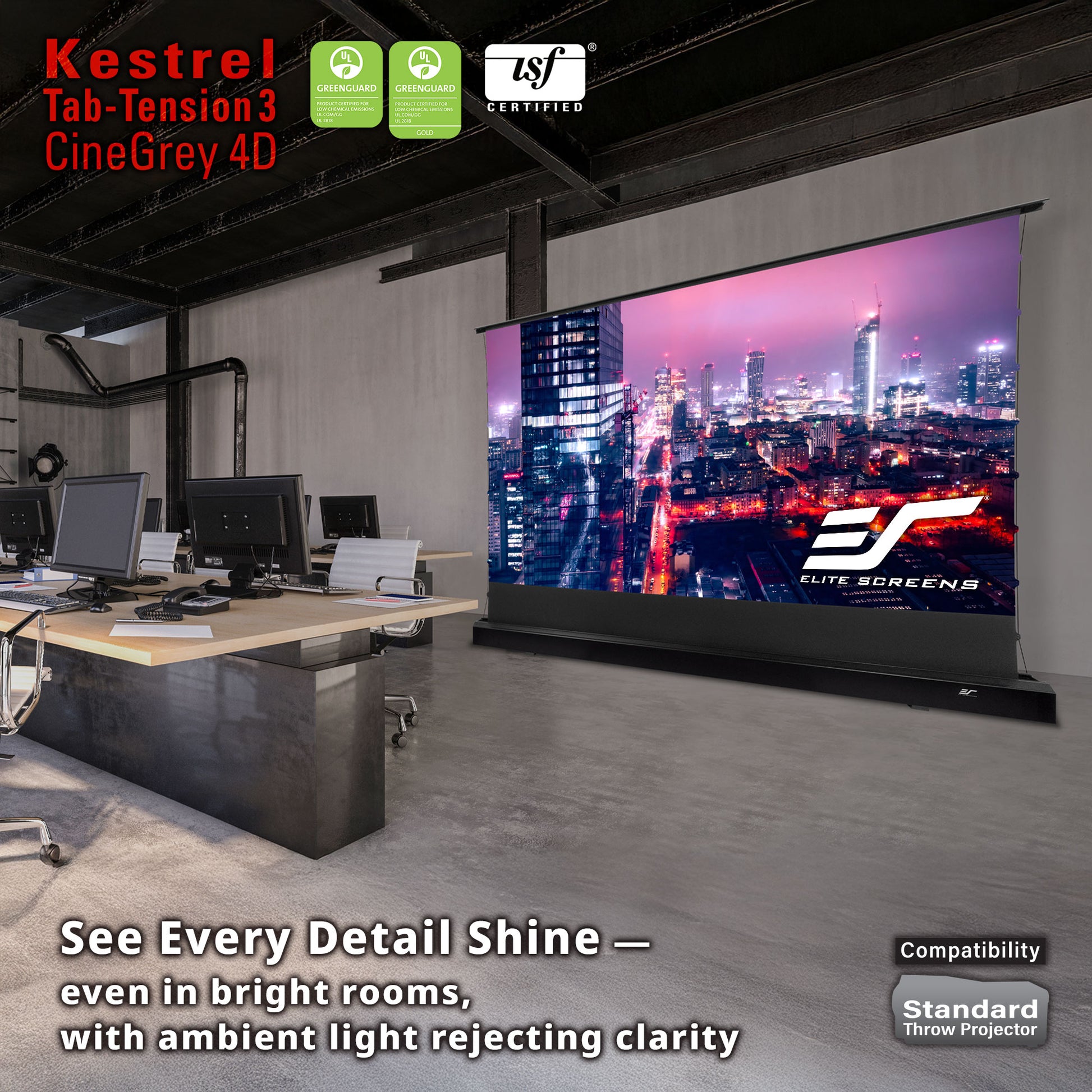

The Kestrel Tab-Tension 3 CineGrey 4D is a floor-rising electric front projection screen with ambient light rejecting technology. The CineGrey 4D is an angular reflective material that incorporates a high-contrast diffusion layer to provide contrast-rich images in ambient light room environments to combat the washout effect typically experienced with matte white materials.

The projection screen surface ascends and descends into its housing for a non-invasive solution where permanent installations are not practical.

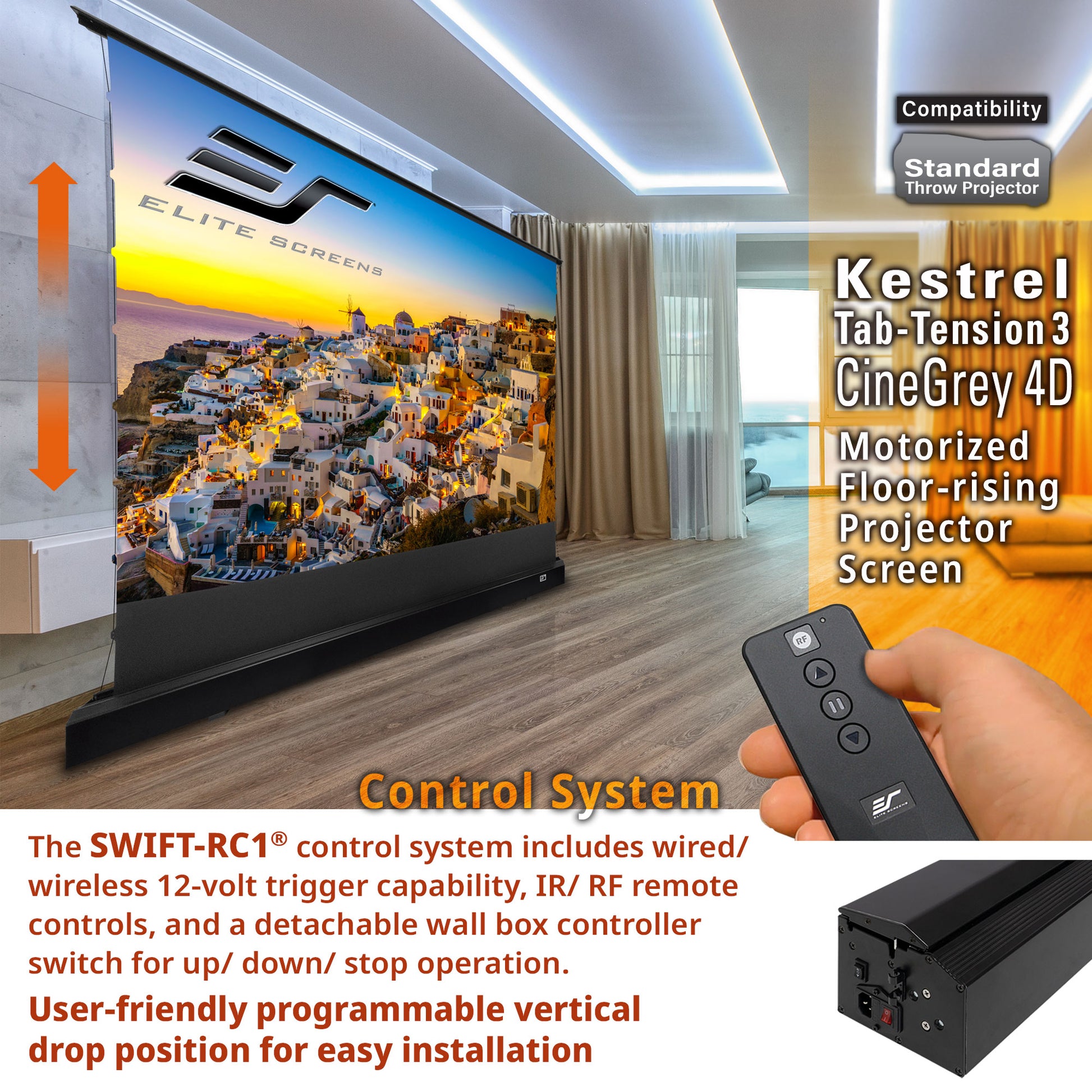

The screen comes with a full control system which includes Infrared & Radio Frequency remote controls along with a wall box controller and 12-volt trigger capability.

Product Features

Screen Material

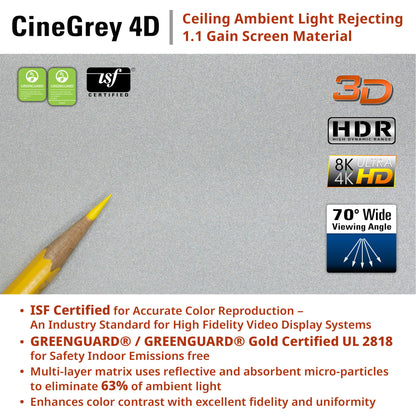

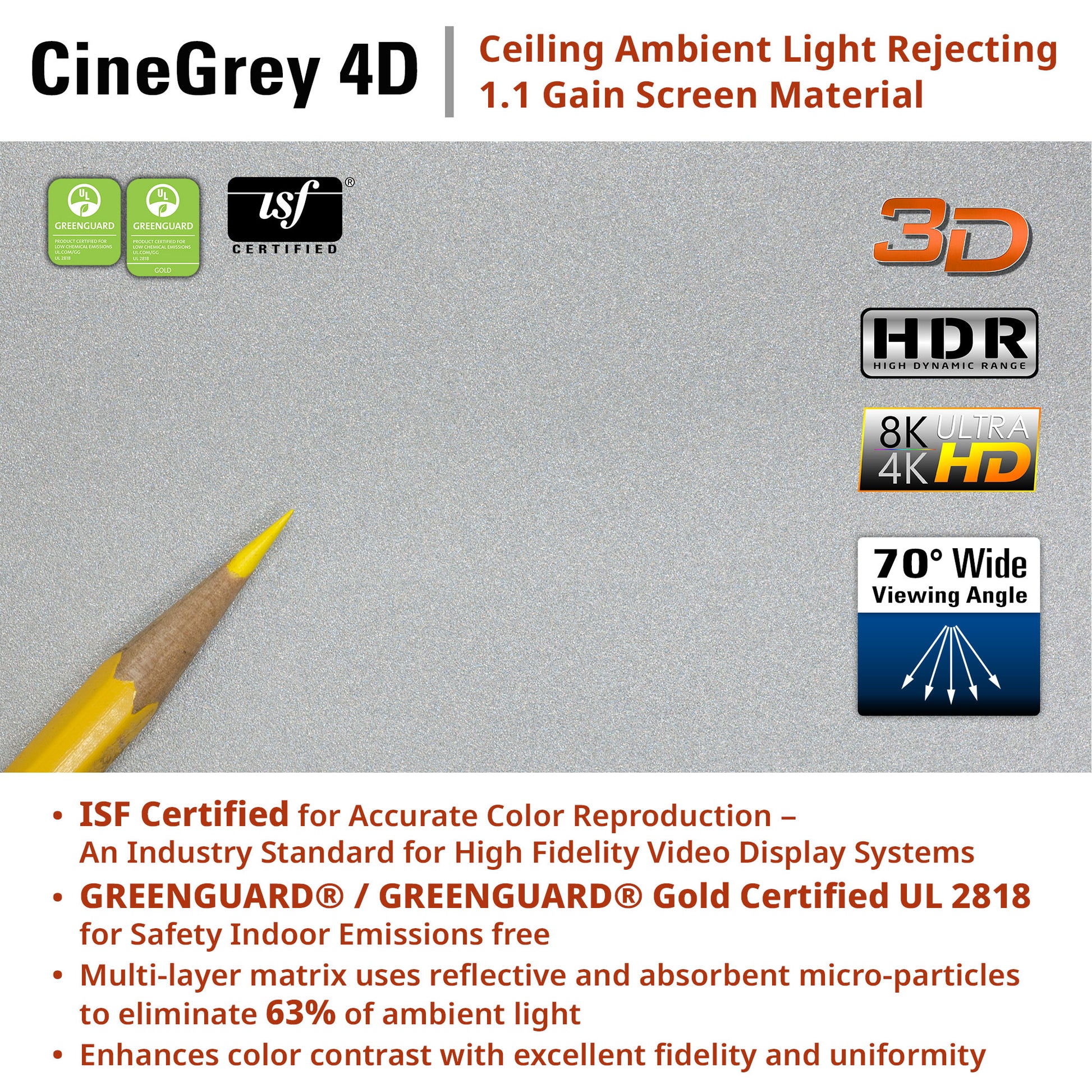

• CineGrey 4D 1.1 Gain Ceiling Ambient Light Rejecting Material
• Angular Reflective CLR®/ALR Front Projection Surface for Standard “long” Throw Projectors
• Multi-layer matrix uses reflective and absorbent micro-particles to eliminate 63% ambient light
• Enhances color contrast with excellent fidelity and uniformity
• 4K/8K Ultra HD, HDR and Active 3D compatible
• ISF Certified for Accurate Color Reproduction – An Industry Standard for High-Fidelity Video Display Systems

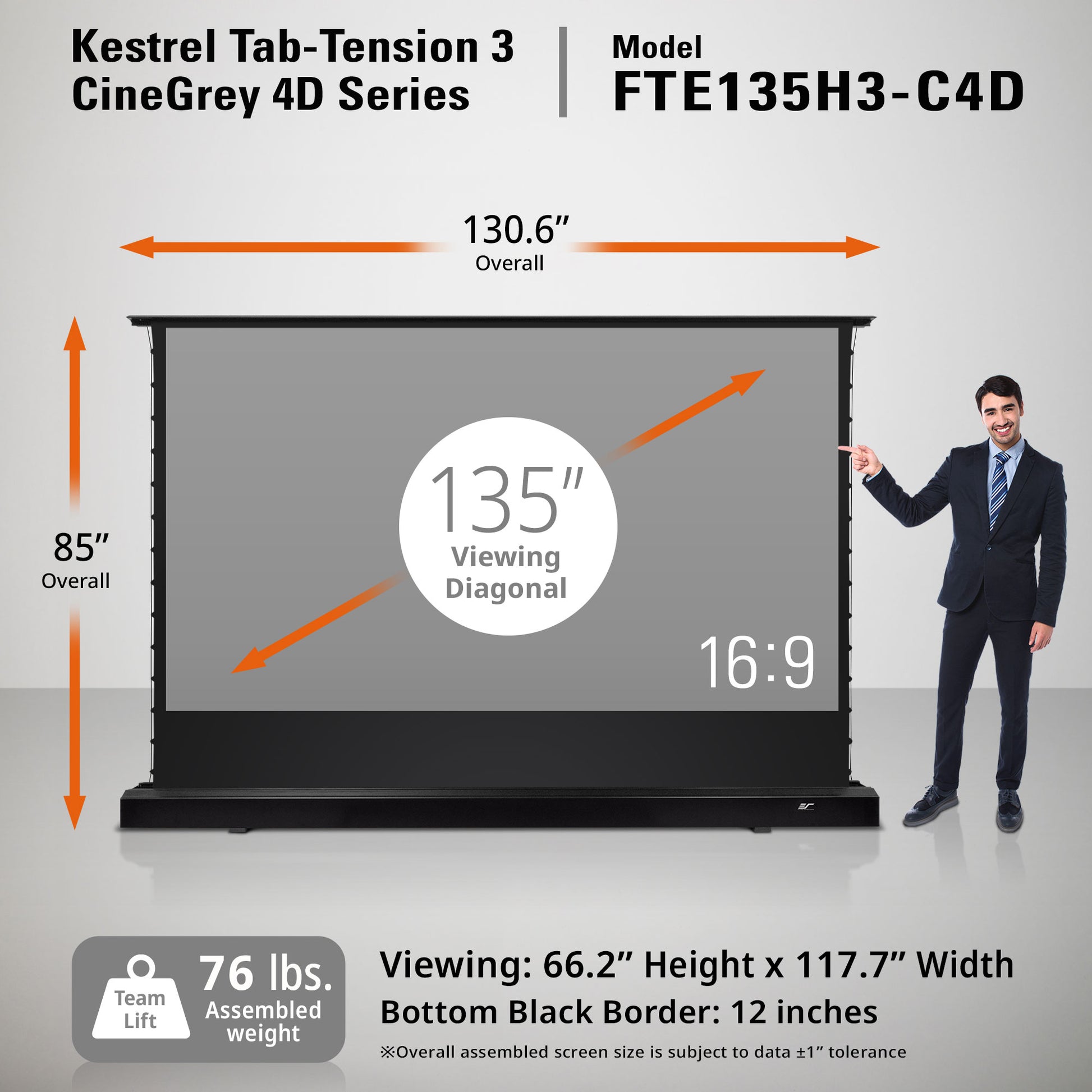

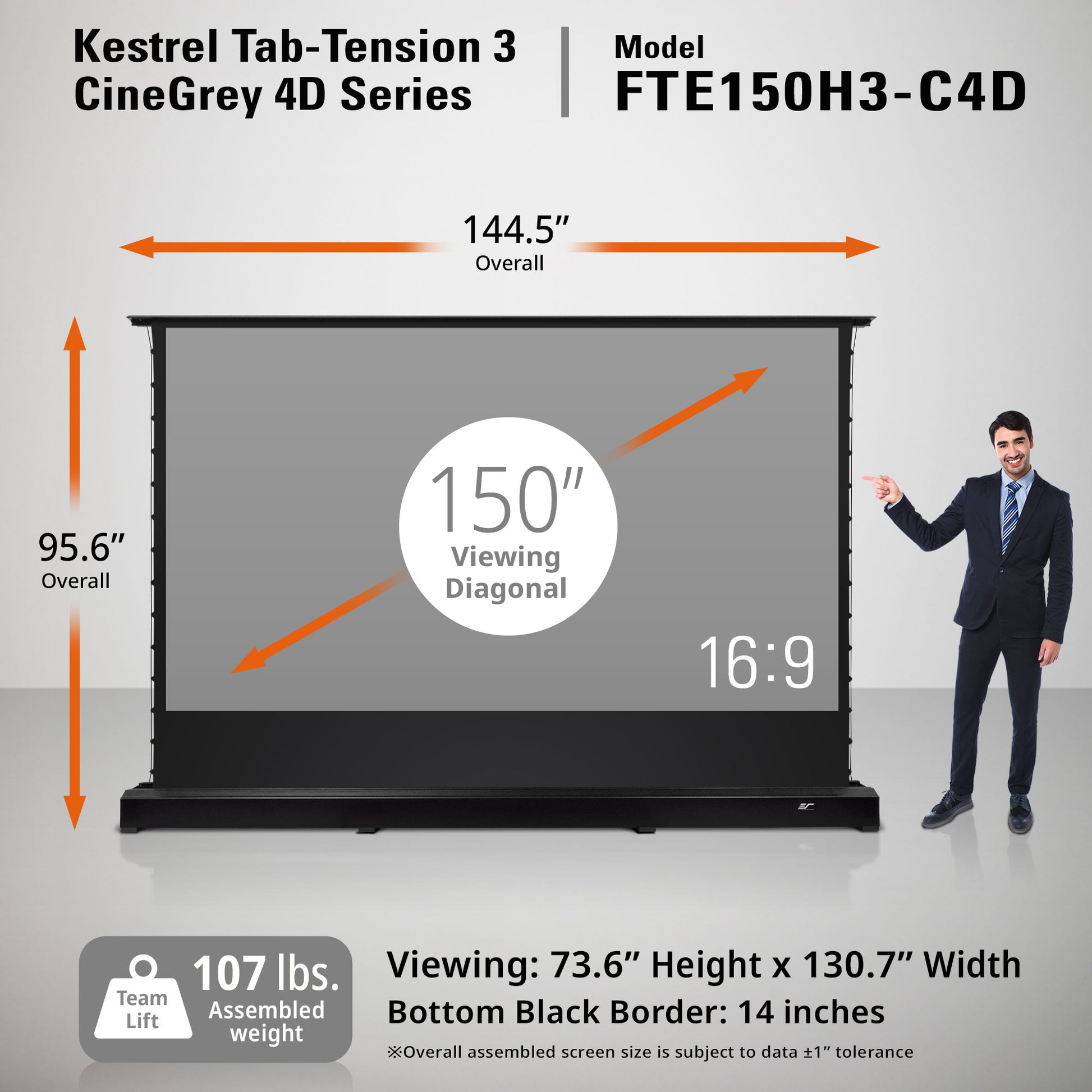

• Available in diagonal size:  122″, 135″ and 150″ in 16:9 aspect ratio

Design and Operation

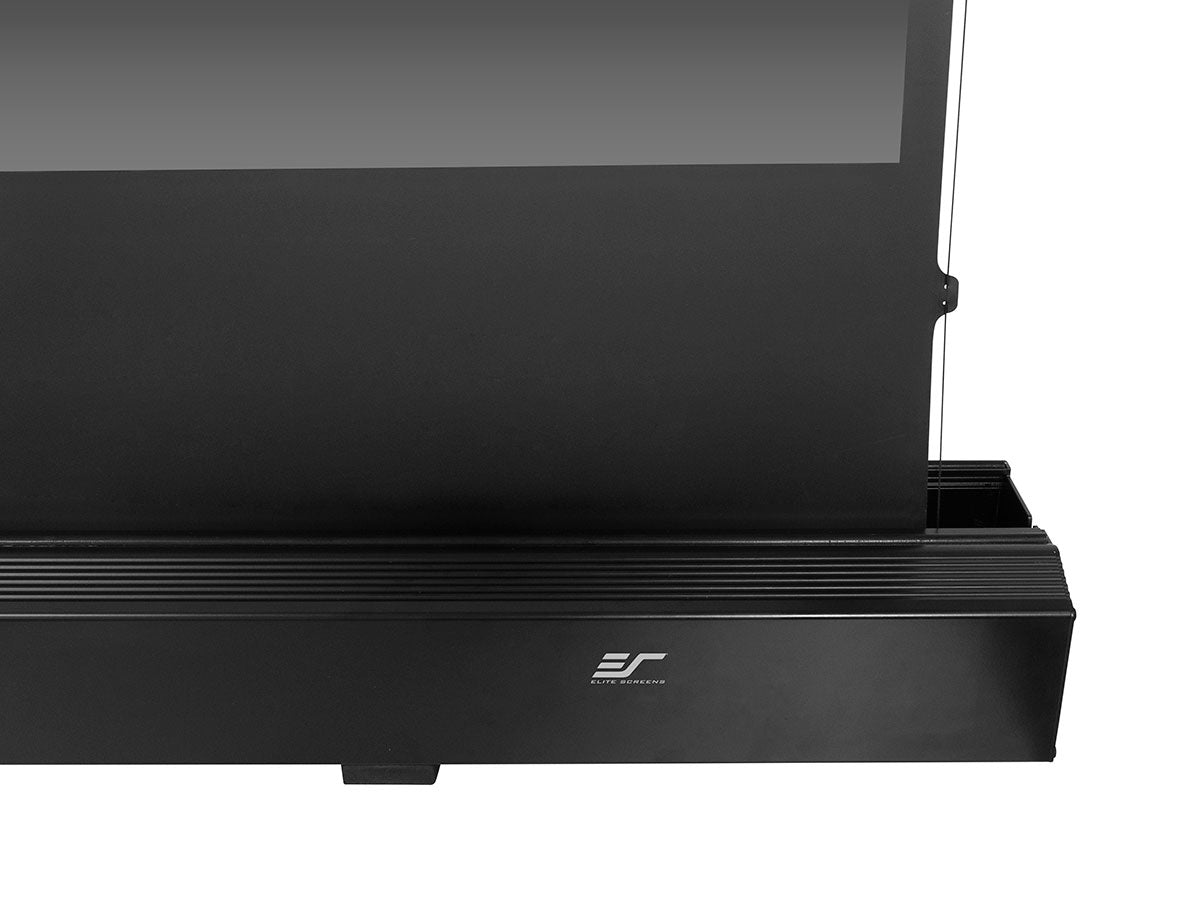

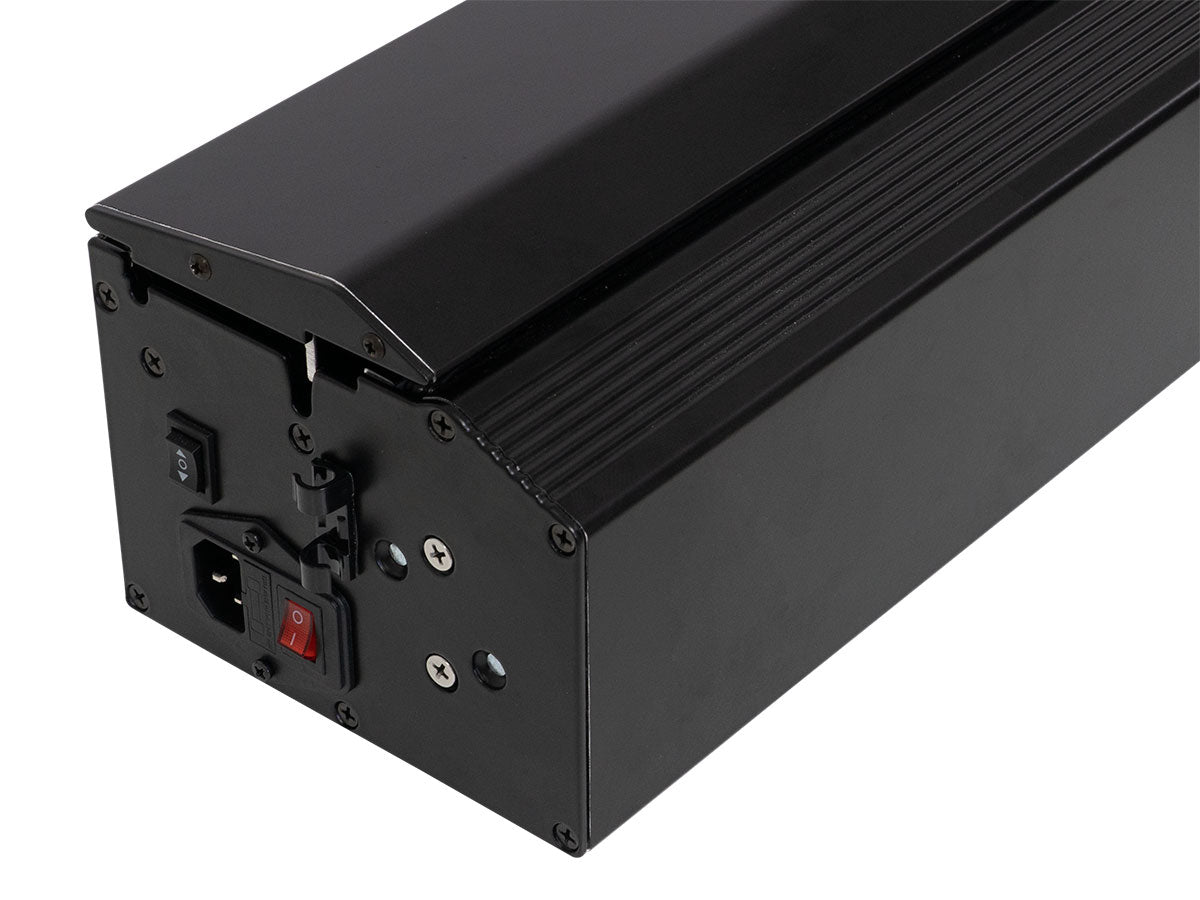

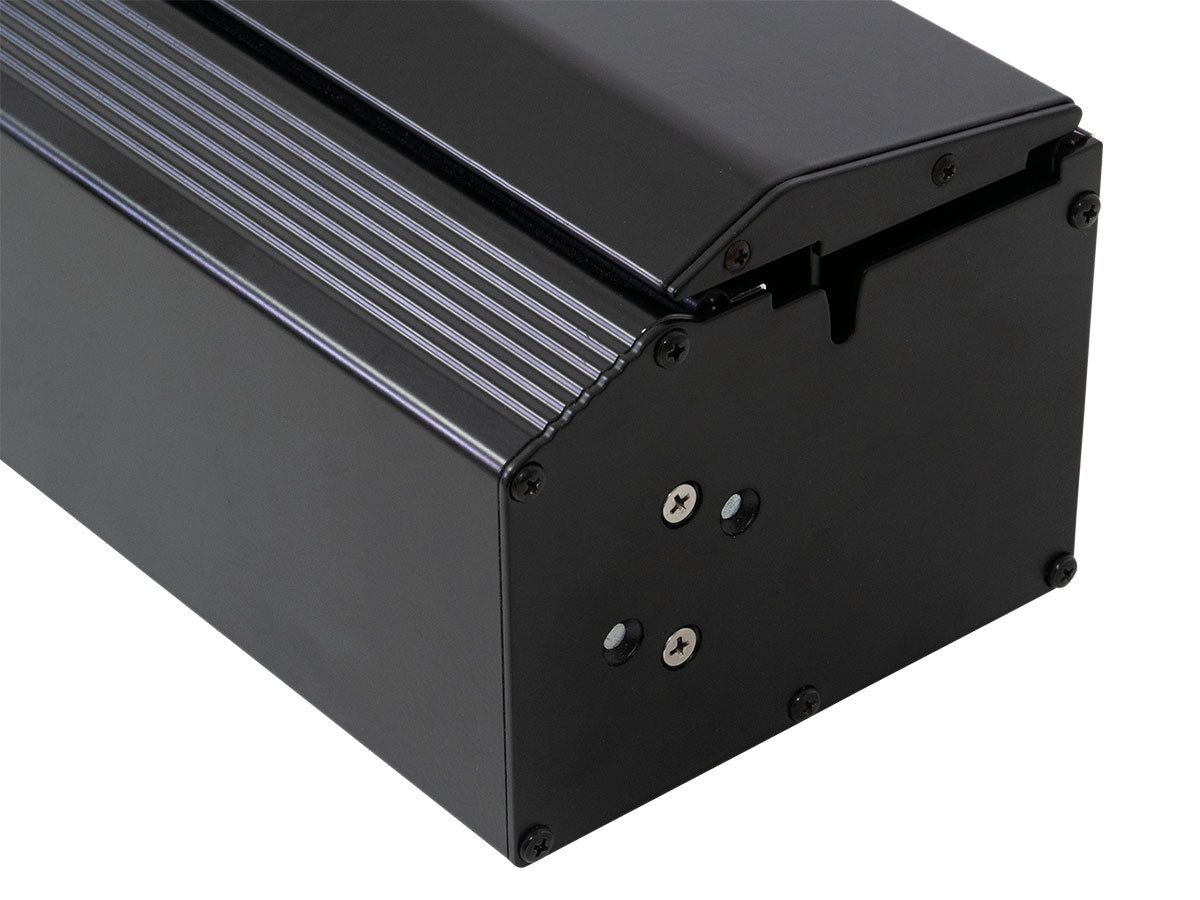

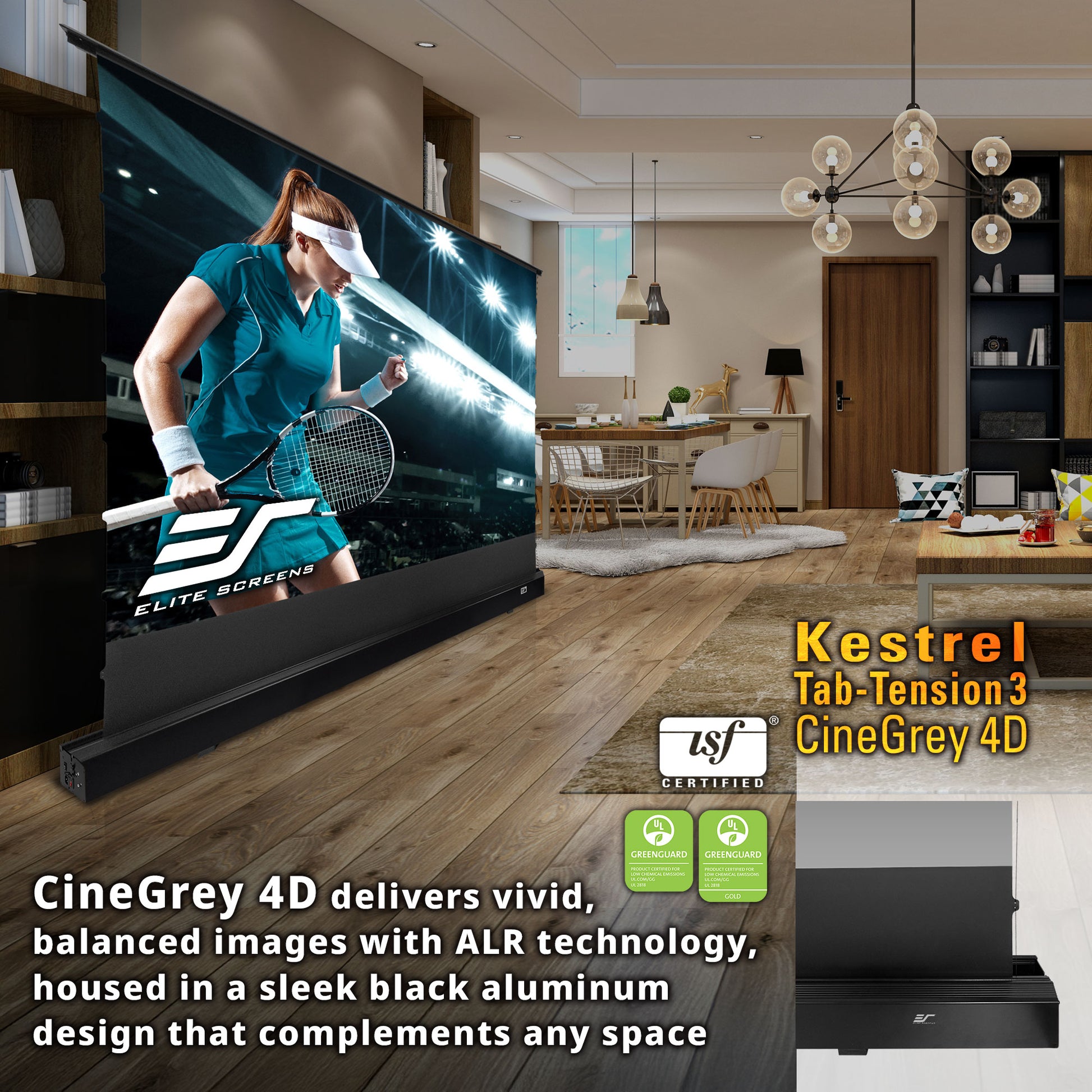

• Elegant moisture resistant black aluminum housing fits any room décor.

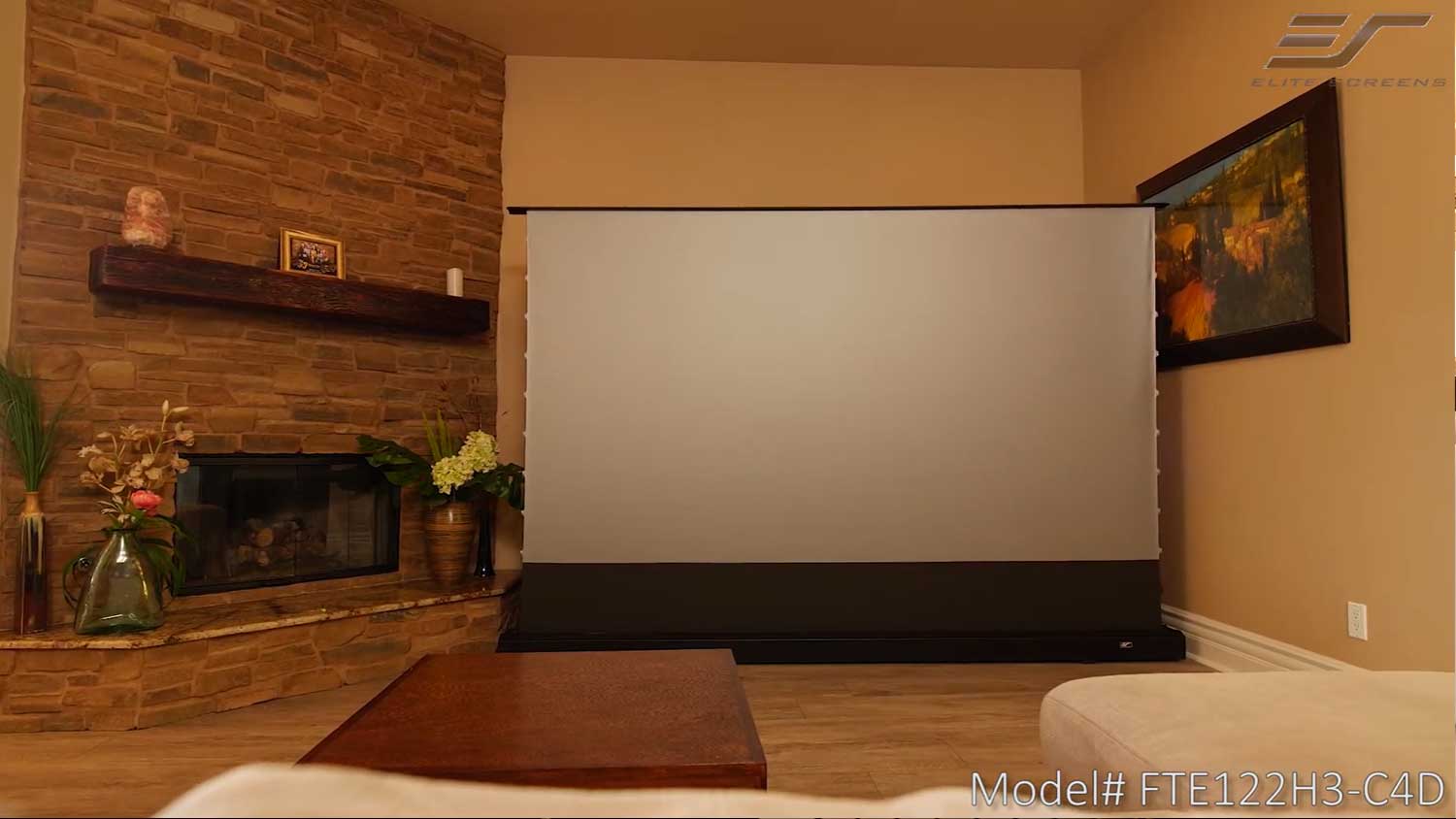

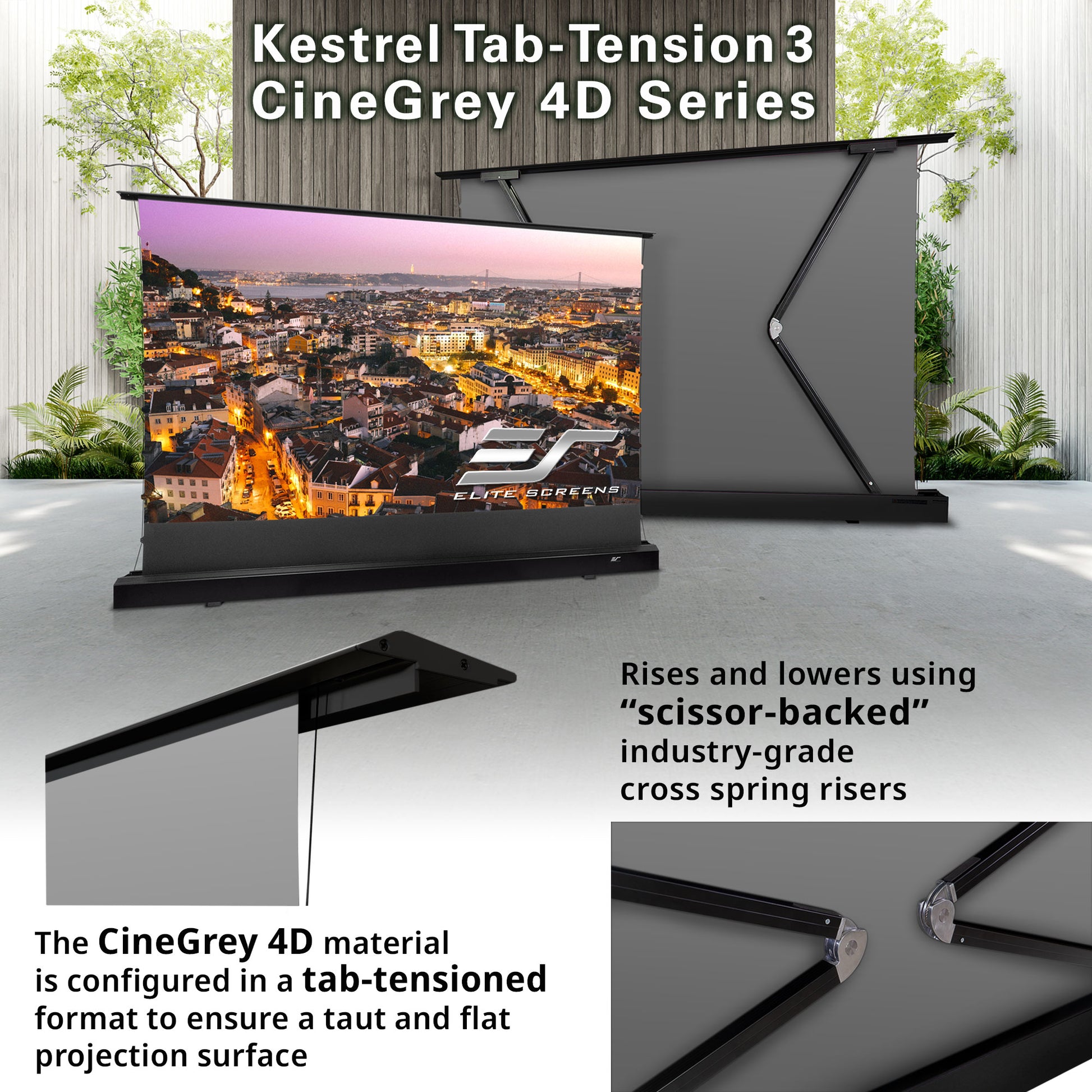

• Rises and lowers using “scissor-backed” industry grade cross spring risers
• Tab-tensioned design ensures a taut and flat ripple-free projection surface

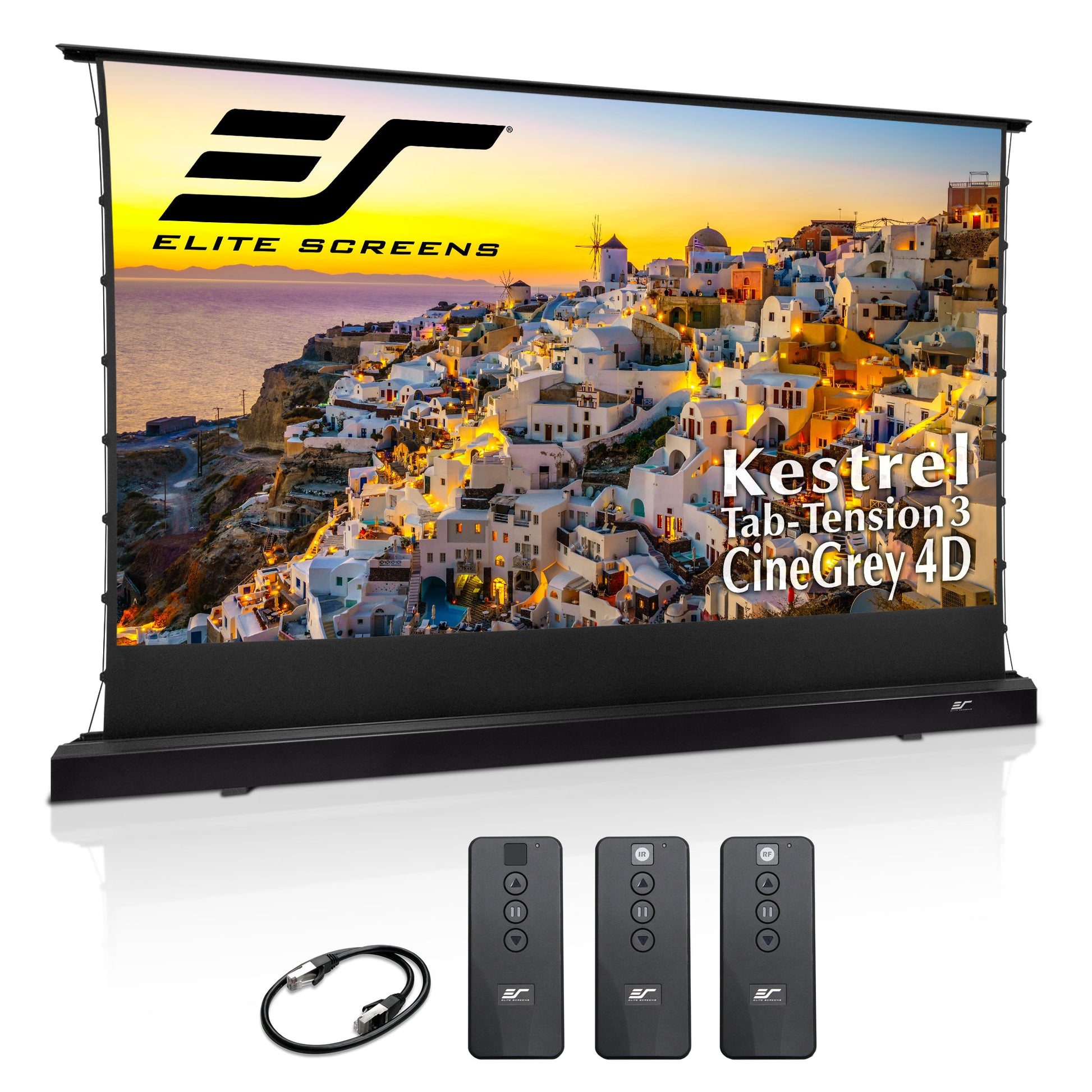

• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
  • Wired 12v trigger capability via wall box controller
  • Wireless 12v trigger capability via Radio Frequency remote control
• Plug & Play ready, no hardwired installation required

Quality and Reliability

• 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
• Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.

Downloads

Dimensions Tables

• Dimensions Table – H Type (PDF)
• Dimensions Table 150″ – H Type (PDF)
• Dimensions Table – J Type (PDF) – DISCONTINUED

User Guides

• User Guide (PDF) – H Type
• User Guide (PDF) – V1 Rechargeable Battery
• User Guide (PDF) – V2 Cell Button Battery
• User Guide (PDF) – J Type – DISCONTINUED

Comparison Tables

• Electric Floor-Rising Screens
• CLR®/ALR Materials

Others

• Screen Material Care Sheet
• CineGrey 4D Material Sheet
• Product Cut Sheet (PDF)
• Electric Screens Accessories Chart
