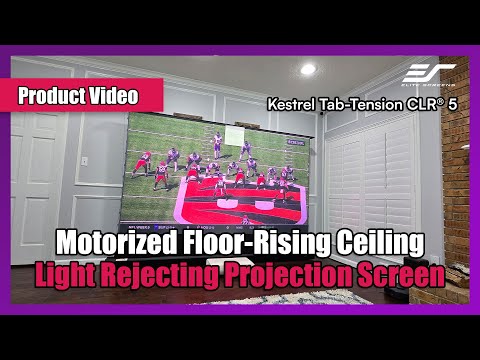

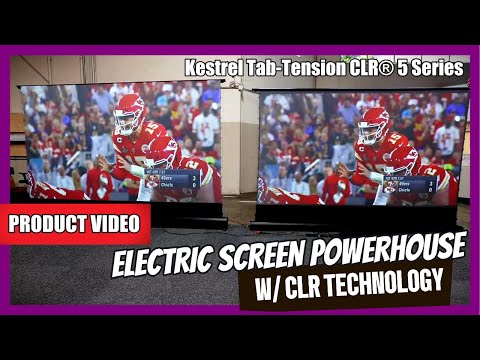

[Elite Screens] Kestrel Tab-Tension CLR 5 Series

Description

The Kestrel Tab-Tension CLR 5 is an electric free-standing projector screen with Ceiling Light Rejecting technology to combat the washout effect from overhead light sources in bright room environments. The material ascends and descends into its housing for a non-invasive solution where permanent wall or ceiling installations are not practical.

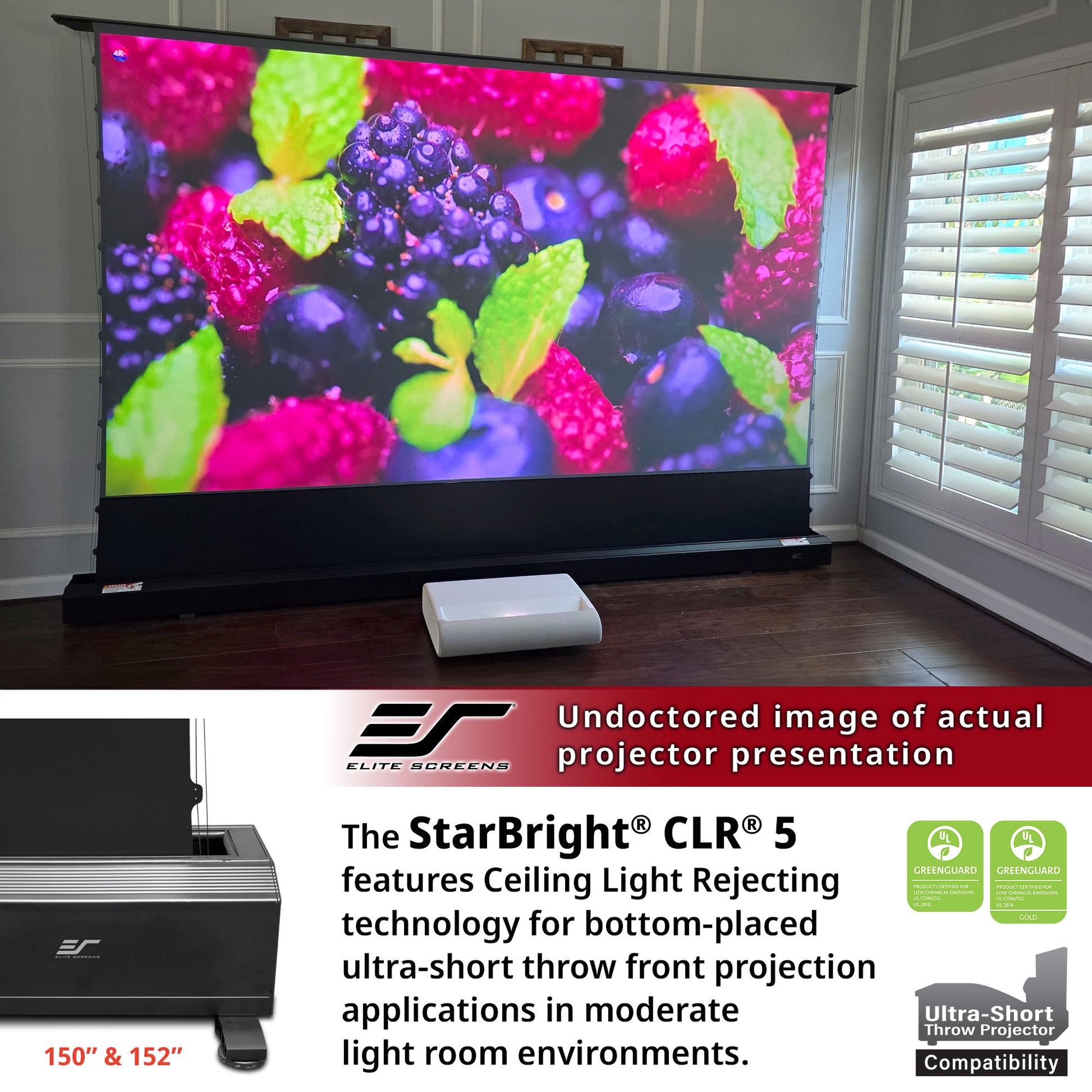

The StarBright CLR 5 material is configured in a tab-tensioned design to ensure a taut, flat, and ripple-free projection surface suitable for ultra-short throw projectors.

Product Features

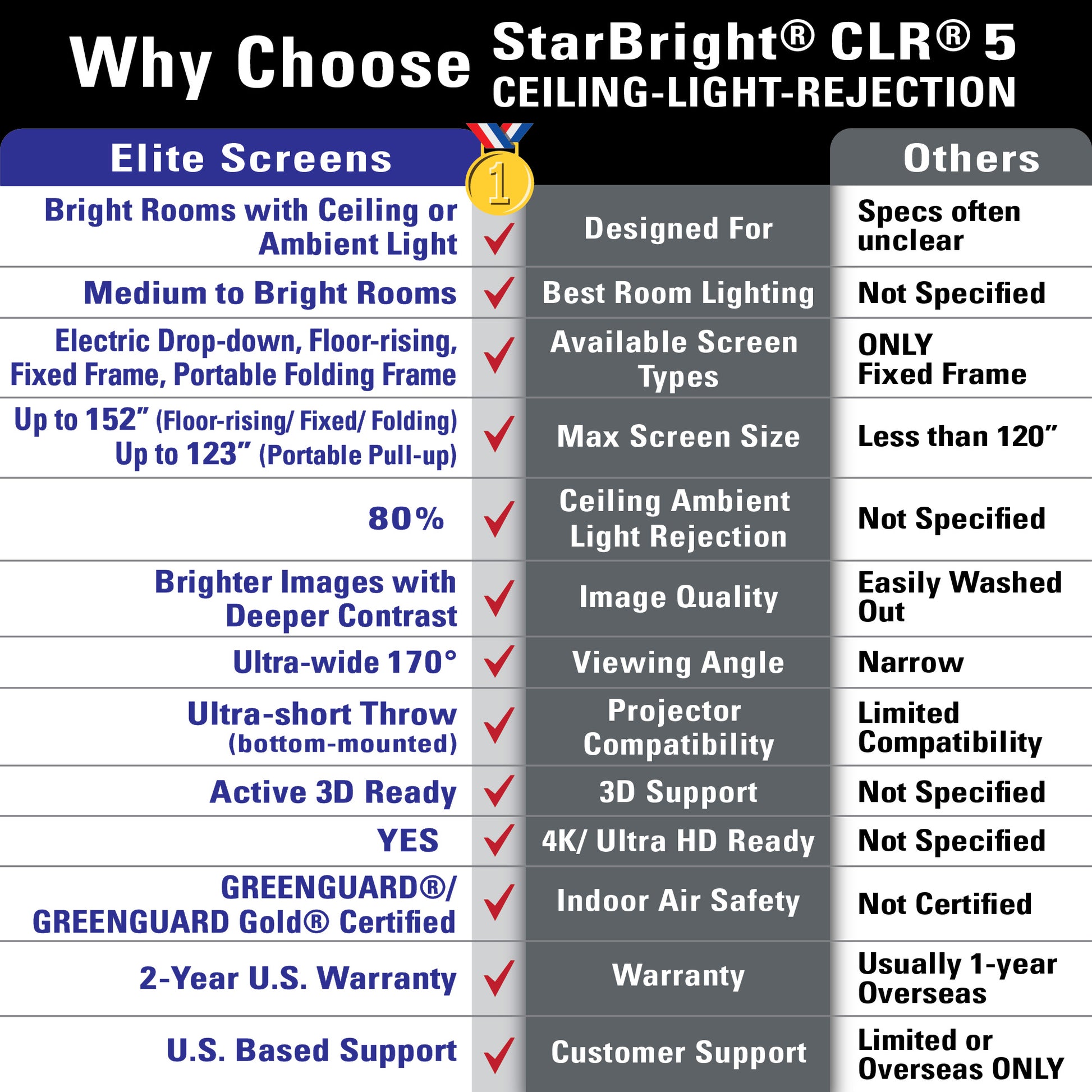

Screen Material

• StarBright CLR 5 (SBCLR 5) Ceiling Light Rejecting material absorbs up to 80% of overhead lighting
• Designed for use with Ultra-Short Throw (UST) tabletop/bottom mounted projectors
  (Not compatible with short-throw or standard throw projectors)
• Lenticular sawtooth micro-structure filters out ambient light for superior image brightness and contrast
• Dedicated reflective and absorbent layers maximize projector performance in ambient light room environments
• Enhances black levels and color saturation in bright and dark room environments
• Wide diffusion uniformity allows viewers to see a clear bright picture from any angle
• Reflective layer reduces light scatter and concentrates the projector's light back into viewer's field of vision
• Black backing prevents picture degradation while enhancing image brightness for sharper presentations

Design and Operation

• Elegant moisture resistant black aluminum housing
• Free-standing projector screen appears and disappears from a touch of button
• Rises and lowers using scissor-backed industry grade cross spring risers
• Project from within a short distance without shadowing the picture
• Plug &Play design with built-in low voltage control system, no hardwire installation required
• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation.
• Wall box controller is detachable for a clean look while maintaining RF &IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference.
• 12v trigger feature allows the screen's UP/DOWN operation to synchronize with the projector's power cycle
  • Wired 12v trigger capability via wall box controller.
  • Wireless 12v trigger capability via Radio Frequency remote control

Quality and Reliability

• 2-year limited warranty, and 3-year warranty for ENR-G  Education, Non-profit, Religious and Government/Military organizations
• Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.

Downloads

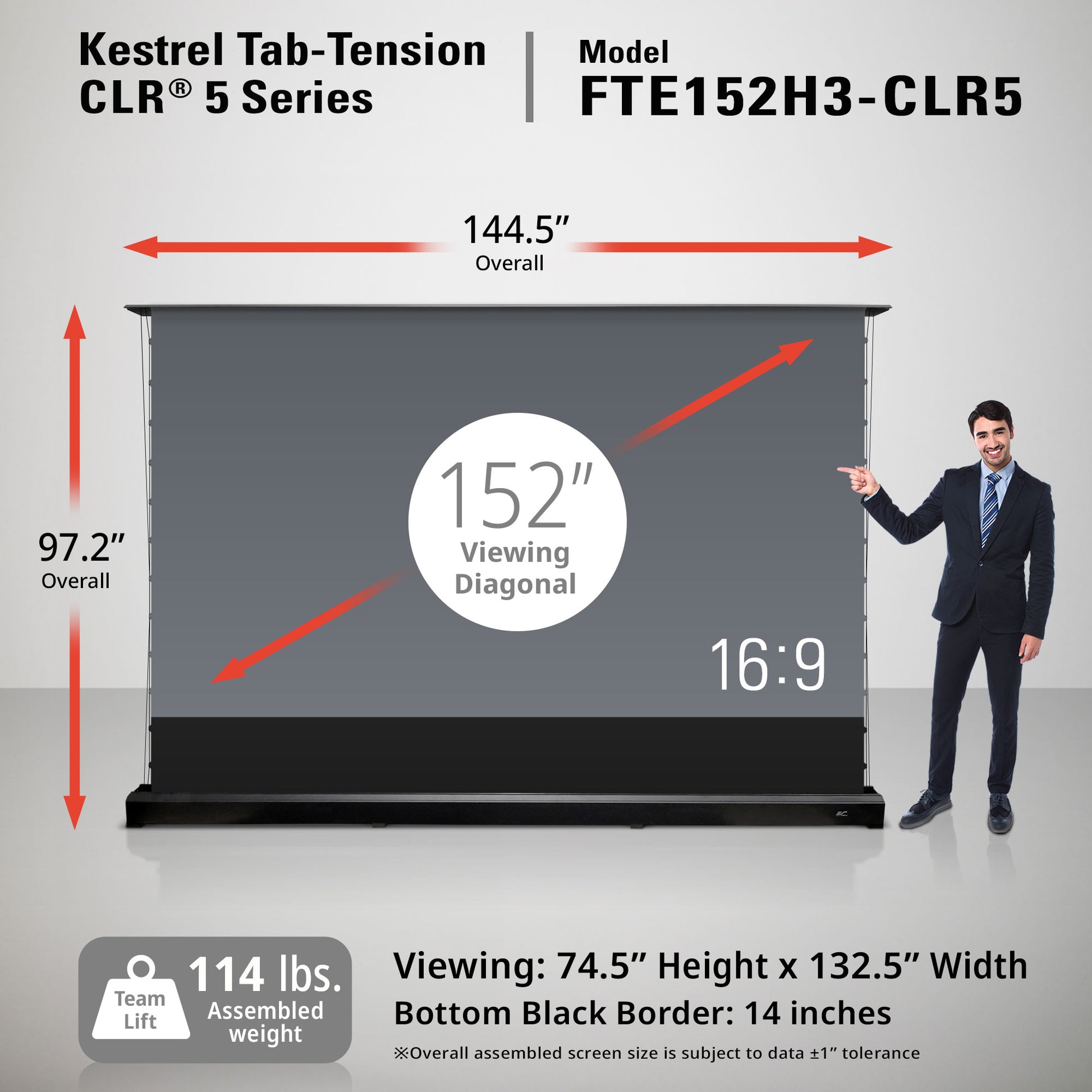

Dimensions Tables

• Dimensions Table (PDF)
• Dimensions Table 150" Model (PDF)

User Guides

• User Guide RC1 (PDF)


Others

• Electric Floor-Rising Screens
• CLR/ALR Materials
• Screen Material Care Sheet
• Product Cut Sheet
• Electric Screens Accessories Chart
