[Elite Screens] Hardware Pack for M-Type Fixed Frame Screens

Description

Hardware pack for Elite Screens M Type version fixed-frame screens. It includes frame assembly and mounting hardware.

*Other parts and quantities may be different depending on the model and serial number of the screen.

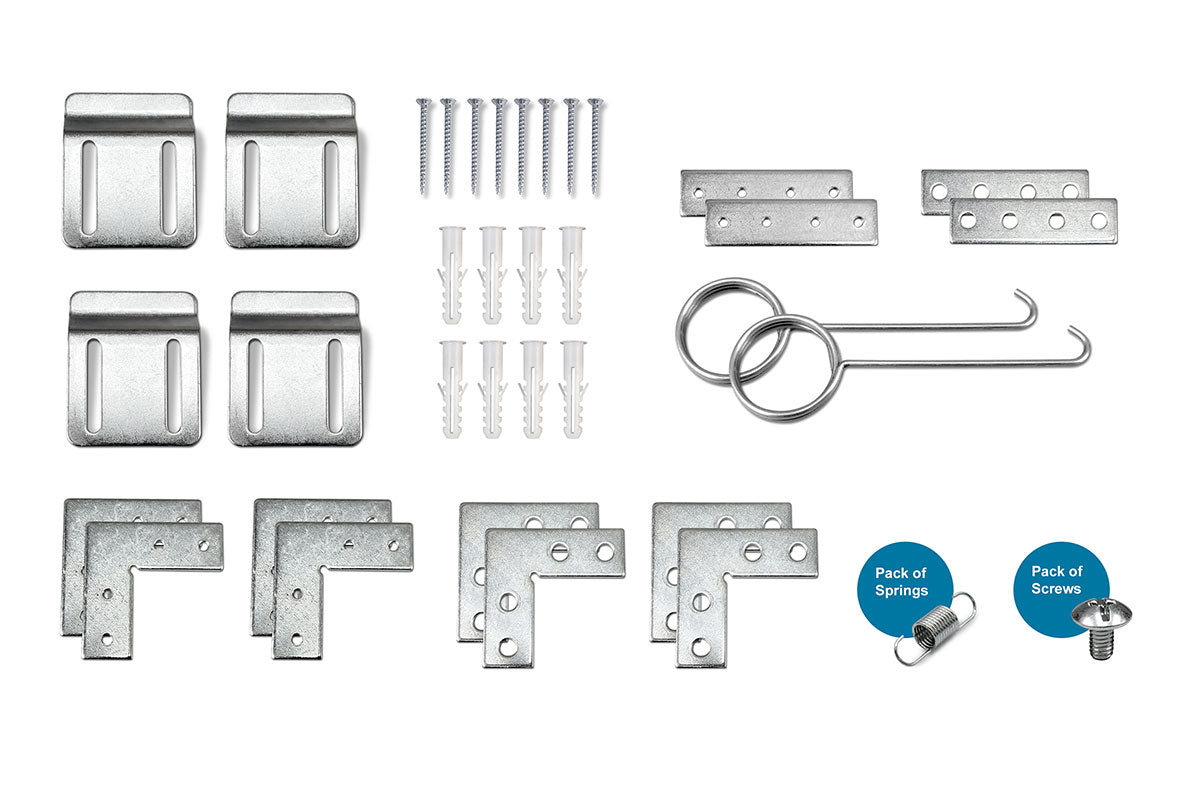

SB/SF/ER Set Breakdown

Sable Frame Series Screens - SB/SF/ER
For example: SB120WH2, SF120HW2, ER106WH2

• CENTER JOINTS (Y-FFARER-CNTJOIN-M)
• ELBOW JOINTS (Y-FFAREREF-LJOINTS-M)
• SPRING HOOK (Y-FFAREREF-PHOOK-M)
• SPRINGS (Y-FFAREREF-SPRING-M)
• WALL BRACKET (Y-FFAR-WBRKET-M)
• M4X7 SCREWS (Y-FF-M4X7SCREWS-M)

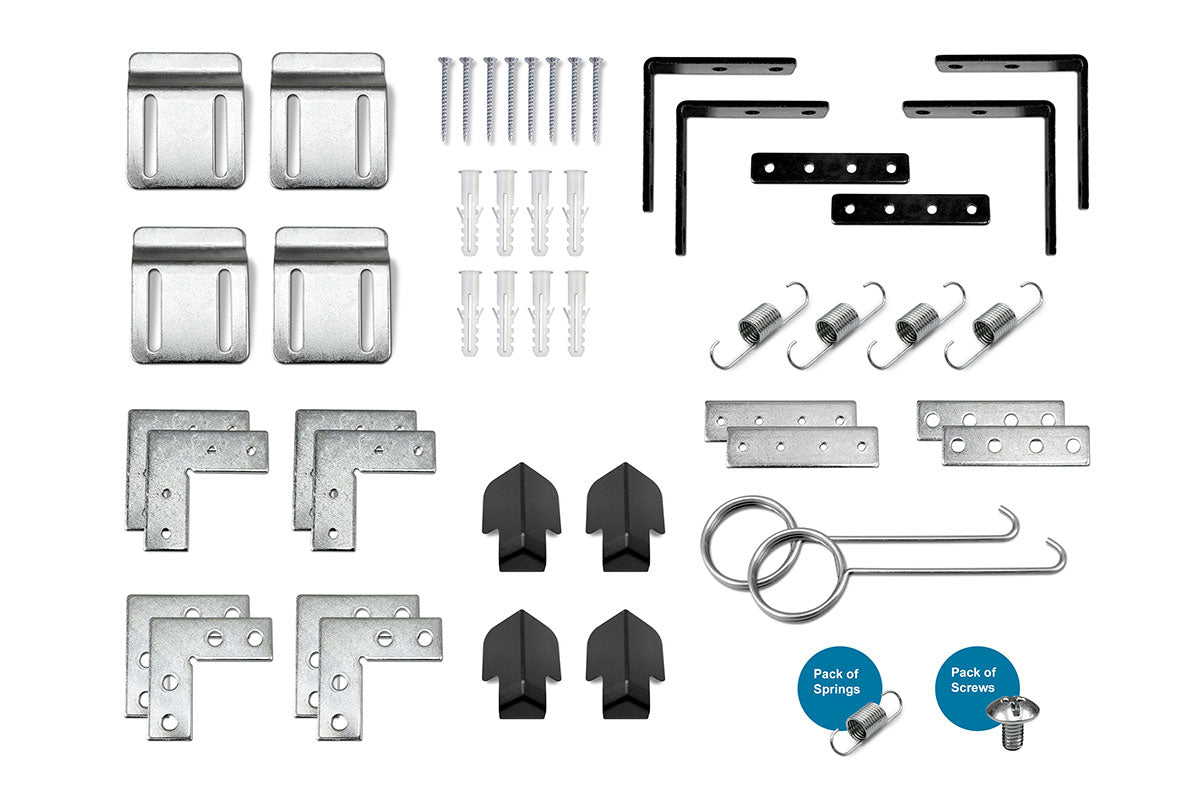

AR Set Breakdown

Aeon Series Screens - AR
For example: AR120WH2, AR120DHD3

• CENTER JOINTS (Y-FFARER-CNTJOIN-M)
• ELBOW JOINTS (Y-FFAREREF-LJOINTS-M)
• SIDE COVER CENTER JOINTS (Y-FFAREF-SCCNTJOIN-M)
• SIDE COVER ELBOW JOINTS (Y-FFAREF-SCCLJOINT-M)
• SPRING HOOK (Y-FFAREREF-PHOOK-M)
• SPRINGS - 24MM (Y-FFAREREF-SPRING-M)
• WALL BRACKET (Y-FFAR-WBRKET-M)
• M4X7 SCREWS (Y-FF-M4X7SCREWS-M)
• ANGLE COVERS (Y-FFAREF-ANGCOVER-M)
• SPRING - 42MM (Y-FFAR-EGSPRING-M)

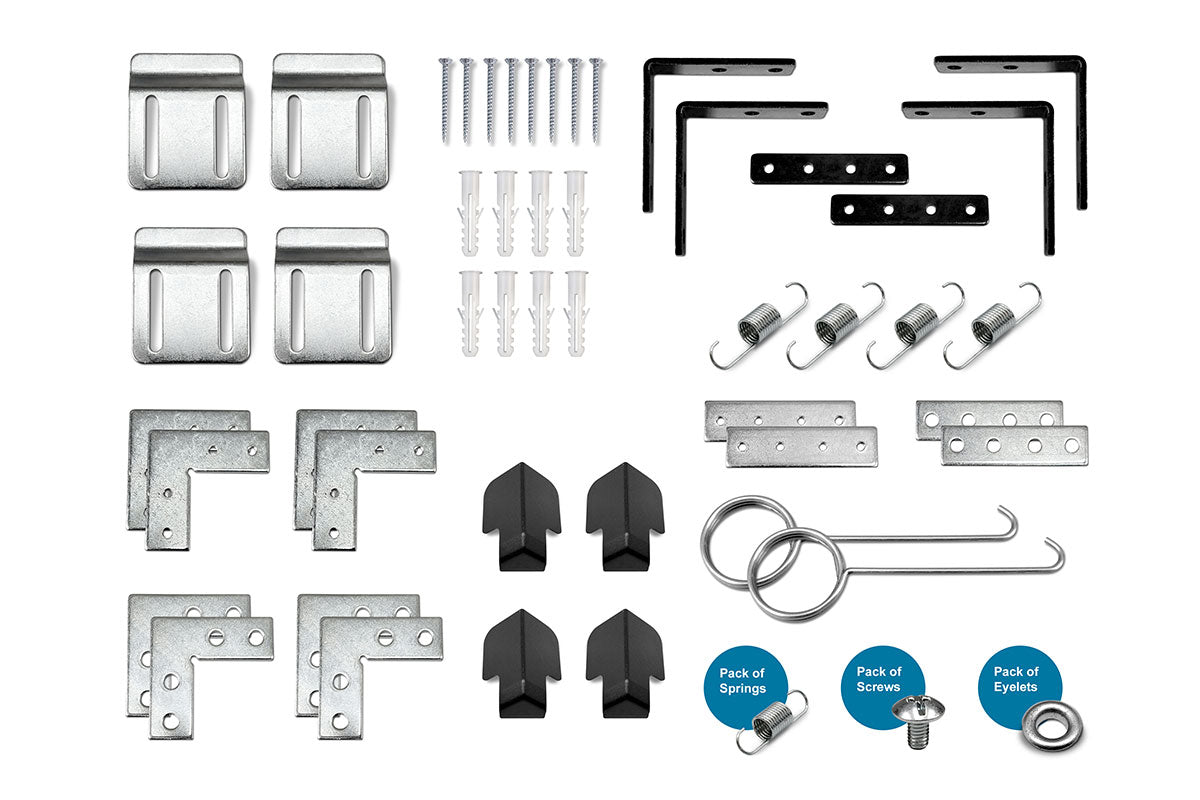

AR-CLR Set Breakdown

Aeon CLR Series Screens - AR-CLR
For example: AR103H-CLR2

• CENTER JOINTS (Y-FFARER-CNTJOIN-M)
• ELBOW JOINTS (Y-FFAREREF-LJOINTS-M)
• SIDE COVER CENTER JOINTS (Y-FFAREF-SCCNTJOIN-M)
• SIDE COVER ELBOW JOINTS (Y-FFAREF-SCCLJOINT-M)
• SPRING HOOK (Y-FFAREREF-PHOOK-M)
• SPRINGS - 26MM (Y-FFARCLR-SPRING-M)
• WALL BRACKET (Y-FFAR-WBRKET-M)
• M4X7 SCREWS (Y-FF-M4X7SCREWS-M)
• ANGLE COVERS (Y-FFAREF-ANGCOVER-M)
• SPRING - 42MM (Y-FFAR-EGSPRING-M)
• METAL EYELET (Y-FF-METALEYELET-M)
