Elite Screens

[Elite Screens] GolfSim DIY Screen Series

[Elite Screens] GolfSim DIY Screen Series

• Screen Material : ImpactWhite 360
• Gain : 1.0
• Viewing Angle : 180°
• Compatible Projection :
Short Throw

Description

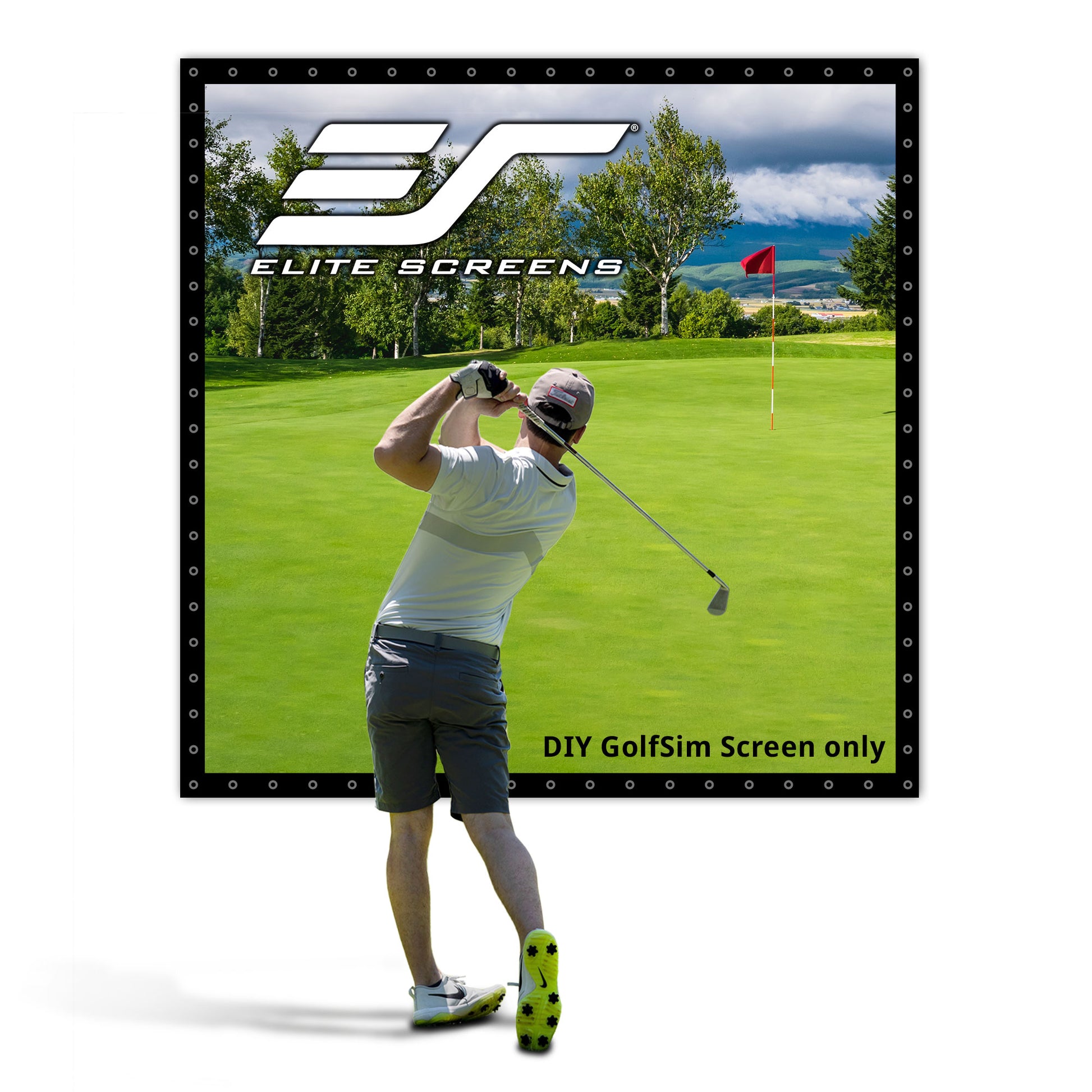

The GolfSim DIY Screen is a golf impact front projection material for golf simulator enclosures. It is a Do-it-Yourself (DIY) design that includes metal grommets all around the entire material to ensure the material is equally tensioned on all sides and perfect for custom frame golf /sport simulation enclosures.

*We consider our impact screens a wearable item and the life of them will vary according to their use. Avoid using golf balls with scuffs or markings to maximize the life of the screen. If possible, use new golf balls. Some creasing may occur but may be removed with a steamer and/or light ironing set to no higher than Polyester.

    ImpactWhite 360

    The ImpactWhite 360 is a single-layer tightly woven impact/projector screen fabric designed to endure golf ball impact and longevity. The projection surface is smooth and does not color shift to ensure exceptional cinema quality presentations for high-resolution projectors. It is also ideal for use with any other sport simulation applications.

    Screen Material Design and Installation

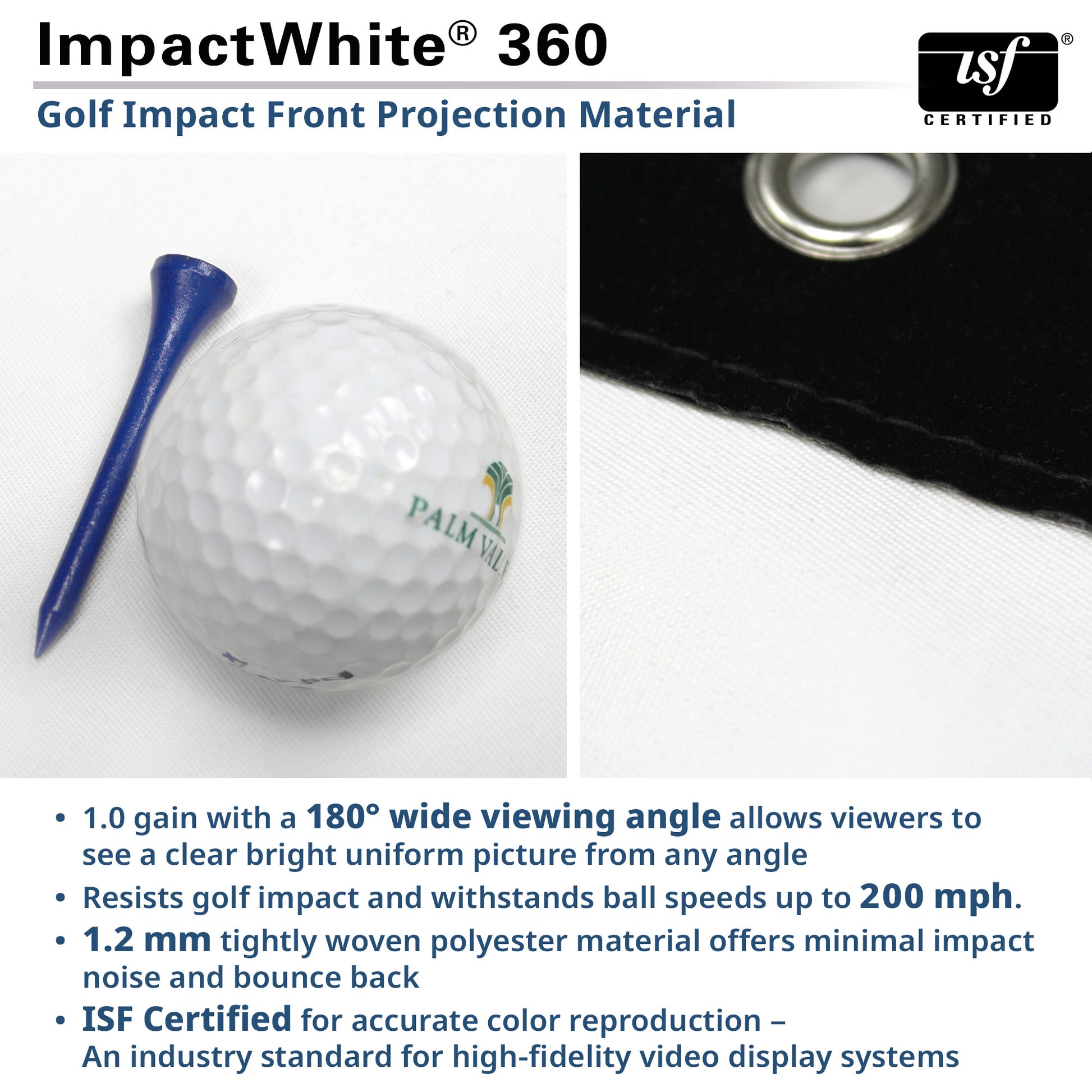

    • ImpactWhite 360 golf impact front projection screen material

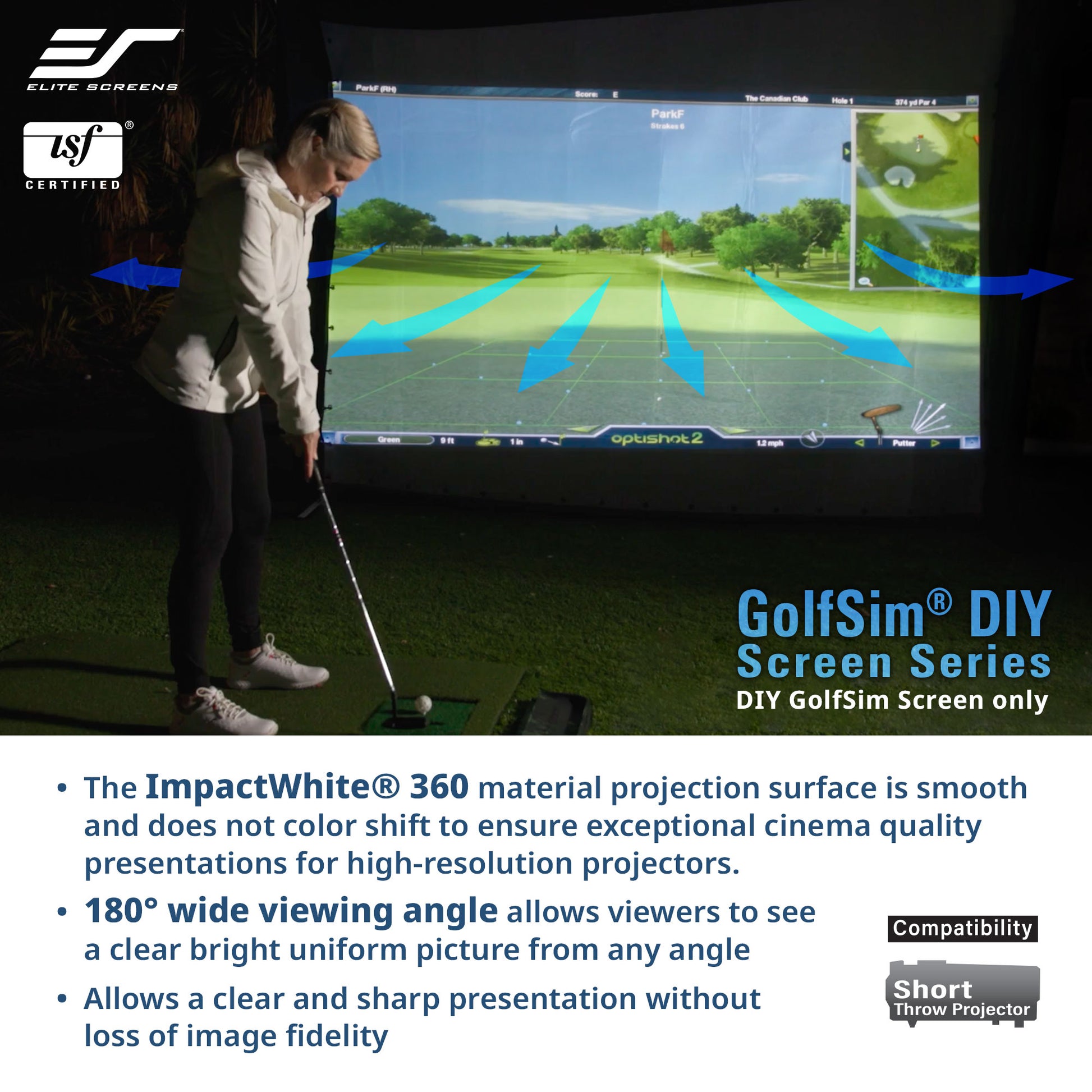

    • 1.0 gain with a 180° wide viewing angle allows viewers to see a clear bright uniform picture from any angle
    • Resists golf impact and withstands ball speeds up to 200 mph.
    • 1.2 mm tightly woven polyester material offers minimal impact noise and bounce back

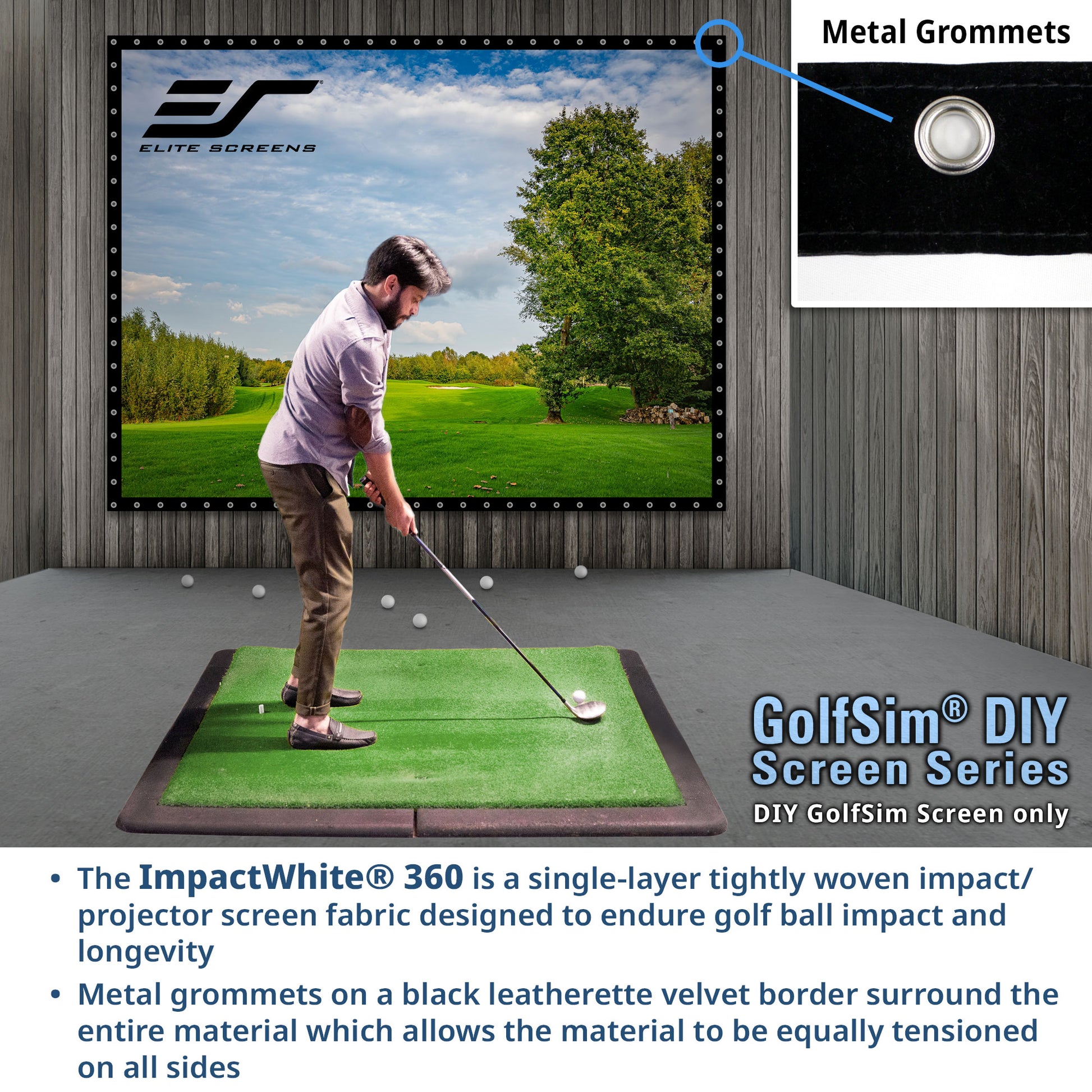

    • Metal grommets on a black leatherette velvet border surround entire material which allows material to be equally tensioned on all sides
    • Allows a clear and sharp presentation without loss of image fidelity
    • Designed to perform to high industry standards for cinema quality presentations
    • ISF Certified for accurate color reproduction - An industry standard for high-fidelity video display systems
    • Available in the following sizes:

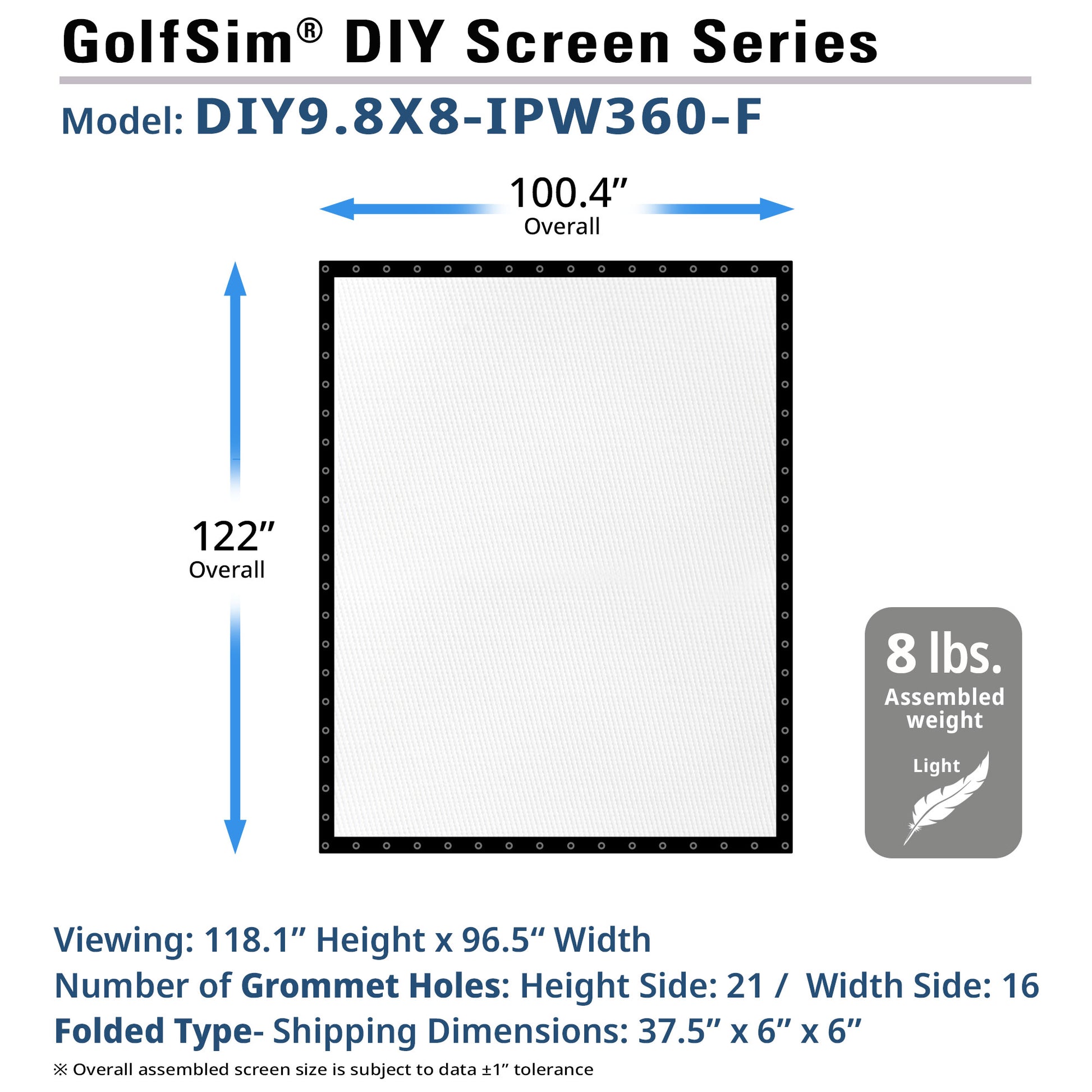

      • 9.8' x 8'

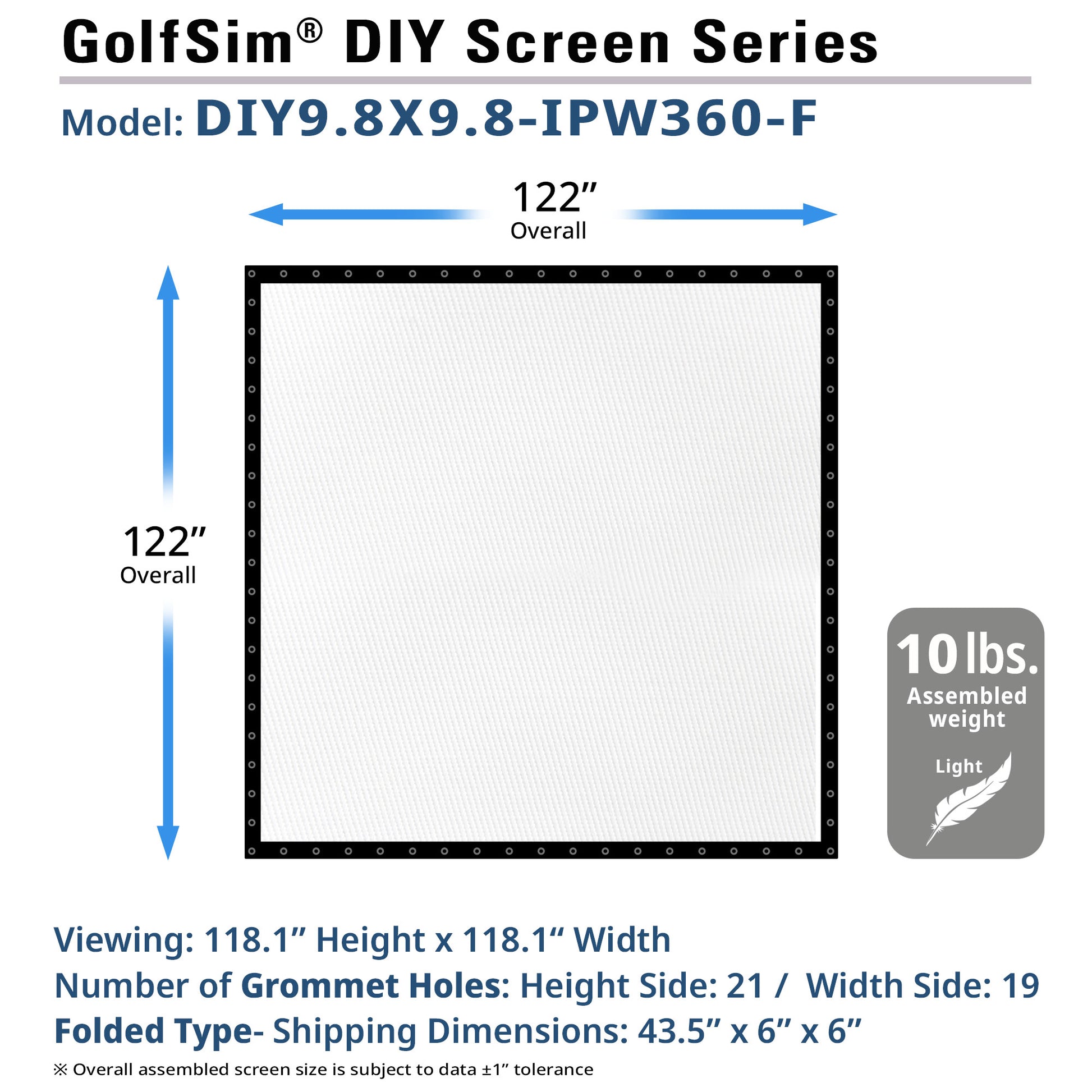

      • 9.8' x 9.8'

    Downloads

    Dimensions Tables

    User Guides

    Other

    $371.00 USD
    $371.00 USD
    Sale Sold out
    Free Shipping To The Continental U.S 48 States | Shipping Policy

    DIY9.8X8-IPW360-F

    Size

    Screen Material Info

    Screen Material Name ImpactWhite® 360
    Description ImpactWhite® 360 is a single-layer tightly woven fabric designed to provide exceptional projection imaging characteristics with the ability to also perform as a Golf Impact or Multi-Sport Simulation Screen.
    Recommended for Home casual, Professional and light Commercial use. Minimal bounce back and impact noise.
    Composition 100% Polyester (tightly woven knit with reinforcement)
    Number of layers 1
    Thickness 0.047" (1.2 mm)
    Golf ball Impact rebound distance 5.2 ft
    Withstands Golf ball Speeds Up to 200 mph
    Projection Type Front
    Projector Compatibility Short Throw
    4K/8K UHD Compatible Up to 4K
    Gain 1.0
    Viewing Angle 180°
    ISF Certified for Accurate Color Reproduction Yes
