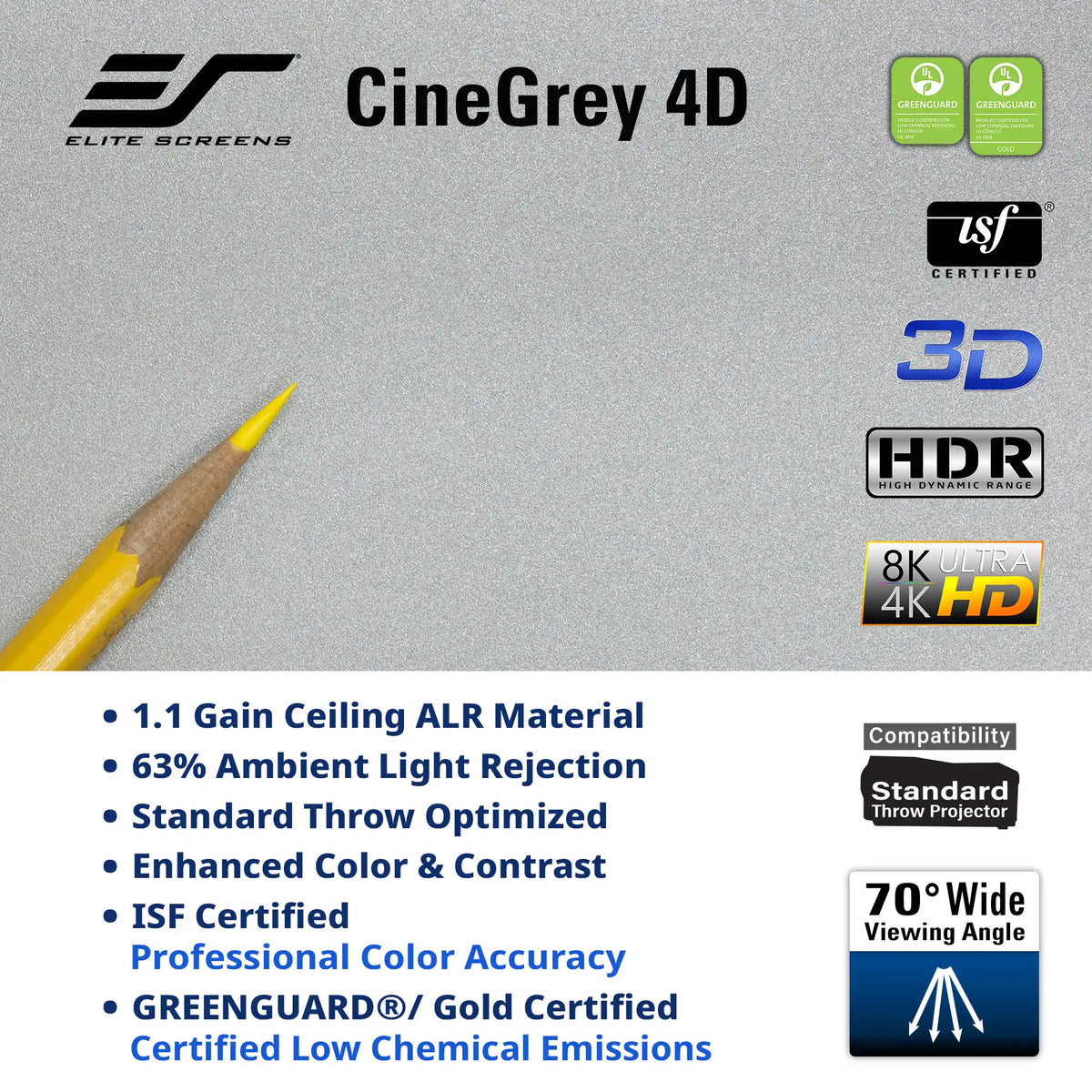

  • Elite Screens CineGrey 4D professional display screen material sample with a yellow pencil tip on the left, feature icons on the right, and a white text list of benefits at the bottom.

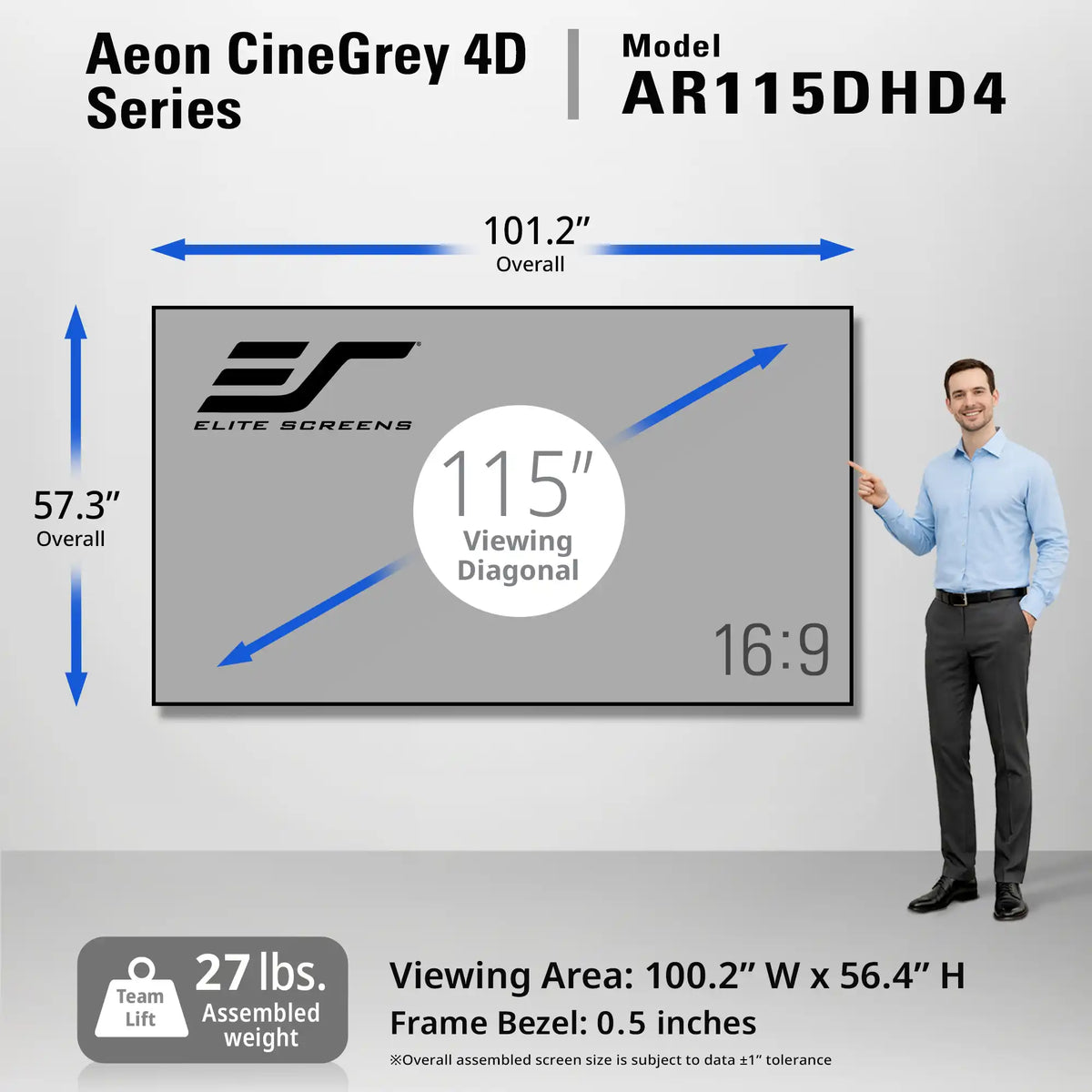

  • A large wall-mounted cinema screen display with dimension callouts and a man standing beside it. The image includes text reading 'Aeon CineGrey 4D Series', 'Model AR115DHD4', '115" Viewing Diagonal', '100.

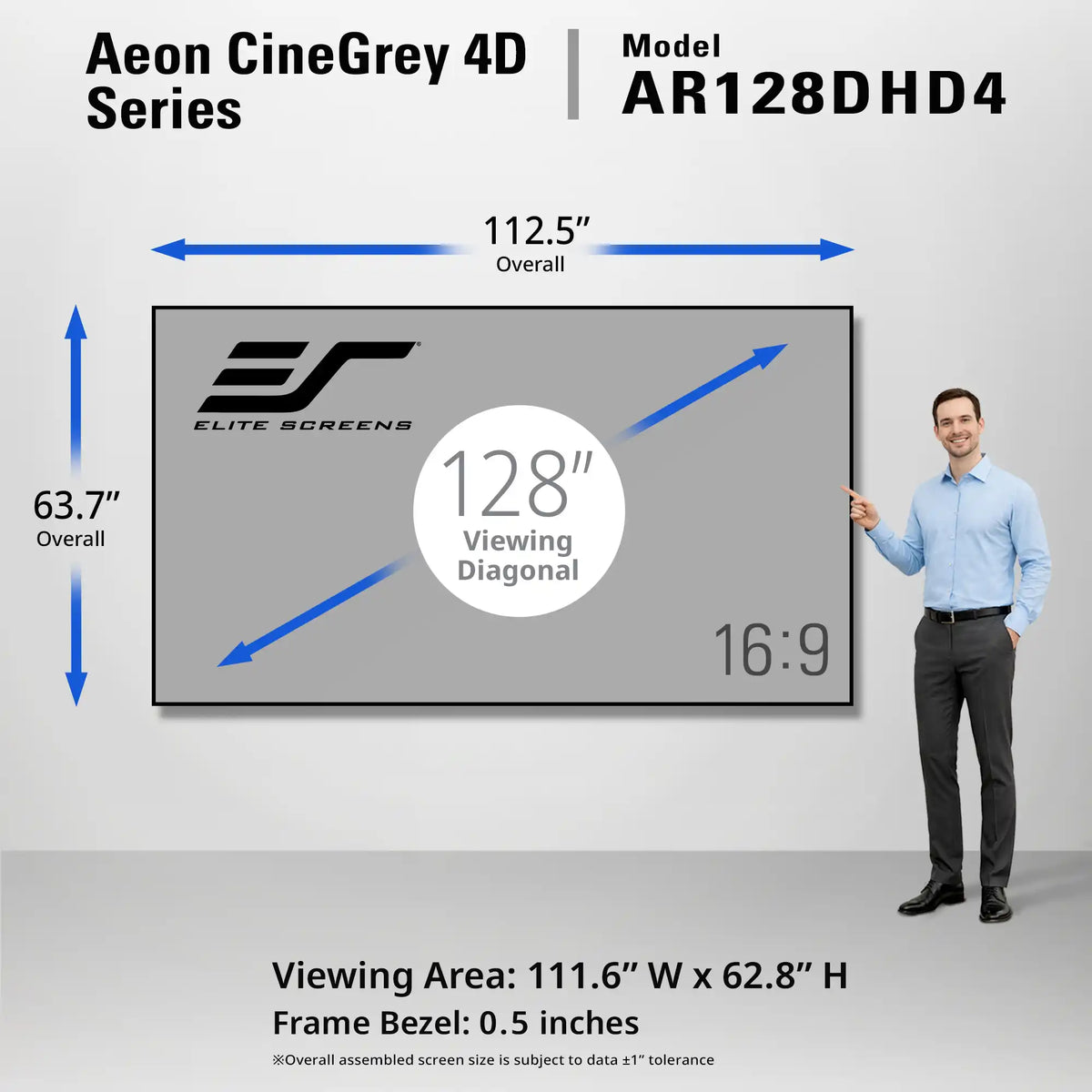

  • A man stands beside a large framed screen display showing dimensions and specs for the AEON CineGrey 4D Series model AR128DHD4. The graphic includes overall width 112.

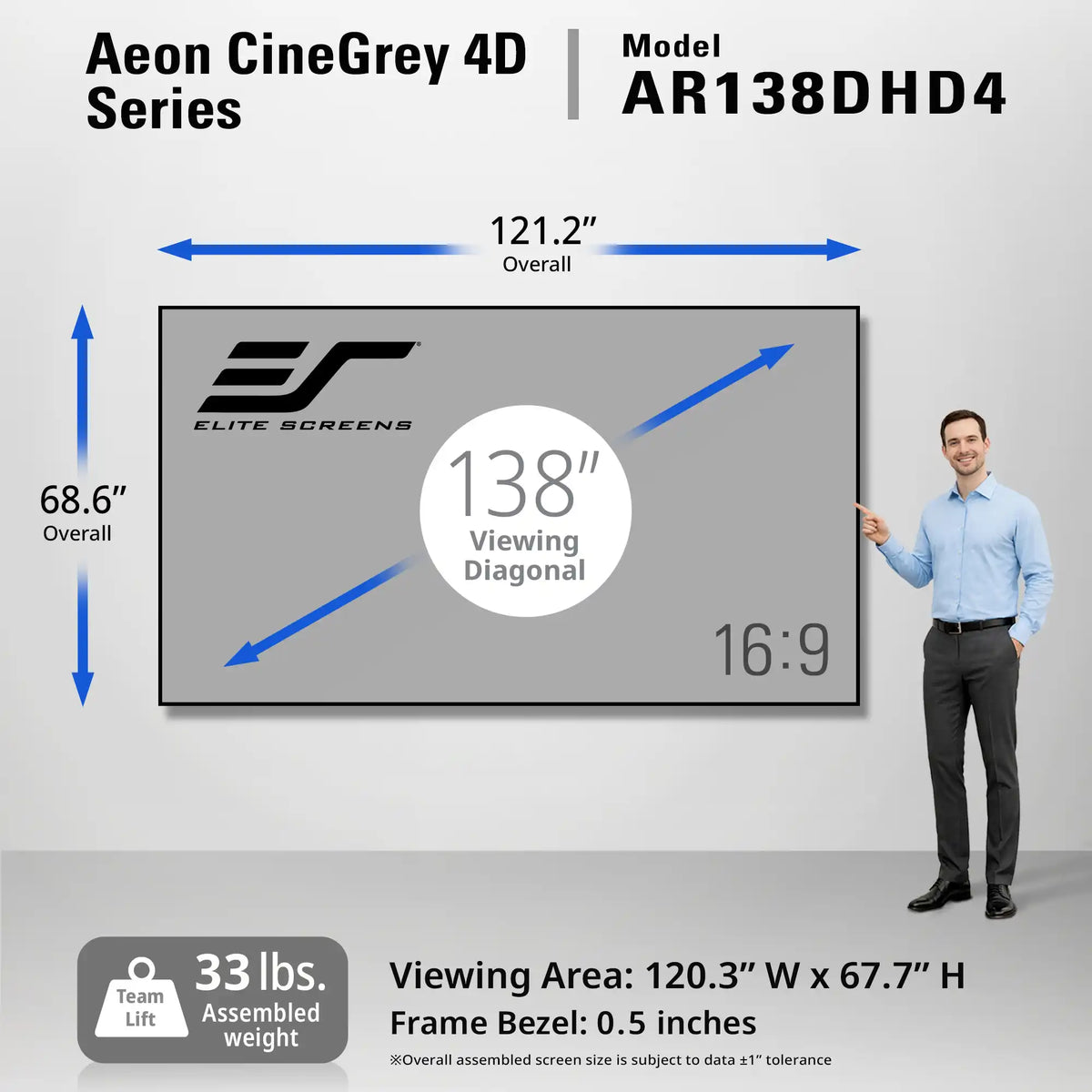

  • A promotional product graphic for an AEON CineGrey 4D screen by Elite Screens, showing a 138-inch wall-mounted display with dimensions, viewing area, and a man standing beside it for scale. Text includes model AR138DHD4, 121.

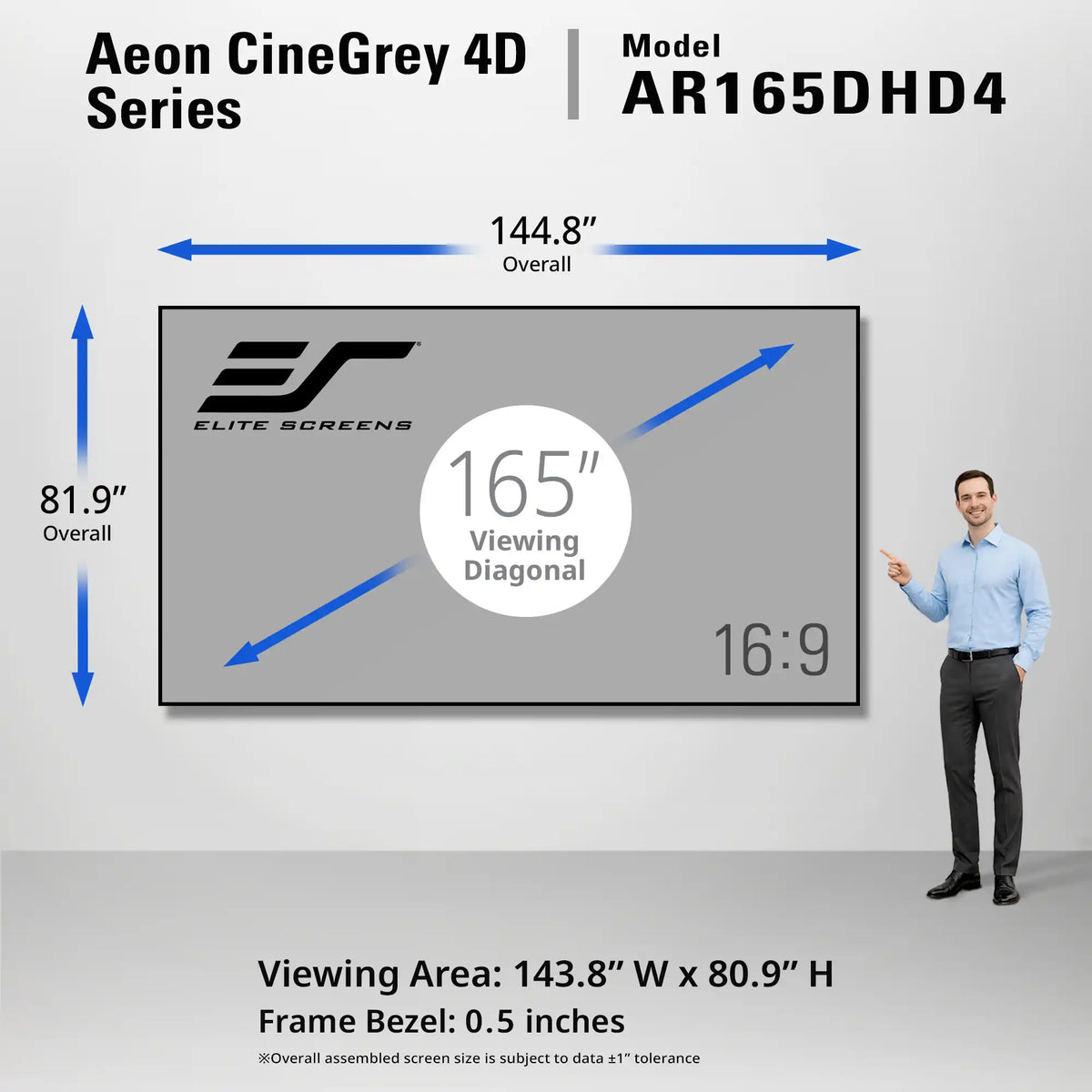

  • A product infographic showing a 165-inch cinema screen by Elite Screens, labeled as the Aeon CineGrey 4D Series, Model AR165DHD4. The graphic includes dimension lines indicating an overall width of 144.
1 15

Elite Screens

[Elite Screens] 115/128/138/165"(16:9) Aeon CineGrey 4D, ALR/CLR EDGE FREE Fixed Frame Projection Screen

[Elite Screens] 115/128/138/165"(16:9) Aeon CineGrey 4D, ALR/CLR EDGE FREE Fixed Frame Projection Screen

Certification badge
A black square logo with the lowercase letters 'usf' in white, with a small registered mark symbol at the top right.
A GREENGUARD Certified logo with a leaf symbol inside.
A circular icon of a ceiling light fixture with radiating lines, commonly used as a placeholder or category icon.
• Screen Material : CineGrey 4D
• Gain : 1.1
• Viewing Angle : 70°
• Compatible Projection :
Standard Throw
• Best for Environments : High ambient light control rooms & dark rooms

Description

The Aeon CineGrey 4D is an EDGE FREE fixed‑frame projector screen engineered with ceiling ambient‑light‑rejecting technology to preserve image contrast in moderately lit rooms. Its angular‑reflective surface deflects overhead and off‑axis light, ensuring crisp detail, vivid color, and impressive image brightness. The screen material wraps tightly around the frame, creating a flat, taut, and permanently tensioned projection surface. For added visual impact, an LED backlight kit is offered as an optional accessory.

Product Features

Screen Material

  • CineGrey 4D 1.1 Gain ambient light rejecting front projection material
  • Angular-Reflective Material for standard “long” throw projectors (Not compatible with Ultra/Short-Throw Projectors)
  • Multi-matrix layer uses reflective and absorbent micro-particles to eliminate 63% ambient light
  • Directional Reflectivity angular reflective orientation brings image clarity into the viewer’s line of sight
  • High contrast material enhances color saturation and black levels for greater shadow detail
  • ISF Certified for accurate color reproduction – An industry standard for high fidelity video display systems
  • GREENGUARD® and GREENGUARD® GOLD Certified for Safe Indoor Emissions
  • 4K/8K Ultra HD, HDR compatible

Design and Installation

  • Sleek EDGE FREE® Fixed Frame design maximizes viewing area in a smaller footprint
  • Wrap-around material stretches over internal framework and is secured with springs for a tight-tensioned flat projection surface
  • Ultra-thin black bezel trim resembles a flat panel TV
  • Lightweight aluminum split-frame design facilitates shipping
  • Sliding wall mounting brackets allow horizontal movement of screen to ensure precision on-axis alignment and permits wood stud installation
  • Optional LED kit available – Sold Separately

Quality and Reliability

  • 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
  • Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.

Downloads

Dimensions Table

User Guide

Others

    Shipping & Returns

    📝 Our Shipping & Return Policy

    📩 Request a Shipping Quote (AK, HI, PR and Canada)

    • Purchase Orders for GROUND shipping service received by 5:00 PM (PST) are processed to be shipped from Elite’s warehouse within 2-5 business days. You will receive an email confirmation when your order has shipped.
    • All orders are fulfilled Monday through Friday, excluding weekends and holidays. We are not responsible for unexpected shipping delays caused by circumstances related to the courier, weather or state of emergency.
    • Oversize Shipping : If your order is shipped via Pilot Freight Services, they will contact you to schedule a delivery.

    $540.00 USD
    $540.00 USD
    Sale Sold out
    Free Shipping To The Continental U.S 48 States | Shipping Policy

    AR115DHD4

    Size
    Distances From Your Screen

    Screen Material Information

    Screen Material Name CineGrey 4D
    Description The CineGrey 4D is a 1.1 gain front projection ceiling ambient light rejecting material for standard throw projectors. It can reject up to 63% of off-axis lighting while providing a bright, contrast-rich image in moderate light room environments.
    Type of material Silver (PVC flexible)
    Reflective technology type Angular-Reflective
    Ambient Light Rejecting Yes (up to 63%)
    Gain 1.1
    Viewing Angle 70°
    Minimum Throw 1.5 x Image Width
    Black backing No
    3D Ready Active
    Polarized for Passive 3D No
    4K/8K Ultra HD Ready Yes
    Projection Type Front
    Ultra/Short-throw projector compatible No
    Best for environments Moderate ambient light control rooms and dark rooms
    Recommended for Good black level performance and accurate color reproduction, especially in dark rooms. Preserves color purity in moderate ceiling ambient light rooms.
    GREENGUARD Certified N/A
    Flame Retardant N/A
    ISF Certified Yes
    View full details
