[Elite Screens] VMAX2 Series

Description

Newer Product : VMAX 3 Series

The VMAX 2 Series is an enhanced electric motorized projector screen for commercial and home theater applications. It has a silent and power-saving synchronous motor. With standard features such as the IR & RF remotes, 12v Trigger and Electronic “Eye” Receiver, the VMAX 2 series also includes Elite Screens GREENGUARD® Certified MaxWhite® and MaxWhite® Fiberglass materials that are ideal for large group presentations.

Product Features

Screen Material

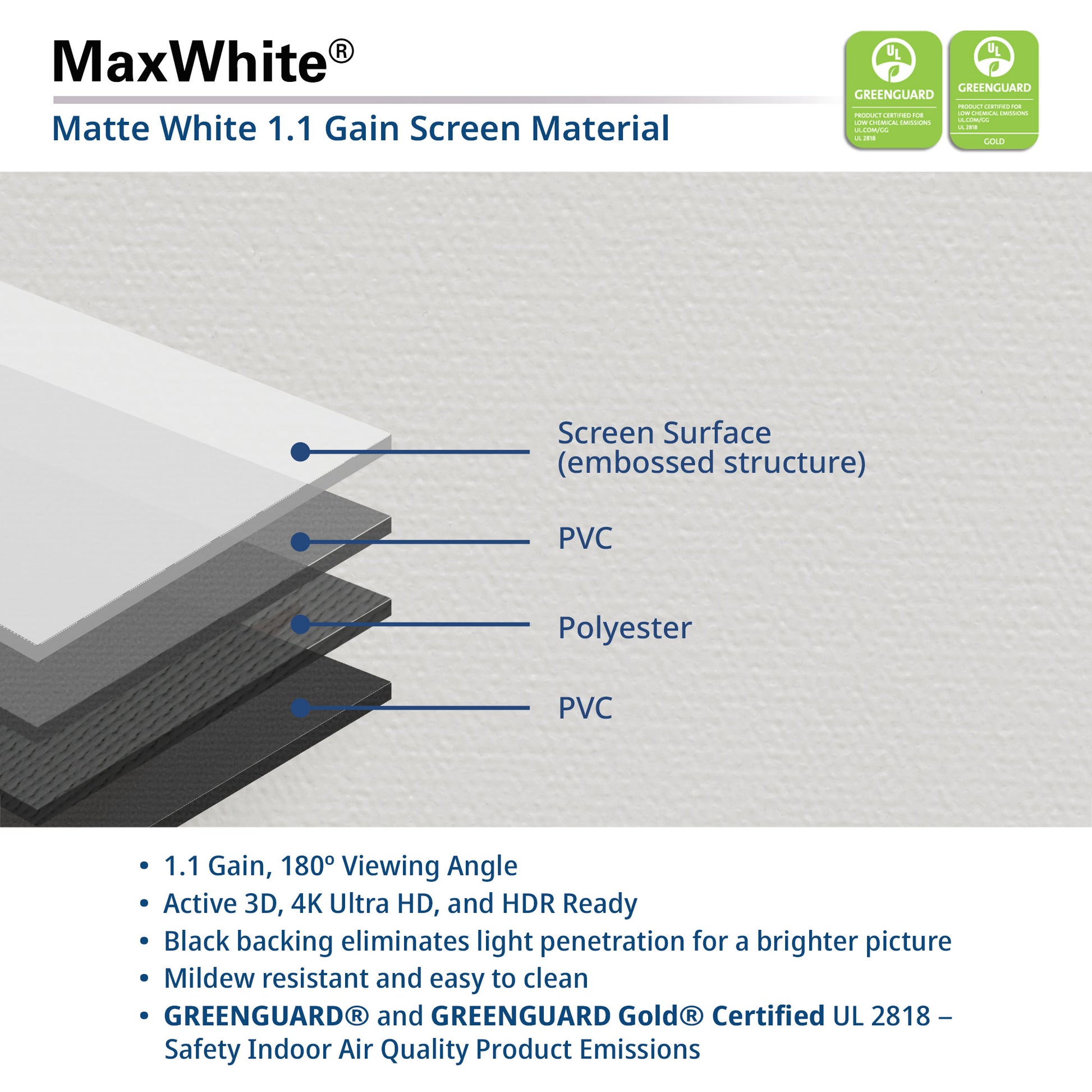

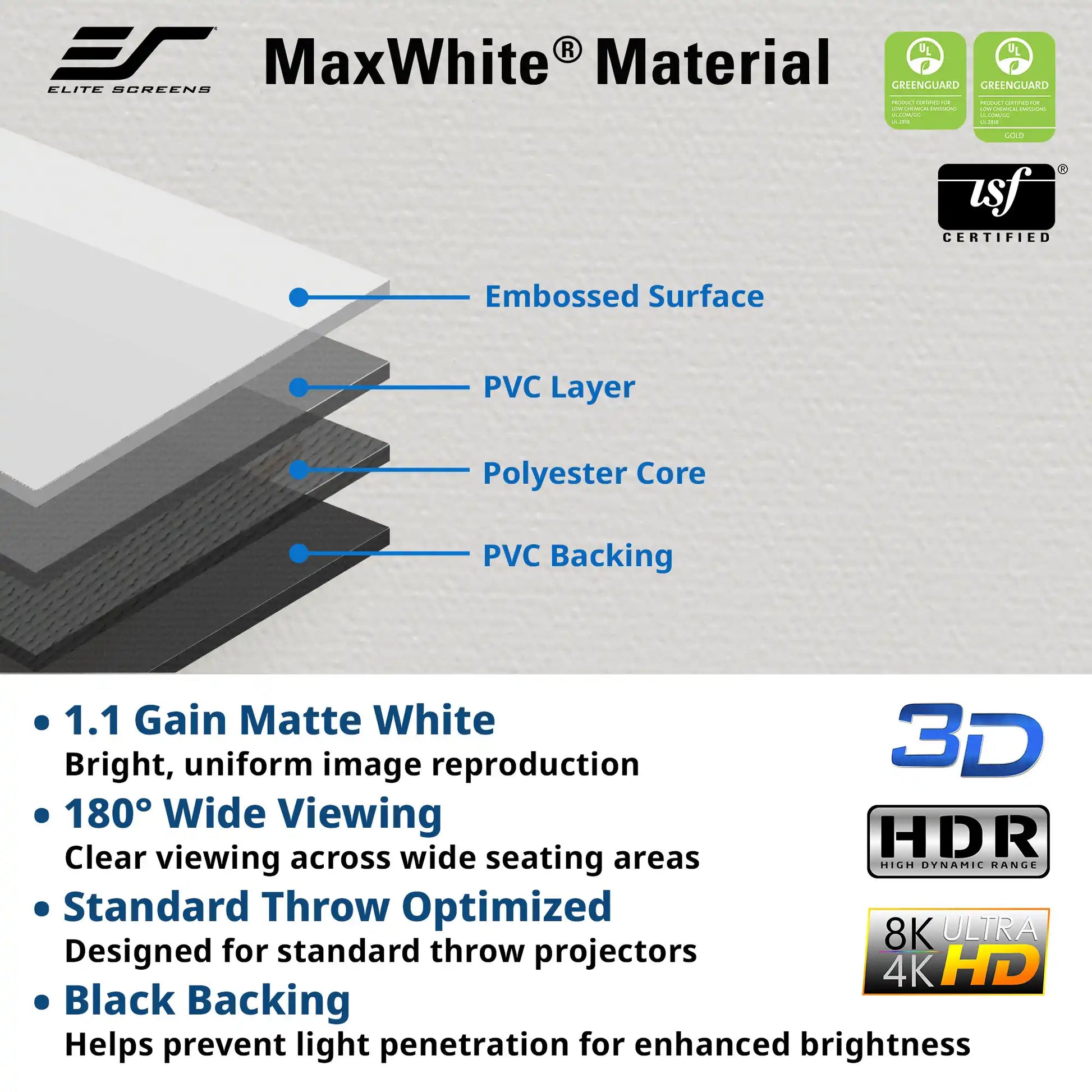

• MaxWhite® 1.1 Gain black backed material
• MaxWhite® FiberGlass backed 1.1 Gain material, models 166″ & below

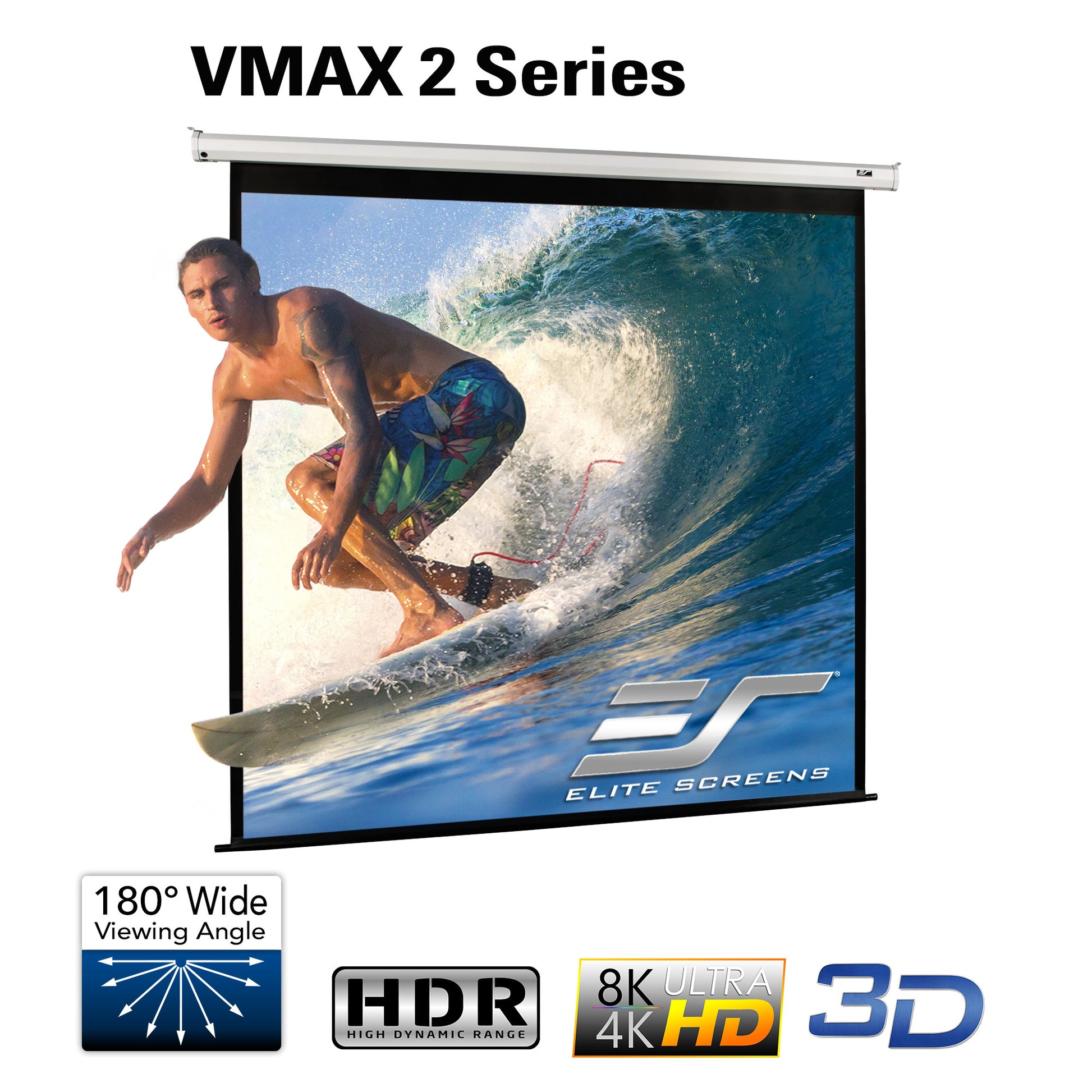

• 180° wide viewing angle
• 4K Ultra HD, Active 3D, and HDR Ready
• Not compatible with Ultra/Short-throw Projectors
• Standard 4-side black masking borders
• Matte White material is durable and easy to clean
• Available in the following range of diagonal sizes:

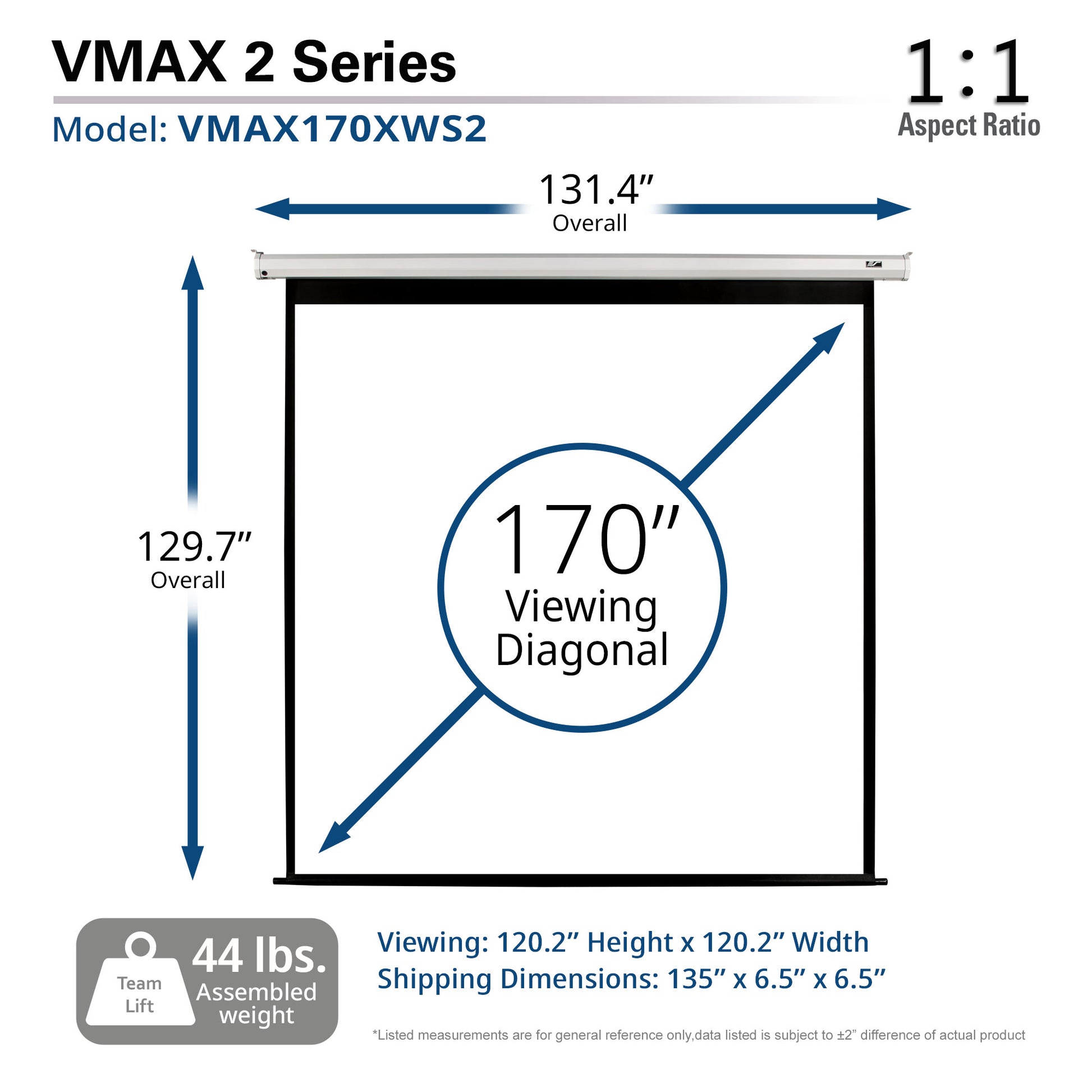

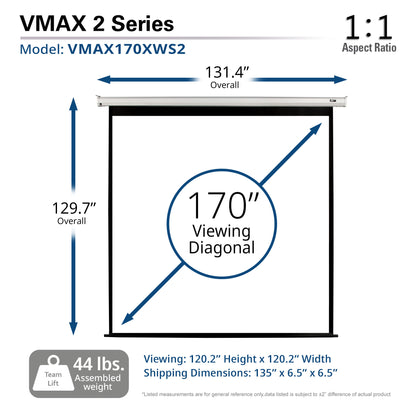

  • 170″ in 1:1 format
  • 120″ in 4:3 format

Design and Installation

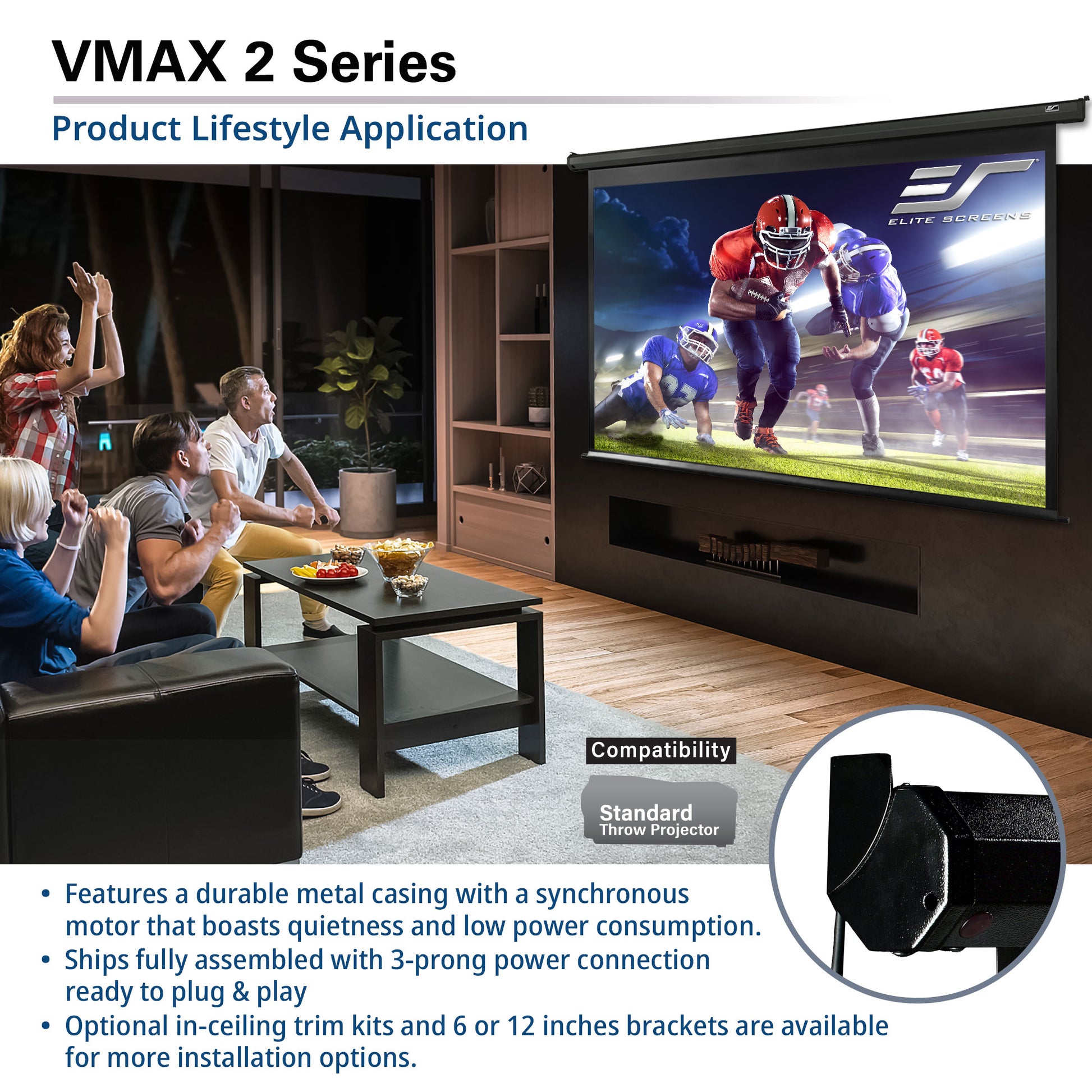

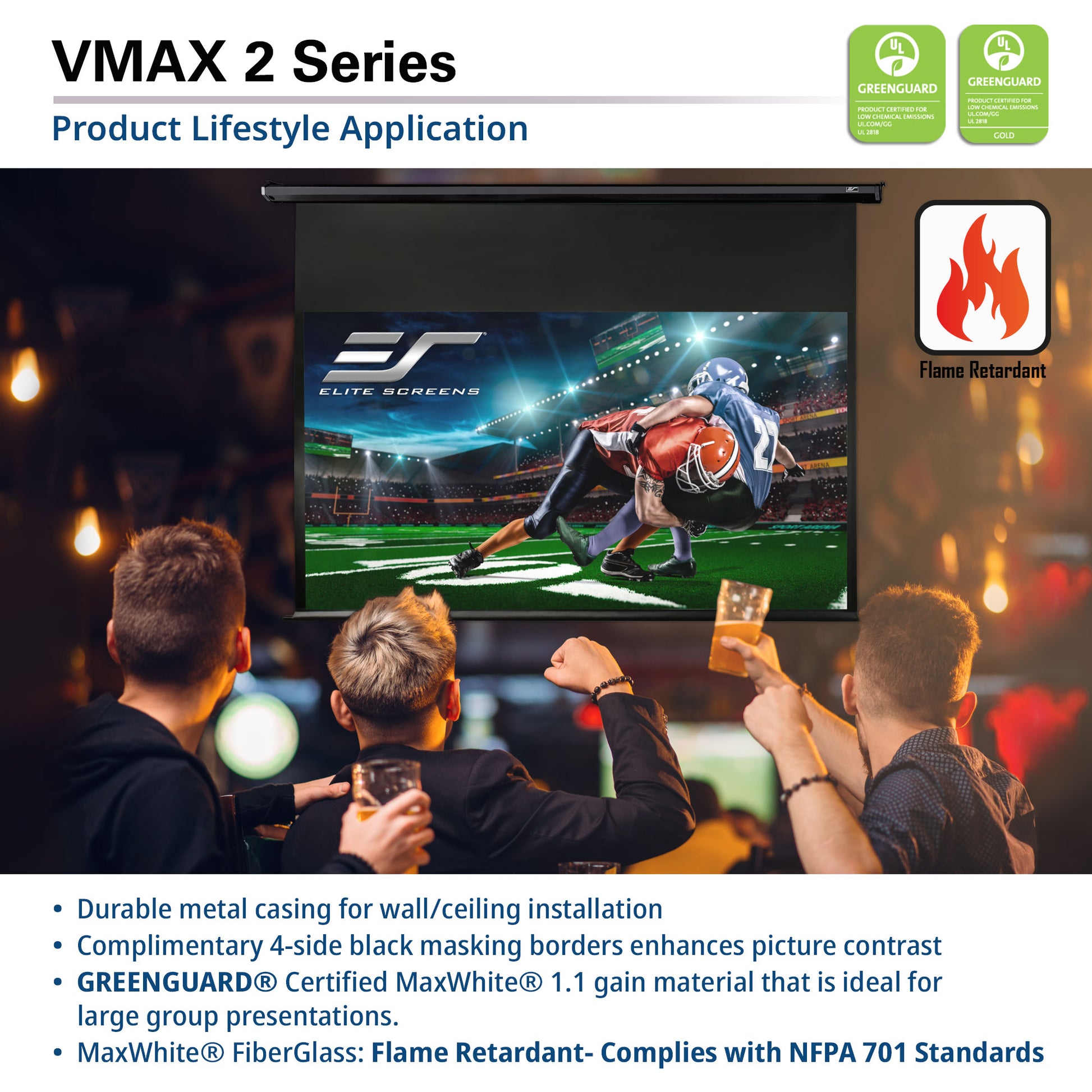

• Durable metal casing for wall/ceiling installation
• Includes wood screws and drywall anchors
• Bubble leveler included
• Ships fully assembled with 3-prong power connection ready to plug & play
• Optional 6″ & 12″ L brackets – sold separately

Control System

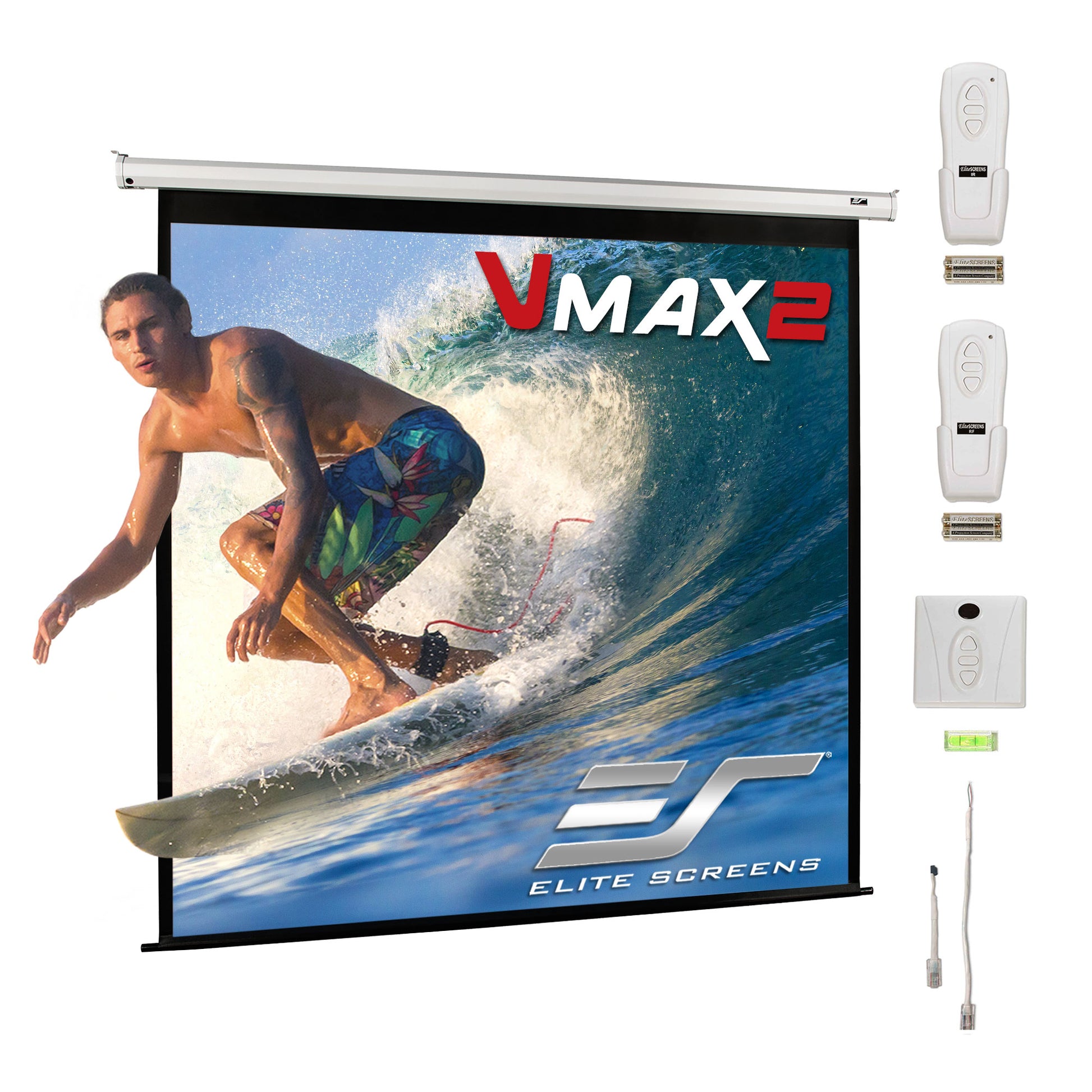

• Standard Infrared (IR) and Radio Frequency (RF) remote controls
• Detachable 3-way wall switch
• Radio Frequency (RF) remote capable of operating from up to 100 feet away without the necessity of line of sight
• Built-in 5-12 volt trigger input enables Drop/Rise operation to synchronize with the projector’s power cycle
• Low-voltage internal IR/RF receivers
• CAT5 cable wit RJ-45 connector for easy extension of the 5-12 volt trigger / IR “eye” receiver / 3-way wall switch
• Optional wireless 5-12 volt trigger and In-wall switch – sold separately

Quality and Reliability

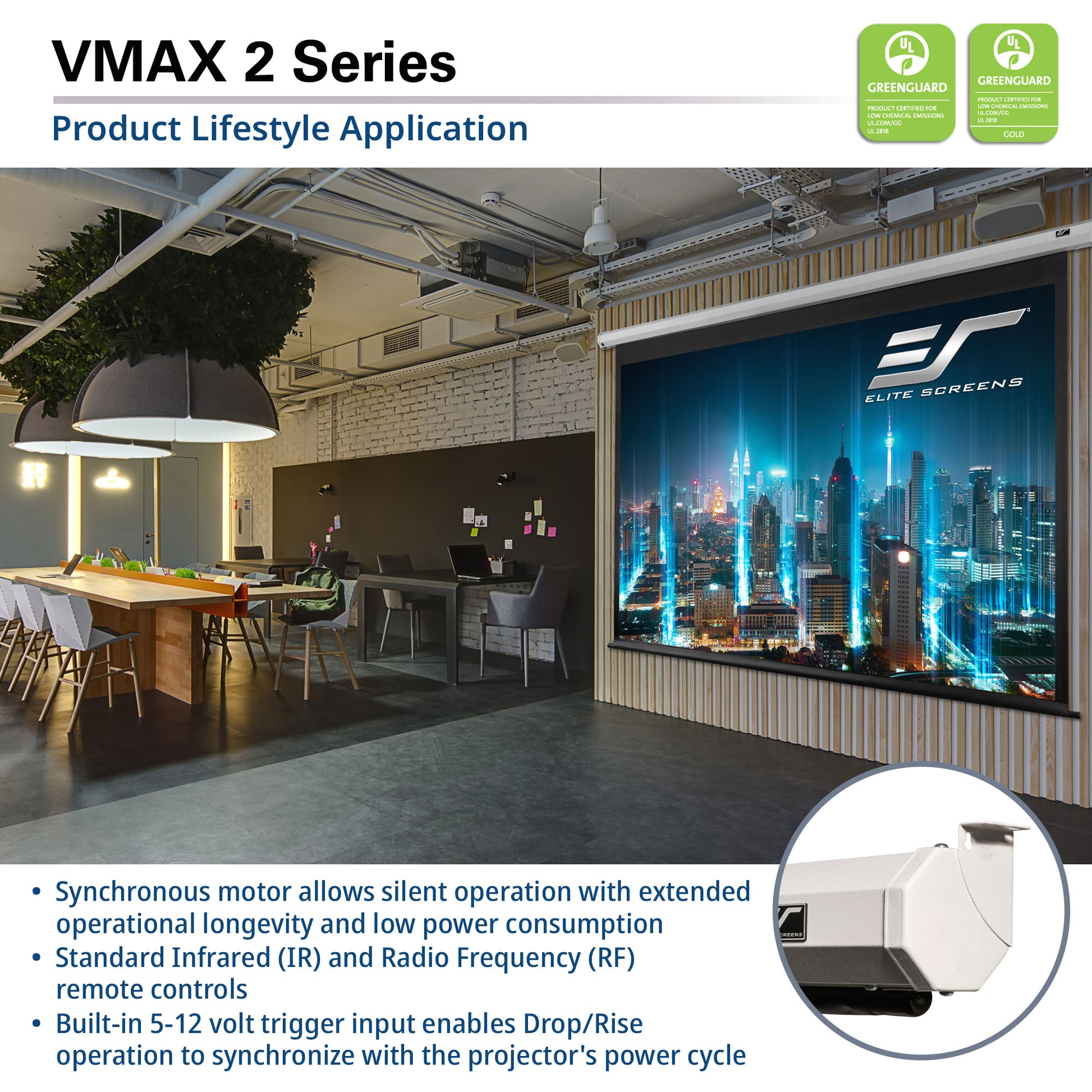

• Synchronous motor allows silent operation with extended operational longevity and low power consumption
• Certified by AMX and CRESTRON
• MaxWhite® FiberGlass: Flame Retardant- Complies with NFPA 701 Standards
• GREENGUARD® and GREENGUARD® Gold  Certified
• Conforms to ANSI/UL STD. 60950-1
• Certified to CAN/CSA STD. C22.2
• 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
• Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
