[Elite Screens] Tripod B Series

Description

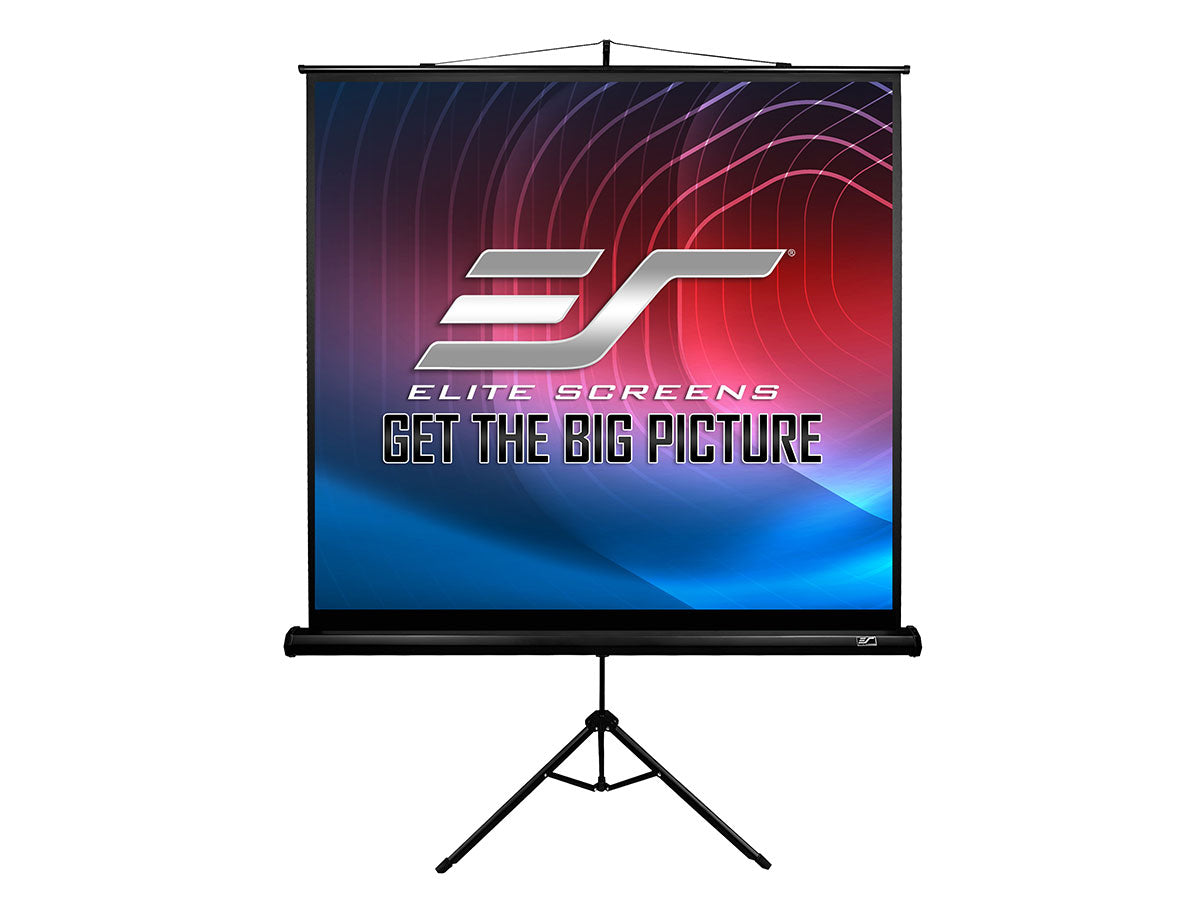

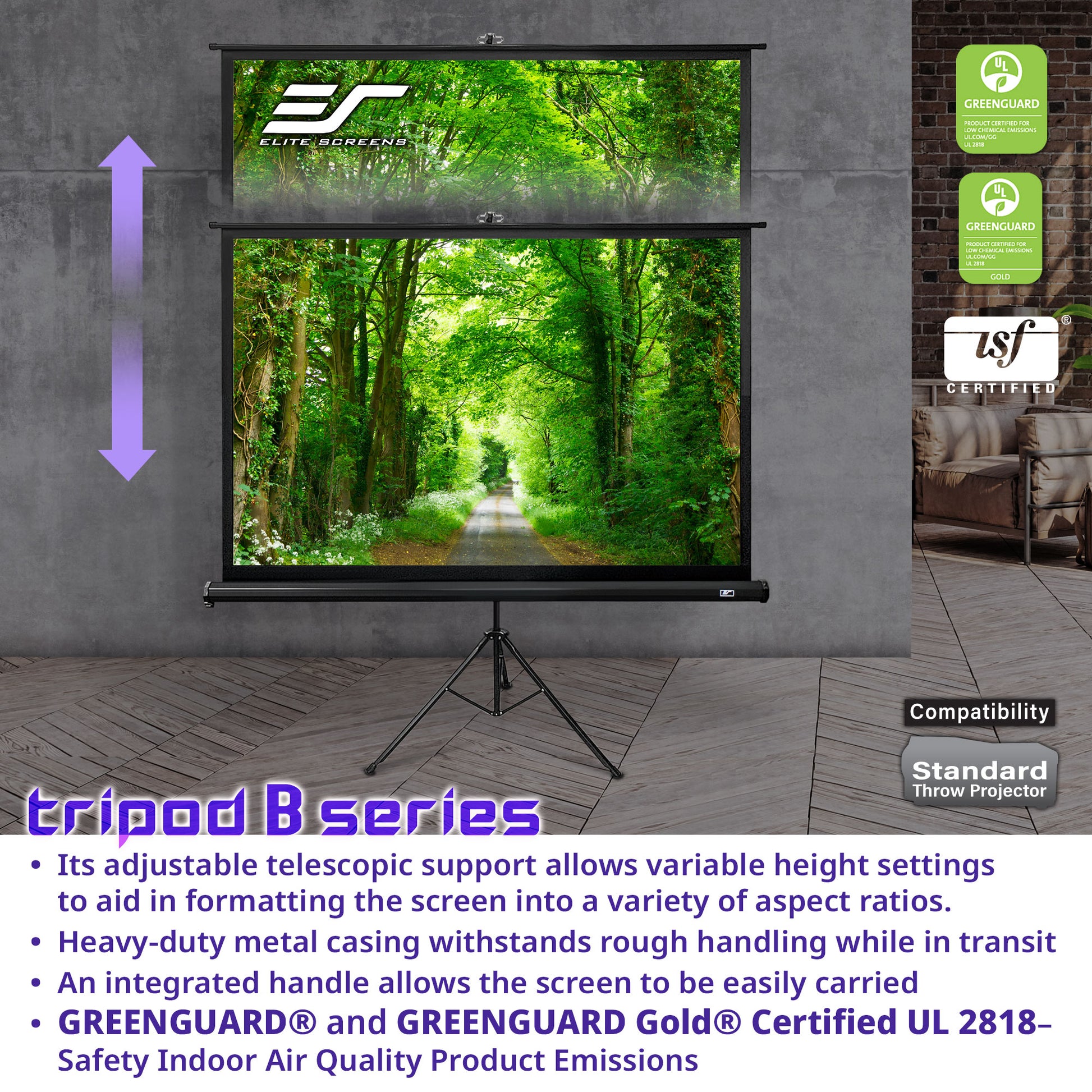

The Tripod B Series is a light-weight  portable projection screen of the traditional tripod design. It is a dependable design that is easy to carry for portable small or large venue presentations. Its adjustable telescopic support allows variable height settings to aid in formatting the screen into a variety of aspect ratios. The MaxWhite® 2 front projection material has a 1.1 unity gain with a wide viewing angle.

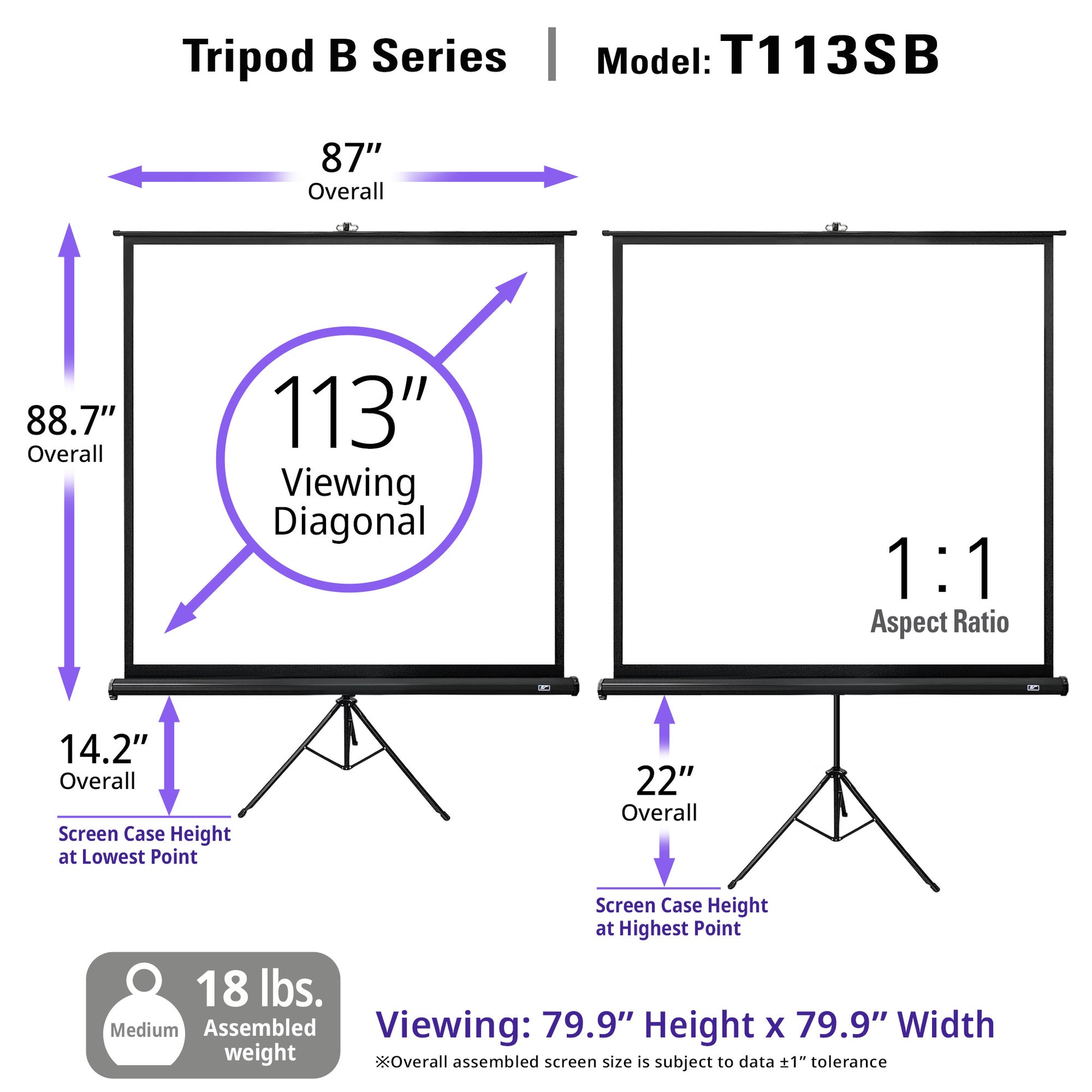

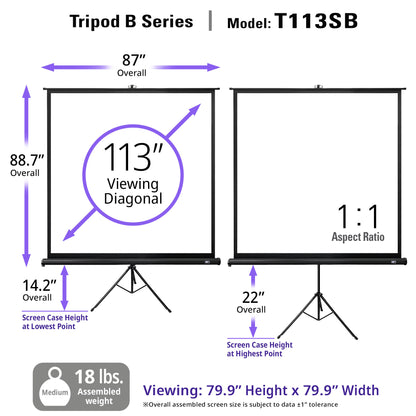

*Below are examples of aspect ratios that can be achieved by adjusting the height position on a T113SB.

• 60” height x 80” wide = 100” diagonal in 4:3
• 50” height x 80” wide = 94” diagonal in 16:10
• 45” height x 80” wide = 92” diagonal in 16:9
• 34” height x 80” wide = 87” diagonal in 2.35:1

Product Features

Screen Material

• MaxWhite® 2 1.1 Gain matte white front projection material

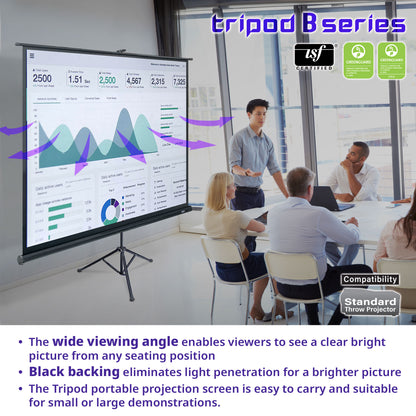

• Black backing eliminates light penetration for enhanced brightness

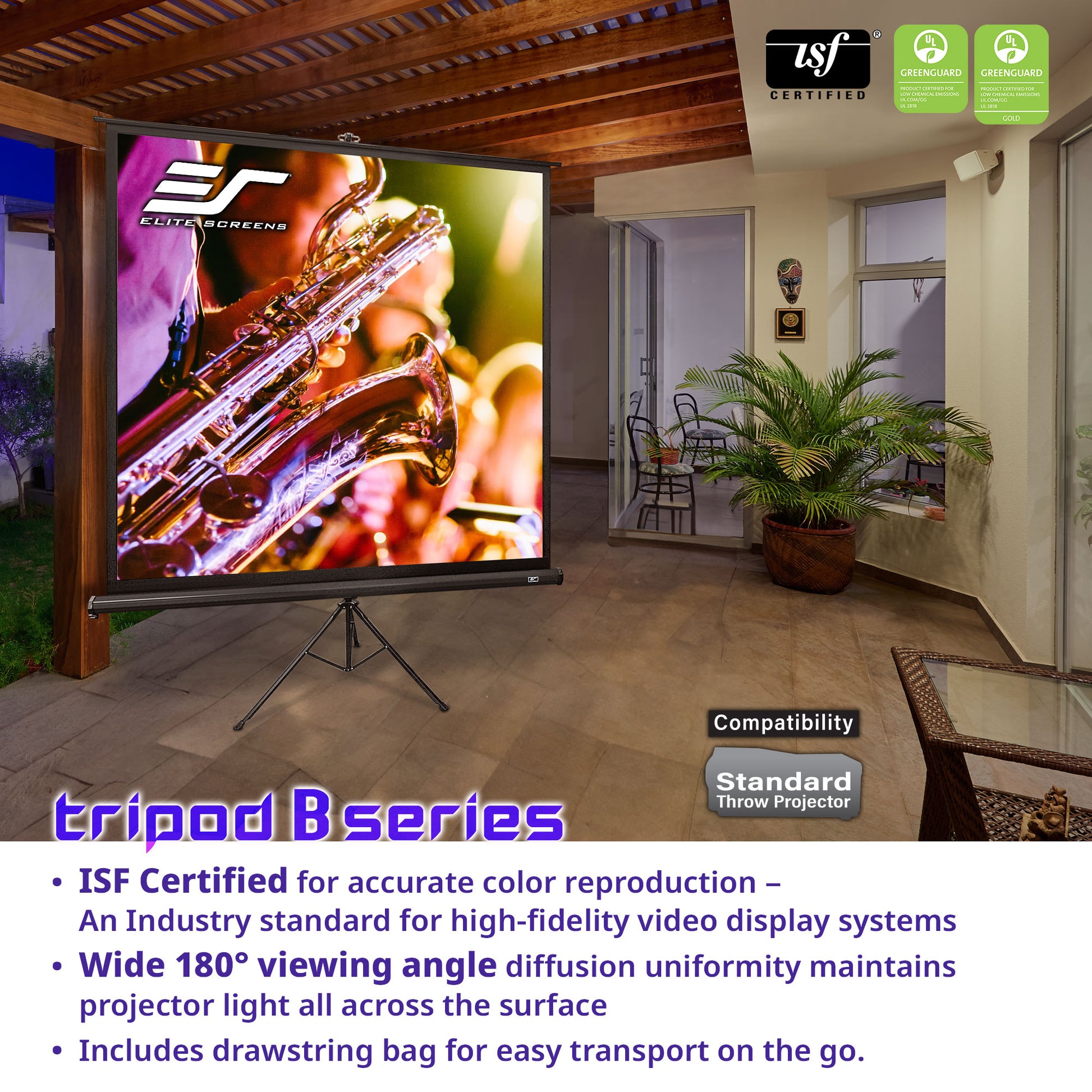

• Wide 180° viewing angle diffusion uniformity maintains projector light all across the surface
• Not compatible with Ultra/Short-throw Projectors
• Standard left and right black masking borders enhances perceived contrast

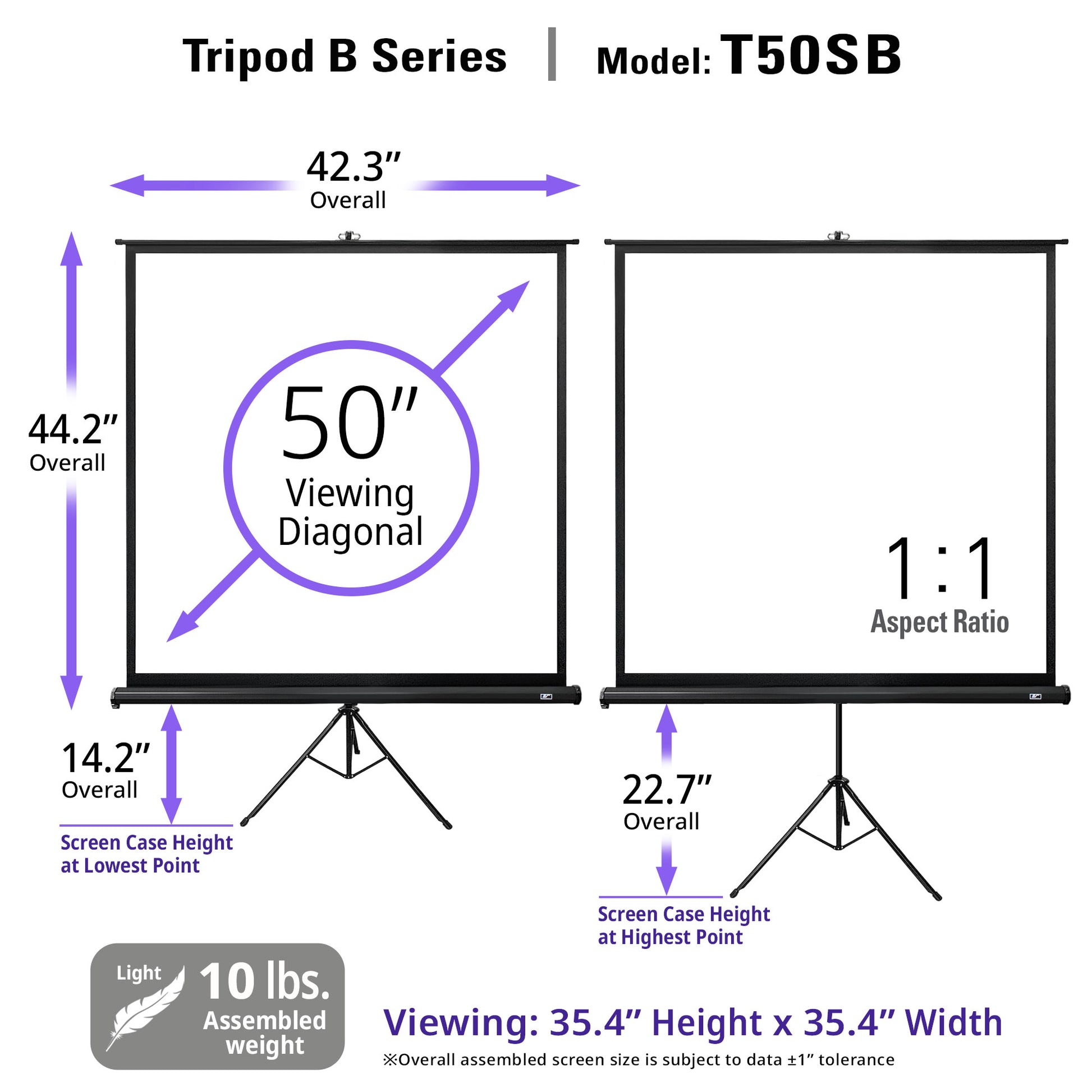

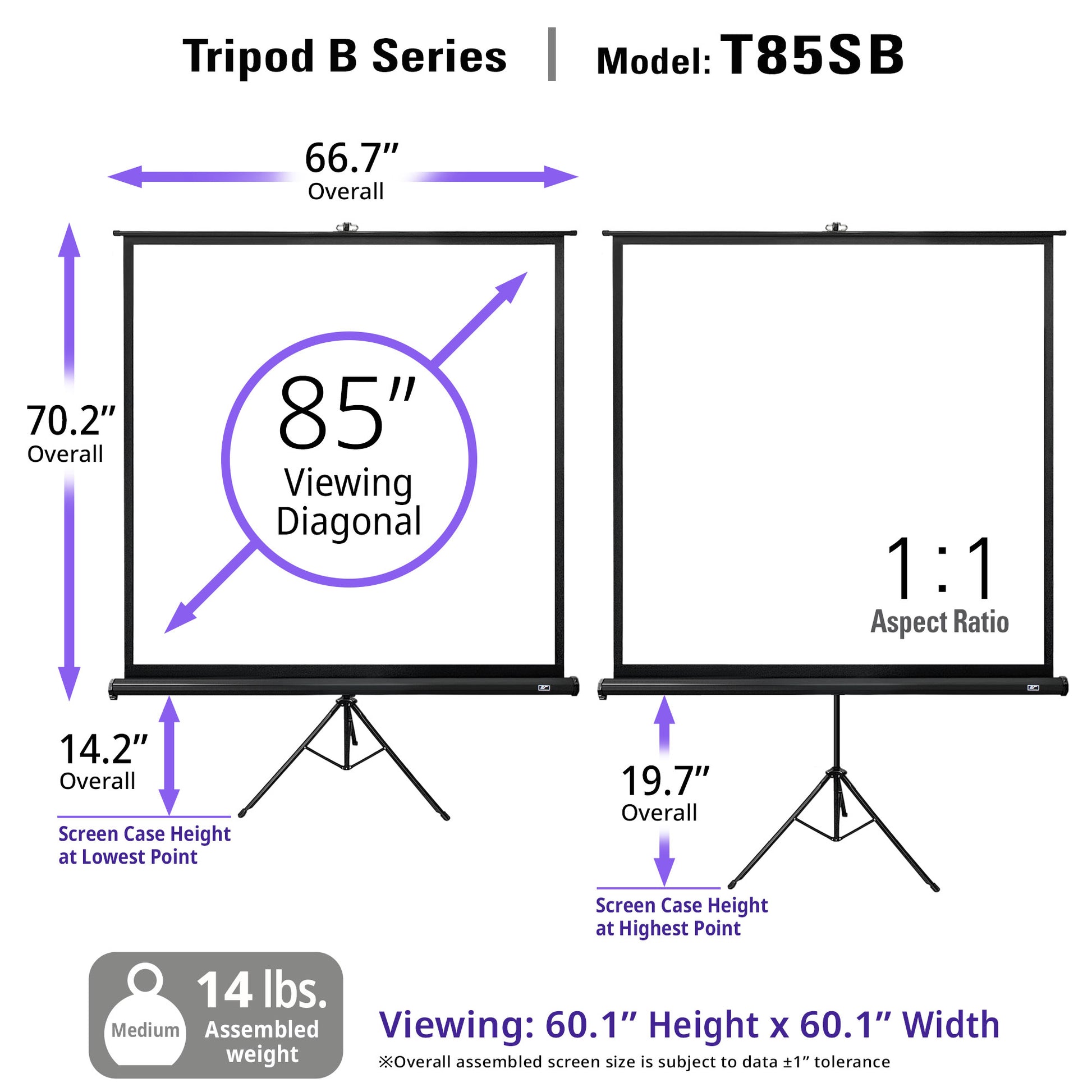

• Available in the following diagonal sizes:
  • 50", 71", 85" and 113" in 1:1 format

Design and Operation

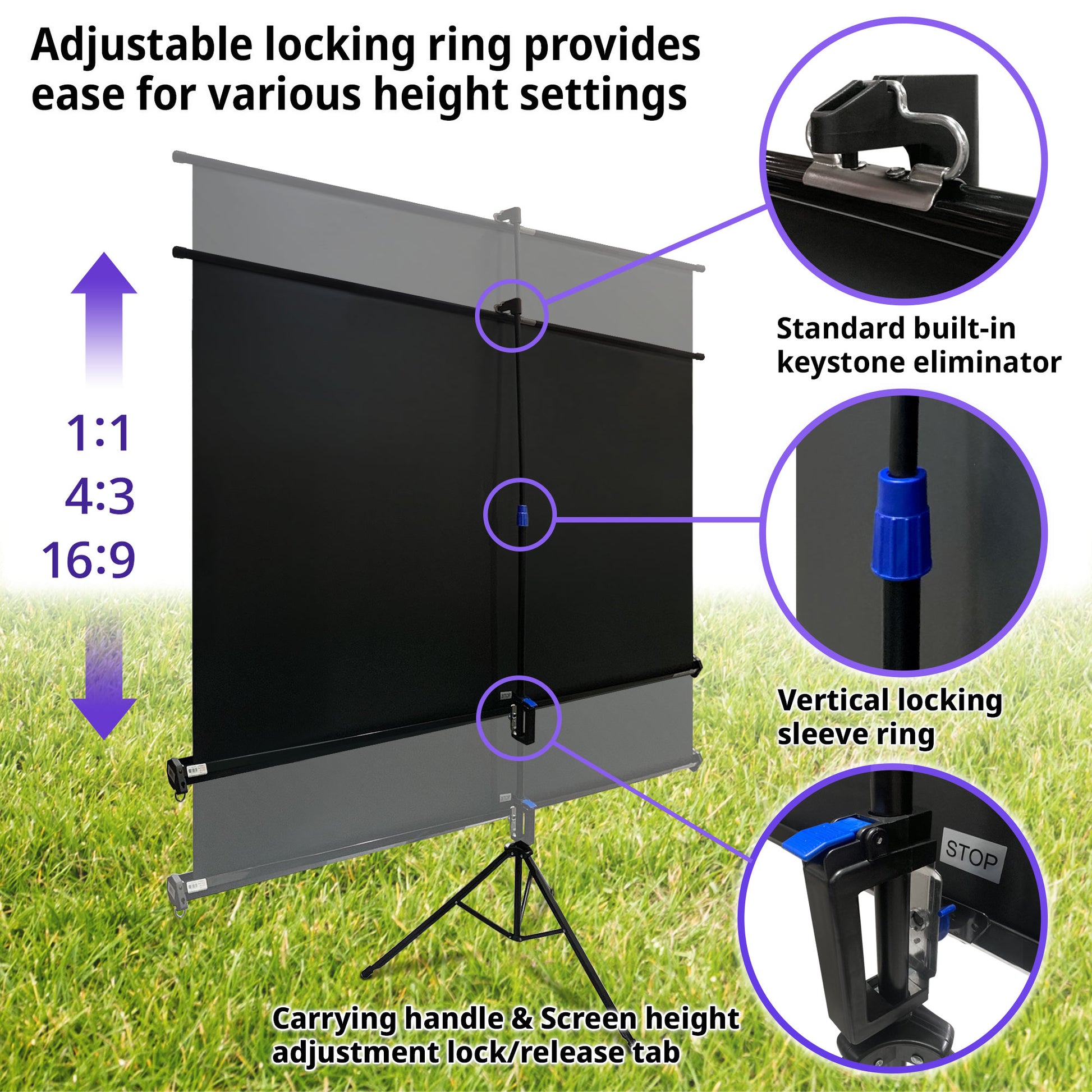

• Adjustment lock secures telescopic vertical support positions
• Latch locking system allows multiple height adjustment for various aspect ratio settings
• Keystone eliminator
• Integrated handle allows screen to be easily carried
• Heavy-duty metal casing withstands rough handling while in transit

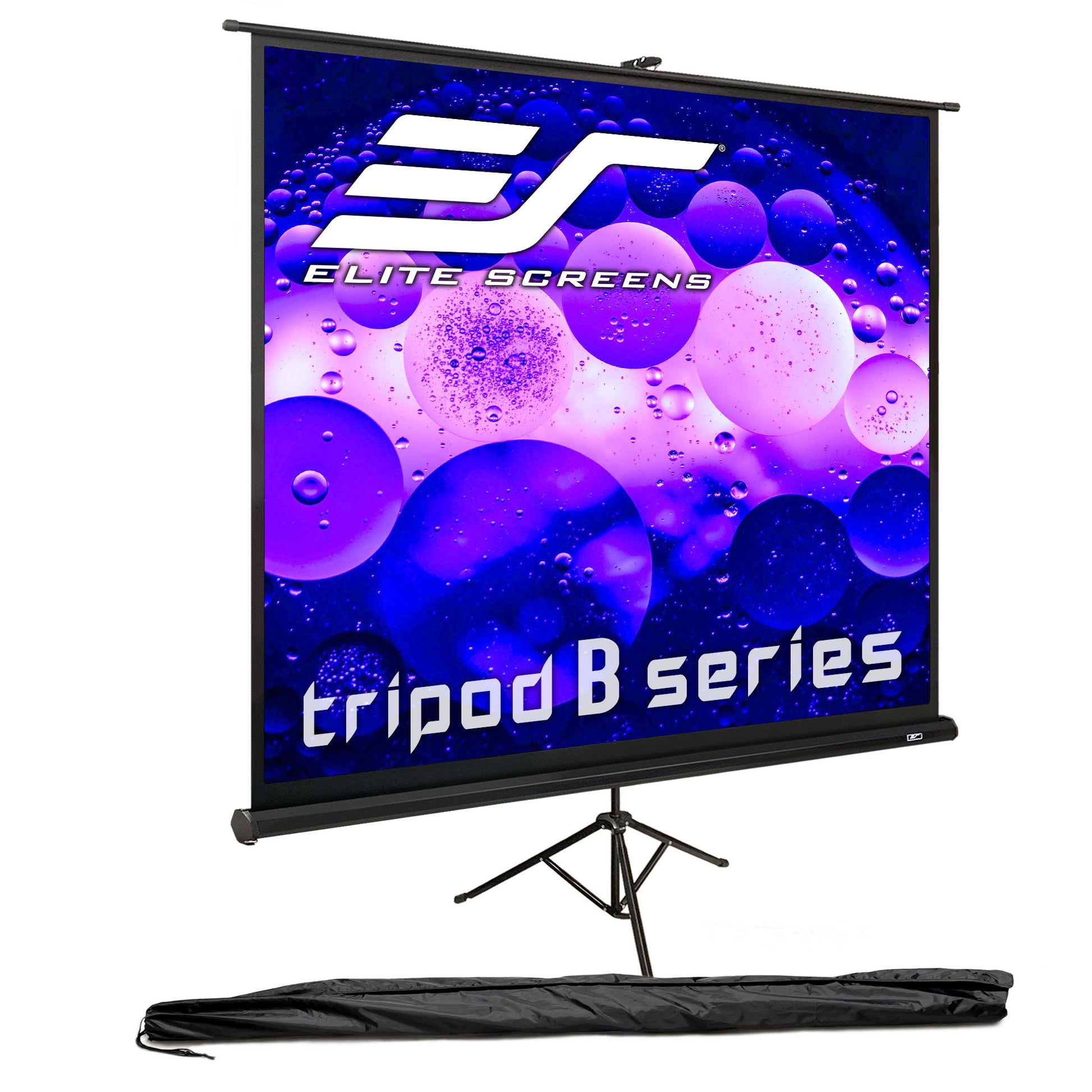

• Includes drawstring bag for easy transport on the go. (50" and 71" Models ONLY)
• Optional canvas bag available for added protection during transit (excludes 50" model)
