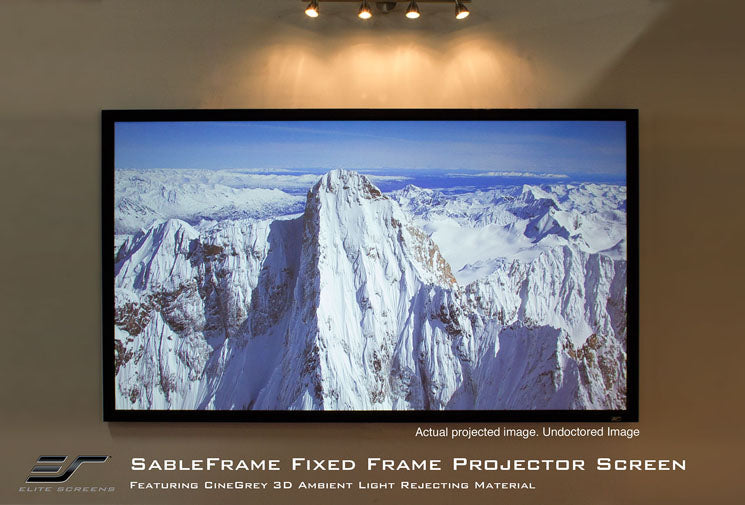

[Elite Screens] Sable Frame CineGrey 3D® Series

Description

The CineGrey 3D® is an angular reflective front projection material designed to reject ambient light while maintaining superb picture quality. The CineGrey 3D® is the perfect solution for rooms that have little or no control over incidental light. This means that it’s an ideal fit for family rooms as well as lecture halls, boardrooms, sports bars, training facilities, and other business environments. In addition, the CineGrey 3D® increases projector brightness 1.2 times the amount. This is perfect for low lumens output projectors!

The CineGrey 3D® is superior to traditional white or gray materials in its ability to maintain a sharp, bright image regardless  of ambient light. The angular reflective material incorporates a diffusion layer over a high reflective surface. This causes direct light from the projector to reflect squarely into the viewer’s field of vision while the outer contrast layer enhances image quality while absorbing indirect ambient light.

Product Features

Screen Material

• 1.2 Gain Polarized 3D material
• Angular Reflective CLR®/ALR Front Projection Material for Standard Long Throw Projectors.
  • (NOT Compatible with Ultra/Short Throw Projectors)
• ISF Certified for accurate color points, color temperature and dynamic range

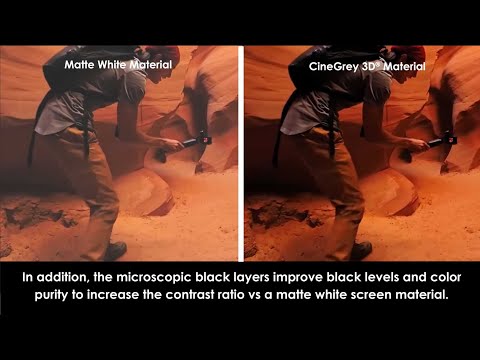

• Contrast enhancement and superb color balance
• Ambient Light Rejecting - Counters wash-out effect from ambient light
• Active 3D, 4K Ultra HD, and HDR Ready
• Lower cost than higher end matte white or gray screen products
• Available in the following diagonal sizes:
  • 100", 110", 120", 135", and 150" in 16:9 format

Design and Installation

• Black velvet surfaced covered 2.36" aluminum frame enhances overall appearance and absorbs projector light overshoot
• Easy to assemble and install in minutes
• Adjustable fix plates provide equal tension over the entire projection surface
• Sliding wall brackets allow screen to slide horizontally for properly centered installation.
• Installation kit includes: sliding wall brackets, drywall anchors, and screws.

Downloads

Dimensions

• Dimensions Table (PDF)
• Dimensions Table - M Type
• Frame Dimensions - M Type
• Packaging Dimensions (PDF)

User Guides

• User Guide (PDF)
• User Guide - Spring Type (PDF) - DISCONTINUED
• User Guide - M Type V3.1 (PDF) - Rods/Spring

Comparison Tables

• CLR®/ALR Materials Comparison
• CineGrey 3D® / 4D / 5D® Comparison Table
• Fixed Frame Comparison Table
• ALR/CLR® Fixed Frame Comparison Table
• Ambient Light Rejecting Screens Comparison Table

Others

• CineGrey 3D® Material Sheet (PDF)
• Screen Material Care Sheet
• Installation Tip (PDF)
• Frame Comparison Diagram
