[Elite Screens] 123"(16:9) Insta-RP2 | Adhesive Rear Projection Film Projector Screen

• Screen Material : WraithVeil 2
• Gain : 2.2
• Viewing Angle : 180°

• Compatible Projection :

UST

Short Throw

STD Throw

Triple Laser

Description

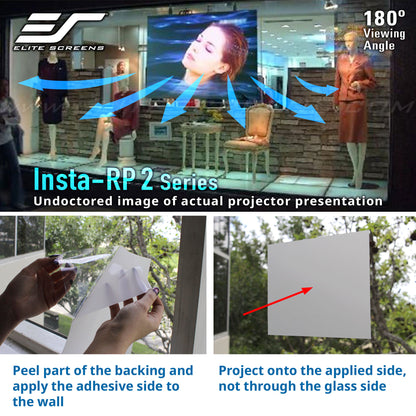

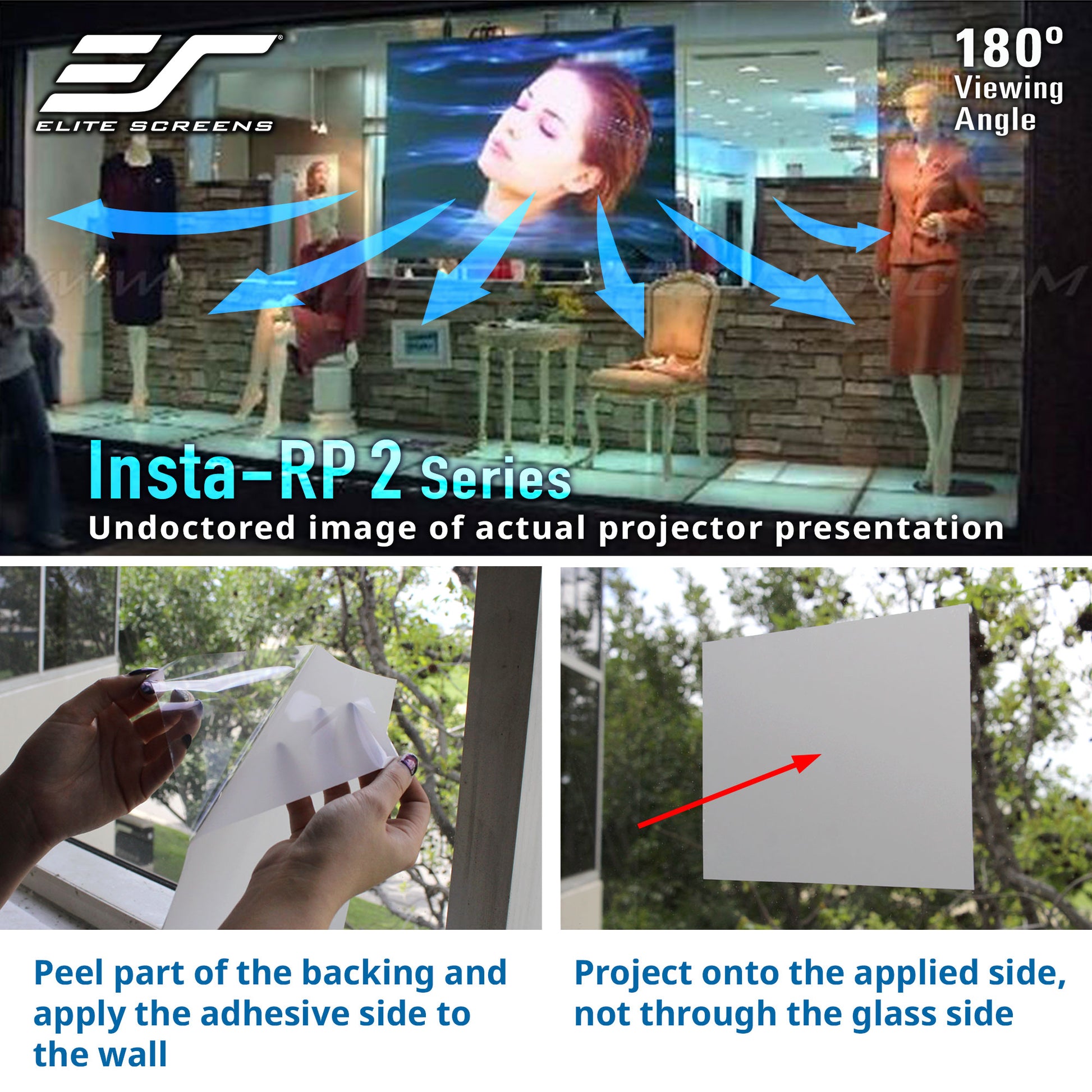

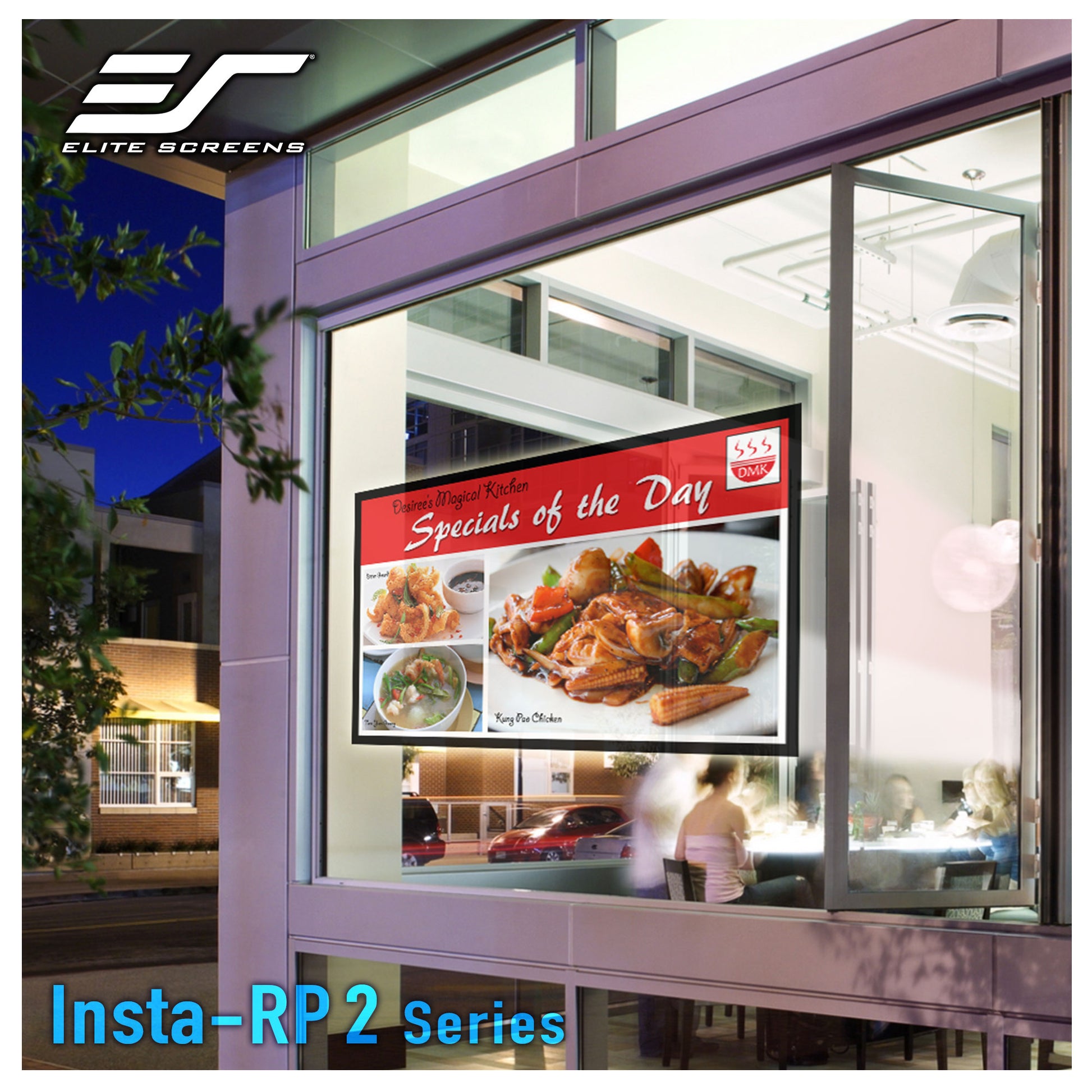

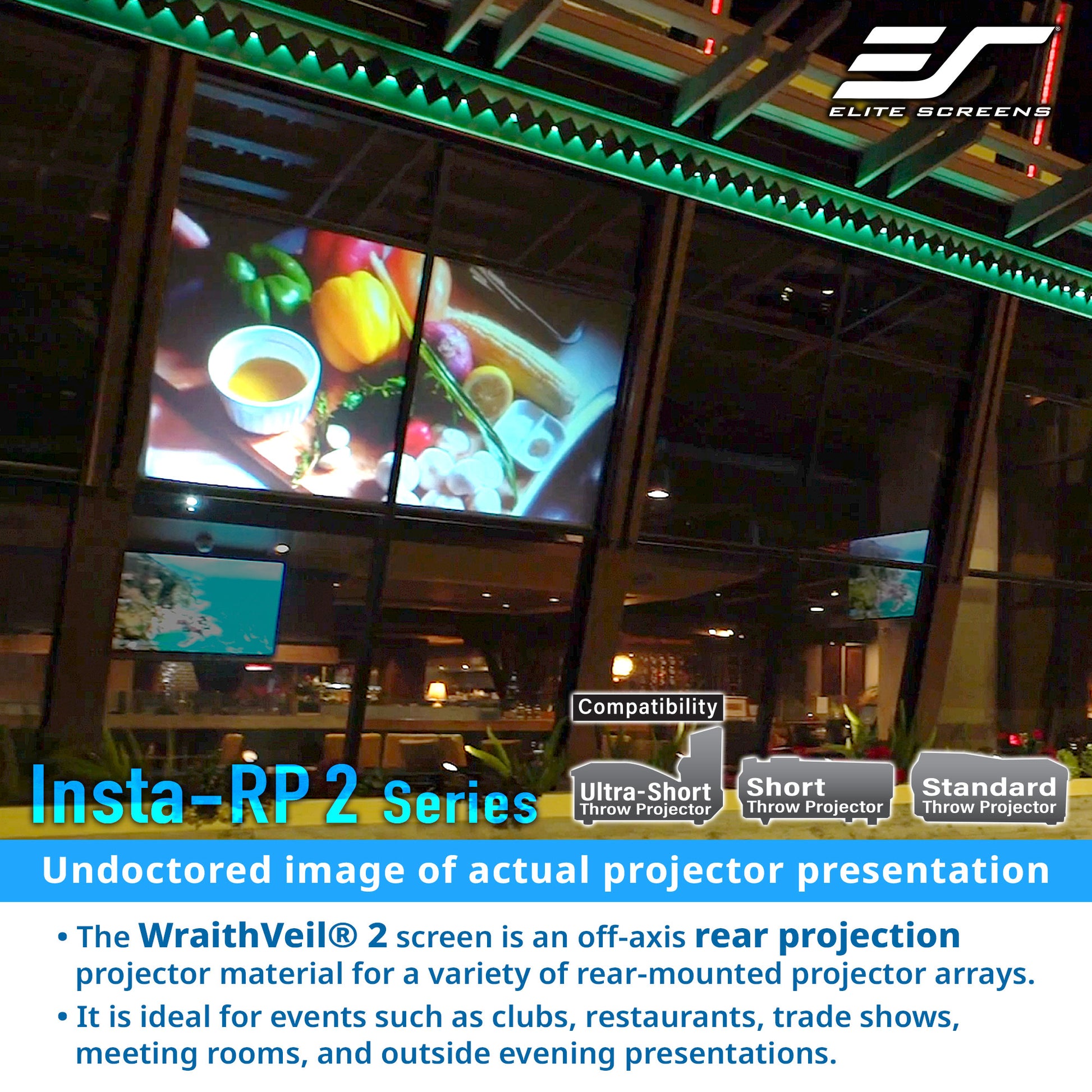

The Insta-RP 2 Series is an adhesive Rear Projection Film that is self-adhesive for installations on storefronts or any applications requiring a rear projection system display. It easily installs on any clear surface such as glass and plexiglass materials.

Thickness : 80um±1um
Width :152.4 cm
Material : PET
Light Transmittance : 75%
Temperature Range : -10°C ~ 40°C

Product Features

Weather Characteristics

Test	Result	Conclusion
High Temperature Storage 60 °C X 72 Hours	Pass	No Abnormal Appearance
High Temperature Storage -20 °C X 72 Hours	Pass	No Abnormal Appearance
High Temperature and Humidity 60 °C X 95% RH X 72 Hours	Pass	No Abnormal Appearance
Thermal Shock*	Pass	No Abnormal Appearance
Resistance to UV 15W UV X 24 Hours	Pass	No Abnormal Appearance

Rear Projection Film Screen Material:

WraithVeil 2 Self-adhesive optical rear projection material (not translucent)
4K Ultra HD, Active 3D, and HDR Ready
12% transparency grade (not recommended for holographic images)
Minimum throw (lens) ratio of 0.19 x image width
Textured PET (Polyethylene terephthalate)
2.2 gain with 180º wide diffusion uniformity
Material is easy to clean and maintain
Angular projection setup for elimination of "hot-spot"
Available in the following diagonal sizes:
- 123" in 16:9 format
- Also available in 5'x20' size

Downloads

$207.00 USD

Sale Sold out

Free Shipping To The Continental U.S 48 States | Shipping Policy

SKU:IRP123H2

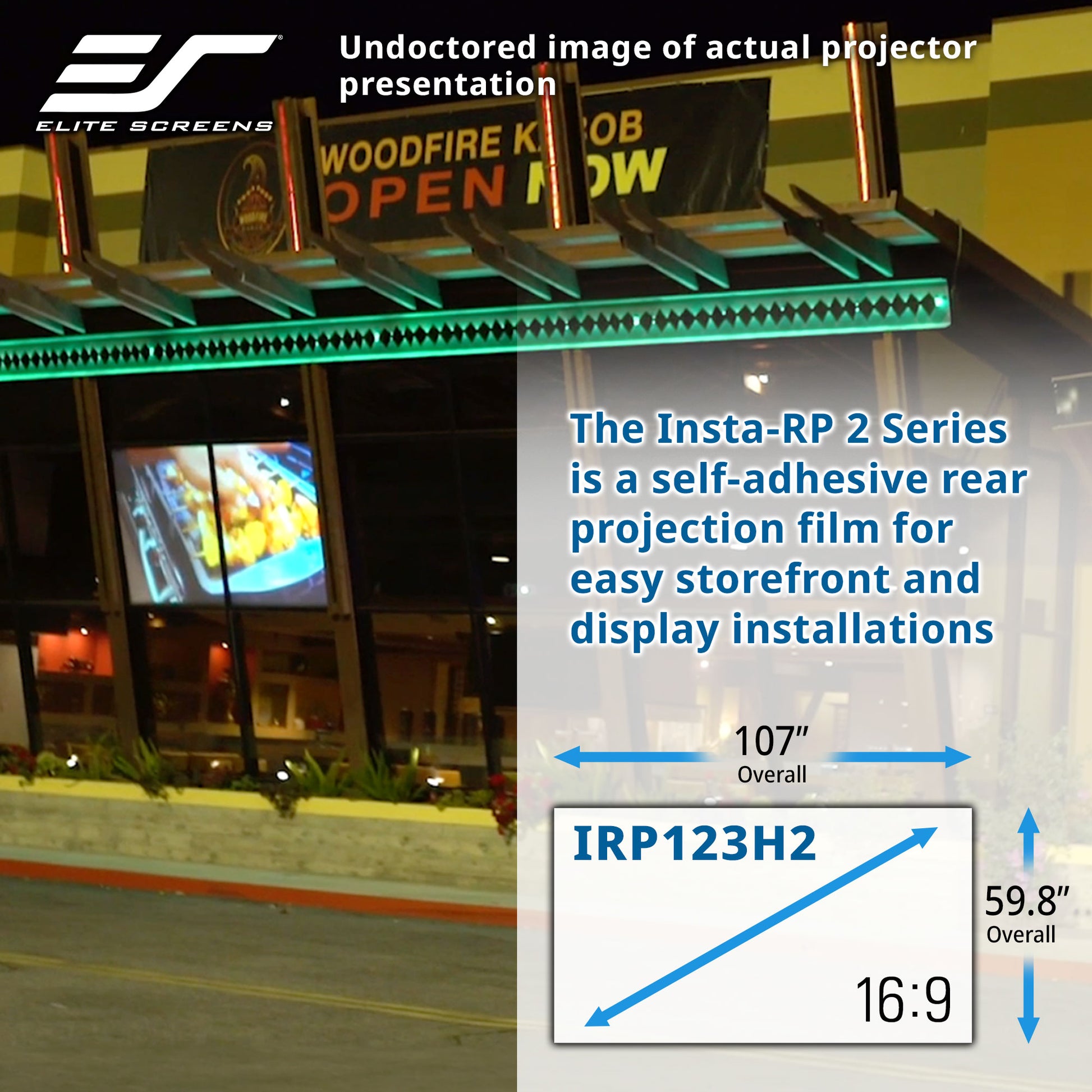

Size 123"(16:9)

Screen Material Info

Screen Material Name	WraithVeil® 2

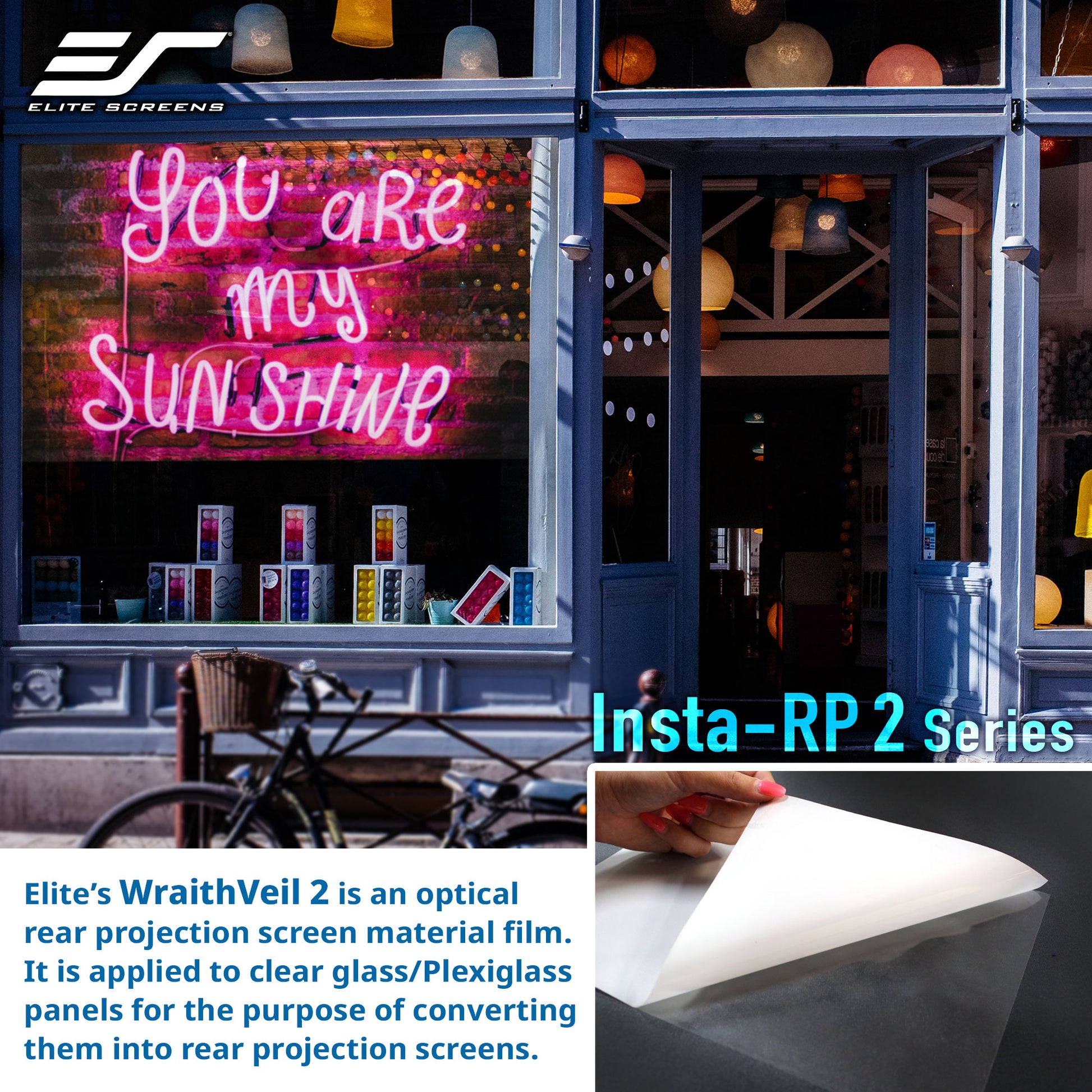

Description	WraithVeil® 2 is a self-adhesive optical rear projection film designed for installations on clear glass/plexiglass panels for the purpose of converting them into rear projection screens.
Type of material	PET Film (self-adhesive)
Projection Type	Rear
Ambient Light Rejecting	No
Gain	2.2
Viewing Angle	160°
Black backing	N/A
3D Ready	Active 3D
4K/8K Ultra HD Ready	Yes
Ultra/Short-Throw projector compatible	Yes
Minimum Throw	0.2 x Image width
Best for Environments	Rear projection installations on glass for retail store windows, hanging signage, commercial offices, restaurants and night clubs
