[Elite Screens] Hardware Pack for Z-Type Fixed Frame Screens

Description

Parts included:

• Mounting brackets
• Frame assembly and mounting hardware
• Elbow and center joints
• Spring puller
• Bag of springs

Other parts may be included depending on the model and serial number of the screen.

Set Includes

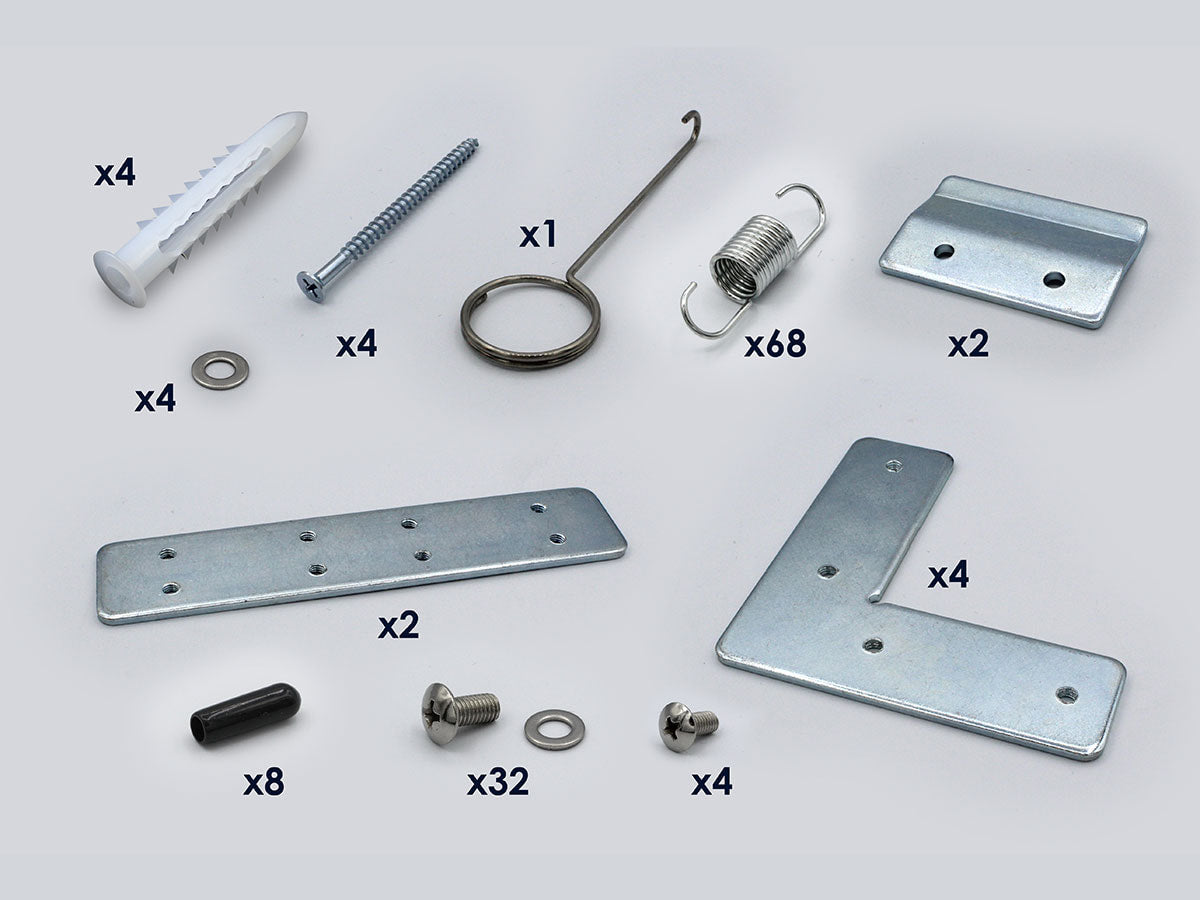

Sable Frame Series Screens which model number starts with SB,SF, ER and AK-FF.
For example: SB120WH2, SF120HW2, ER106WH2, AK-FF120WH2

• ​CENTER JOINTS (​Y-ERSBAKFF-CNTJOIN-Z)
• ELBOW JOINTS (Y-ERSBAKFF-LJOINTS-Z)
• ​PULL HOOK (Y-ERSBAKFF-PHOOK-Z)
• TENSION ROD CAP (​Y-ERSBAKFF-ROADCAP-Z)
• ​SPRINGS (​Y-ERSBAKFF-SPRING-Z)
• Short screw M4*8MM for the center support bar (Y-ERSBAKFF-SSCREW-Z)
• WALL BRACKET (​Y-ERSBAKFF-WBRKET-Z)

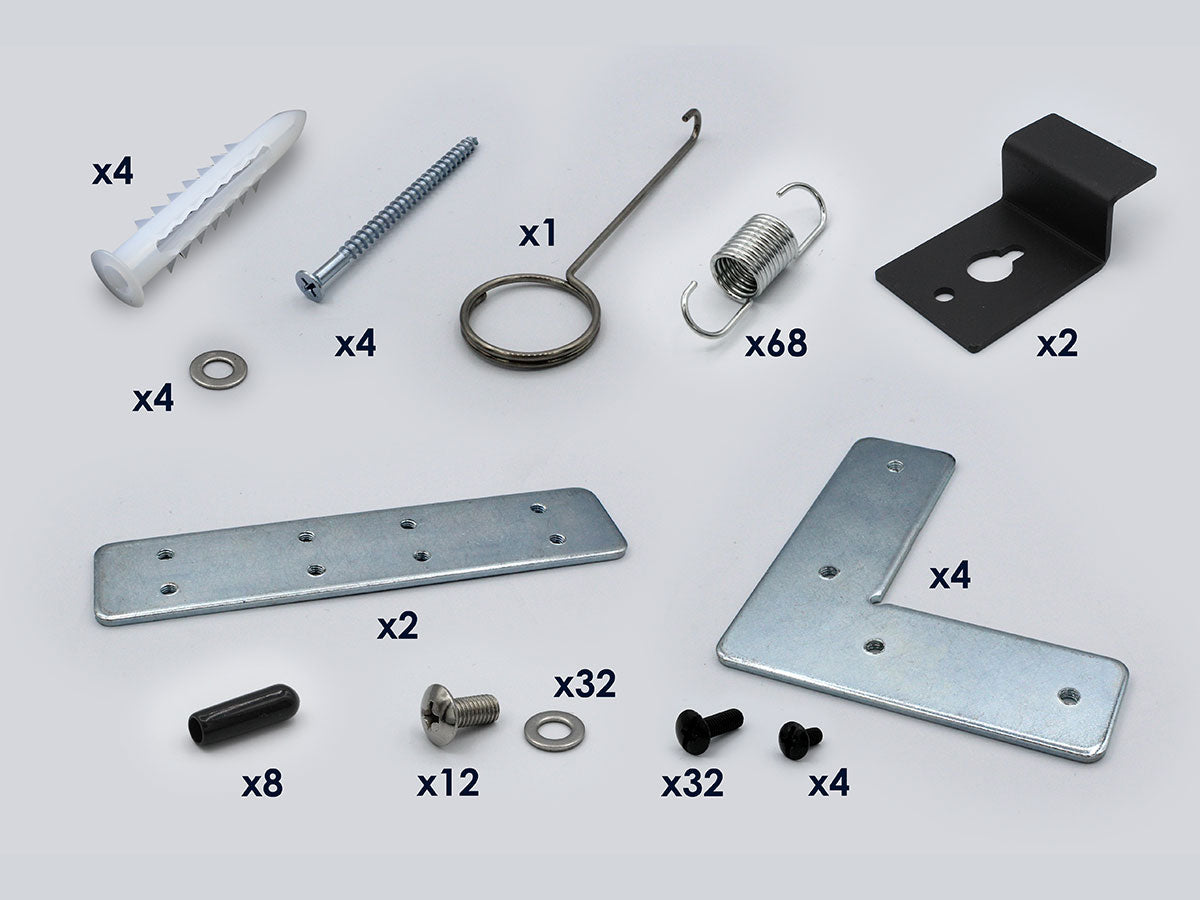

Aeon Series screens which model number starts with AR or AK-NB
For example: AR120WH2, AK-NB125H

• CENTER JOINTS (Y-FFARNB-CNTJOIN-Z)
• ​ELBOW JOINTS (Y-FFARNB-LJOINTS-Z)
• PULL HOOK (Y-FFARNB-PHOOK-Z)
• Z-Type TENSION ROD CAP (Y-FFARNB-ROADCAP-Z)
• SPRINGS (Y-FFARNB-SPRING-Z)
• ​Short screw M4*8MM*6 for the center support bar (Y-FFARNB-SSCREW-Z)
• WALL BRACKET (Y-FFARNB-WBRKET-Z)
• ​Screws for Edge Trim (Y-FFARNB-TRIMSCREW-Z)
