[Elite Screens] Evanesce Tab-Tension B Cinegrey 5D

Description

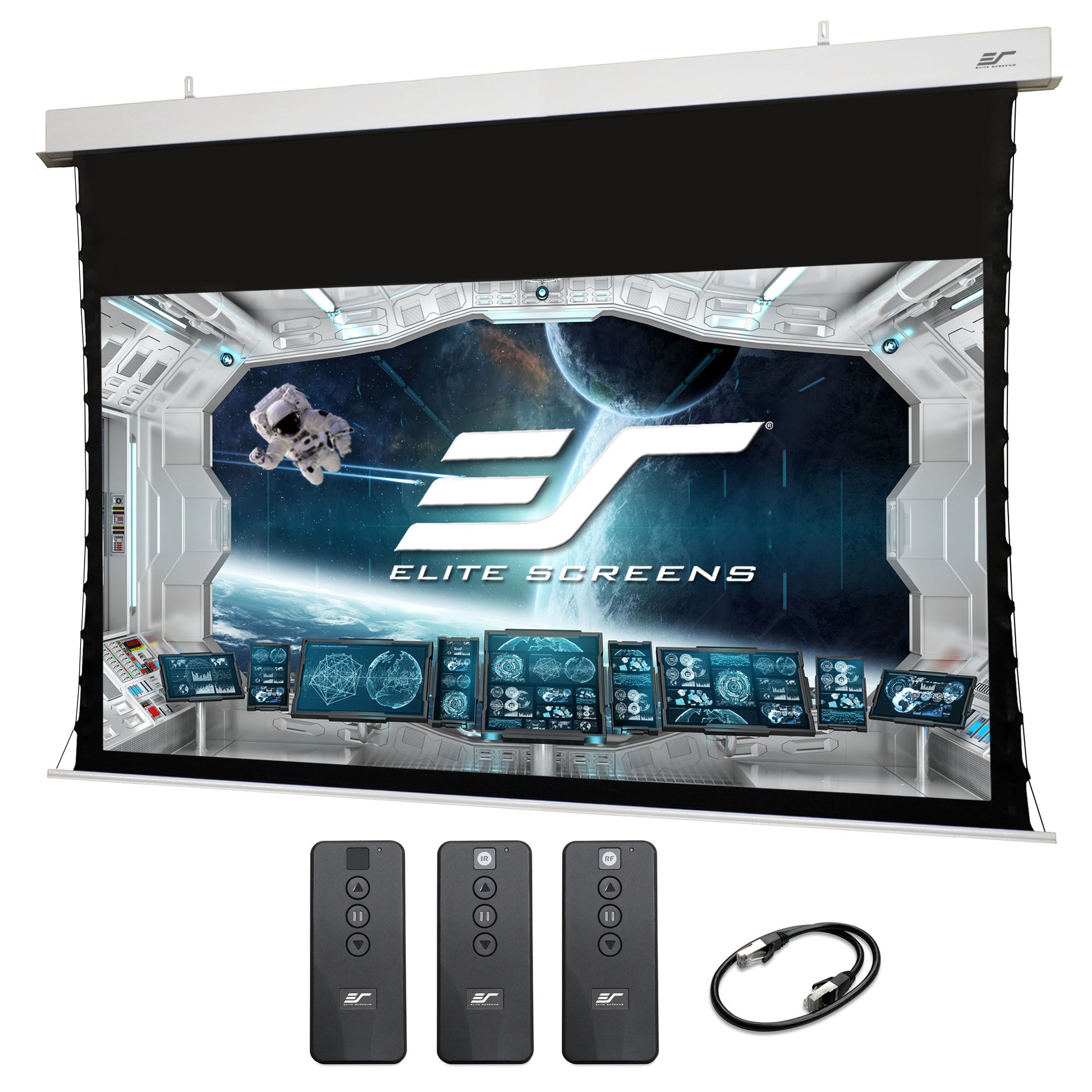

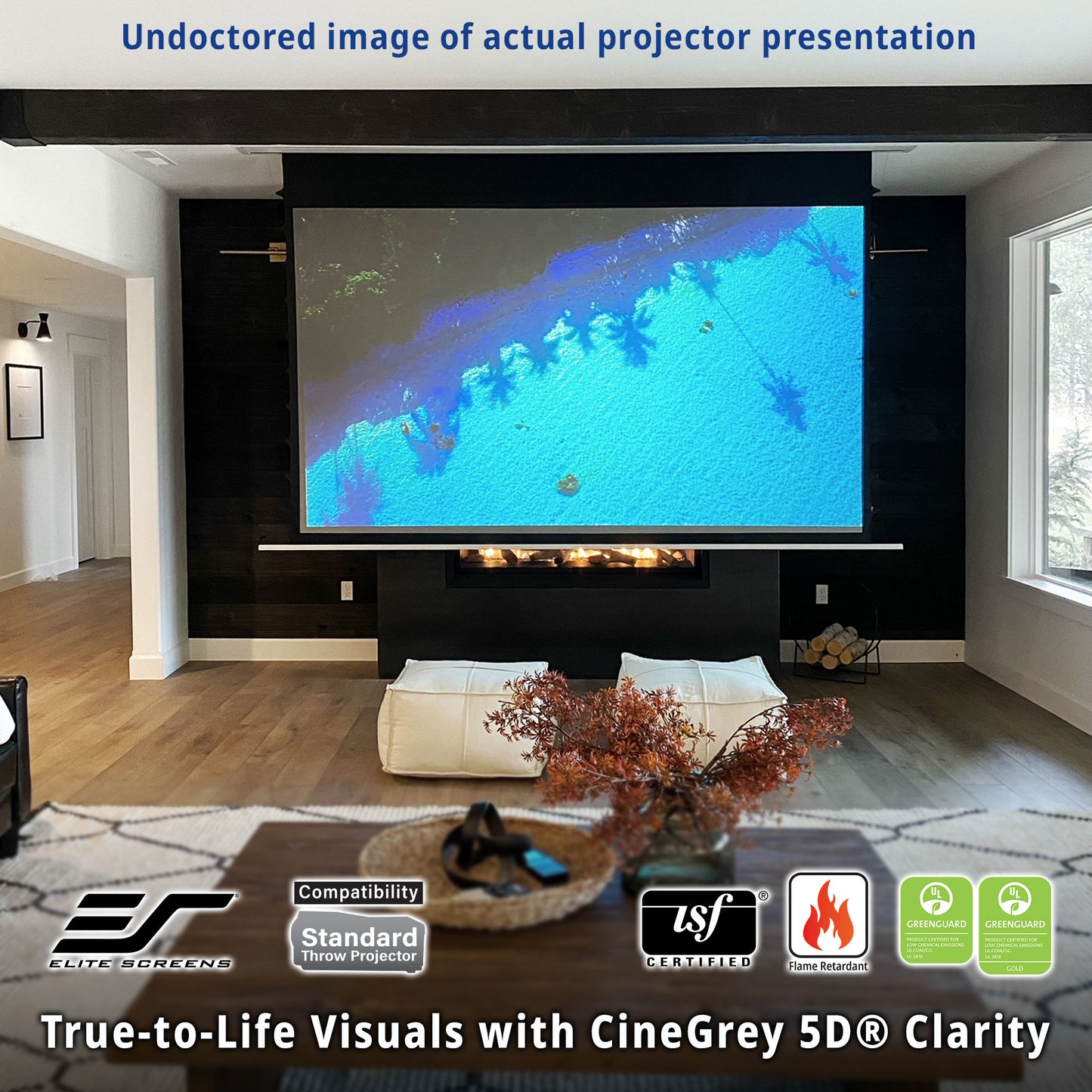

The Evanesce Tab-Tension B Cinegrey 5D® is an in-ceiling electric projection screen designed for integrated ceiling installations. It utilizes our CineGrey 5D® ambient light rejecting material for superb performance with the lights on or off. The tab-tensioned material provides uniform flatness over the entire projection surface with superb color saturation, contrast and black/white dynamic range. Standard controls include IR/RF remotes and a 5-12 volt projector trigger. The material rapidly drops and rises using a smooth and quiet tubular motor.

Product Features

Screen Material

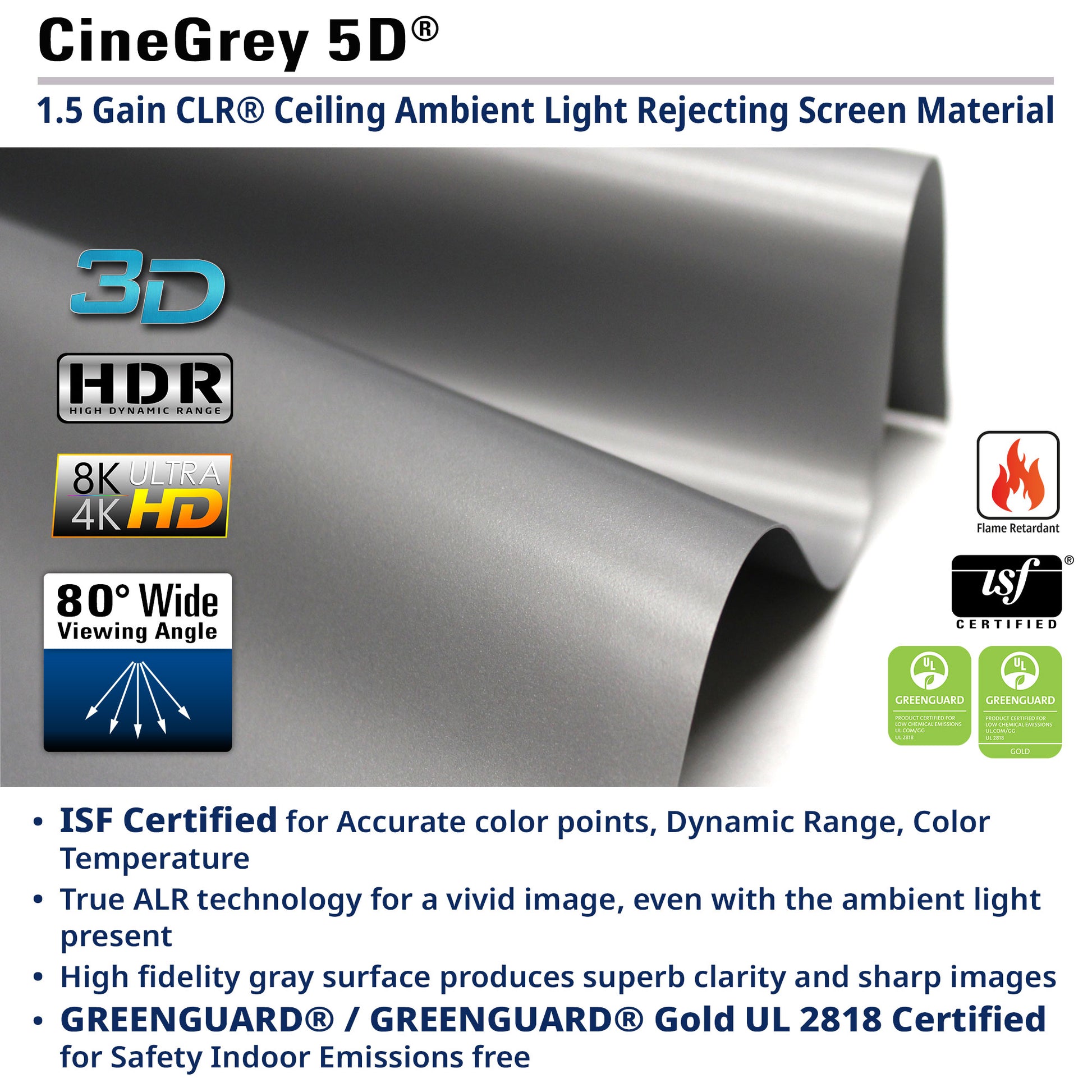

• CineGrey 5D® 1.5 Gain Ambient and Ceiling Light Rejecting (CLR®) front projection material
  • Angular Reflective Material for Standard “Long” Throw Projectors. (NOT Compatible with Ultra/Short Throw Projectors)

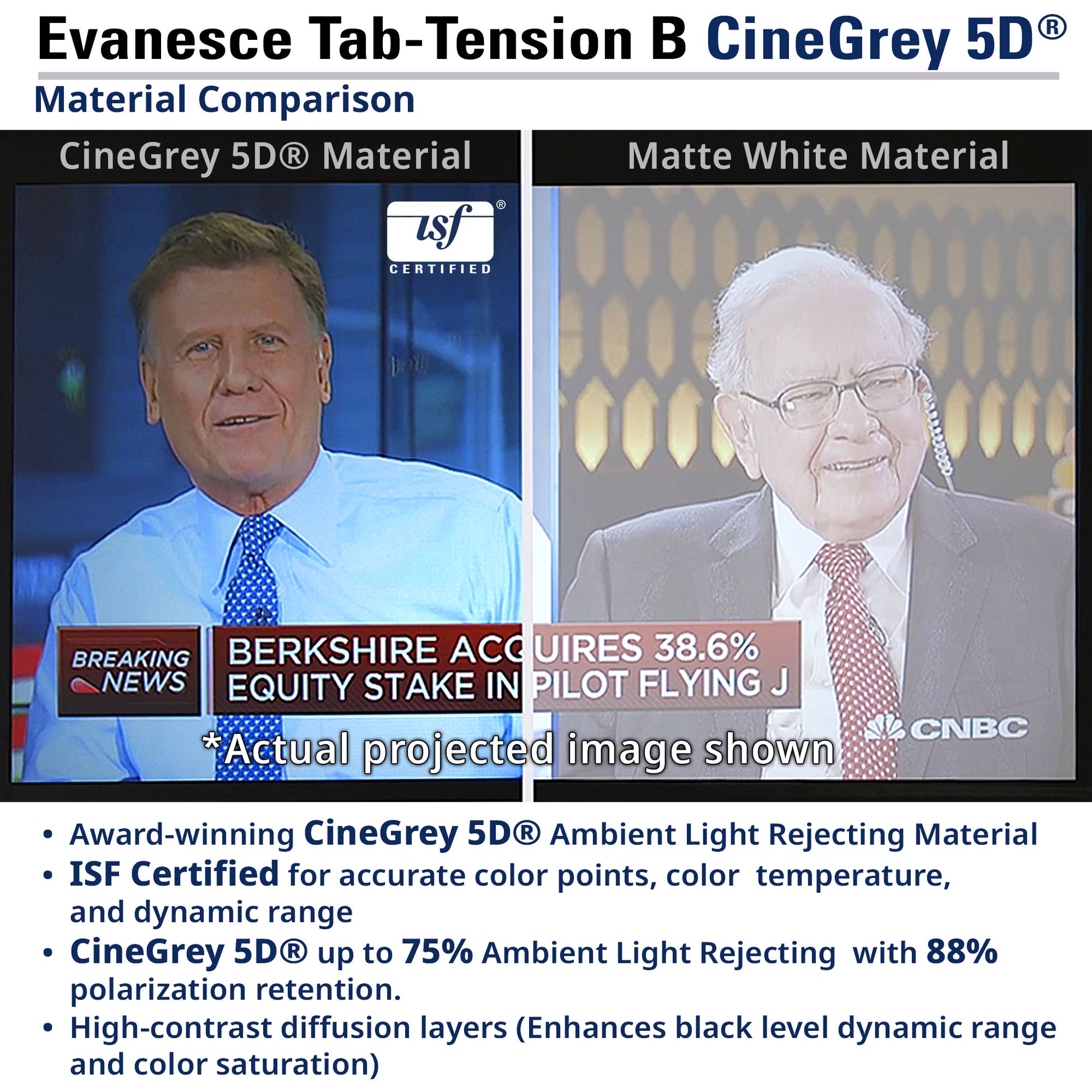

  • Multi-layer matrix uses reflective and absorbent micro-particles eliminate up to 75% of ambient light
  • High-contrast diffusion layers (Enhances black level dynamic range and color saturation)

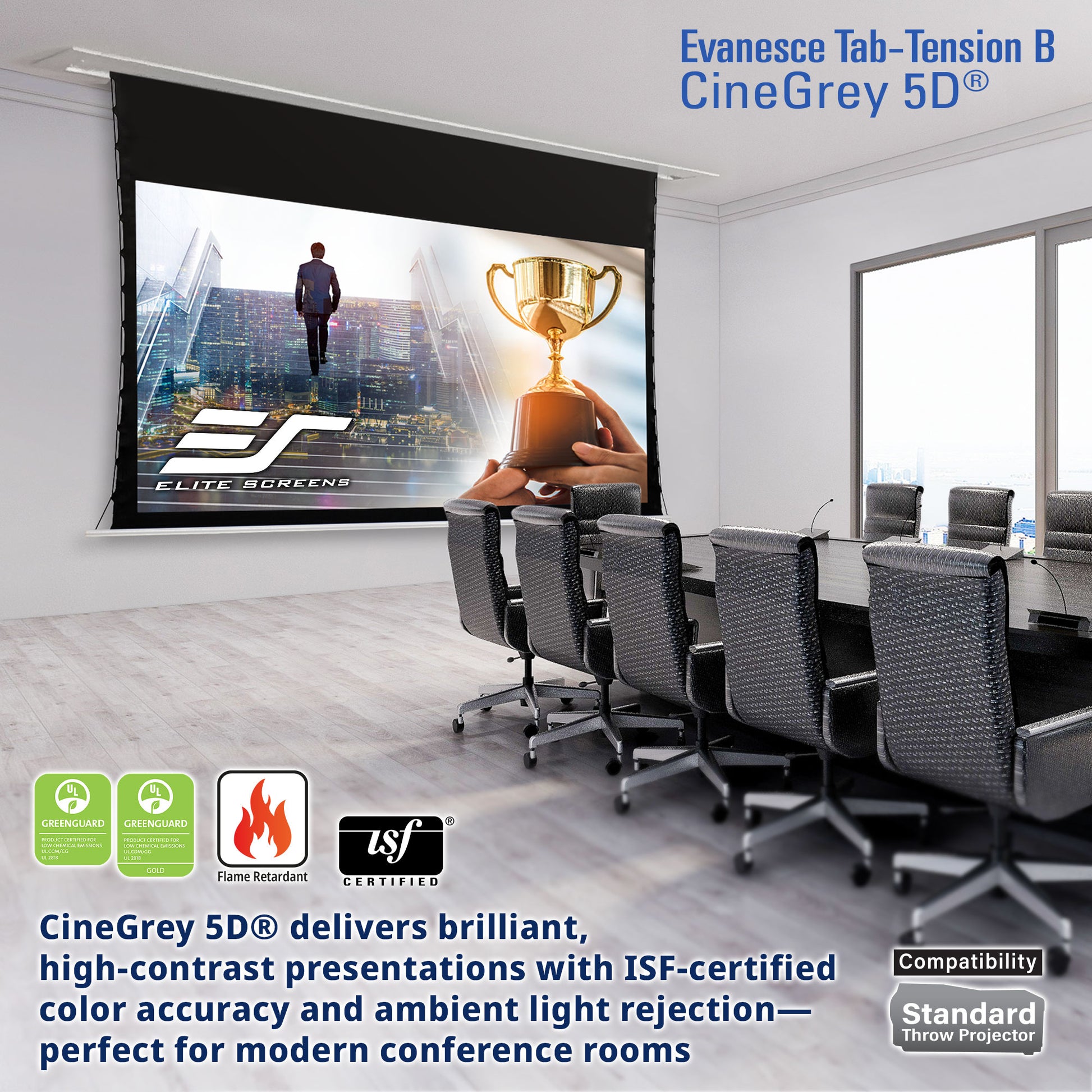

  • Angular reflectivity negates light scatter artifacts and is ideal for residential or commercial applications
  • See the projected image exactly as Film Director intended: ISF Certified for accurate Color Points (RGBCMY), Dynamic Range (black/white levels), Color Temperature (white point)
• 4K/8K Ultra HD and HDR Ready
• Black masking borders absorb projector overshoot while enhancing visual contrast

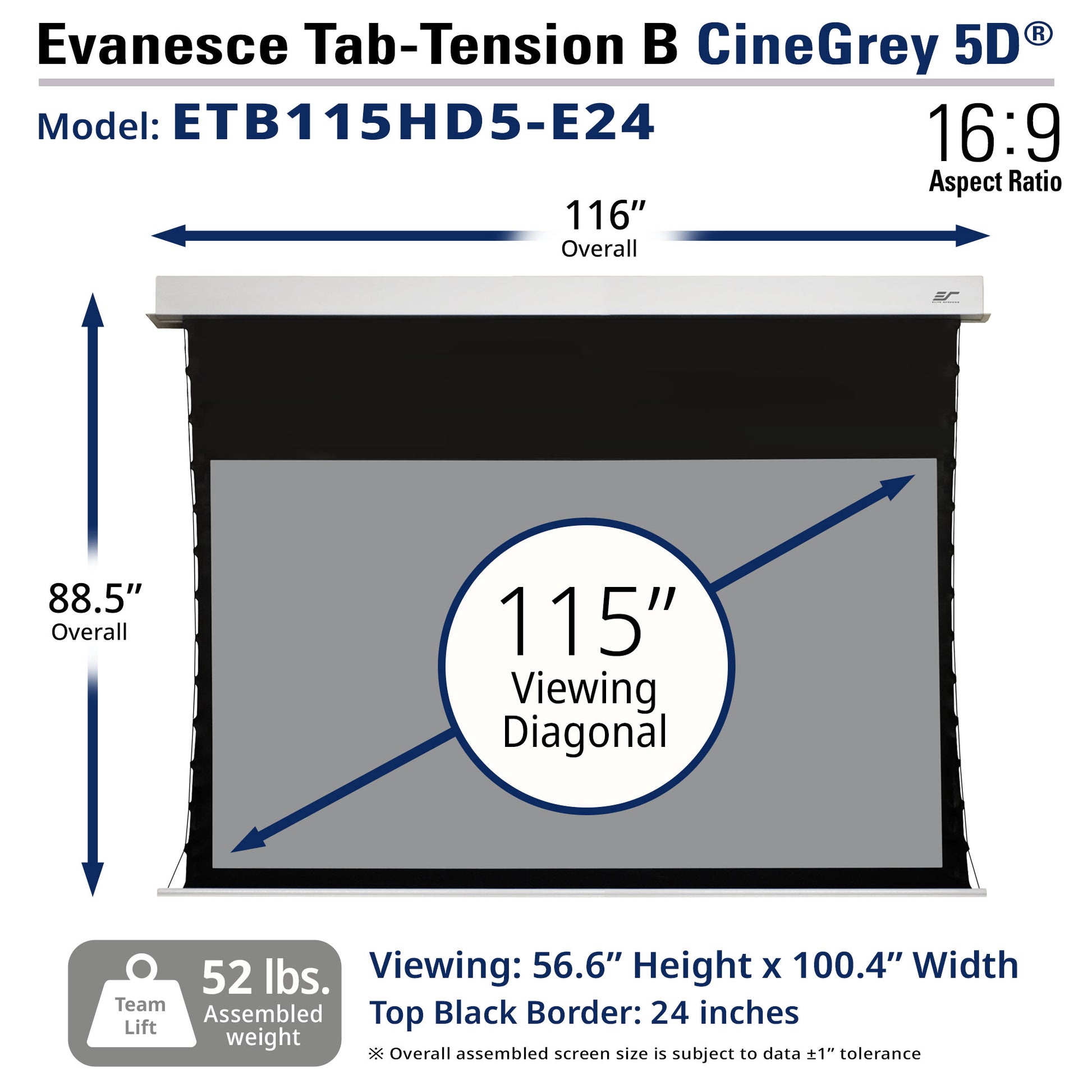

• Available in diagonal sizes 103″, 106″, 115″, 126″ and 133″ in 16:9 aspect ratio

Design and Installation

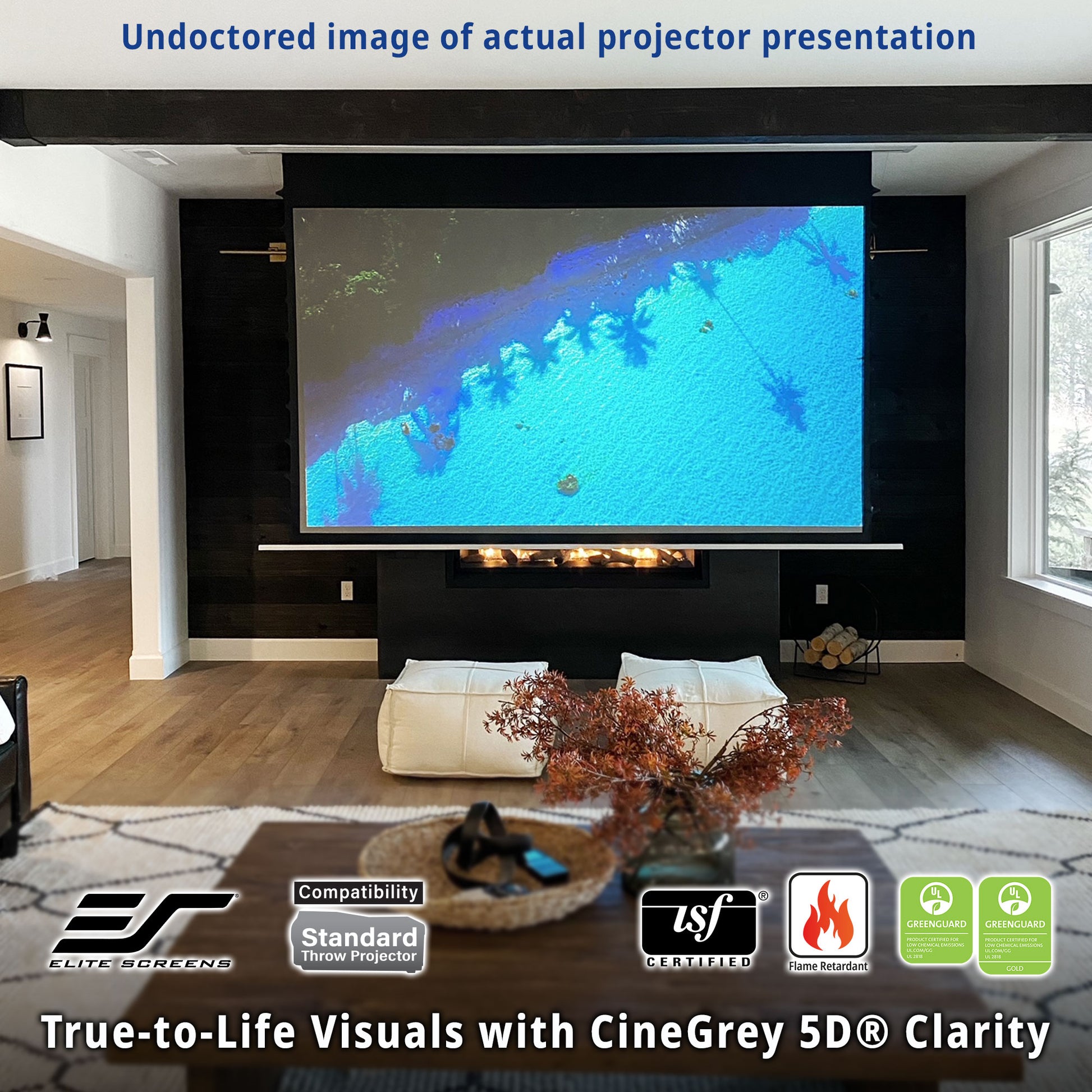

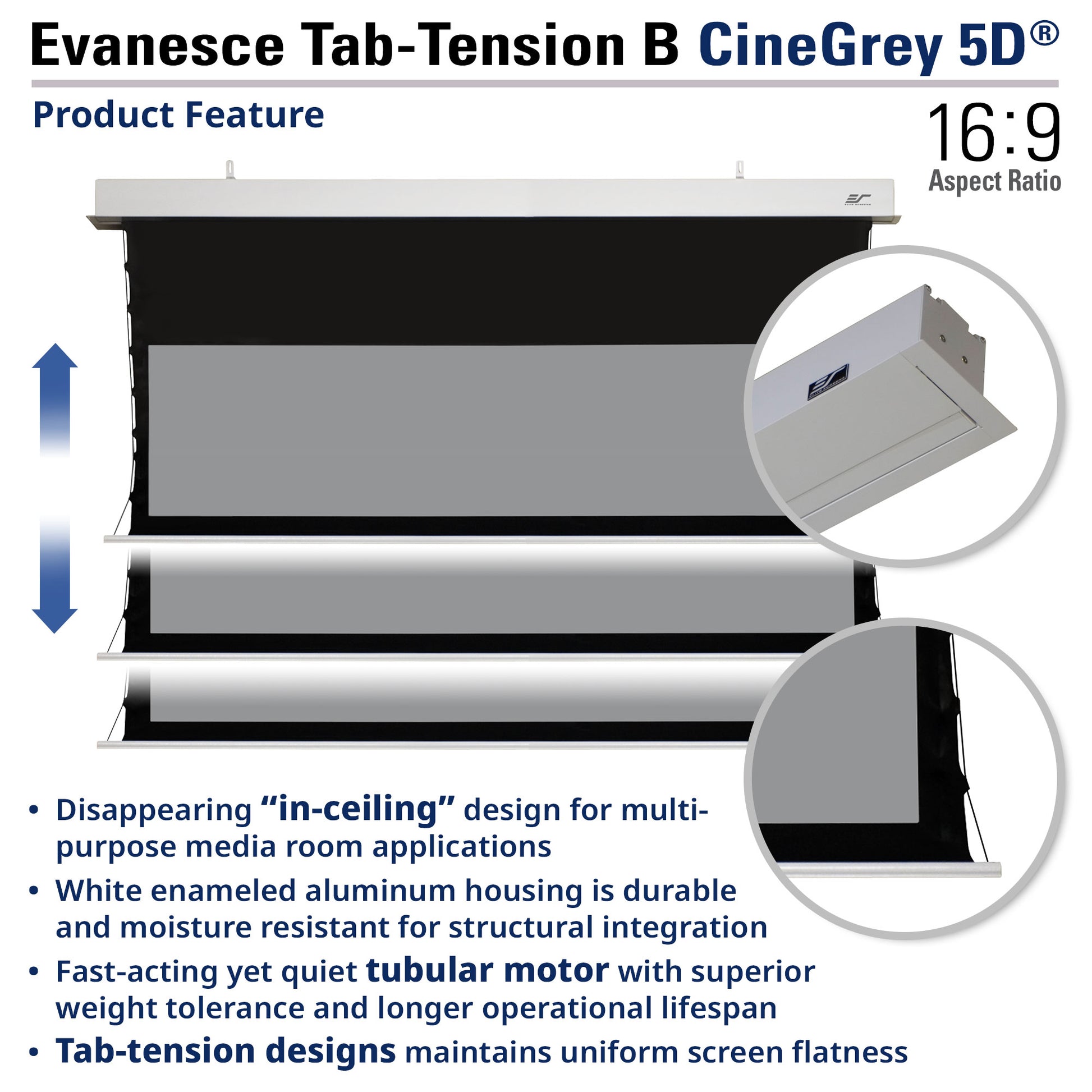

• Disappearing “in-ceiling” design for multi-purpose media room applications
• Below or Above ceiling access accommodates installations from within the room or ceiling space
• Tab-tension designs maintains uniform screen flatness
• White enameled aluminum housing is durable and moisture resistant for structural integration

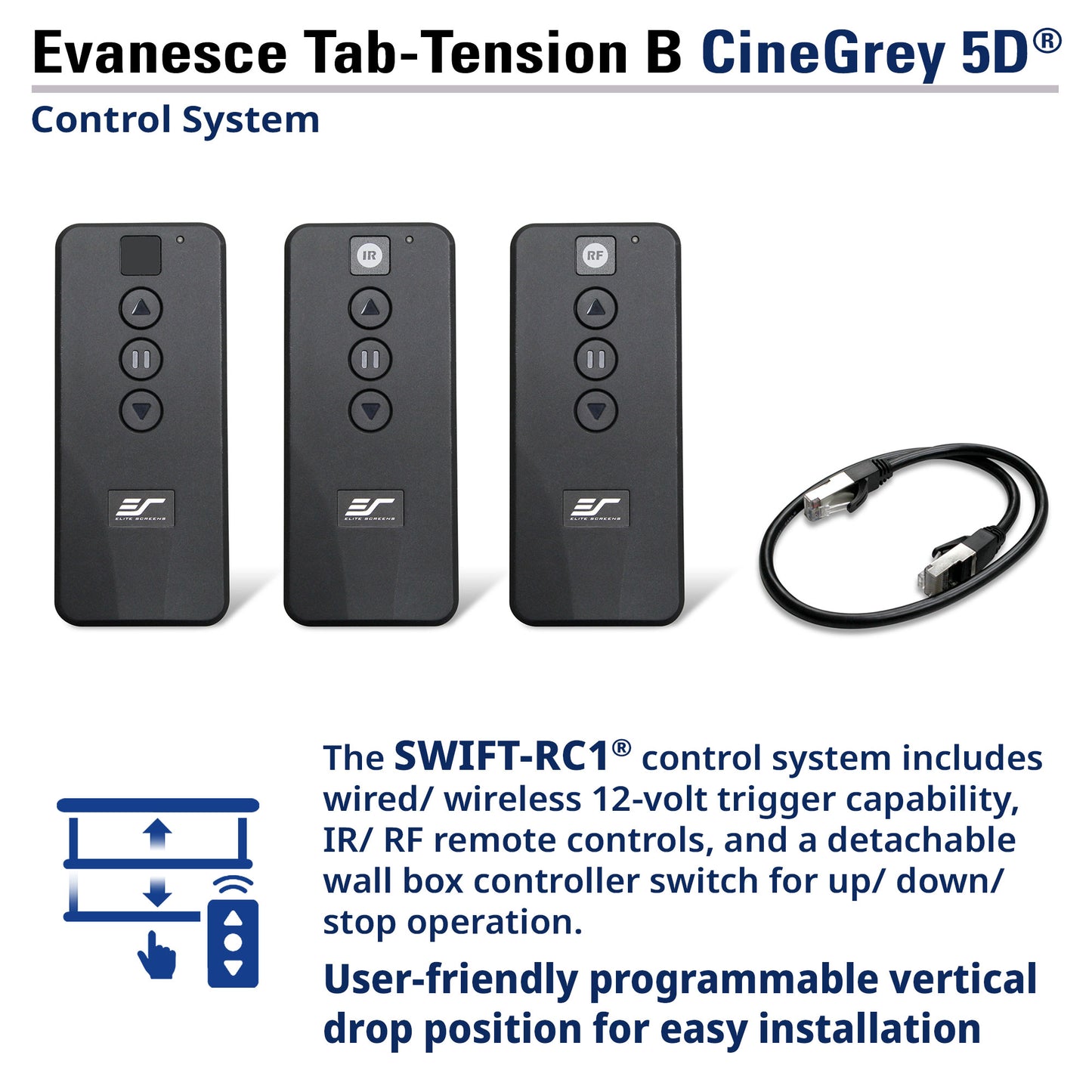

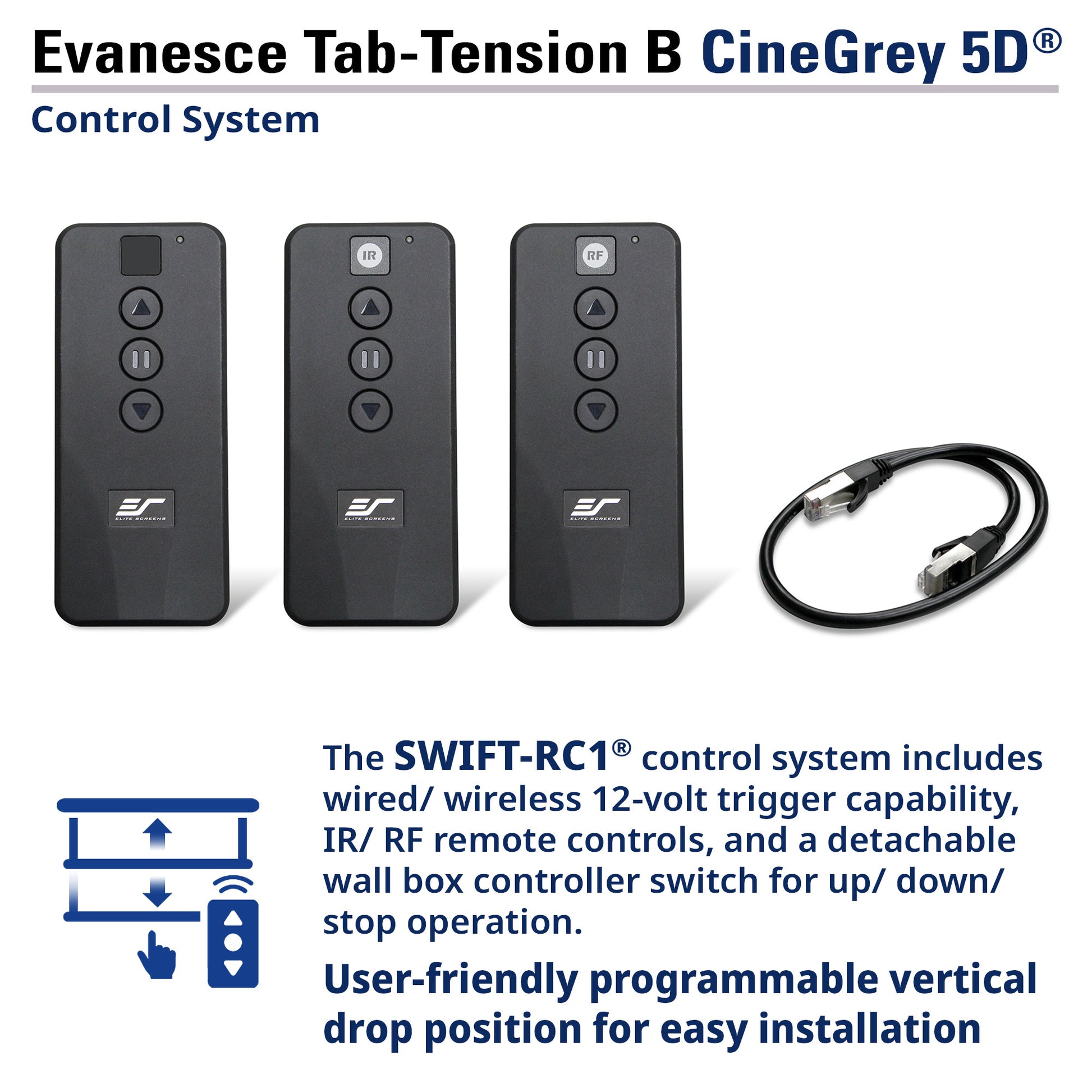

Control System: SWIFT-RC1®

• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation (SWIFT-RC1® Version Only)
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference (SWIFT-RC1® Version Only)
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
  • Wired 12v trigger capability via wall box controller (SWIFT-RC1® Version Only)
  • Wireless 12v trigger capability via Radio Frequency remote control

Quality and Reliability

• Fast-acting yet quiet tubular motor with superior weight tolerance and longer operational lifespan

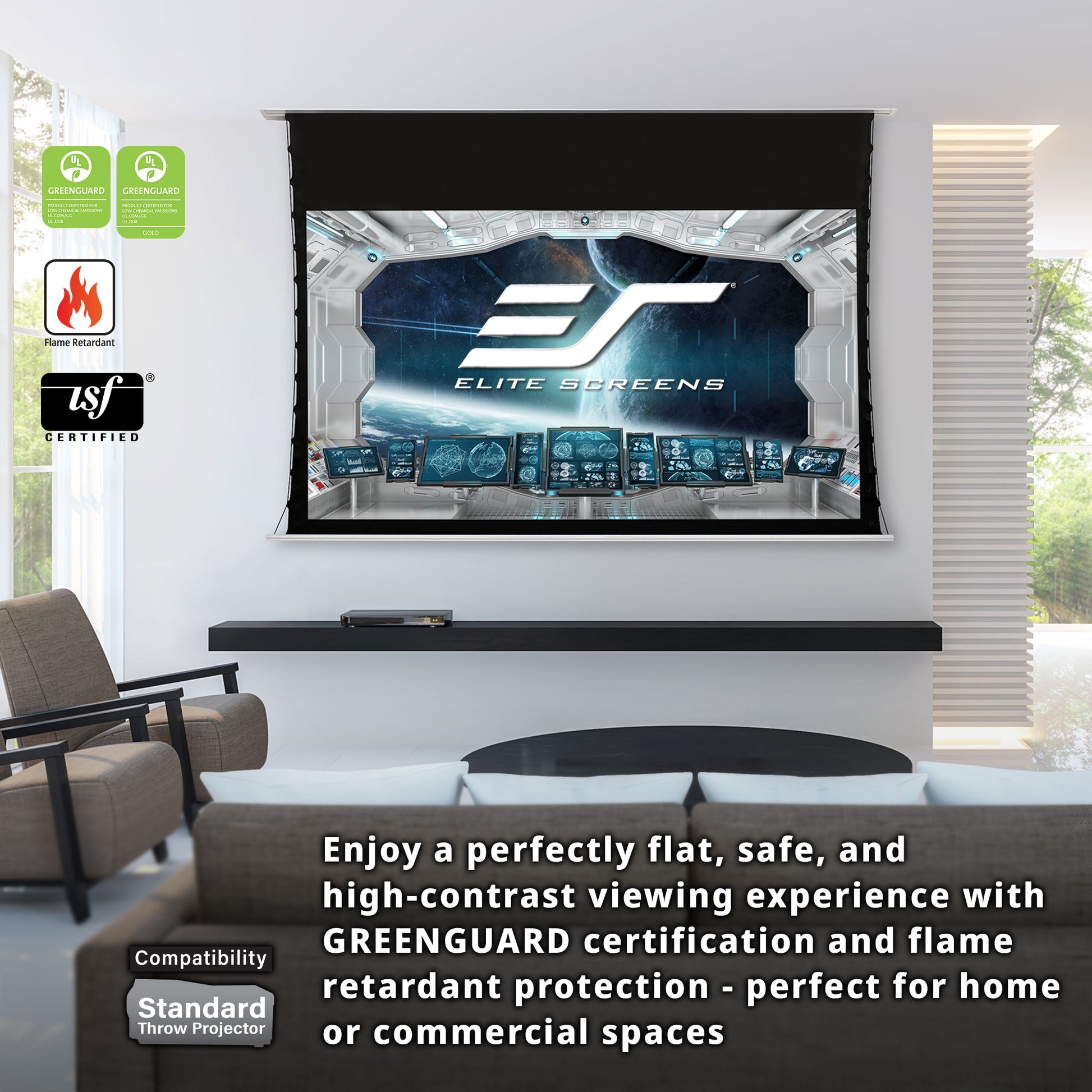

• GREENGUARD® and GREENGUARD® Gold (UL 2818) Certified for safe air quality emissions – CineGrey 5D®
• Flame Retardant: Complies with NFPA 701 Standards – CineGrey 5D®
• 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
• Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
