[Elite Screens] Evanesce Tab-Tension B Series

Description

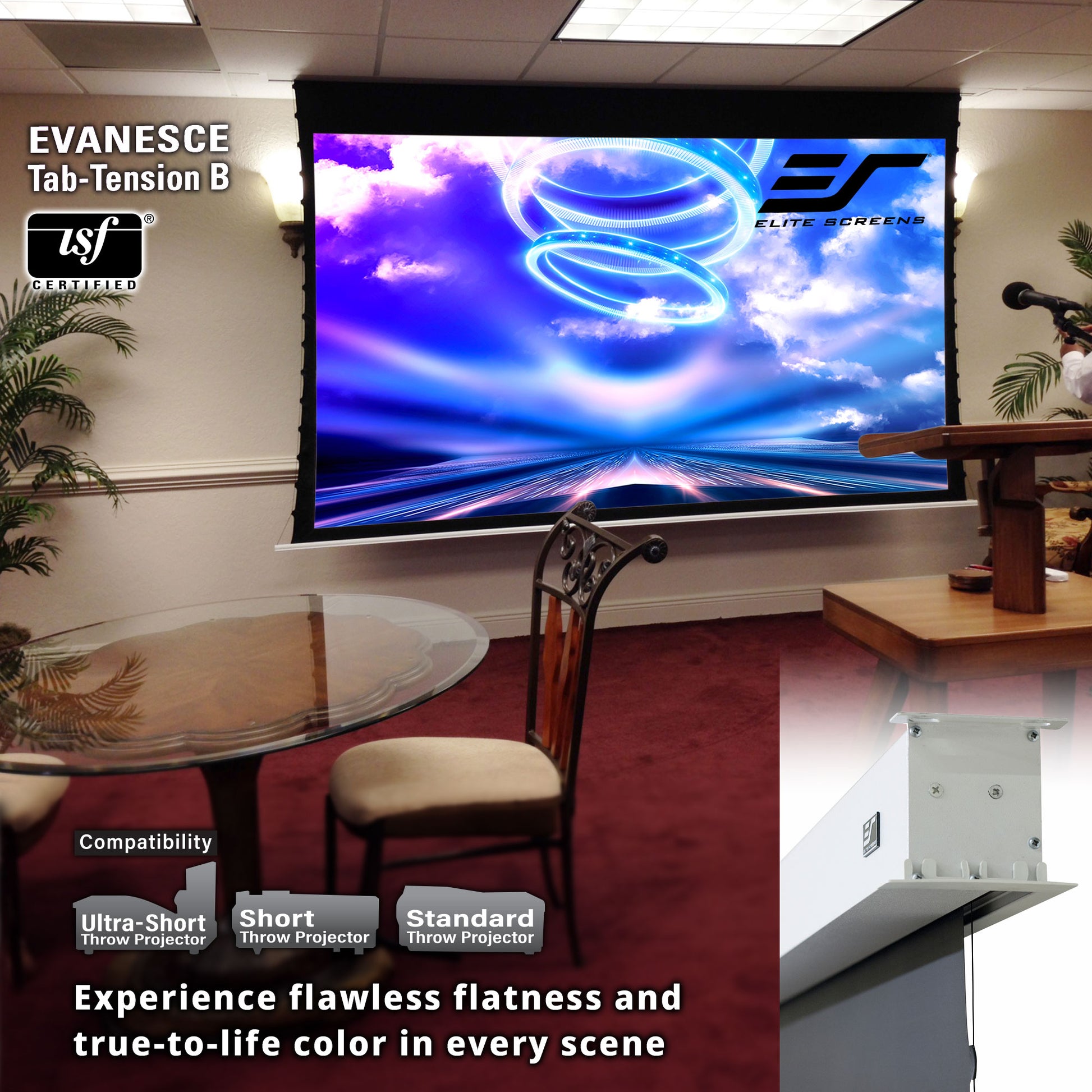

The Evanesce Tab-Tension B is our newest in-ceiling recessed projection screen. It is designed for concealed installations. It utilizes our CineWhite® front projection material. The tab-tensioned system maintains flatness uniformity throughout the entire surface with no tab impressions. Images pop and videos maintain true colors.

Product Features

Screen Material

• CineWhite® tensioned front projection material
• 180º wide-viewing angle and 1.1 gain
• 4K Ultra HD, Active 3D, and HDR Ready
• Tab-tension cords provide uniform flatness on entire projection surface
• Black-backing and black masking borders
• Available in the following diagonal sizes:

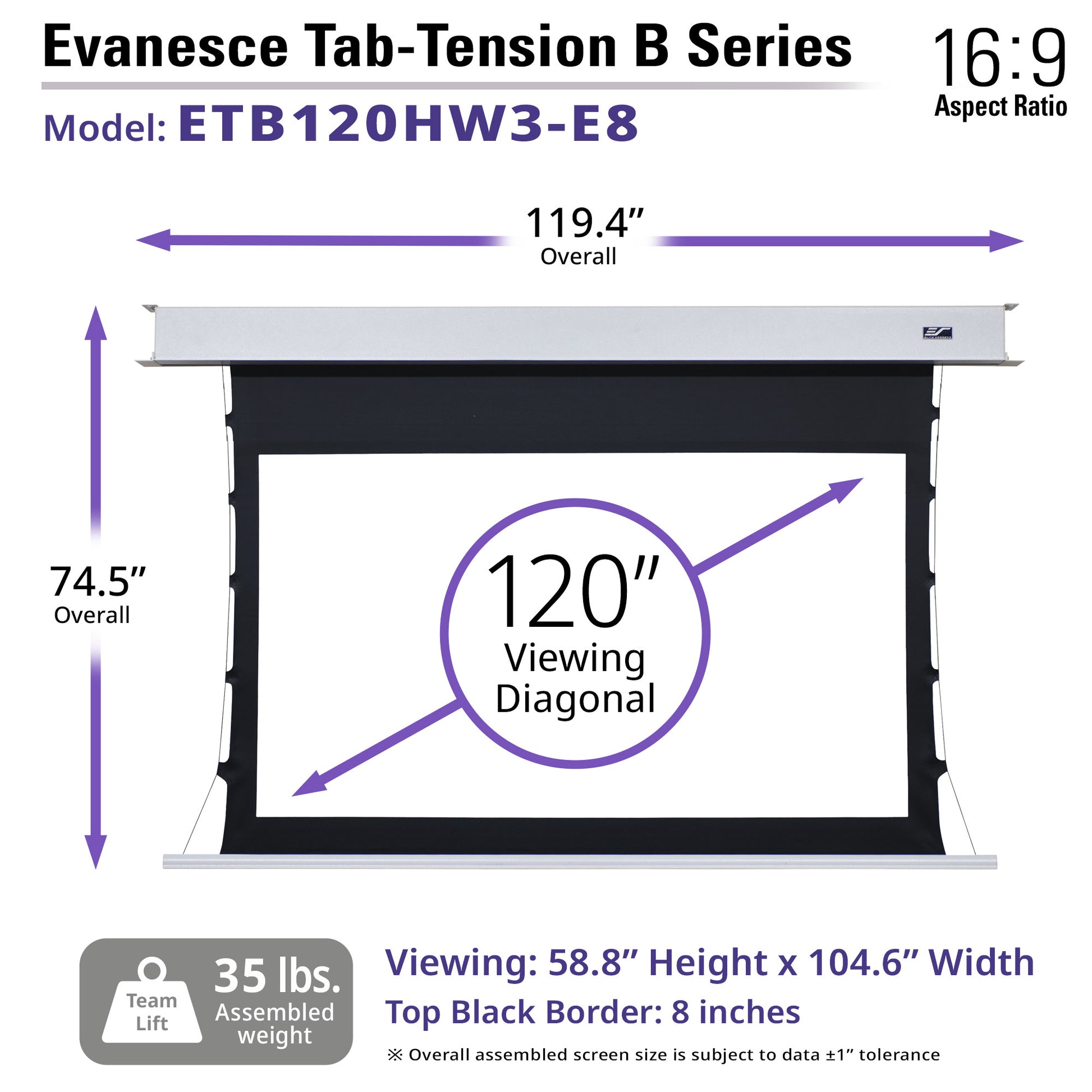

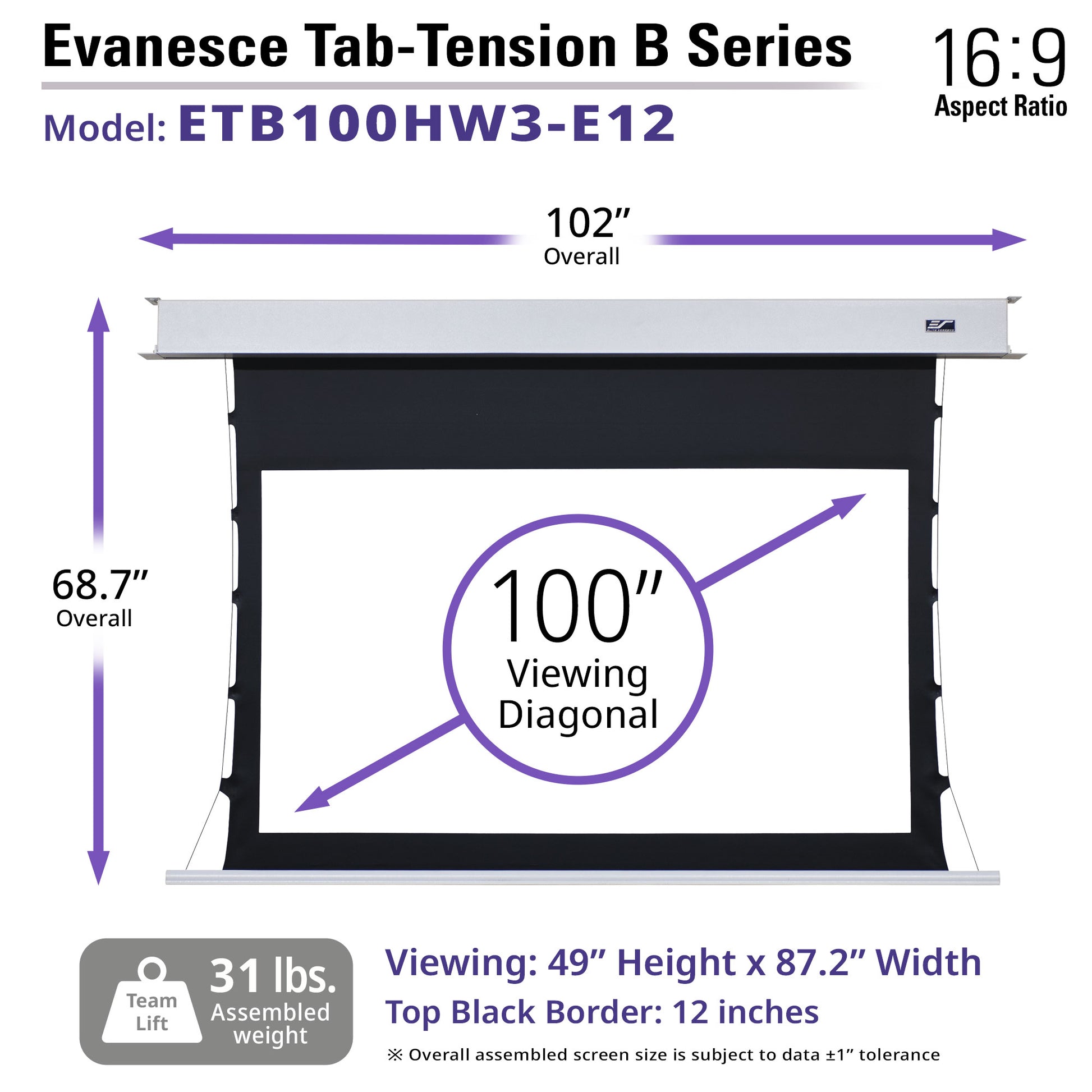

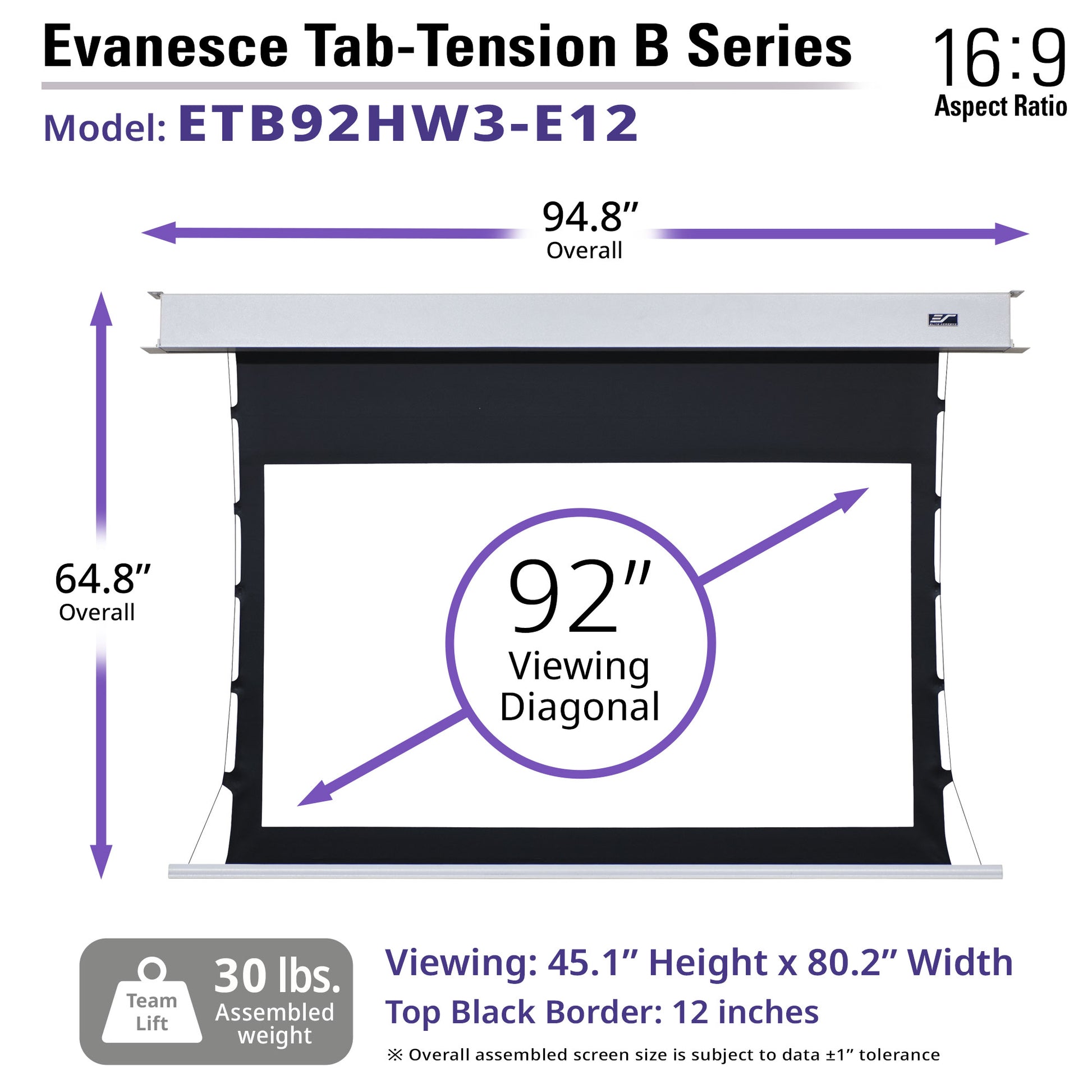

  • 92″, 100″, 110″ and 120″ in 16:9 format

Design and Installation

• Below and above ceiling access installation design

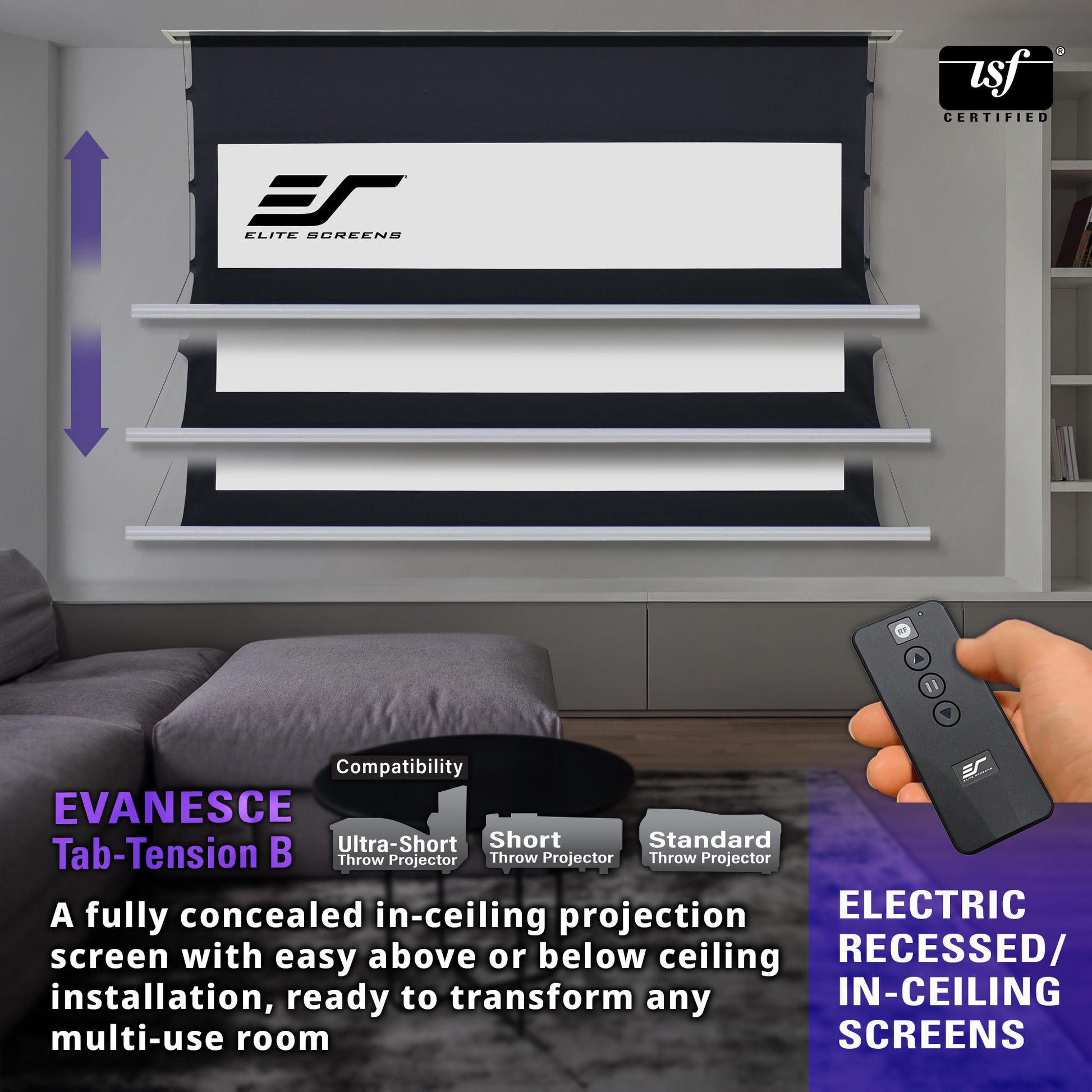

• Concealed in-ceiling front projection screen for multi-use rooms
• Aluminum housing with white finish (RAL9003) is slim yet strong and moisture resistant
• Integrated ceiling projection screen ships fully assembled, ready to install
• Installation kit included

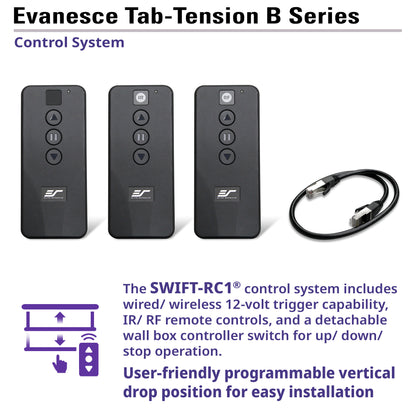

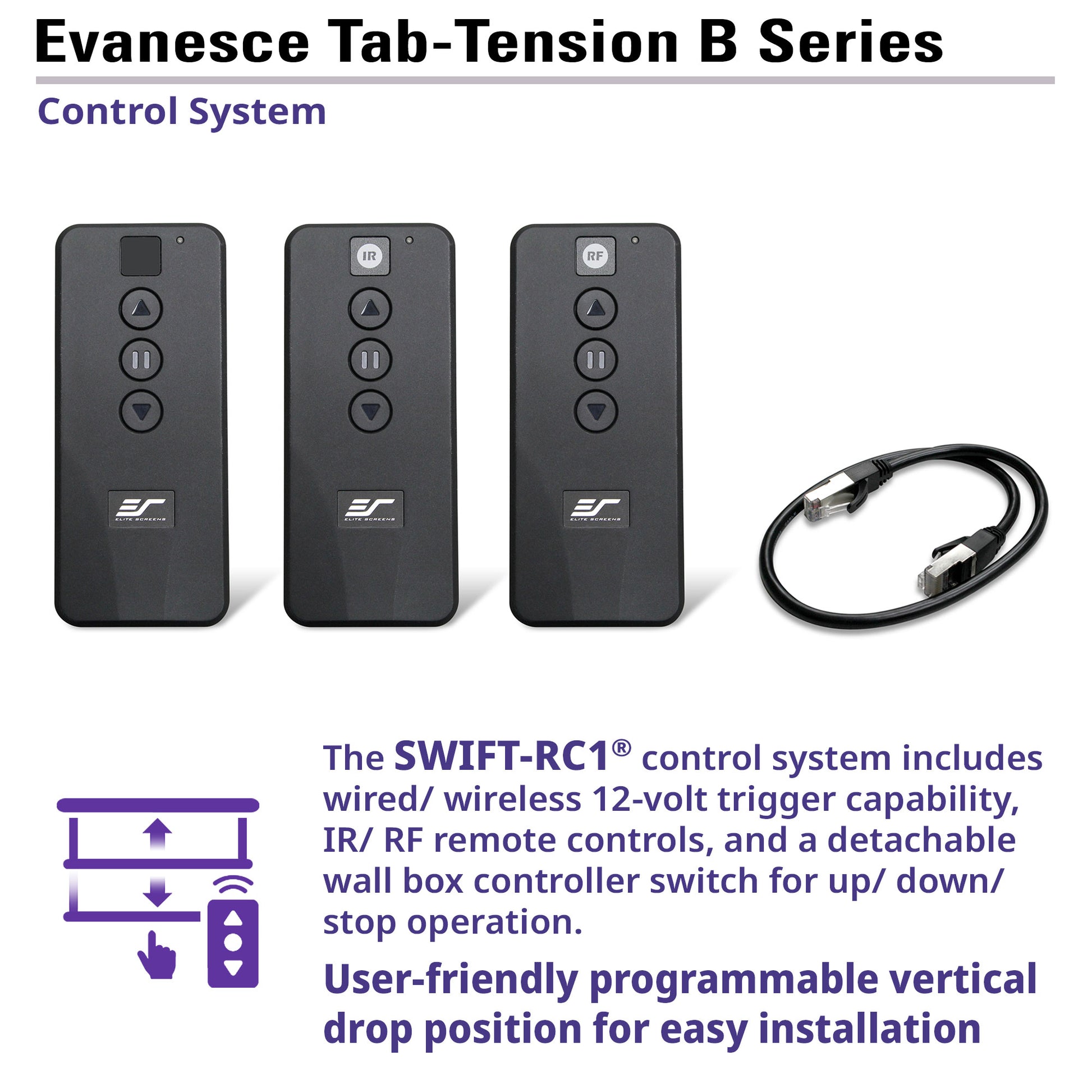

Control System- SWIFT-RC1

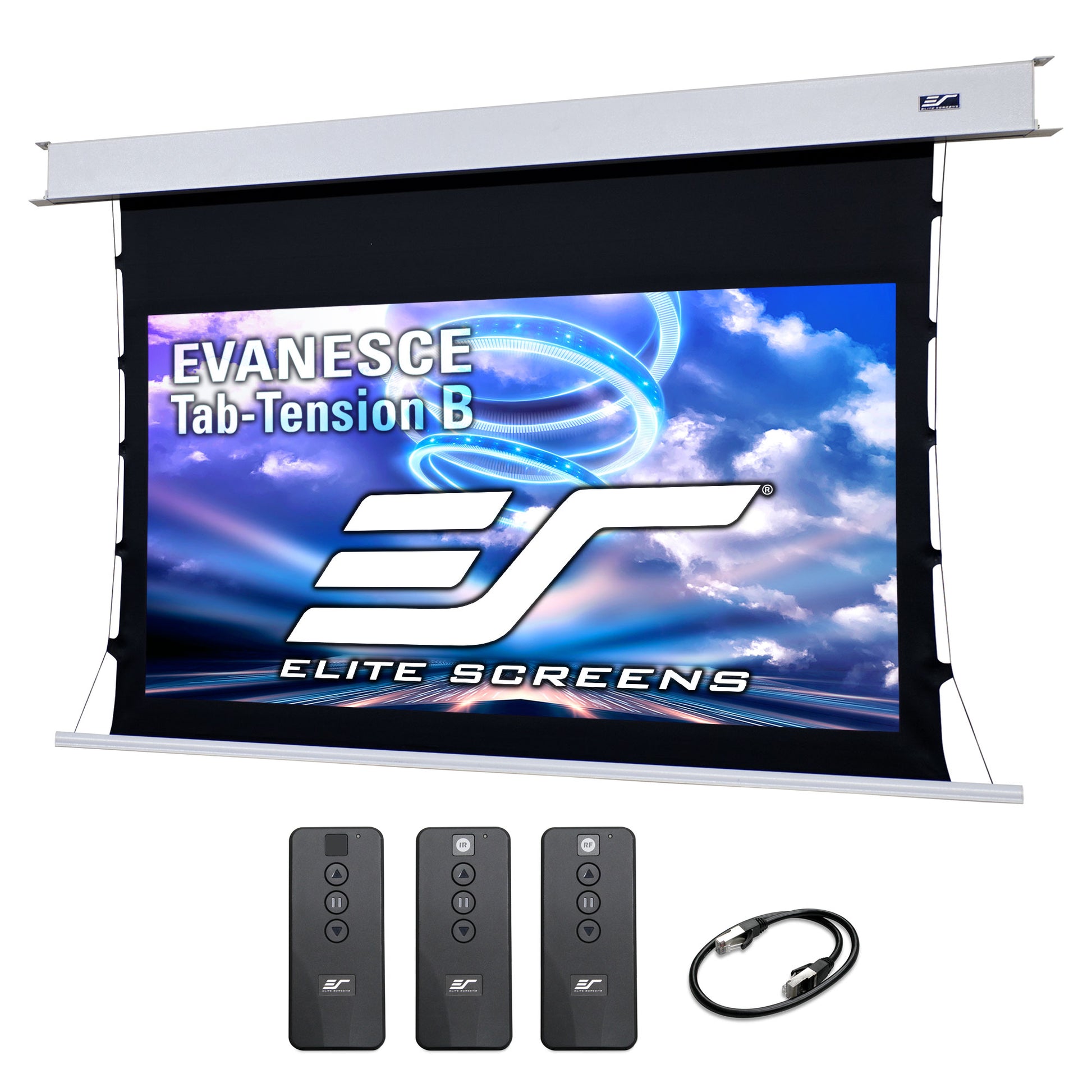

• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
  • Wired 12v trigger capability via wall box controller
  • Wireless 12v trigger capability via Radio Frequency remote control

Quality and Reliability

• ETL, FCC, CE, CB GOSTCE & ISO9001:2008
• 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
• Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.

Downloads

Dimensions Tables

• Dimensions Table – Above – RC1 Models
• Dimensions Table – Below – RC1 Models
• Dimensions Table – Above Ceiling (PDF) – DISCONTINUED
• Dimensions Table – Below Ceiling (PDF) – DISCONTINUED
• Packaging Dimensions Table (PDF)

User Guides

• User Guide (PDF) – RC1 Models
• User Guide (PDF) – DISCONTINUED
• French User Guide (PDF)

Others

• Screen Material Care Sheet
• White Paper (PDF)
• CineWhite® Material Sheet (PDF)
• Product Cut Sheet (PDF)
• Electric Screens Accessories Chart
• Comparison Table (PDF)
