[Elite Screens] Evanesce B Series

Description

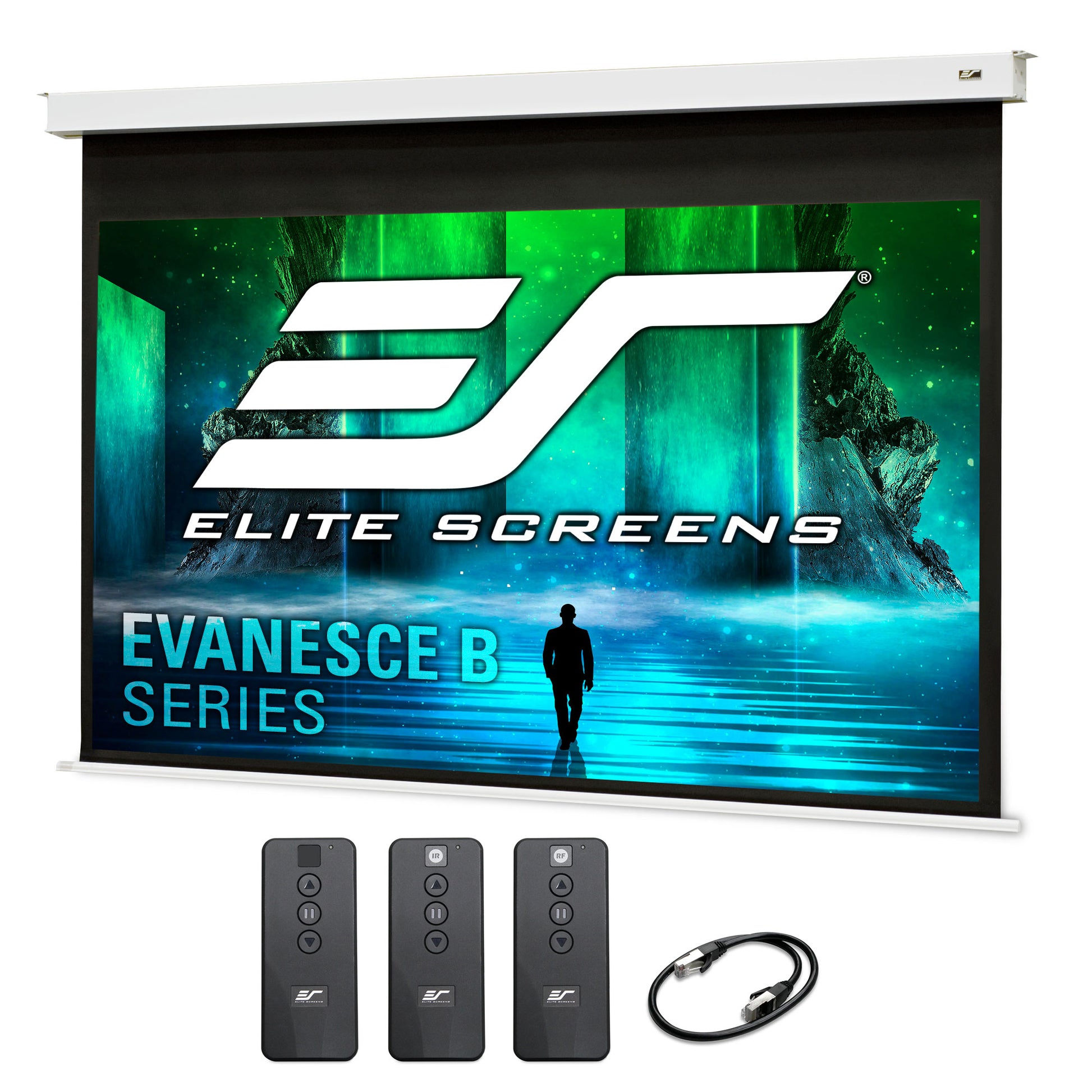

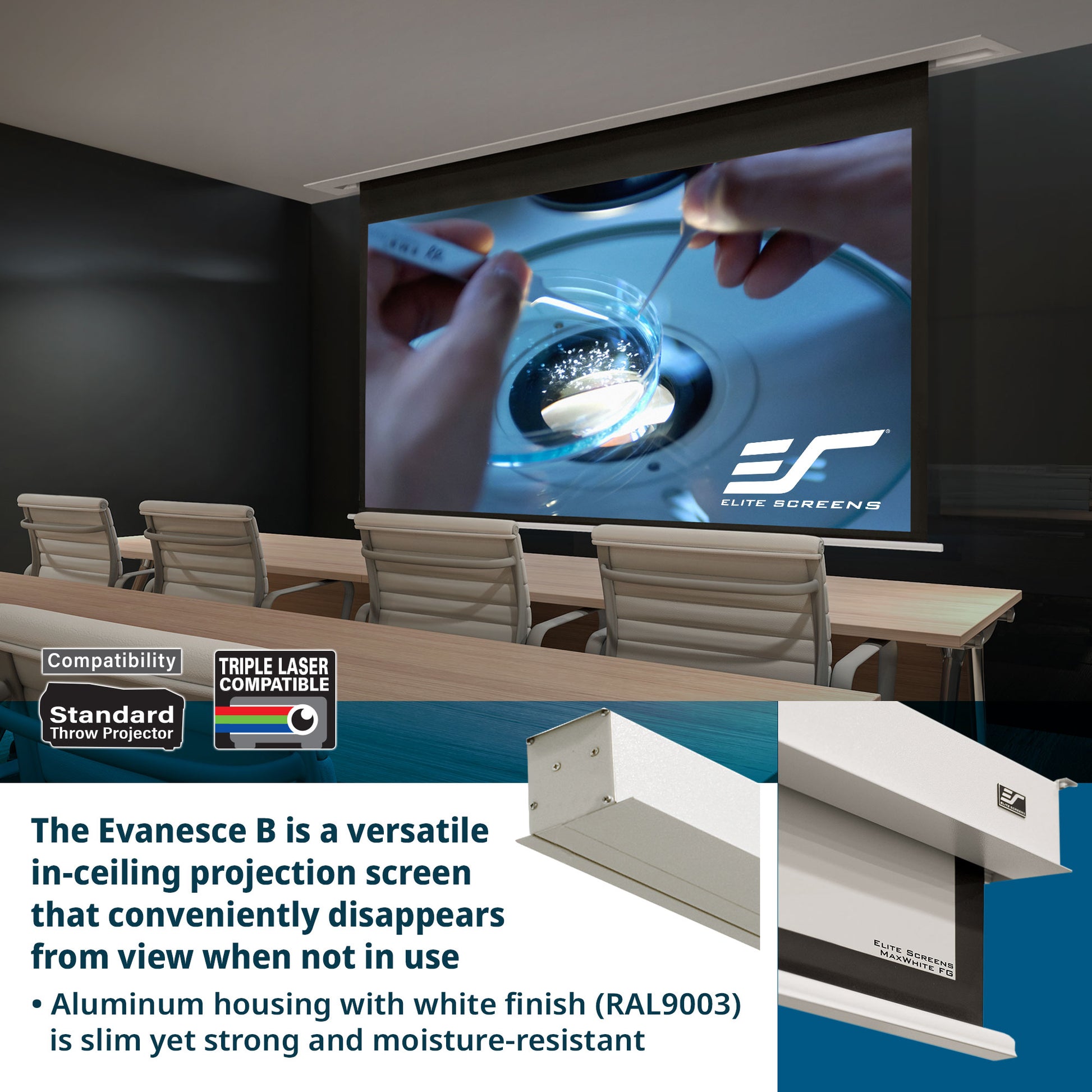

The Evanesce B is a versatile in-ceiling projection screen that conveniently disappears from view when not in use. It can be installed from within the above-ceiling airspace or from below thanks to its removable base panels that were originally designed for the European market. Its GREENGUARD certified MaxWhite FG (fiberglass-backed) 1.1 gain matte white material provides superb color temperature with wide diffusion uniformity. The screen is moved by a strong, fast-acting tubular motor and comes with standard features such as IR &RF remotes, 12v Trigger and a wall box controller.

Product Features

Screen Material

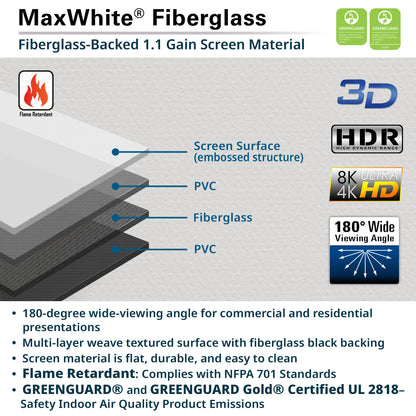

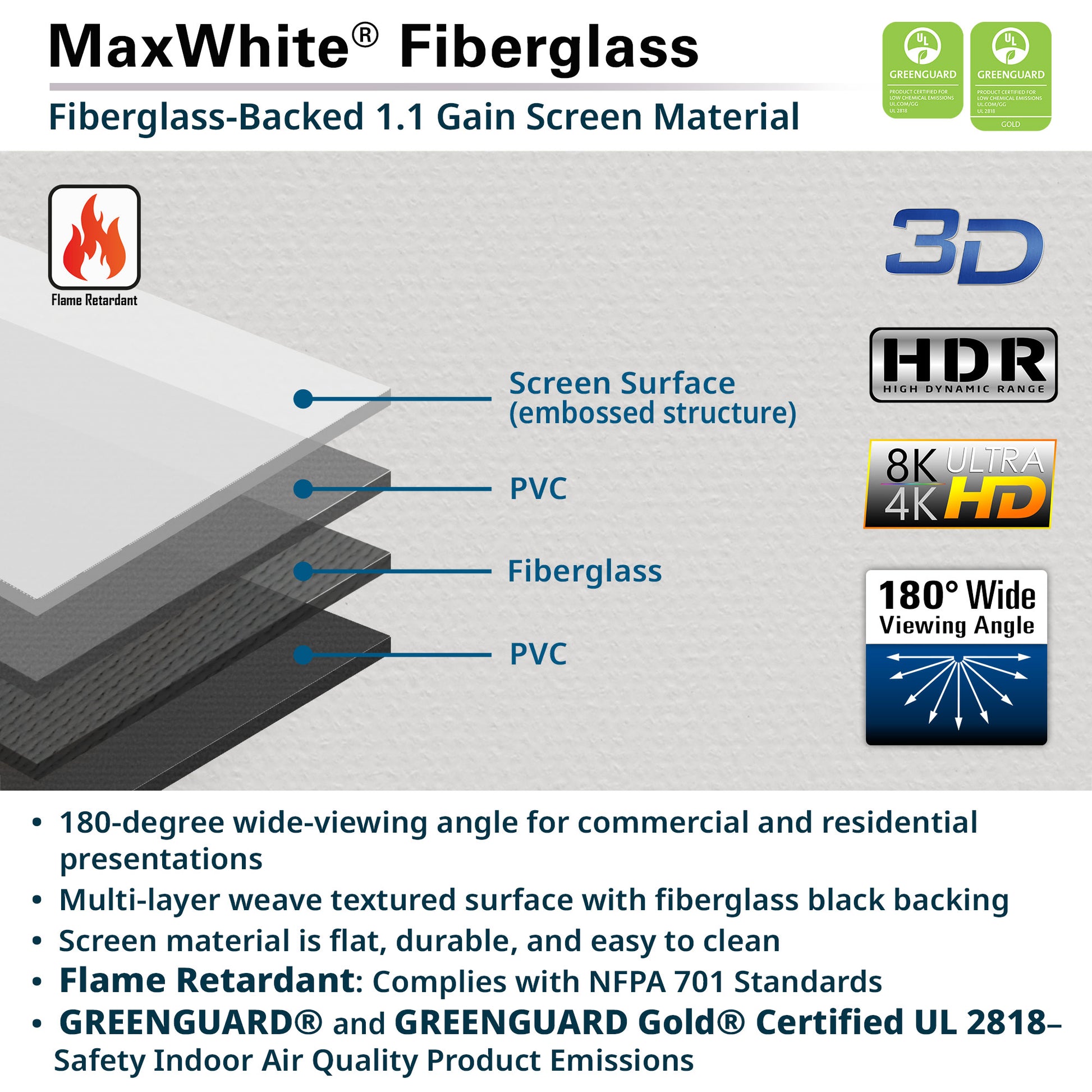

• Greenguard® Certified MaxWhite® Fiberglass (FG) front projection material with black backing
• 1.1 Gain with a 180° wide-viewing angle for commercial and residential presentations
• Compatible with Standard throw Projectors ONLY
• Black masking borders enhance picture contrast
• 4K Ultra HD, Active 3D, and HDR Ready
• Available in the following diagonal sizes:
  • 100″ in 4:3 format

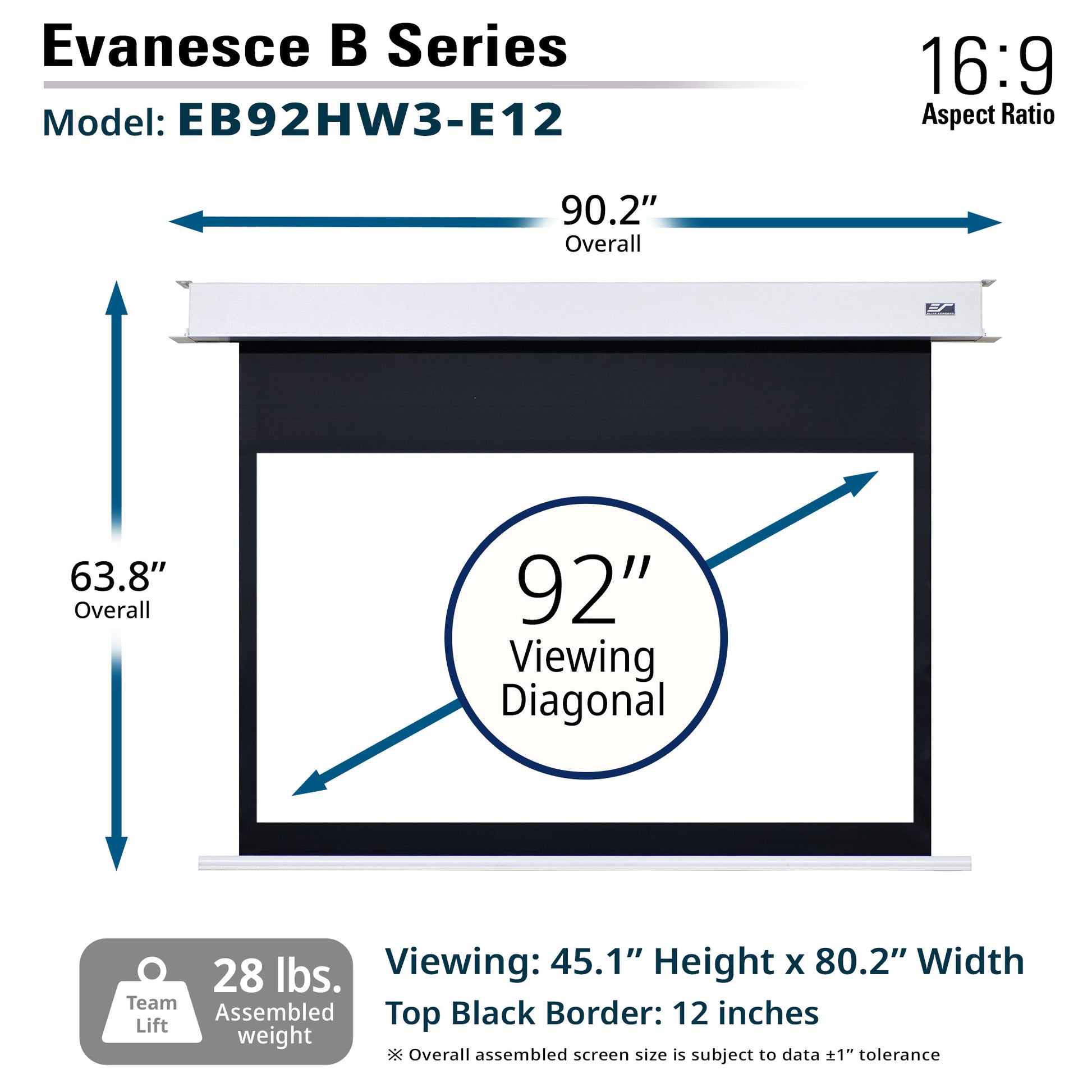

  • 92″, 100″, 110″ and 120″ in 16:9 format

Control, Design and Installation

• Aluminum housing with white finish (RAL9003) is slim yet strong and moisture resistant
• Concealed in-ceiling recessed front projection screen for multi-use rooms
• Installation kit included for above or below ceiling

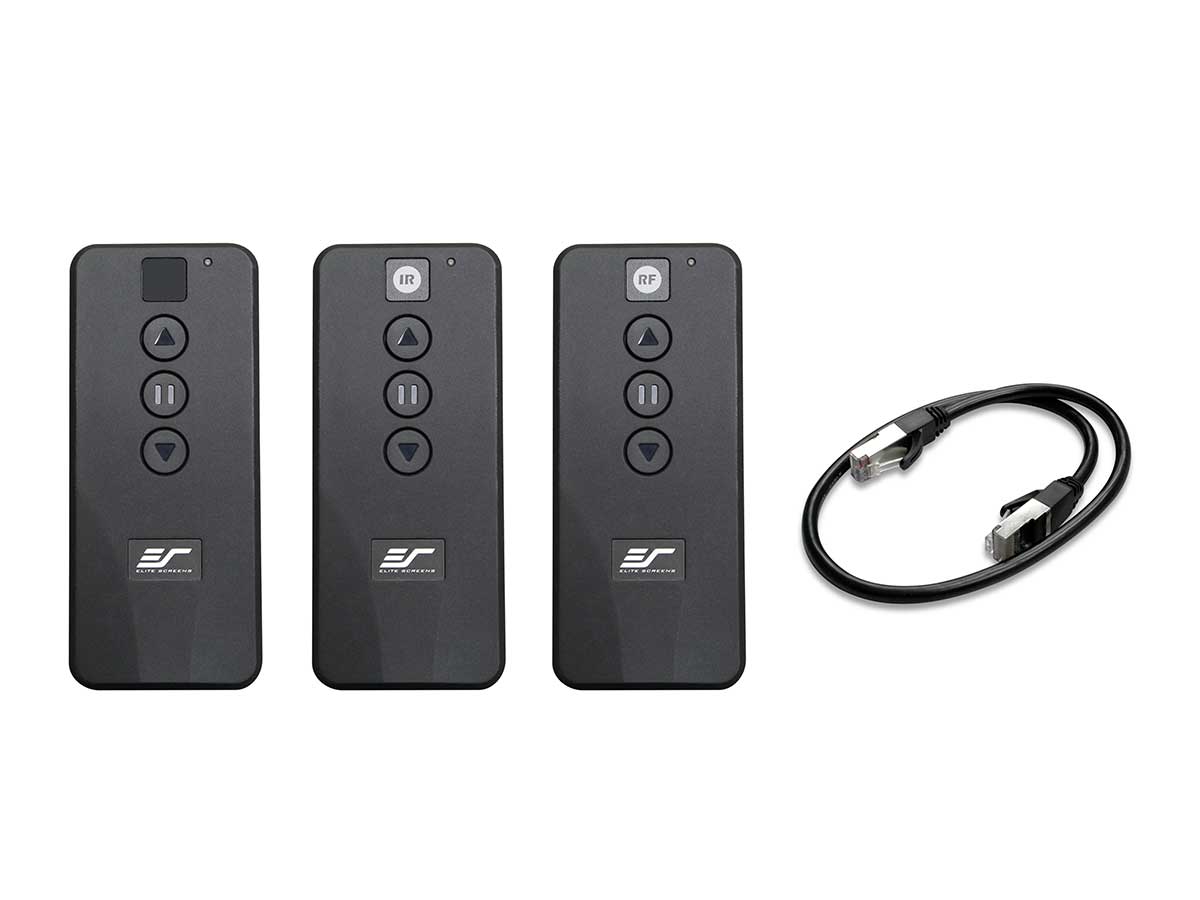

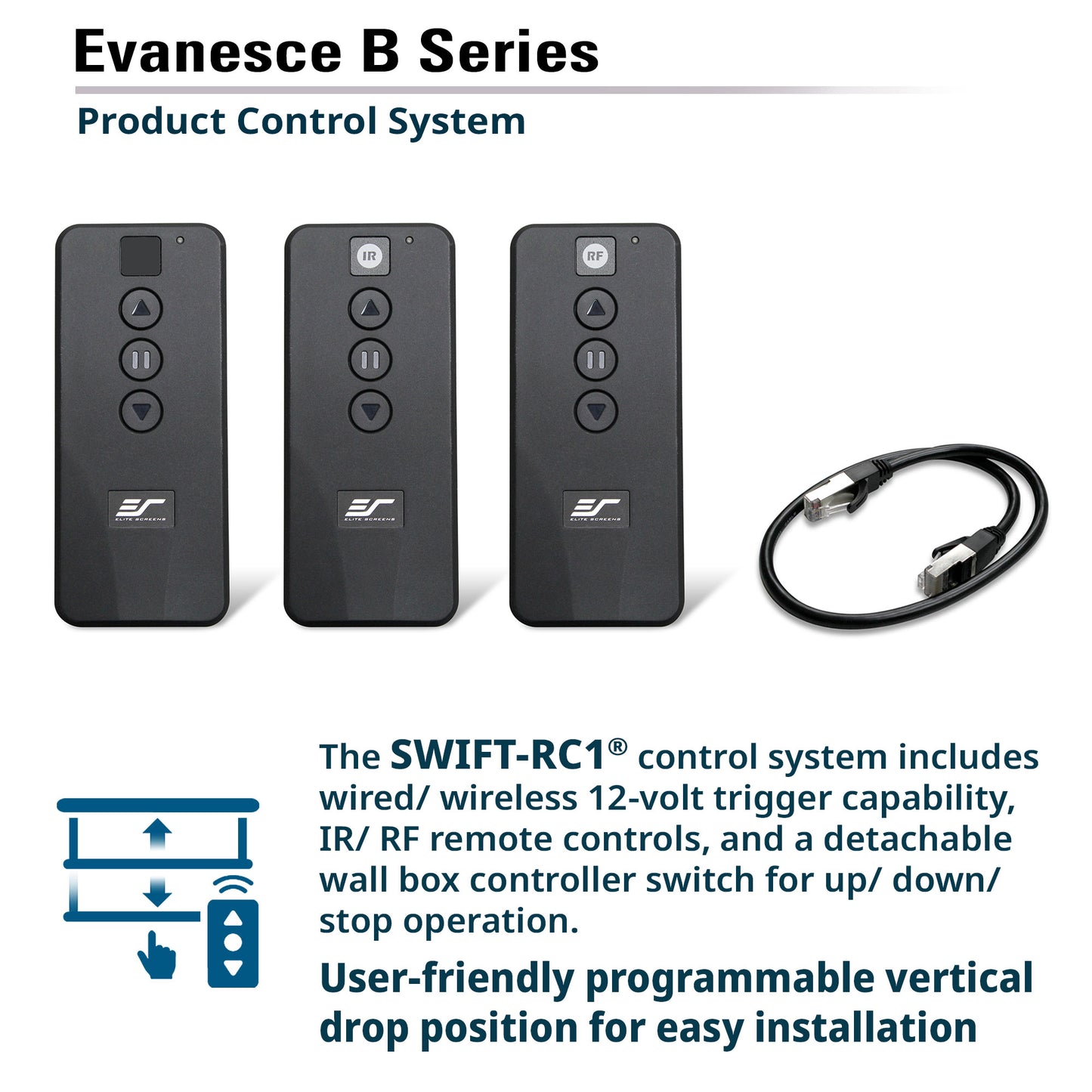

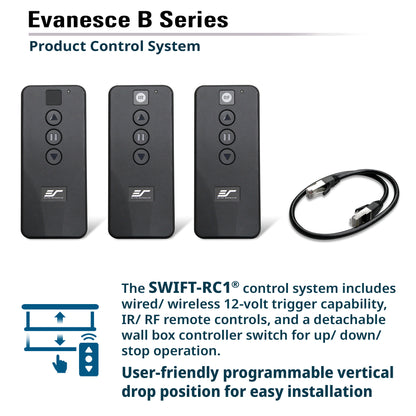

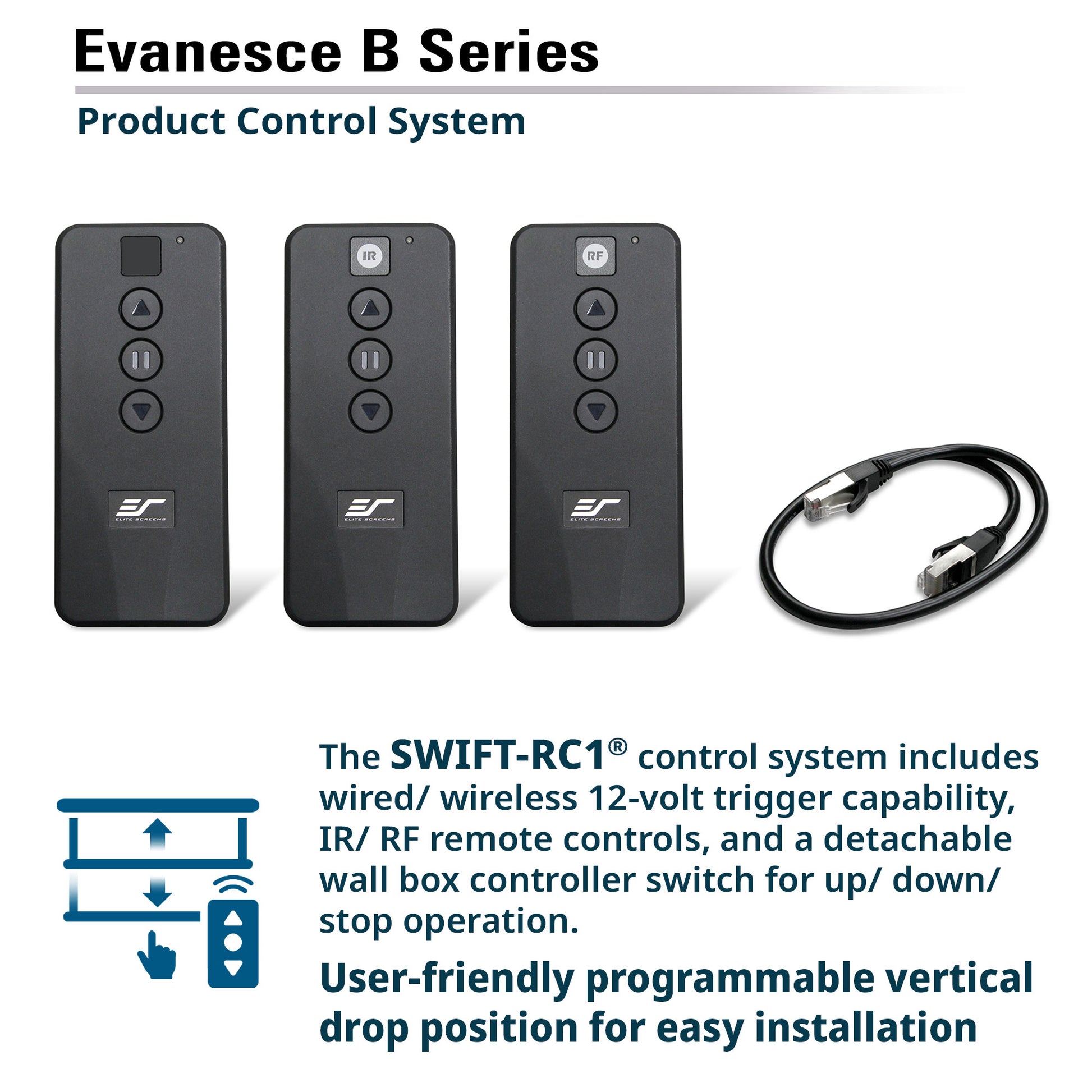

• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation (SWIFT-RC1 Version Only)
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference (SWIFT-RC1 Version Only)
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
  • Wired 12v trigger capability via wall box controller (SWIFT-RC1 Version Only)
  • Wireless 12v trigger capability via Radio Frequency remote control

Quality and Reliability

• Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
• Flame Retardant: Complies with NFPA 701 Standards
• GREENGUARD® and GREENGUARD® Gold Certified
• 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
• Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.

Downloads

Dimensions Tables

• Dimensions Table RC1 – Above Ceiling (PDF)
• Dimensions Table RC1 – Below Ceiling (PDF)
• Dimensions Table – Above Ceiling (PDF)
• Dimensions Table – Below Ceiling (PDF)
• Packaging Dimensions Table (PDF)

User Guides

• User Guide (PDF)
• User Guide (PDF) – RC1 Models
• French User Guide (PDF)

Others

• MaxWhite® FG Material Sheet (PDF)
• Screen Material Care Sheet
• Product Cut Sheet (PDF)
• UL 2818 GreenGuard Certificate
• UL 2818 GreenGuard Gold Certificate
• Electric Screens Accessories Chart
• Comparison Table (PDF)
