[Elite Screens] Evanesce Series

Description

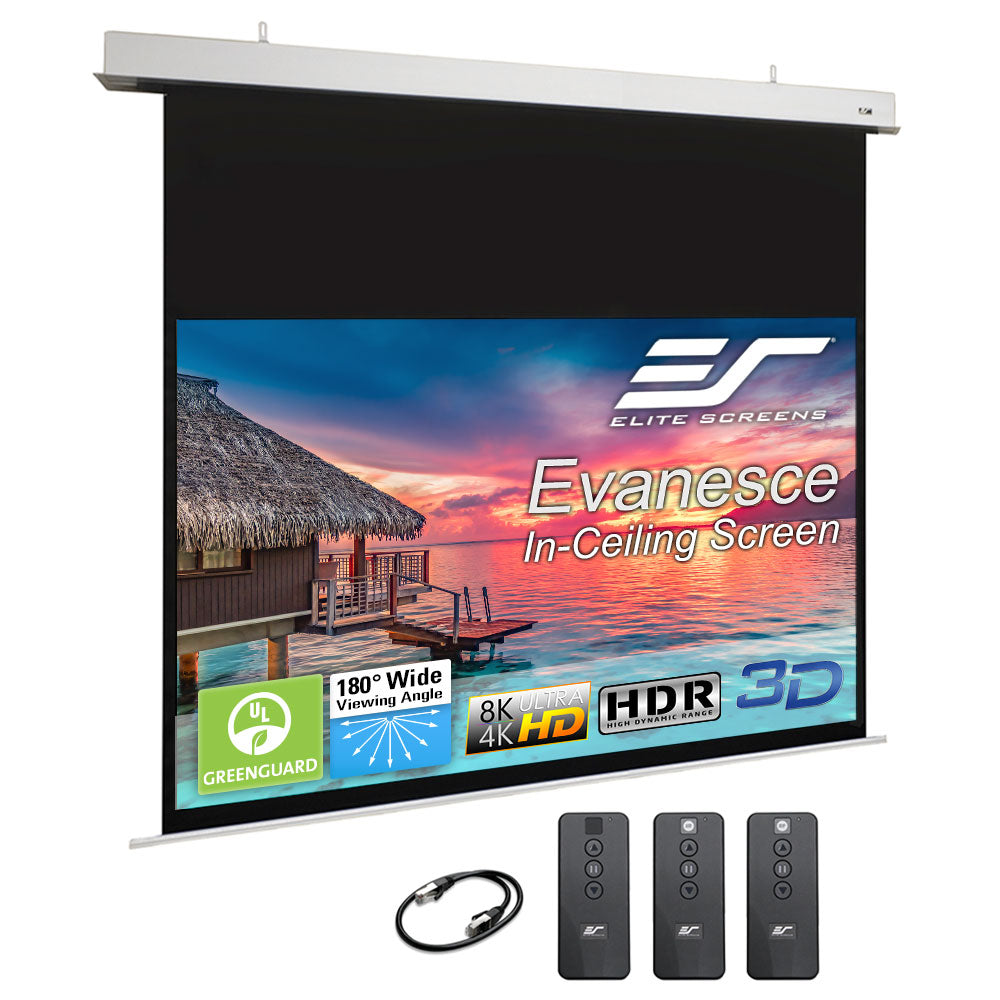

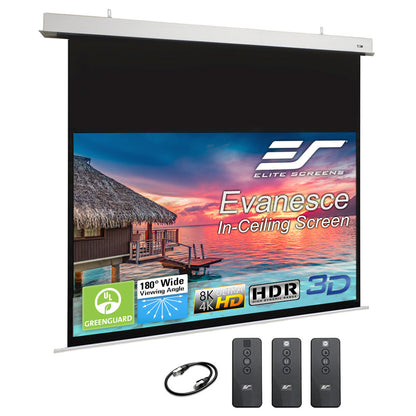

The Evanesce is a fully contained in-ceiling electric projection screen. It is encased in a white-enameled aluminum housing for convenient installation. Control package includes Infrared & Radio Frequency remote controls along with a wall box controller and 12-volt trigger capability.

Product Features

Screen Material

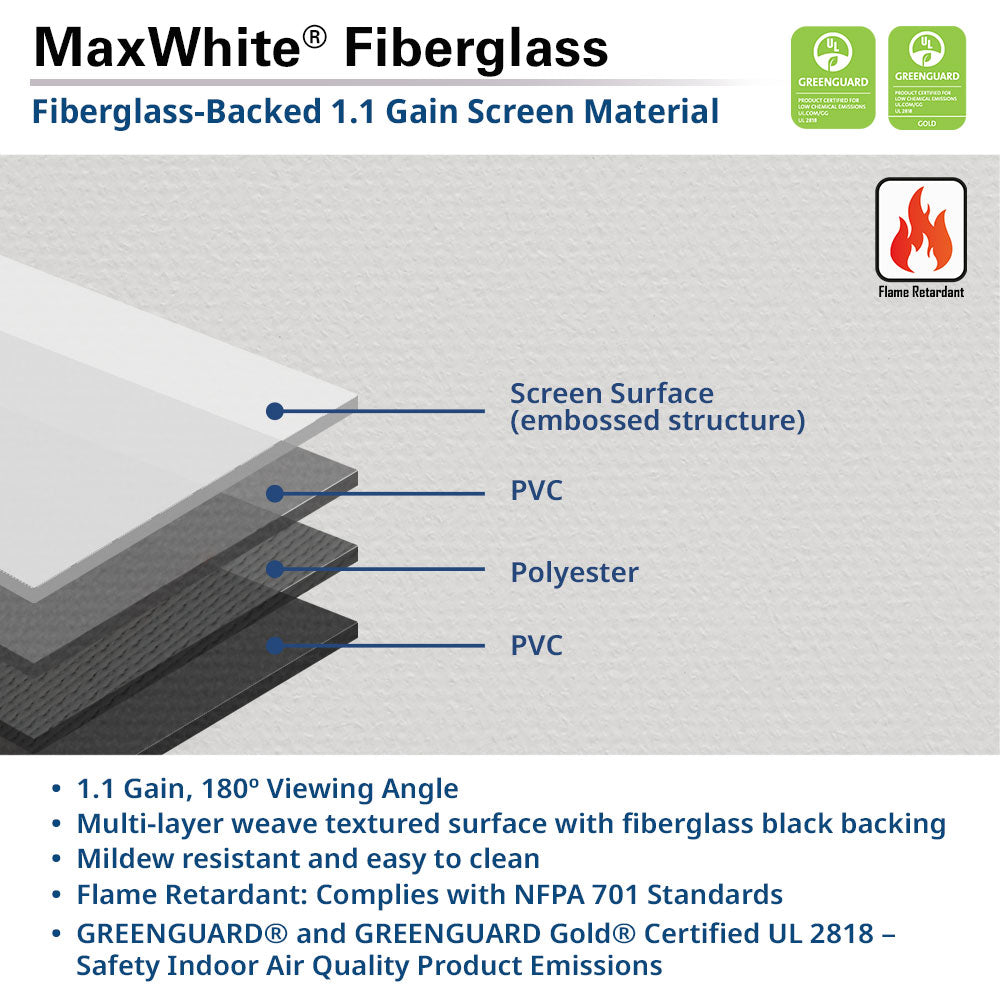

• MaxWhite® Fiberglass (FG) 1.1 Gain black backed matte white screen material
• 180° wide-viewing angle for commercial and residential presentations
• Not compatible with Ultra/Short-throw Projectors
• Black masking borders enhance picture contrast
• 4K Ultra HD, Active 3D, and HDR Ready
• Durable and easy to clean surface
• Available in the following diagonal sizes:

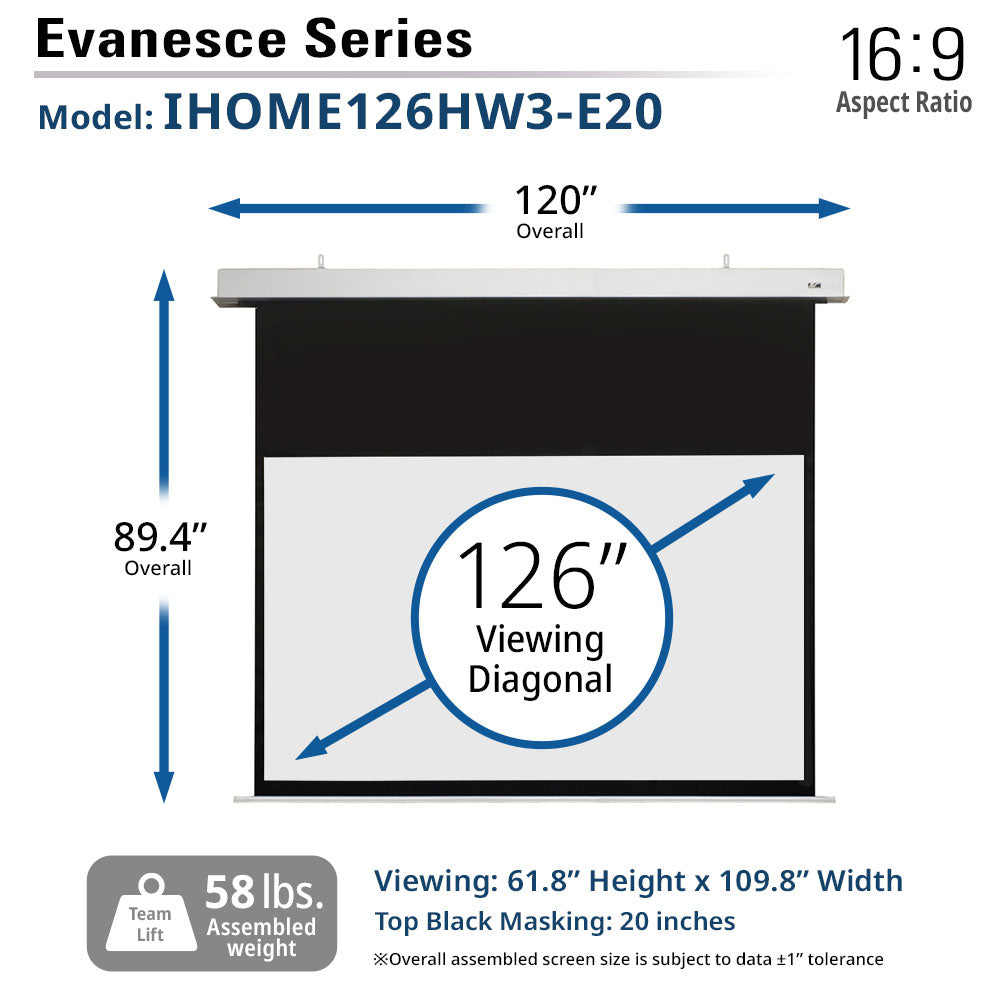

  • 106″, 112″, and 126″ in 16:9 format

Design and Installation

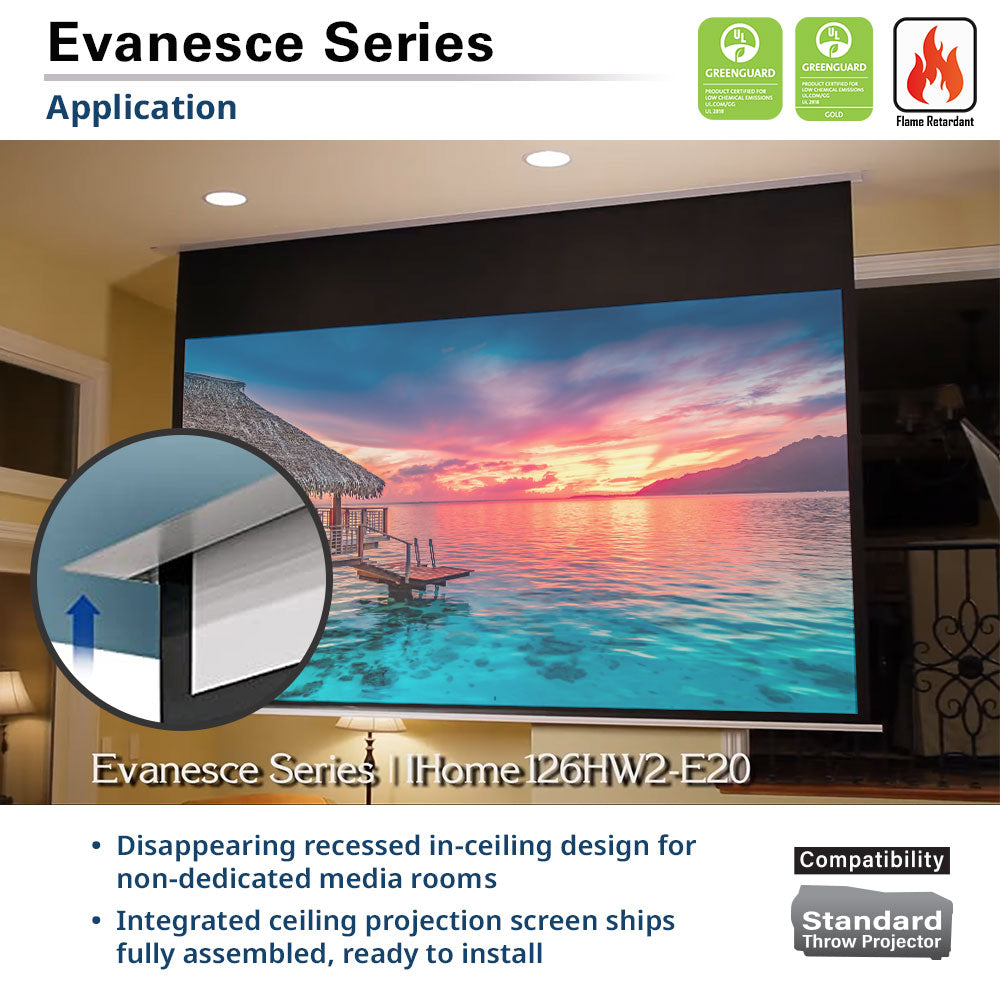

• Disappearing recessed in-ceiling design for non-dedicated media rooms

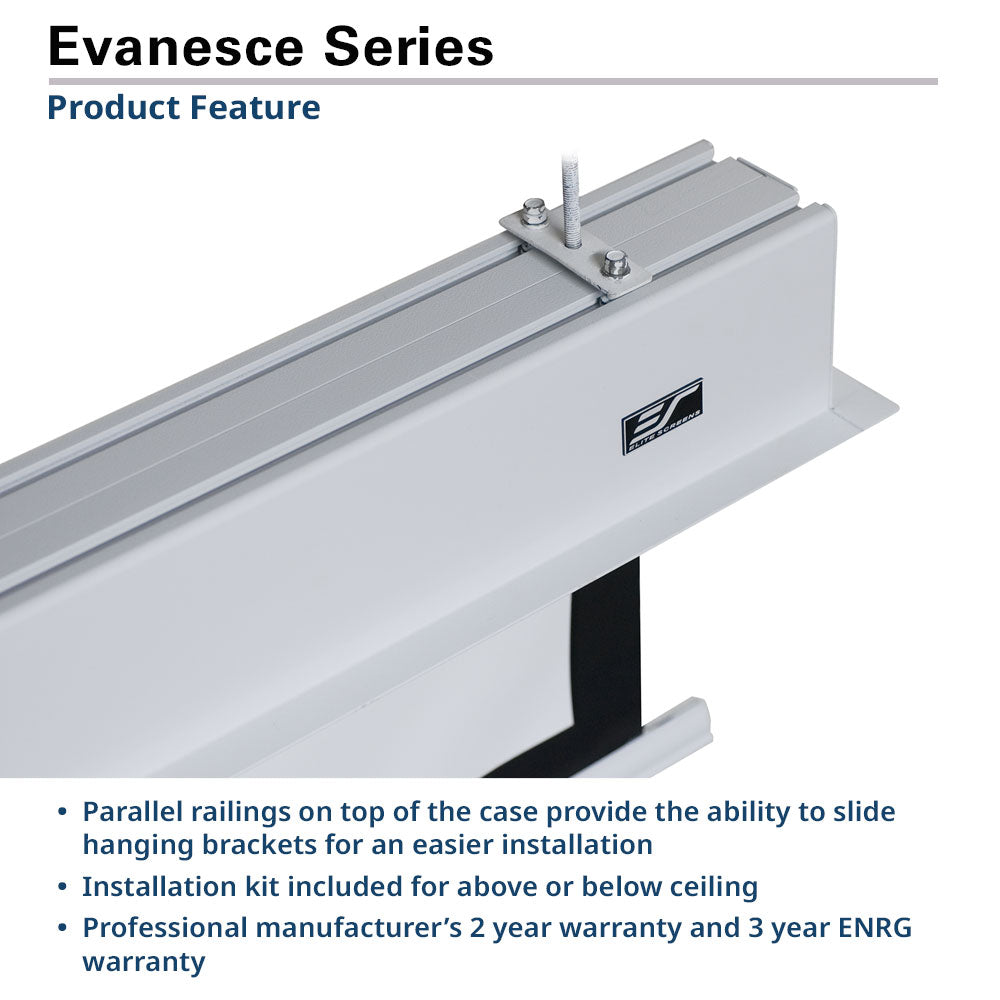

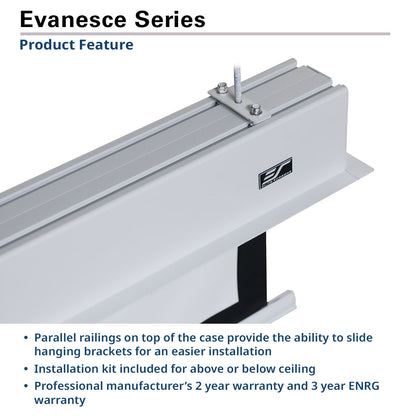

• Below and above ceiling access installation design
• Integrated ceiling projection screen ships fully assembled, ready to install

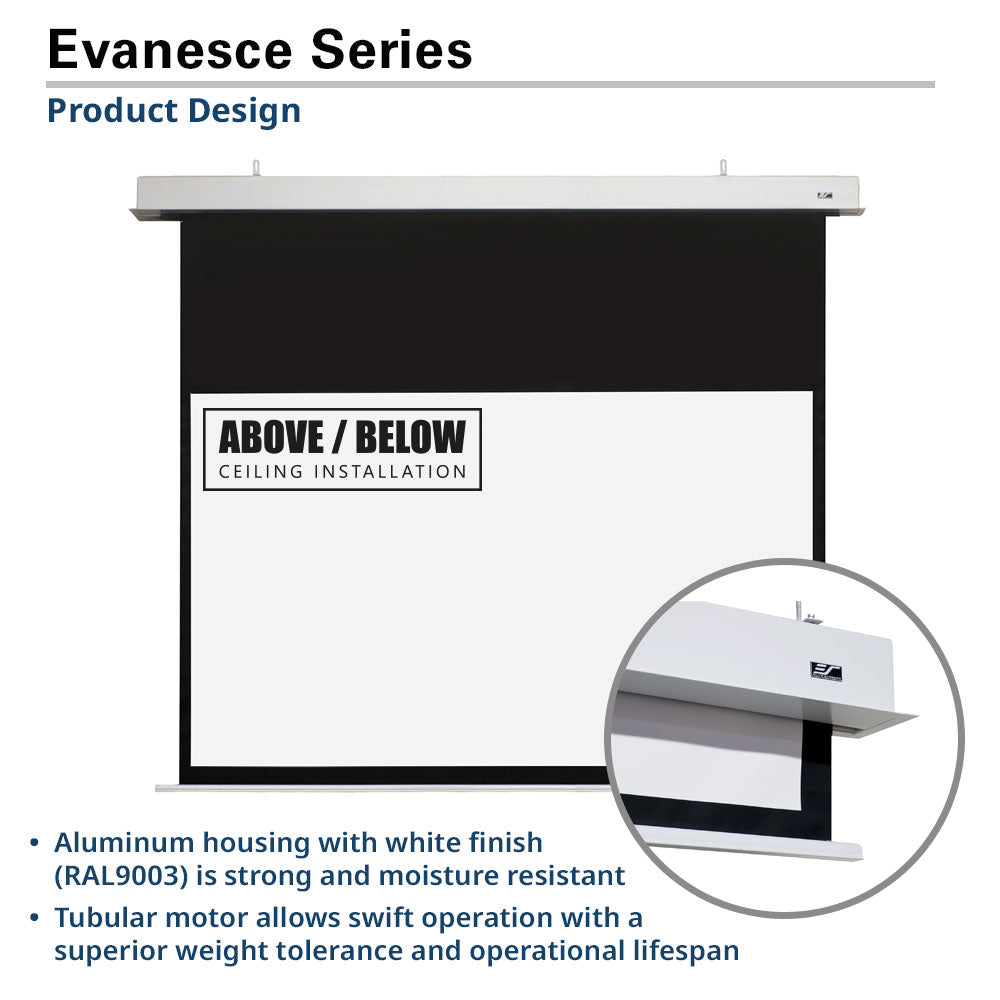

• Aluminum housing with white finish (RAL9003) is strong and moisture resistant
• Installation kit included

Control System

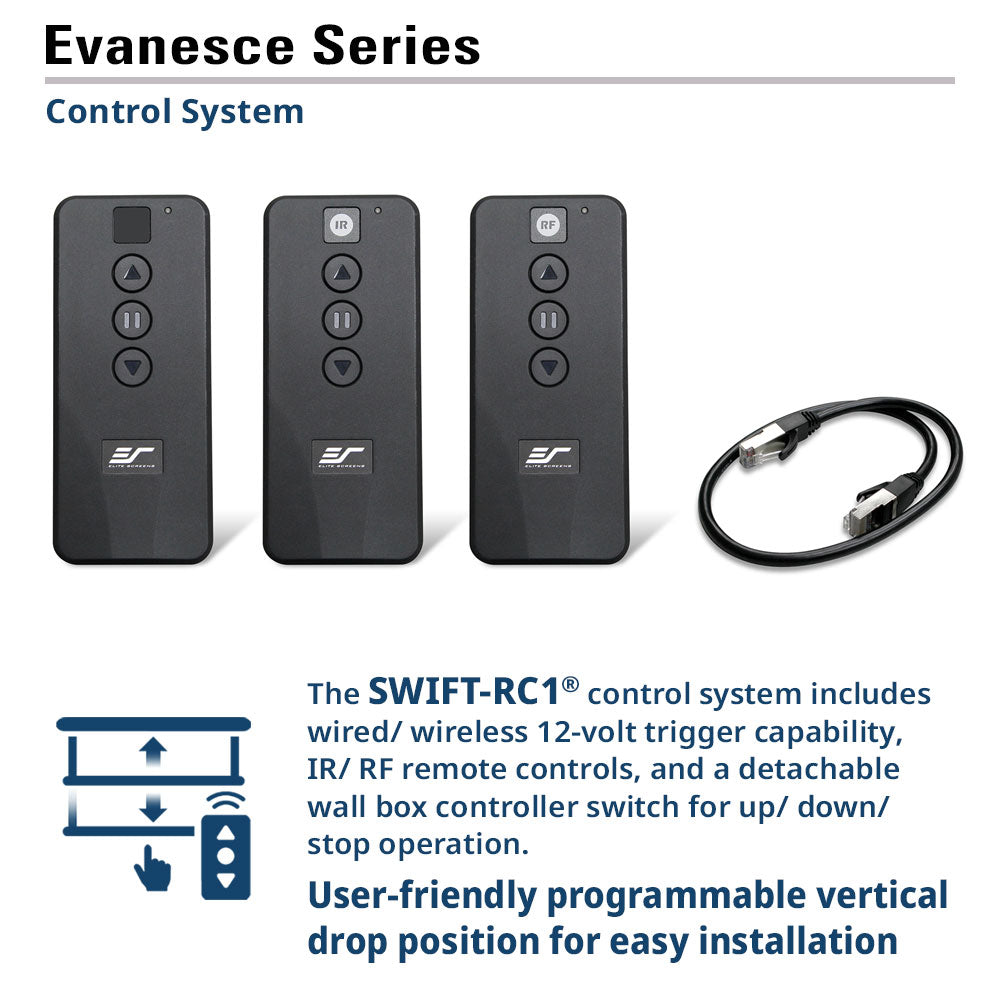

• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation (SWIFT-RC1 Version Only)
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference (SWIFT-RC1 Version Only)
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
  • Wired 12v trigger capability via wall box controller (SWIFT-RC1 Version Only)
  • Wireless 12v trigger capability via Radio Frequency remote control

Quality and Reliability

• Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
• ETL, FCC, CE, CB GOSTCE & ISO9001:2008 Certified
• Flame Retardant: Complies with NFPA 701 Standards (MaxWhite™ FG & AcousticPro UHD)
• GREENGUARD® and GREENGUARD® Gold Certified UL | 2818
• Conforms to UL 2043 – Plenum Rated: Suitable for air-handling spaces
• 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
• Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.

Downloads

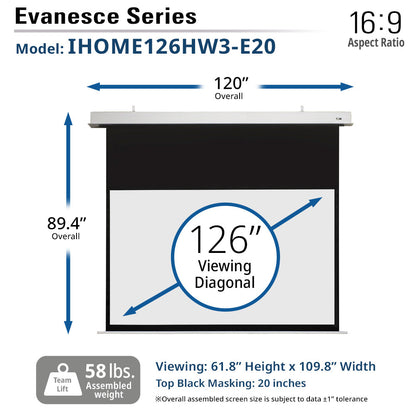

Dimensions Tables

• Dimensions Table- Above Ceiling (PDF)
• Dimensions Table- Below Ceiling (PDF)
• Dimensions Table RC1 – Above Ceiling (PDF)
• Dimensions Table RC1 – Below Ceiling (PDF)
• Packaging Dimensions Table (PDF)

User Guides

• User Guide (PDF)
• User Guide – RC1 (PDF)

Others

• MaxWhite® FG Material Sheet (PDF)
• Screen Material Care Sheet
• UL2818 GreenGuard Certificate
• UL2818 GreenGuard Gold Certificate
• Electric Screens Accessories Chart
• Product Cut Sheet (PDF)
• Comparison Table (PDF)
