[Elite Screens] Aeon CineGrey 5D | ALR/CLR EDGE FREE Fixed Frame Projection Screen, 100/110/123/165" in 16:9 Format

Name: [Elite Screens] Aeon CineGrey 5D | ALR/CLR EDGE FREE Fixed Frame Projection Screen, 100/110/123/165" in 16:9 Format
Rating: 4.54 (13 reviews)

A circular icon of a ceiling light fixture with radiating lines, commonly used as a placeholder or category icon.

• Screen Material : CineGrey 5D
• Gain : 1.1
• Viewing Angle : 70°

• Compatible Projection :

Standard Throw

• Best for Environments : High ambient light control rooms & dark rooms

Description

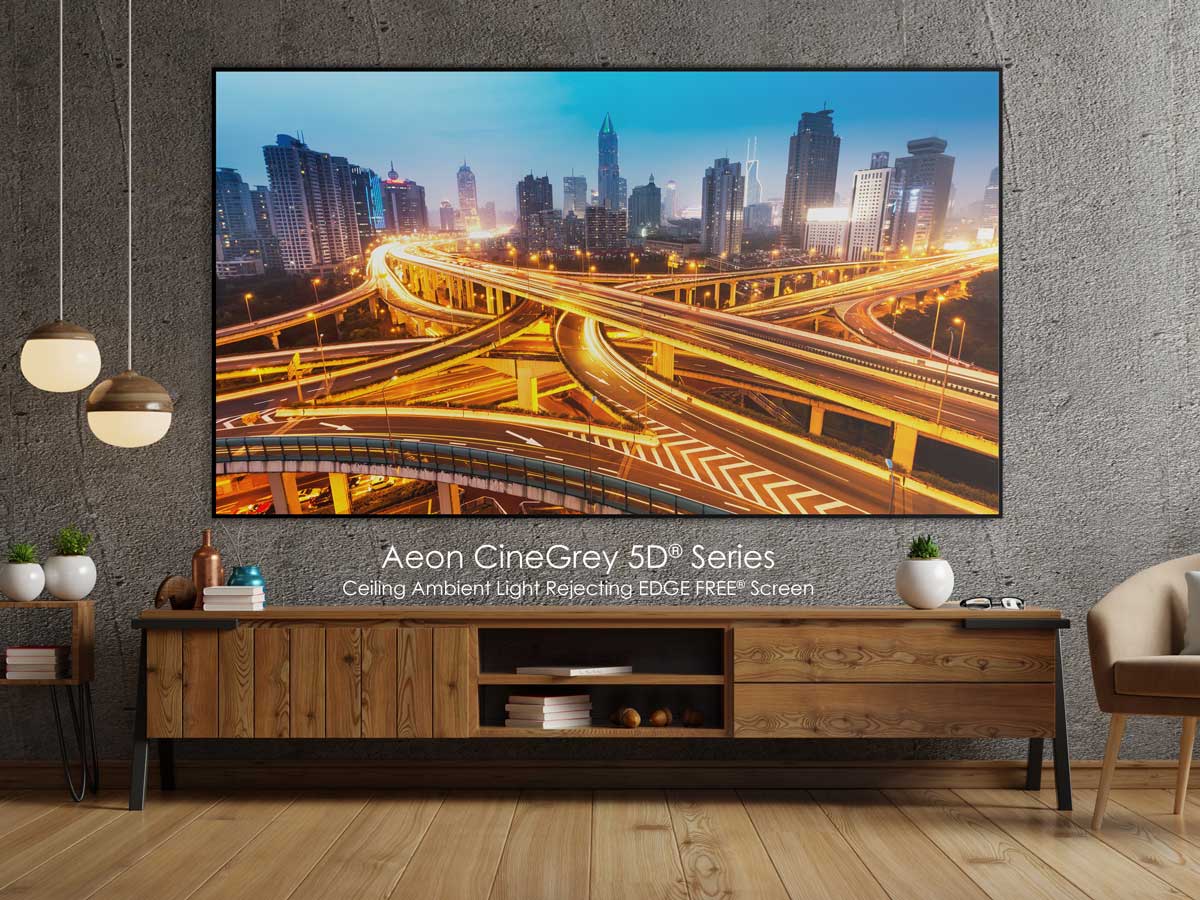

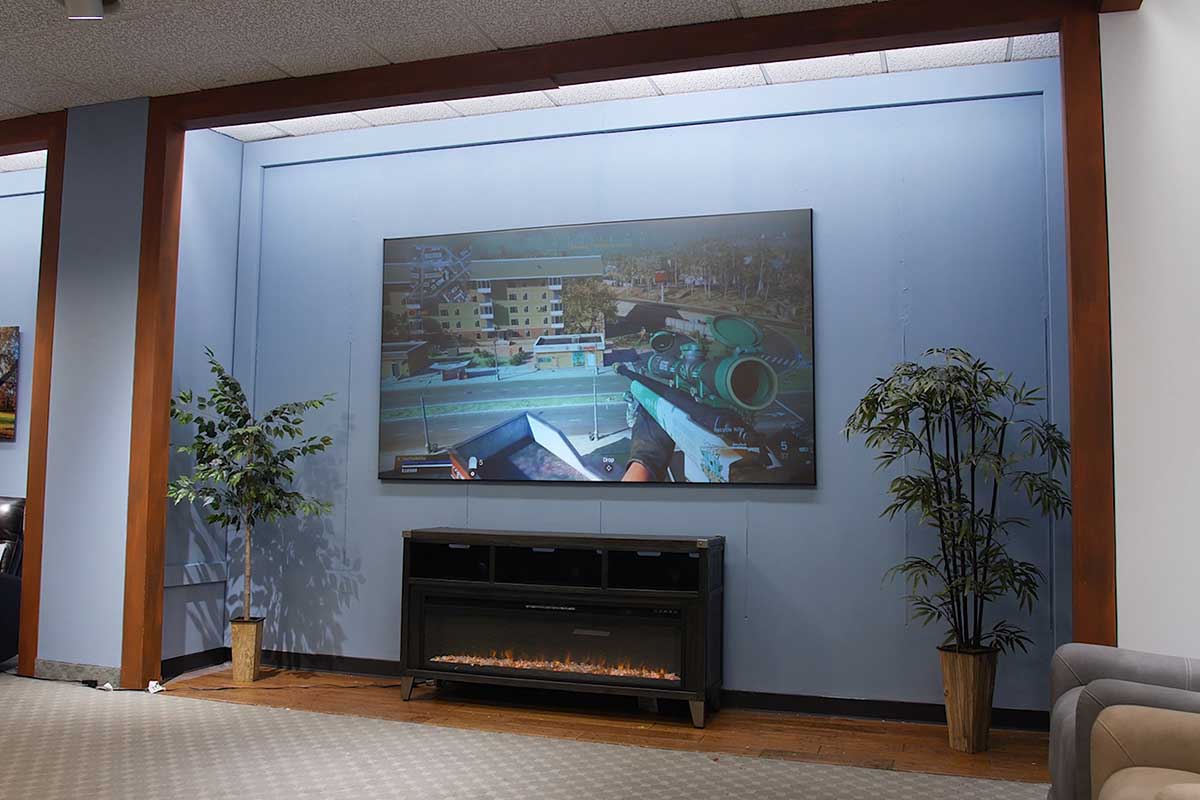

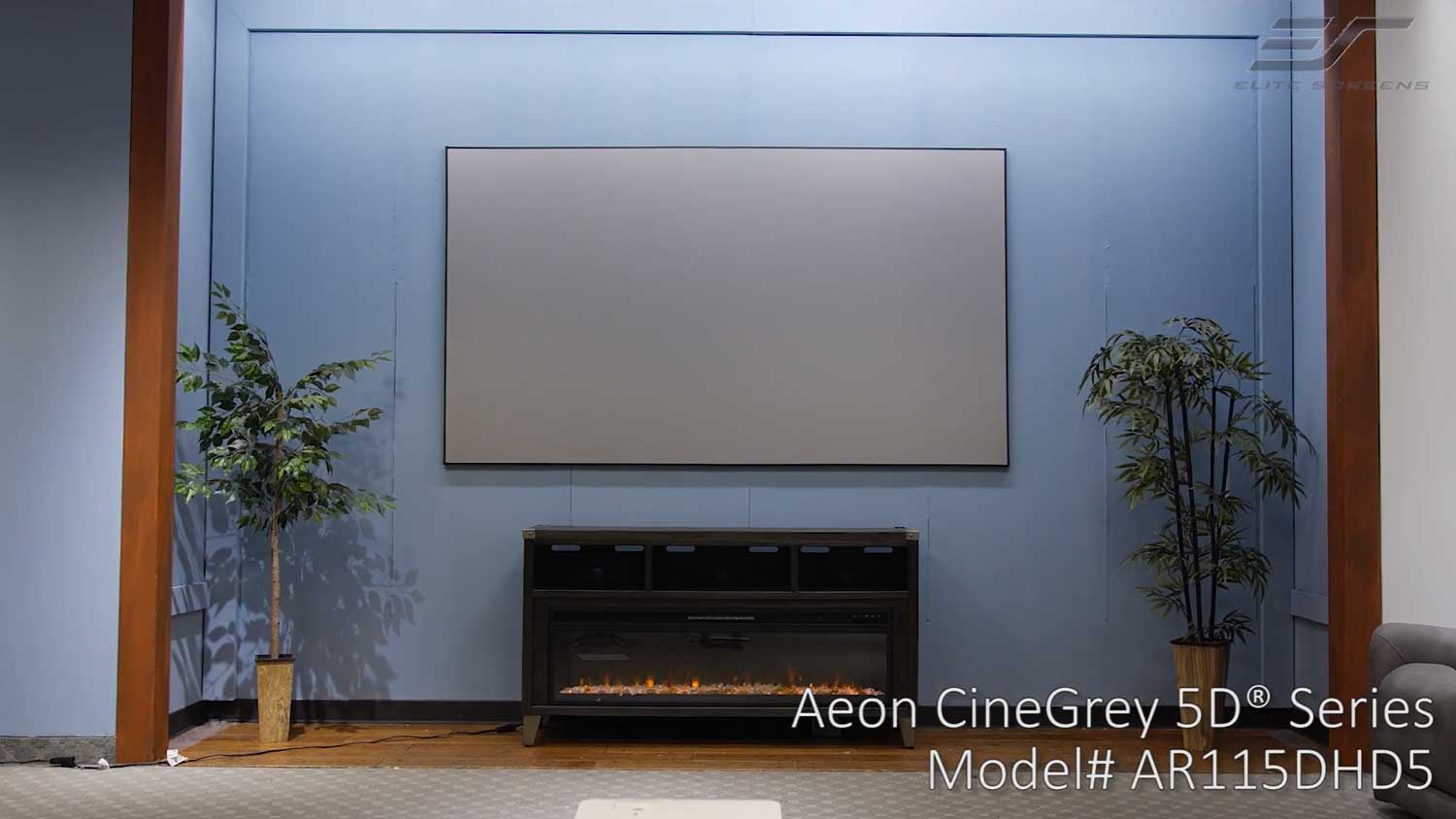

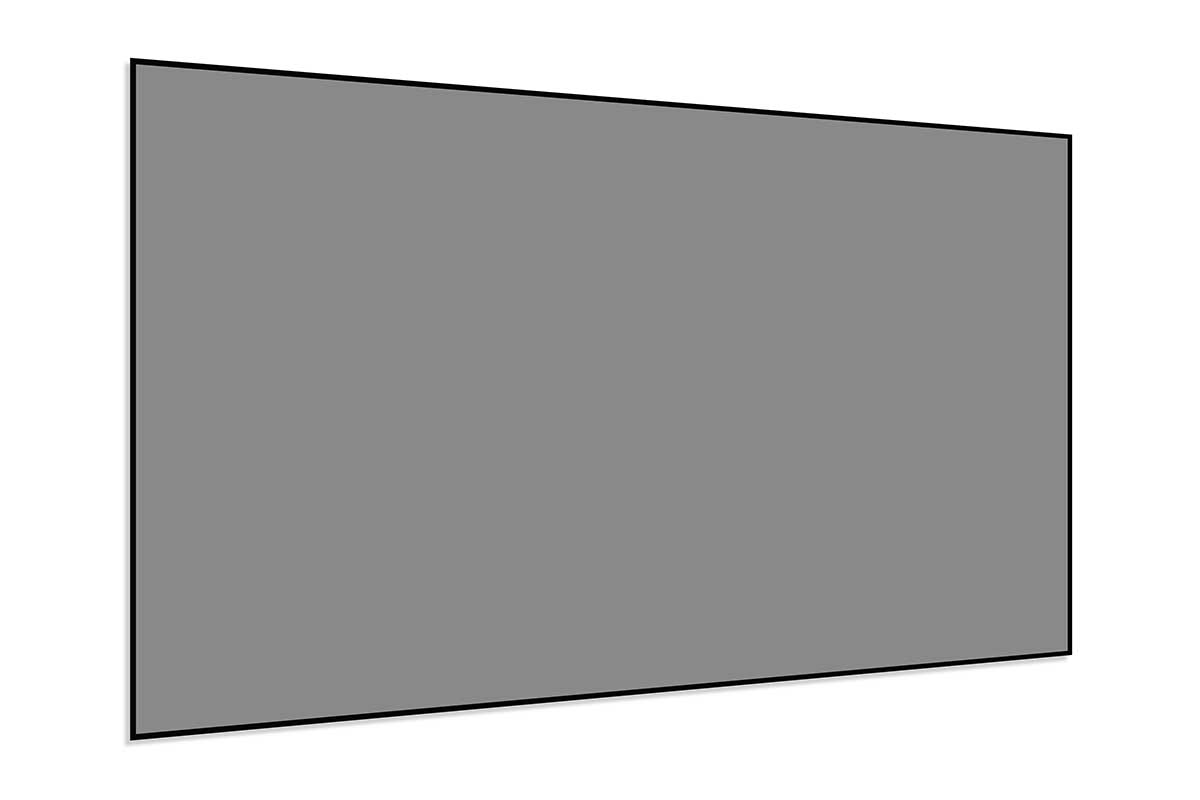

The Aeon CineGrey 5D is a ceiling ambient light rejecting fixed frame screen with an EDGE FREE design for a minimalistic appearance. The CineGrey 5D front projection material is the perfect solution for rooms that have little or no control over incidental light. It is an ideal fit for family rooms as well as lecture halls, boardrooms, sports bars, training facilities, and other business environments.

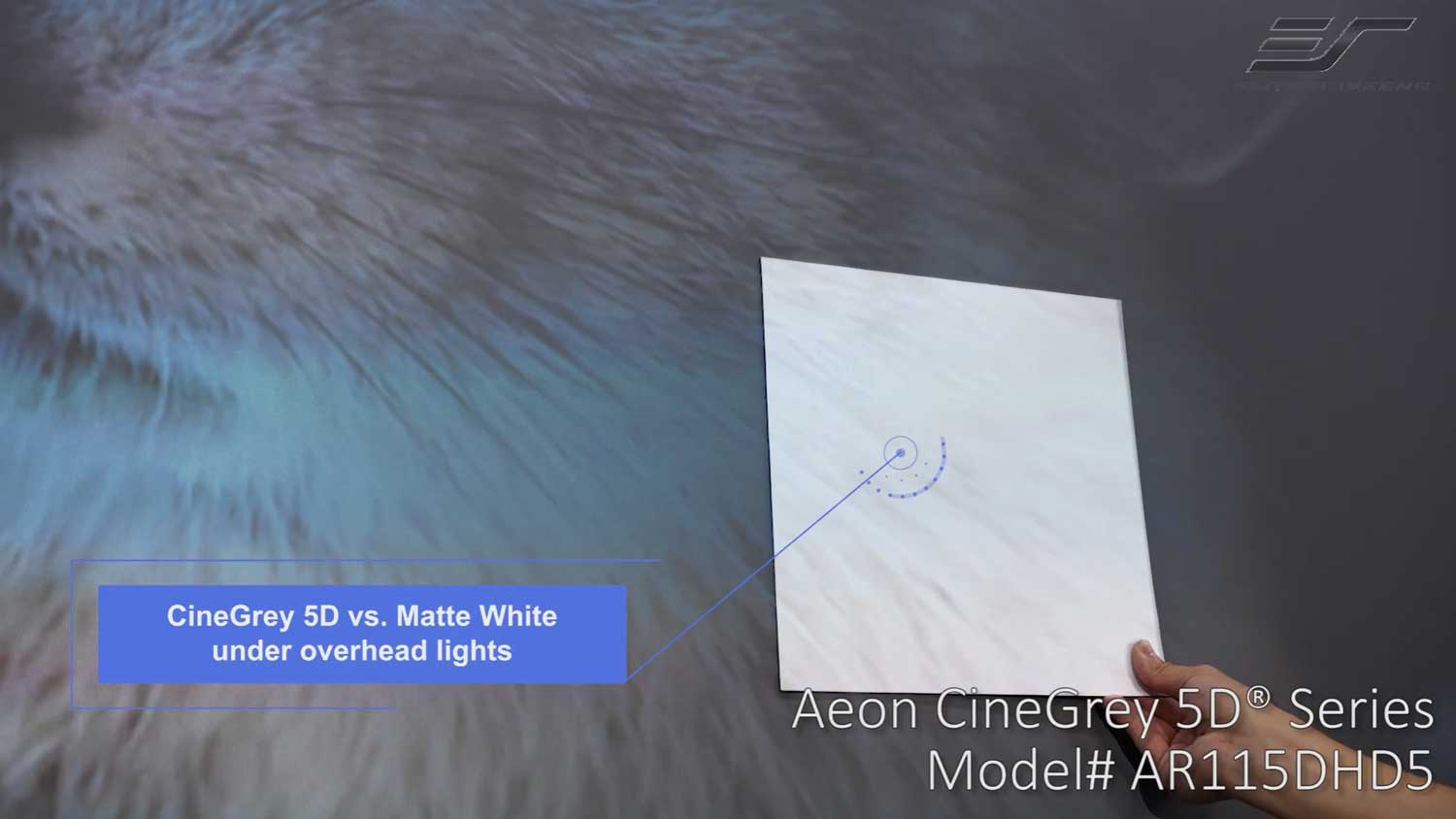

CineGrey 5D is superior to traditional white or gray materials in its ability to maintain a sharp, bright image regardless of ambient light. The angular reflective material incorporates a diffusion layer over a high reflective surface. This causes direct light from the projector to reflect squarely into the viewer's field of vision while the outer contrast layer enhances image quality while absorbing indirect ambient light.

Product Features

Screen Material

CineGrey 5D® 1.5 Gain ambient light rejecting front projection material
Angular-Reflective Material for standard “long” throw projectors (Not compatible with Ultra/Short-Throw Projectors)
Multi-matrix layer uses reflective and absorbent micro-particles to eliminate 75% ambient light
Directional Reflectivity angular reflective orientation brings image clarity into the viewer’s line of sight
High contrast material enhances color saturation and black levels for greater shadow detail
ISF Certified for accurate color reproduction – An industry standard for high fidelity video display systems
4K/8K Ultra HD, HDR compatible

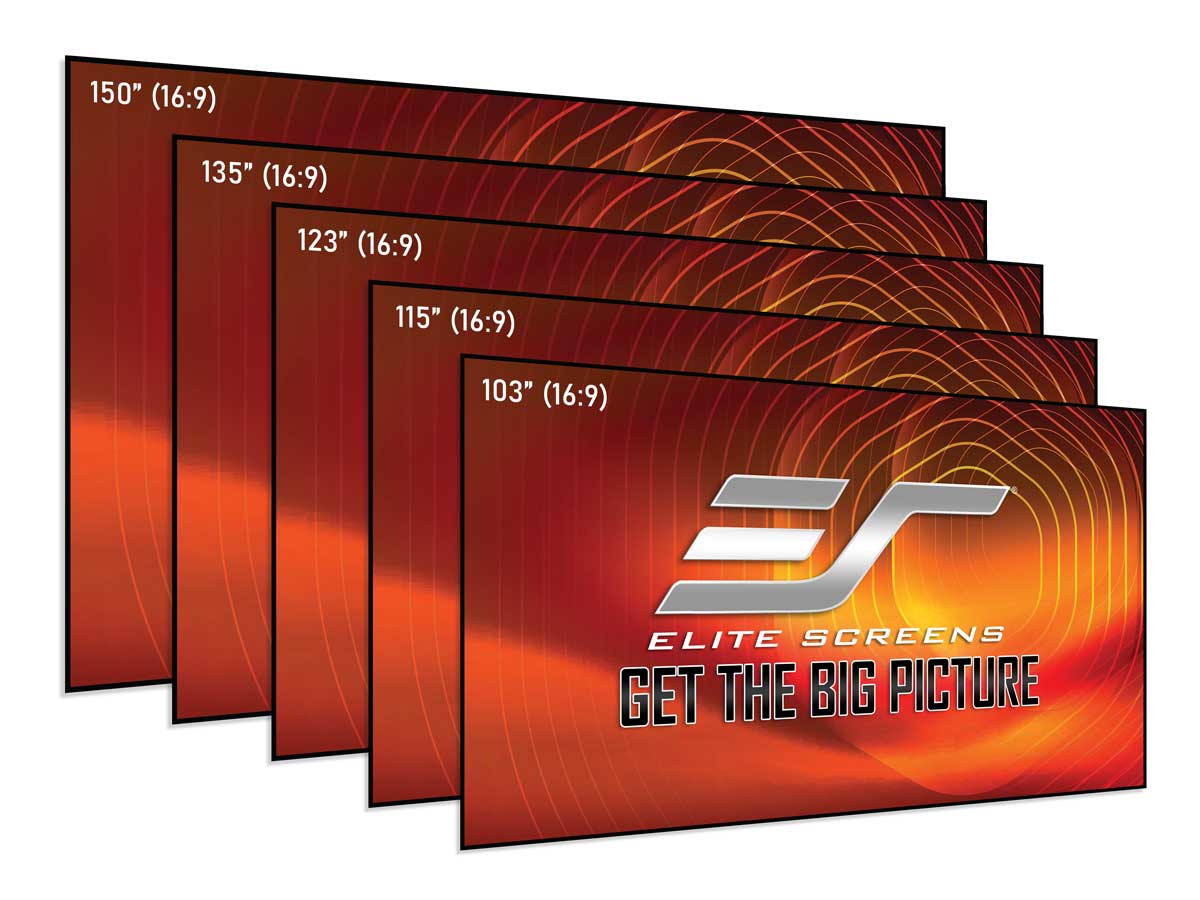

Available in diagonal sizes 115”, 123”, 128″, 135”, 150″ and 165” in 16:9 aspect ratio

Design and Installation

Sleek EDGE FREE® Fixed Frame design maximizes viewing area in a smaller footprint
Wrap-around material stretches over internal framework and is secured with springs for a tight-tensioned flat projection surface

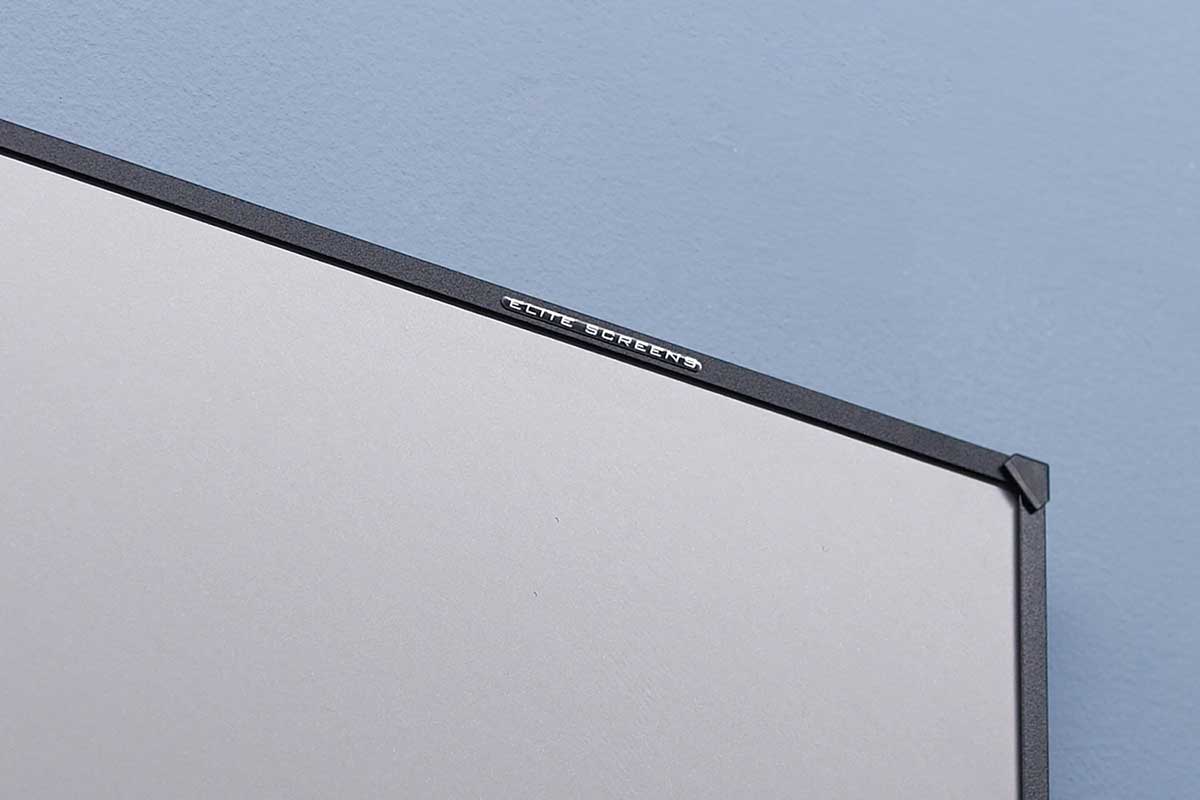

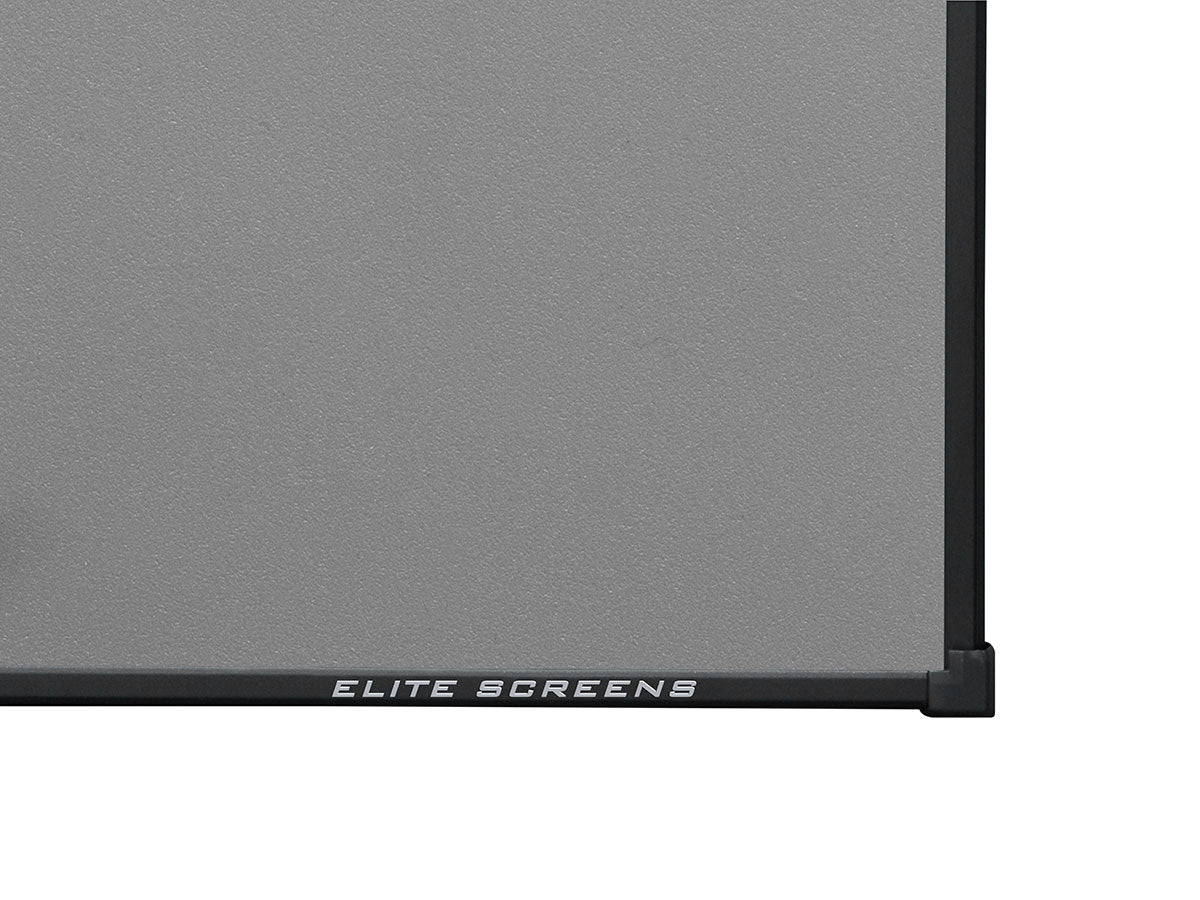

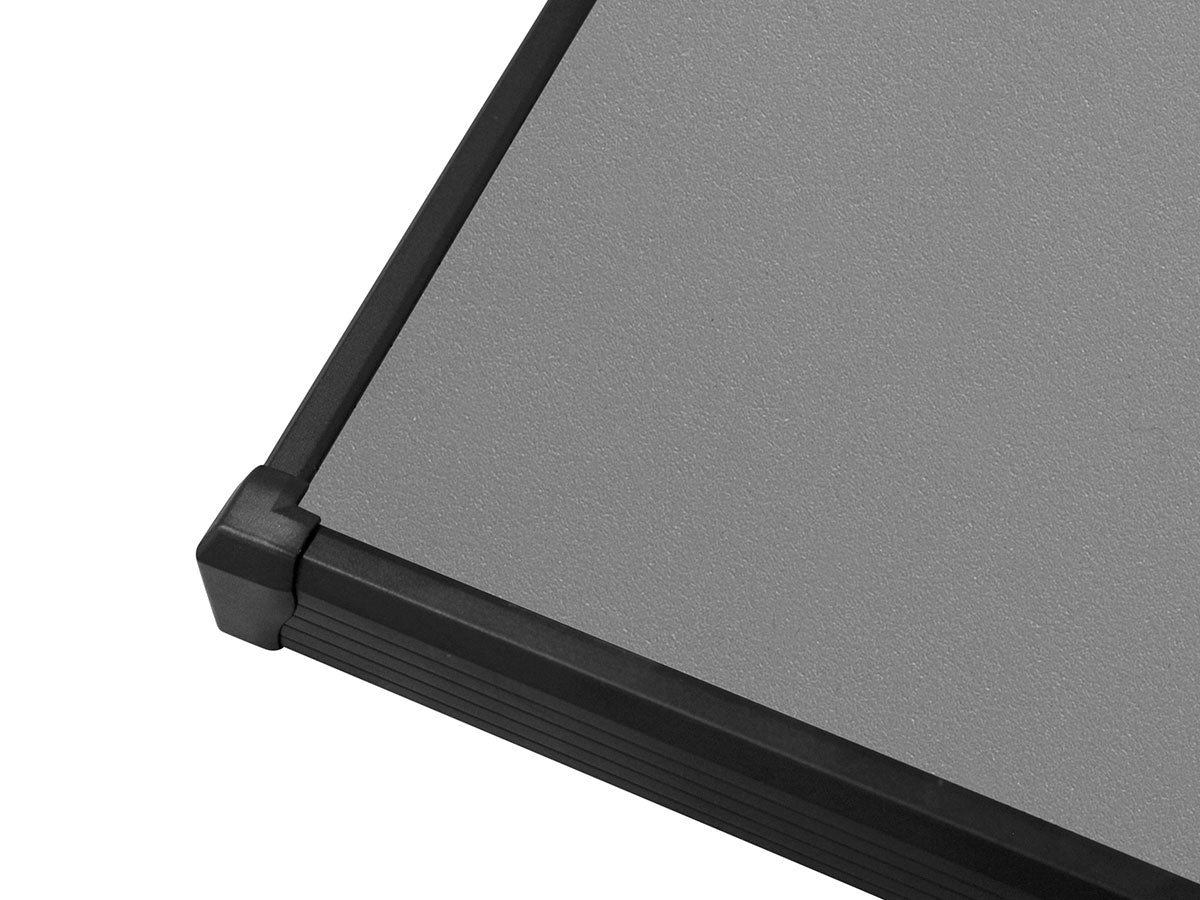

Ultra-thin black aluminum bezel trim resembles a flat panel TV
Lightweight aluminum split-frame design facilitates shipping
Sliding wall mounting brackets allow horizontal movement of screen to ensure precision on-axis alignment and permits wood stud installation
Optional LED kit available – sold separately

Quality and Reliability

GREENGUARD® / GREENGUARD® Gold UL 2818 Certified for Safety Indoor Emissions free
Flame Retardant – Complies with NFPA 701 Standards
2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.

Downloads

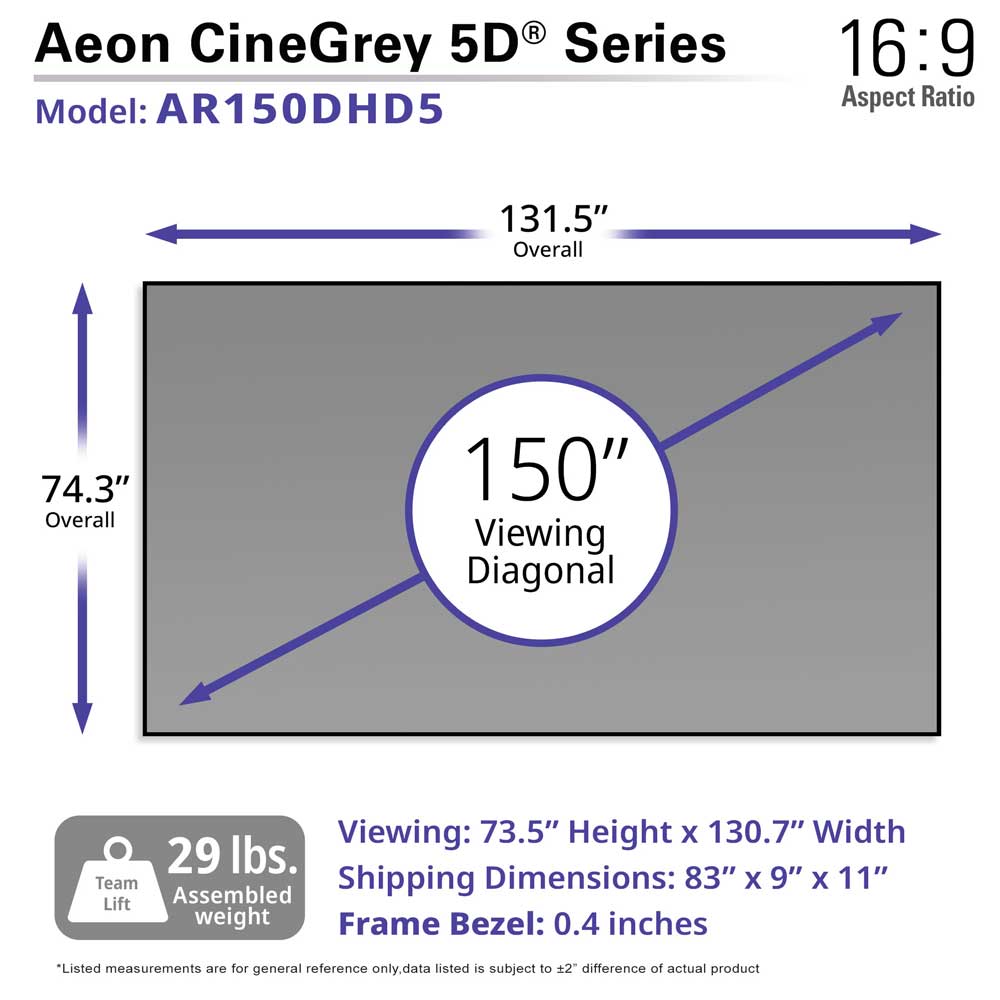

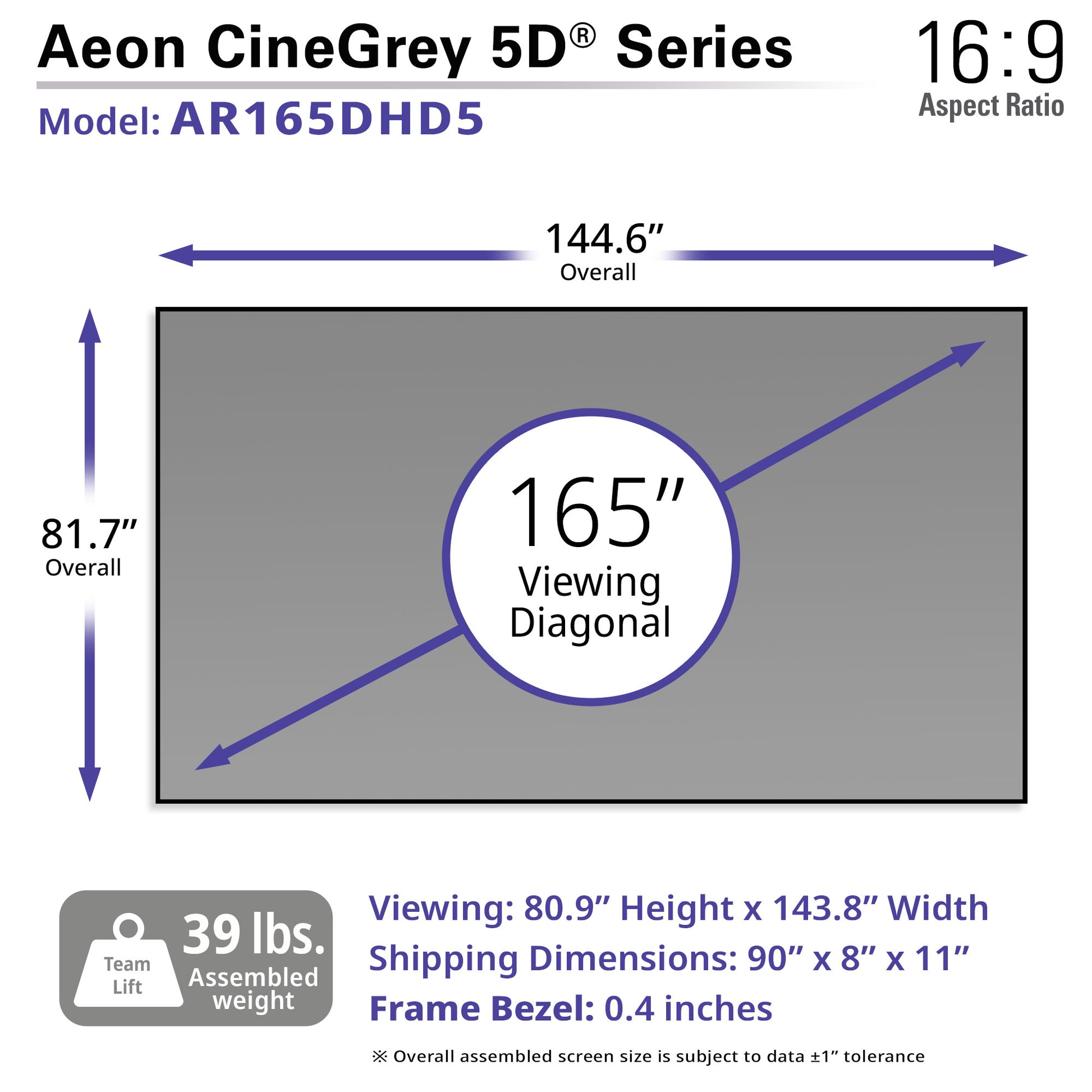

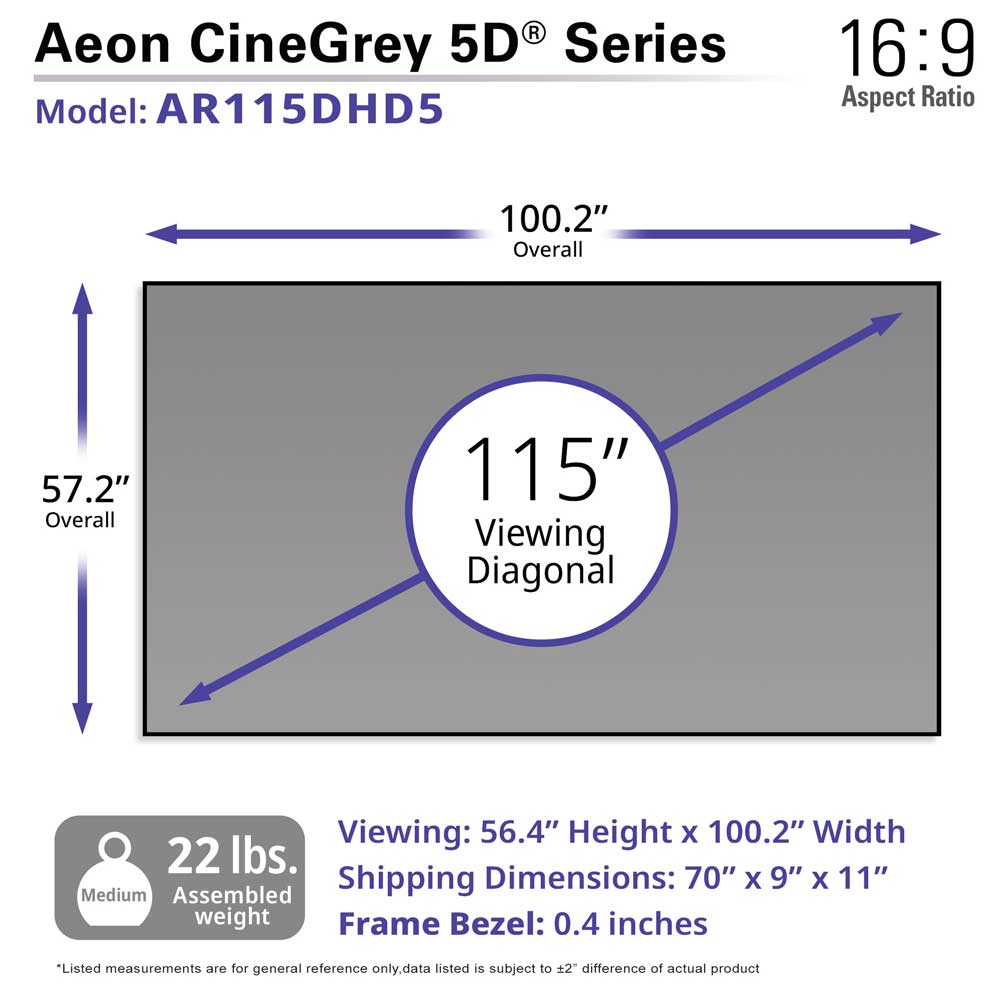

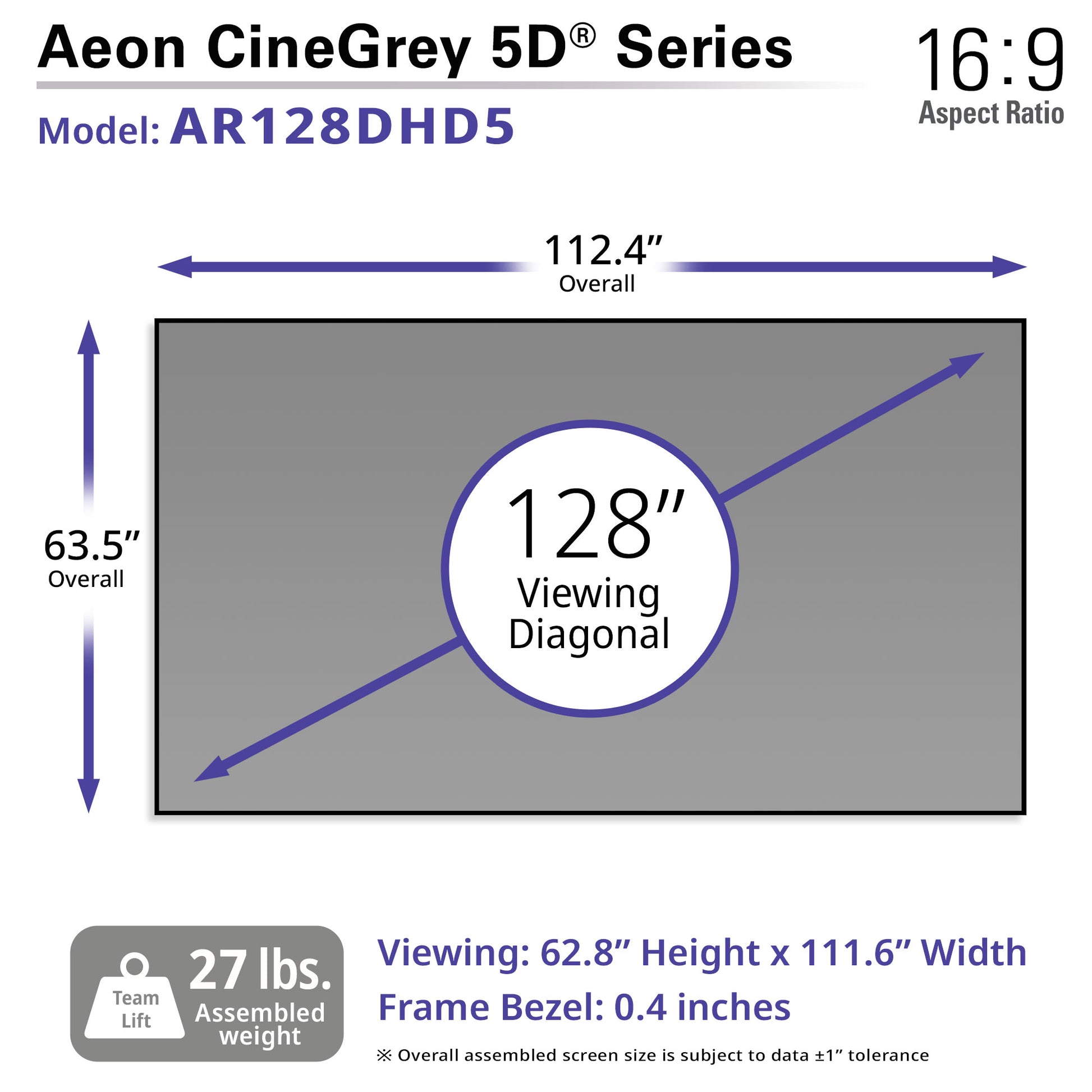

Dimensions Tables

User Guides

User Guide (PDF)

Comparison Tables

Other

Shipping & Returns

📝 Our Shipping & Return Policy

📩 Request a Shipping Quote (AK, HI, PR and Canada)

Purchase Orders for GROUND shipping service received by 5:00 PM (PST) are processed to be shipped from Elite’s warehouse within 2-5 business days. You will receive an email confirmation when your order has shipped.
All orders are fulfilled Monday through Friday, excluding weekends and holidays. We are not responsible for unexpected shipping delays caused by circumstances related to the courier, weather or state of emergency.
Oversize Shipping : If your order is shipped via Pilot Freight Services, they will contact you to schedule a delivery.

$699.00 USD

Sale Sold out

Free Shipping To The Continental U.S 48 States | Shipping Policy

SKU:AR100DHD5

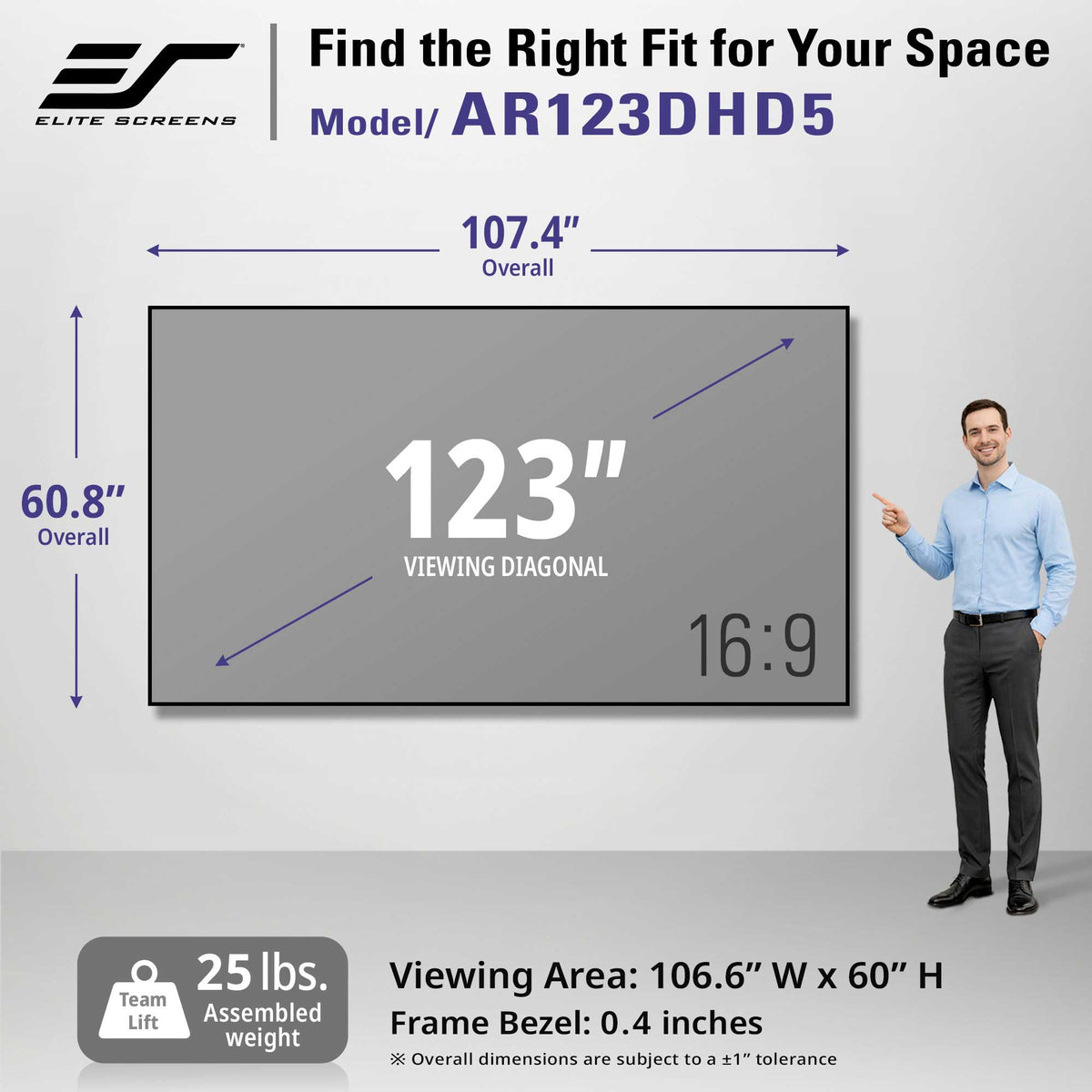

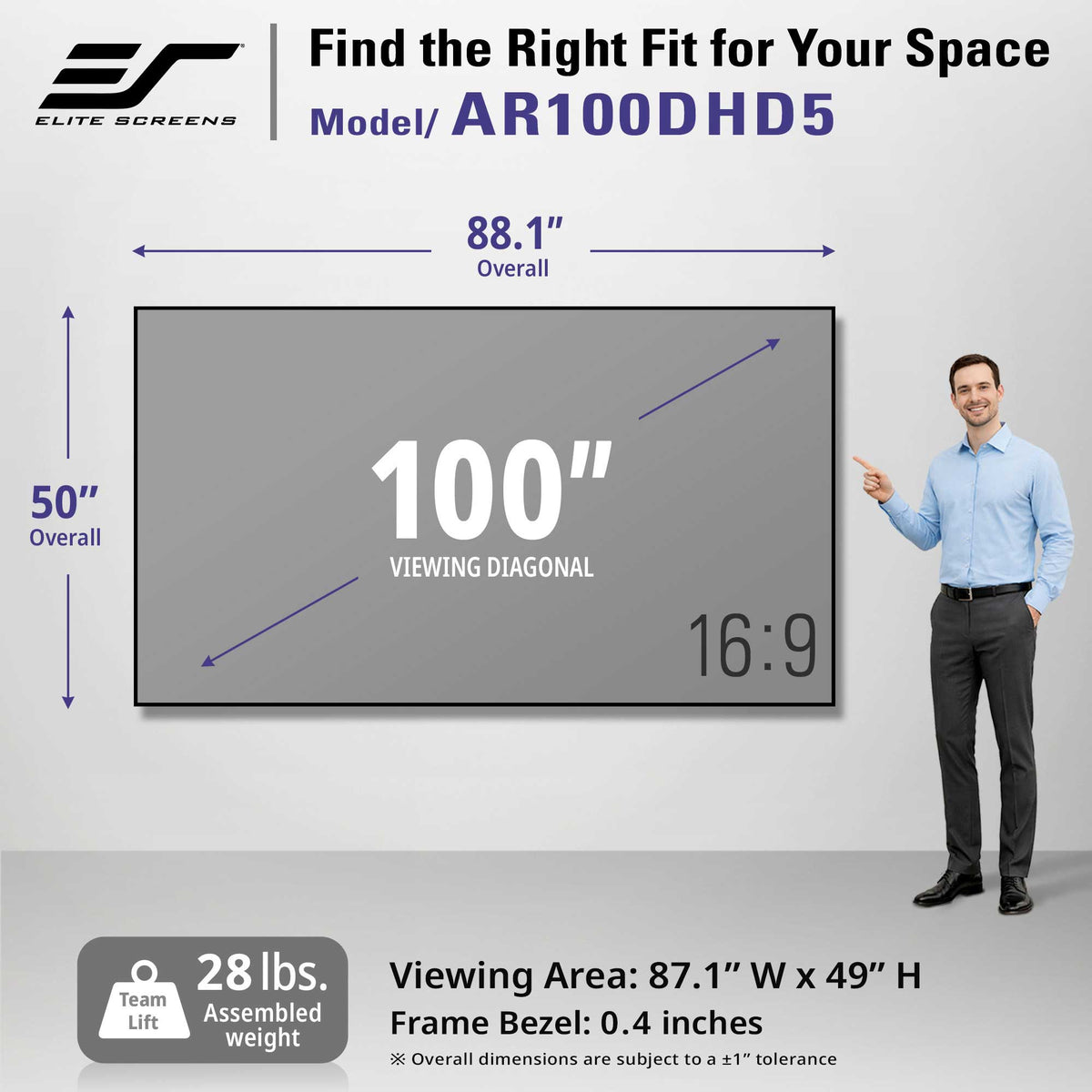

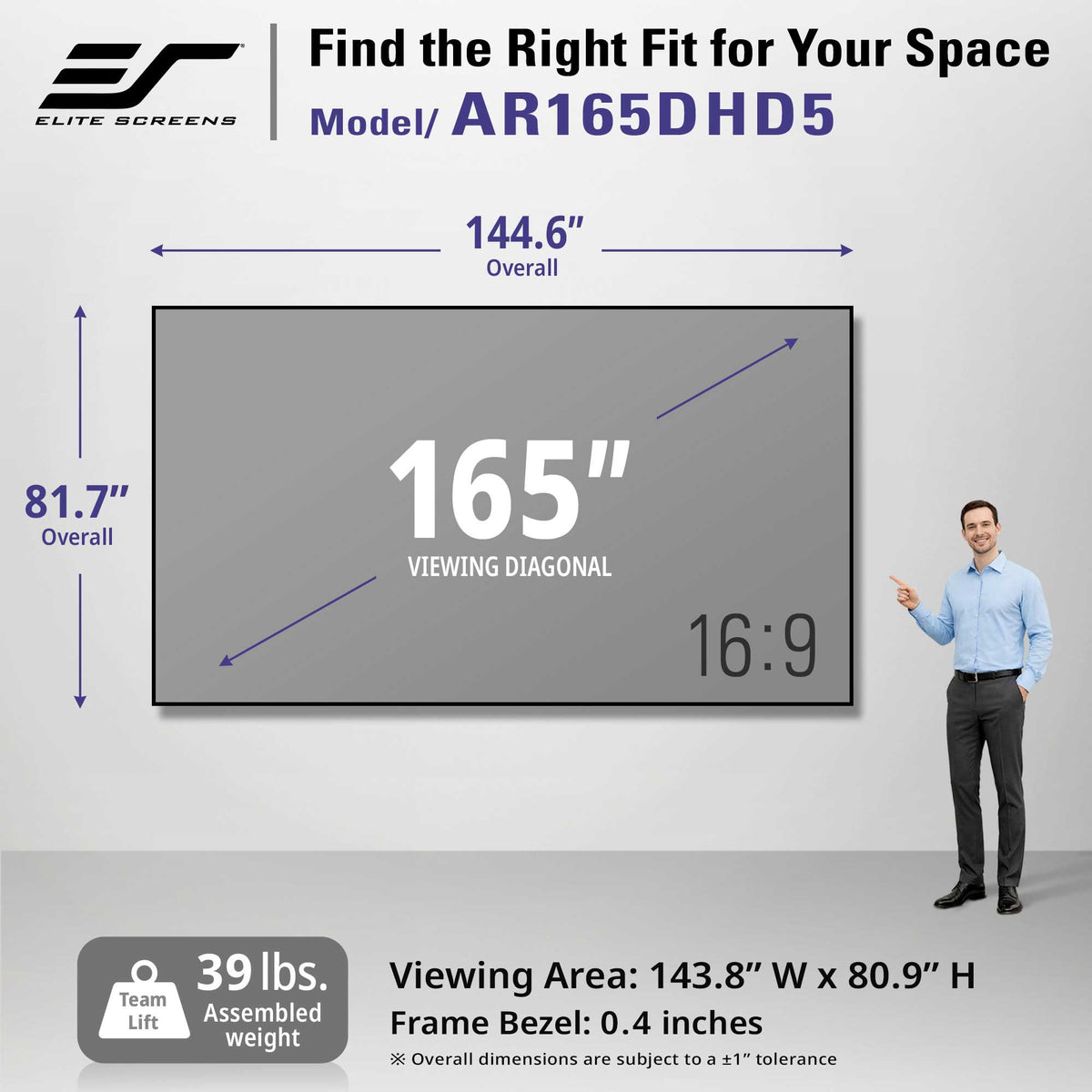

Size 100" (16:9) 110" (16:9) 123" (16:9) 165" (16:9)

Screen Material Information

Screen Material Name	CineGrey 5D®
Description	The CineGrey 5D® is a front projection material designed to reject ambient light while maintaining superb picture quality. It's an ideal fit for rooms that have little or no control over incidental light and allows projector to reflect more light towards the viewer.
Type of material	Silver/Gray (PVC flexible)
Reflective technology type	Angular-Reflective
Ambient Light Rejecting	Yes (up to 75%)
Gain	1.5
Viewing Angle	80°
Minimum Throw	1.5 x Image Width
Black backing	No
3D Ready	Active/Passive
Polarized for Passive 3D	Yes
4K/8K Ultra HD Ready	Yes
Projection Type	Front
Ultra/Short-throw projector compatible	No
Best for environments	High ambient light control rooms and dark rooms
Recommended for	Excellent black level performance and accurate color reproduction, especially in dark rooms. Preserves color purity in high ceiling ambient light rooms.
GREENGUARD Certified	Yes
Flame Retardant	Yes, Complies with NFPA 701
ISF Certified	Yes

5 stars: 9 (69%)
4 stars: 3 (23%)
3 stars: 0 (0%)
2 stars: 1 (8%)
1 star: 0 (0%)

Enables Daylight Viewing

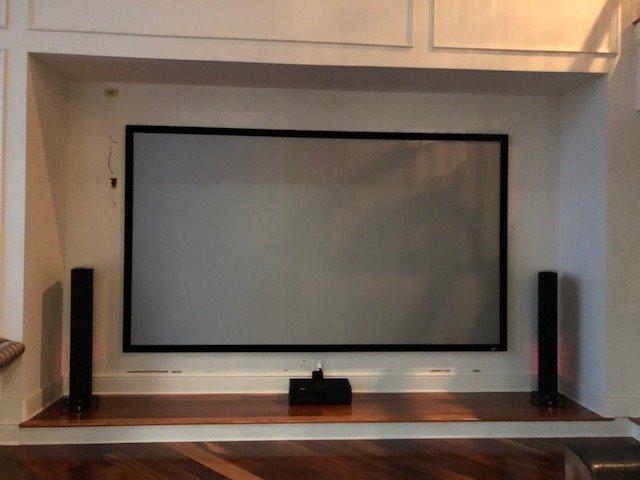

The R150DHD5 is installed in my Family Room, with a lot of windows. It is in an alcove that is approx. 24" deep. I can now use this screen during the day. At night the picture is sharp and vivid. It looks "picture perfect". This is my second CineGrey screen. The other CineGrey is installed in my bedroom and is a AR120DHD3 and is also perfect

less speckle than fire hawk sample and maybe better rounded than black diamond.

After buying and using it with mad light I have come to realize that the other screens that compete with it or literally just 500% Markup....I've gotten samples of BD and Firehawk....this seems to combine side and top ambient light rejection. (Incase you don't know the BD handles above lighte while the Firehawk handles side light)there are 0 viewing angle considerations as well.On a negative you will get a slight hot spot about 1 foot square- the same thing with any angular materials including the Black Diamond 1.4, the Firehawk G4 is 1.1 gain so it doesn't have a hot spot actually but it has a little speckles so pick your poison.I think this screen is no better or worse than those two. All 3 amazing just priced differently. Assembly and frame quality is obviously less with the elite but once it's up its the same difference.

Nice screen tough to put the screen on the frame

Nice screen tough to put the screen on the frame. Takes a lot of work. Best done with at least two people. Happy with the final product !

Excellent and affordable ALR screen!

This Screen is simply wonderful! I couldn't say enough about it's performance so I decided to post a short video. In the dark this screen is just as impressive. If you place the projector at even level with the top of the screen and at 1.6x the screen width the hot spot effect is minimal. So in short I'd recommend this screen to anyone!

Came in with creases in screen.

The unit came rolled up and when I unrolled the screen and stretched it you could see creases running from top to bottom all the way across. Wish I had never bought it.

Love the curved screen

Love the curved screen. 4K Picture on the screen is awesome. I would definitely give the screen 5 STARS. But......Assembly was little difficult as the screen material needs to be really stretched and clamped. Probably it may be easier to do it with help. Mounting instructions / measurements to place the hinges to hang the screen is completely off in the provided manual. I had to remove the bottom hinges multiple times and manually place it to get a tight fit. Once the screen was mounted, it looked great aesthetically and the picture quality is fantastic.

Four Stars

Not very easy to put it together

Wasn't as easy as everyone described it (to put together)

Wasn't as easy as everyone described it (to put together), but is a great screen. I recommend this screen for anyone who wants a clear picture. Get a good projector. I got the SonyHW45ES and the picture quality is awesome :)
