Elite Screens

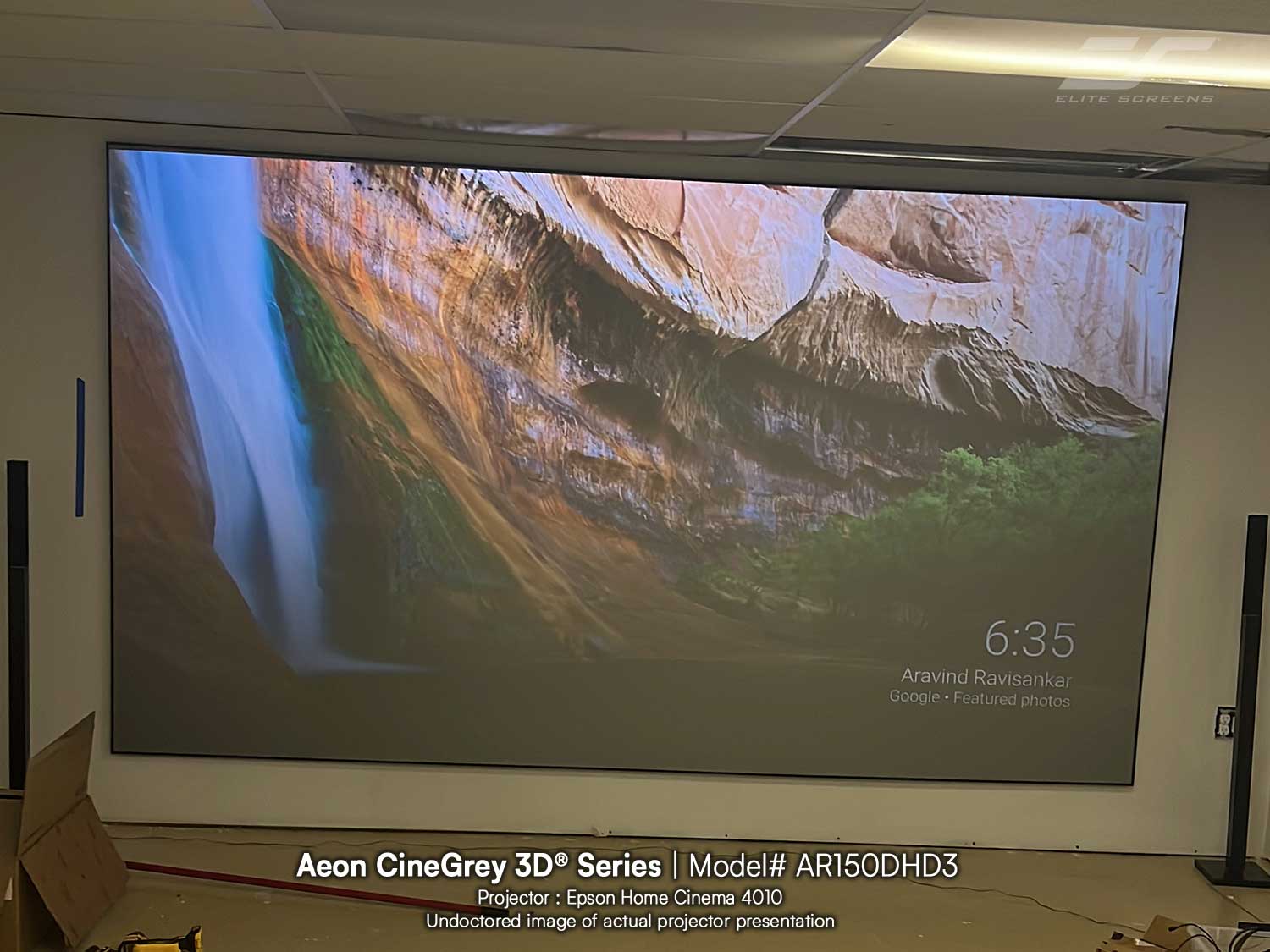

[Elite Screens] Aeon CineGrey 3D | ALR/CLR EDGE FREE Fixed Frame Projection Screen 158" in 16:9 Format

[Elite Screens] Aeon CineGrey 3D | ALR/CLR EDGE FREE Fixed Frame Projection Screen 158" in 16:9 Format

A black square logo with the lowercase letters 'usf' in white, with a small registered mark symbol at the top right.
NFPA logo with a black square background, white border, and red-and-orange flame emblem.
A GREENGUARD Certified
 logo with a leaf symbol inside.
A circular icon of a ceiling light fixture with radiating lines, commonly used as a placeholder or category icon.
A circular blue and red logo with white text reading 'TAA COMPLIANT'.
• Screen Material : CineGrey 3D
• Gain : 1.2
• Viewing Angle :  90°
• Compatible Projection :
Standard Throw
• Best for Environments : Moderate ambient light control rooms & dark rooms

Description

CineGrey 3D is  a reference quality front projection screen material formulated for environments with minimial control over room lighting. It was designed to enhance picture brightness, offer accurate color fidelity, and improve contrast levels. The CineGrey 3D is best for family rooms, educational facilities, conference rooms or any applications in which incident light is a factor. Typical matte white surfaces wash out the images when ambient light cannot be controlled. The CineGrey 3D is the best choice for having a projected image with a balanced color temperature and contrast under such conditions.

It provides a flat spectral response for an accurate color balance in dark room environments as well for reference quality applications. The CineGrey 3D is ready for the next-generation of high-performance video.

Product Features

Screen Material

  • ISF Certified for accurate color points, color temperature and dynamic range
  • 90 degree viewing angle with 1.2 Gain
  • Angular-reflective front projection material with ambient light rejecting technology
  • For Standard "Long" Throw Projectors. (NOT Compatible with Ultra/Short Throw Projectors)
  • Contrast enhancement over standard matte white surface
  • 4K Ultra HD, Active 3D, and HDR ready
  • Polarized for Passive 3D applications
  • Capable of improving brightness, color, and contrast under ambient light conditions
  • Mildew resistant, screen surface can be cleaned with microfiber cloth and water
  • Accurate color representation - Flat Spectral Response
  • Available in the following diagonal sizes:
    • 92", 100", 110", 120", 135" and 150" in 16:9 format
    • 125", 138" and 158" in 2.35:1 format

Design and Installation

  • Aluminum lightweight split-frame design

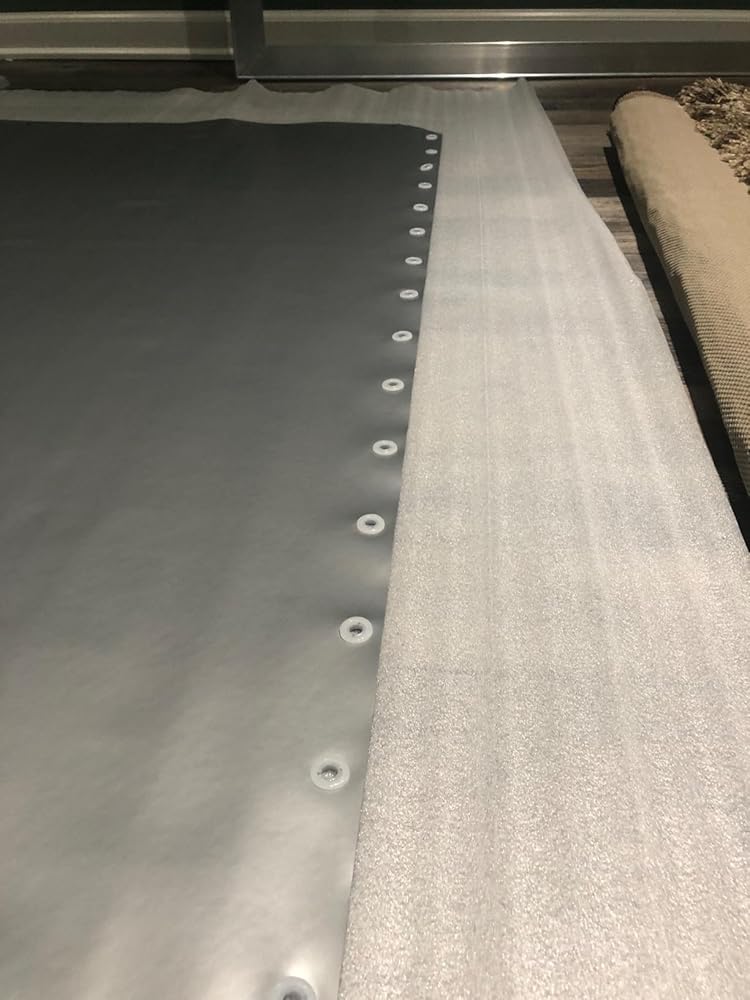

  • Material stretches over frame for a permanently tight-tensioned flat surface
  • Easy to assemble and install in minutes
  • Smaller footprint maximizes viewing area
  • EDGE FREE or install ultra-thin trim
  • Wall mount brackets slide ensuring the frame is properly centered
  • Optional LED backlight kit with remote control - sold separately

Downloads

Dimensions Tables

User Guides

Comparison Tables

Other

Shipping & Returns

📝 Our Shipping & Return Policy

📩 Request a Shipping Quote (AK, HI, PR and Canada)

  • Purchase Orders for GROUND shipping service received by 5:00 PM (PST) are processed to be shipped from Elite’s warehouse within 2-5 business days. You will receive an email confirmation when your order has shipped.
  • All orders are fulfilled Monday through Friday, excluding weekends and holidays. We are not responsible for unexpected shipping delays caused by circumstances related to the courier, weather or state of emergency.
  • Oversize Shipping : If your order is shipped via Pilot Freight Services, they will contact you to schedule a delivery.

Regular price $940.00 USD
Regular price $1,406.00 USD Sale price $940.00 USD
Sale Sold out
Free Shipping To The Continental U.S 48 States | Shipping Policy

SKU:AR158DHD3

Size
Quantity
Distances From Your Screen

Screen Material Information

Screen Material Name CineGrey 3D®
Description The CineGrey 3D® is a reference quality front projection screen material formulated for environments with minimal control over lighting. It was designed to enhance picture brightness, produce accurate color fidelity, and improve contrast levels.
Type of material Silver/Gray (PVC flexible)
Reflective technology type Angular-Reflective
Ambient Light Rejecting Yes (up to 65%)
Gain 1.2
Viewing Angle 90°
Minimum Throw 1.5 x Image Width
Black backing No
3D Ready Active/Passive
Polarized for Passive 3D Yes
4K/8K Ultra HD Ready Yes
Projection Type Front
Ultra/Short-throw projector compatible No
Best for environments Moderate ambient light control rooms and dark rooms
Recommended for Excellent black level performance and accurate color reproduction, especially in dark rooms. Preserves color purity in moderate ceiling ambient light rooms.
GREENGUARD Certified Yes
Flame Retardant Yes, Complies with NFPA 701
ISF Certified Yes
  • 5 stars: 48 (70%)
  • 4 stars: 10 (14%)
  • 3 stars: 7 (10%)
  • 2 stars: 4 (6%)
  • 1 star: 0 (0%)
J
Jeffrey R.
Underwhelmed!

I was really hoping this screen lived up to the "ALR" hype. Im just not sure the screen is reflecting Ambient light. In addition, I thought getting the CineGrey screen would make the picture punchier. Unfortunately, I am not impressed by the image quality when viewed with just the slight bit of ambient light in the room/basement.For $600+ I was expecting the "WOW" factor!I paired this screen up with the Optoma CinemaX P2 so there is no lack of 4k resolution or quality. Yes, I adjusted all my settings to get the most contrast from my projector.So, is the White screen a better choice? Ad if so, whats the big deal with CineGrey?...thumbs down. Interested to hear from Elite screens since I invested $8k into my theater system which includes this screen.

D
Darcy

The cinegrey material really brings out the colours and colour depth. Super impressed. Bit of a pita to assemble but if you have patience and a partner to help it all comes together and looks great. Using this with a 4K Benq HT3550 and am happy with the set up.

M
Manbir

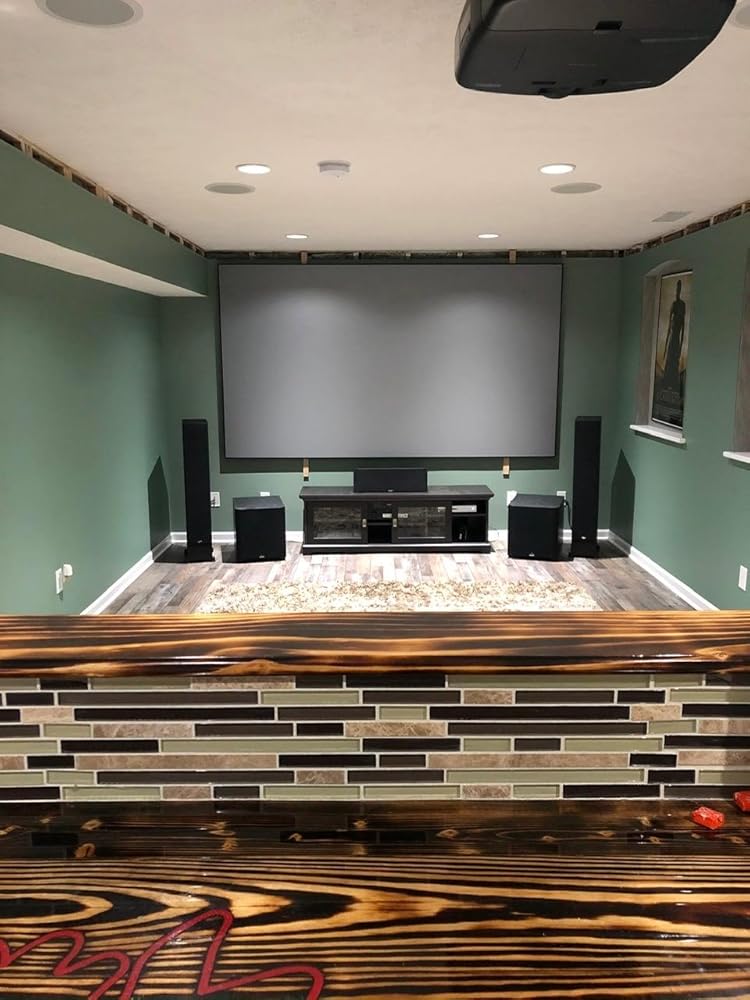

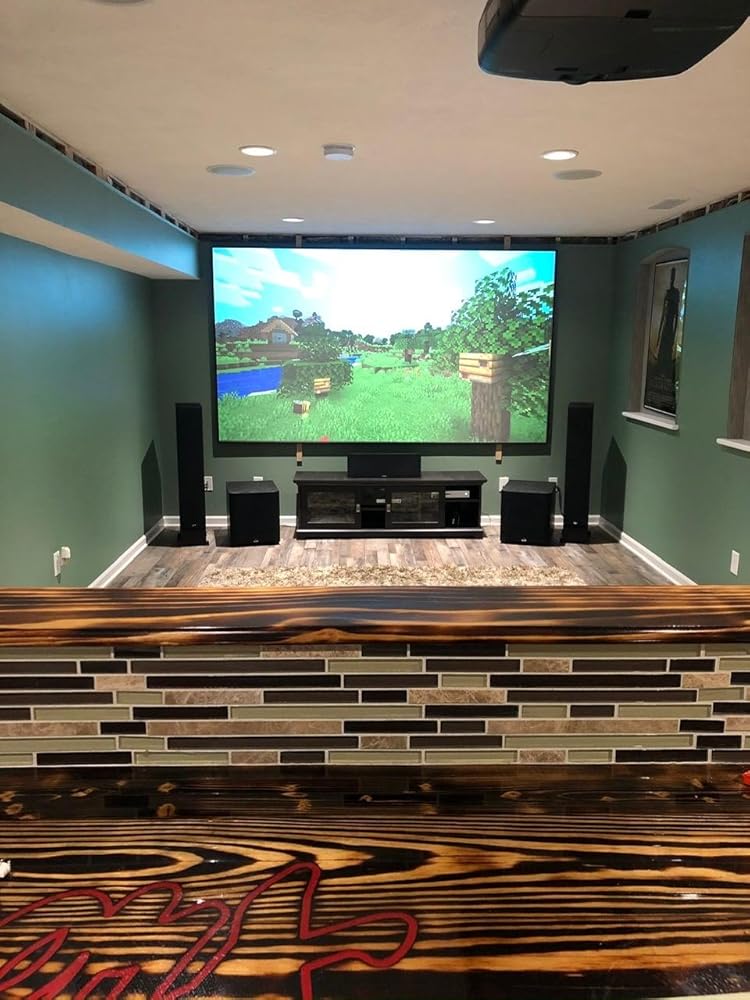

Update 2: I installed the new material and there are no visible artifacts and my screen looks great. Thank you to Elite Screens customer support who listened to my issues and provided me with a replacement materialUPDATE : I contacted elite Screens and they were very courteous and agreed to send me a replacement material. I will update once I have received and installed the materialI ordered this screen back in November 2018 after doing a bit of research. My basement was being constructed so I held off on assembling it. Putting it together was not difficult with 2 people. I noticed right away that the screen has vertical marks over it all across the screen about 5 -7 inches apart. This made my viewing experience very difficult especially during bright scenes. I emailed Elite Screens only to be given a disclaimer by a rep emailed back to me about this product:" For all our ALR Screen Materials, it is normal for there to be vertical lines due to how this surface has to be manufactured"....They attached a product disclaimer but it only mentions a stain that is imprinted into the material, not vertical lines throughout the screen.If i had known this I would not have purchased this screen. It has been a very distracting experience for me and my family. For the price I paid for the screen I am very disappointed.

B
Blue-collar
Not for my projector

I brought the wrong type of screen for my Xiaomi Ultra Short-throw projector. I wasn't happy after learning this when I set it up. I will need a special ALR screen for ultra short throw to get the best quality picture. I'm going to it exchange for a white matte screen until I buy that special screen.

P
Pastor W.
Looks like a flatscreen tv.

The photo does not do it justice.

R
R. B.
Five Stars

Great projector screen! Easy to assemble!

K
Kelly A.T.
I love it, picture shows great 👍🏿

My wife and I put it together one night; easy assembly

C
Cristian
Outstanding screen very good quality

Very satisfied with my purchase very easy to install I highly recommend it u won't regret it overall very good purchase the picture quality is amazing. 135 inch

N
Neal f.
Contrast

Love it

A
Alaska M.
Quality

Worth every dollar. Colors pop blacks are blacker. It does take some time to put together though.

D
Derek26
Great quality. I'm glad I purchased.

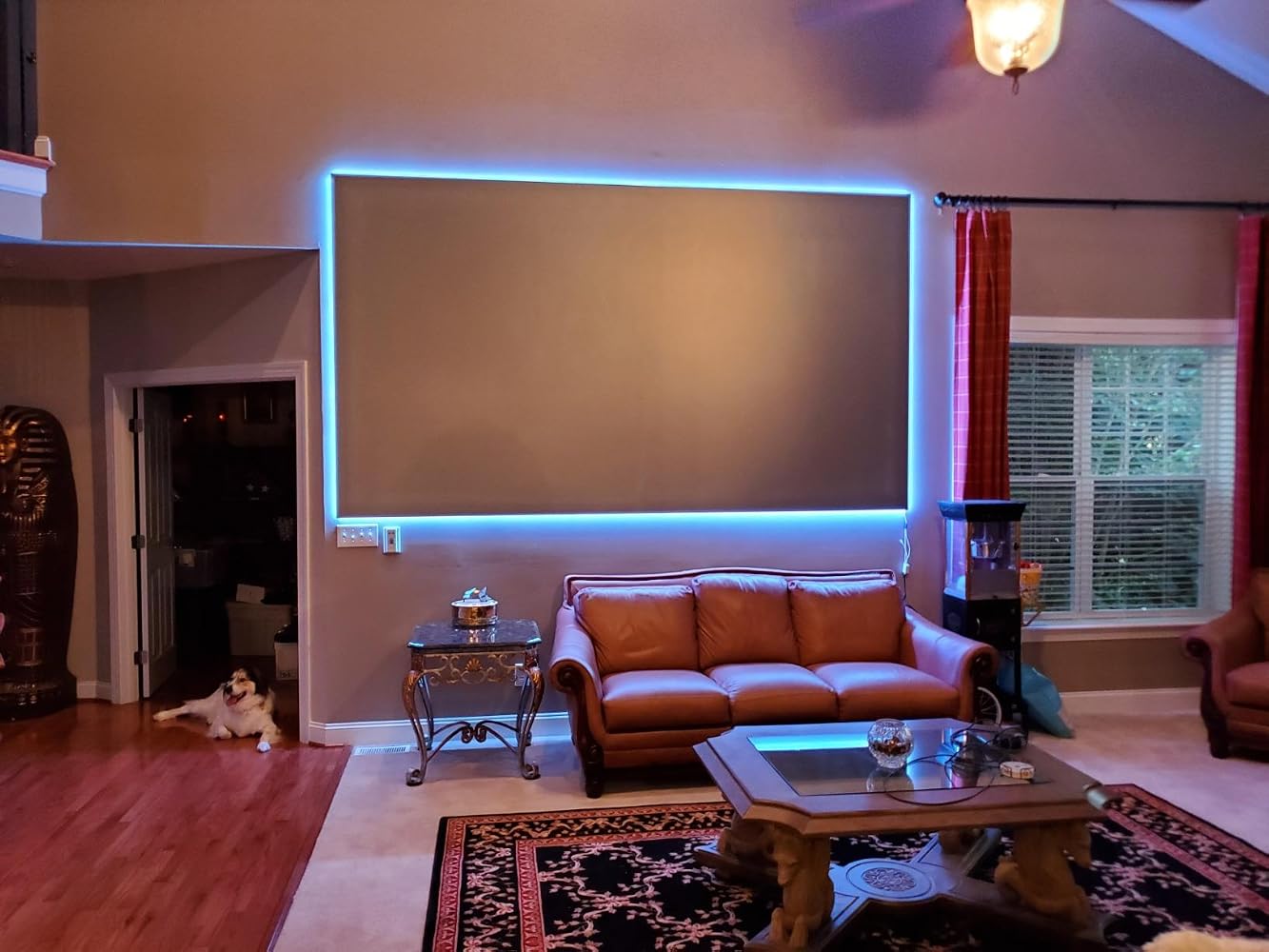

The screen is awesome. Great contrast and brightness. If your screen has a whitewash hazy picture, try this one. I highly recommend the led lights too...it really makes for an impressive display...even when the tv is not on.

K
Krishna M.
The best projector screen you can buy without breaking your bank

I paired this screen with Epson 5050UBe and the result is just wow. It delivers sharp contrast and due to the gain of 1.2 you can still get ample brightness even when on economy lamp mode. Installation took 4 hours. But it is what it is.

C
Chris
Great Looking Screen.

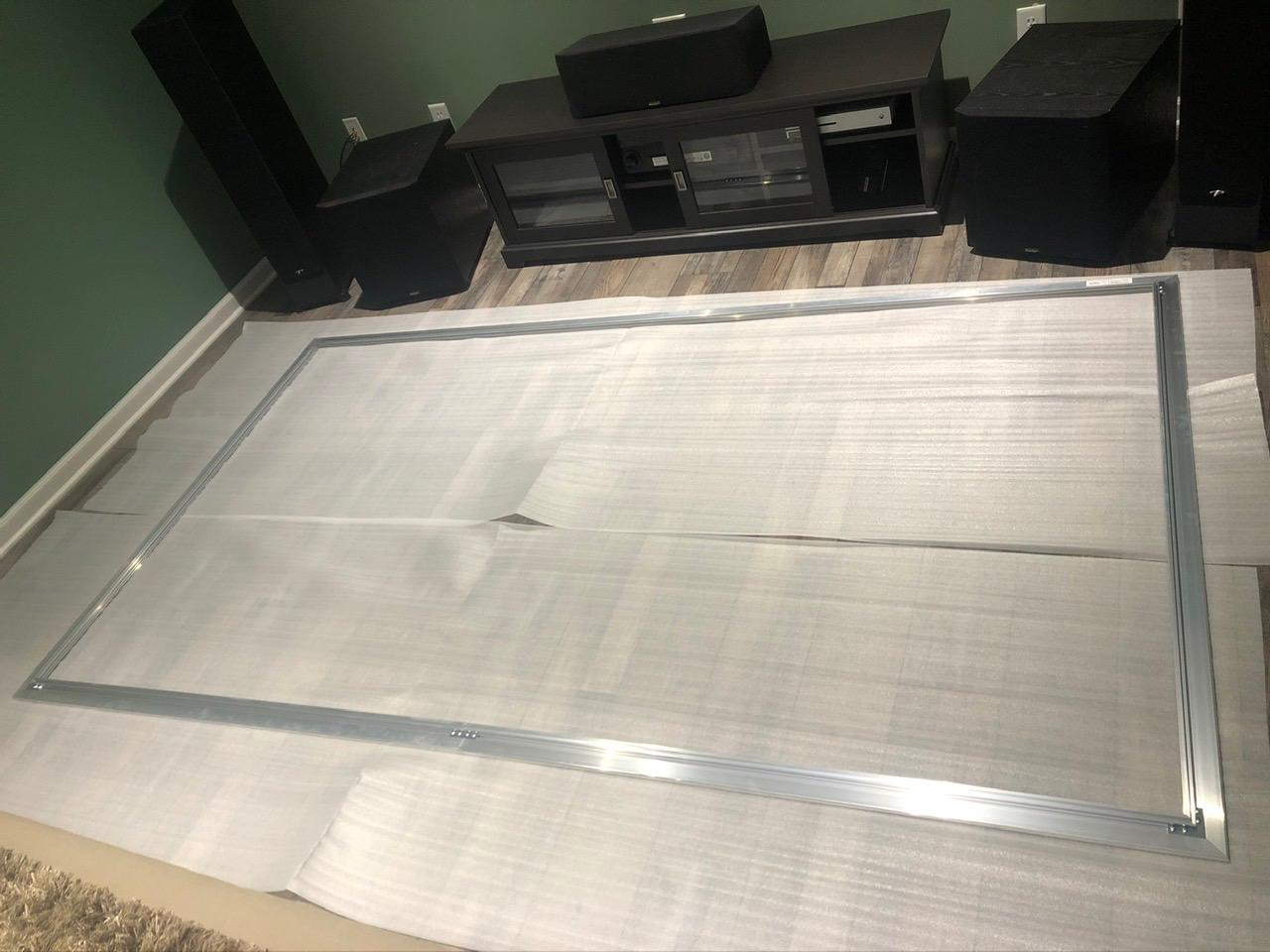

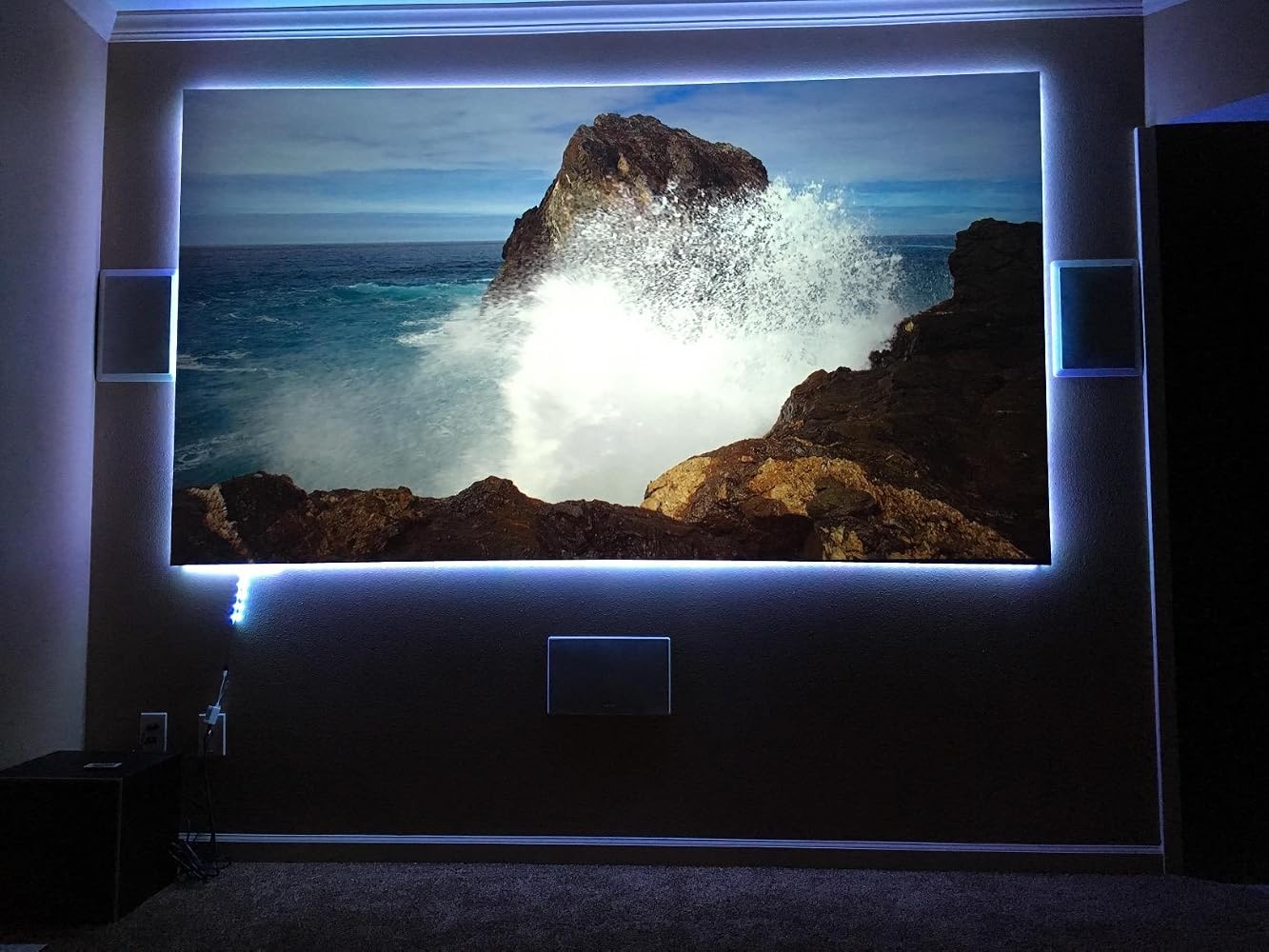

Took two of us about 30 mins to put this together. I went out and pick up a set of long pick and wow did they come in handled for this job. Using the long pick on the springs really made job much easier. Overall, great looking screen. I was able to add my led strips around it and it came out nice.

F
Frank Z.
Gray screen looks awesome

I am setting up my media room and selected this 120 inch screen. I’m not a zealot but this screen looks great in my house I will say. Quite well designed with frame and feel like a one quite solid. It’s heavy and I had a handy guy help me out on the installation.

M
Mr.kattan
Great quality.

Great quality screen. It looks like a big TV and the quality of its image is amazing. I’m using it with Epson 5040UB. The installation isn’t so easy tho, and I got several injuries in my hands because of its frame sharp edges. Don’t forget to wear goggles when you install the screen because you can lose your eyes either by the springs or the pulling tool.

s
swordflash
"Amazing"

My first day viewing. And i'm loving this screen so much. It does wonders for daytime movie watching. I don't have to wait for total darkness anymore. The blacks are dark and the colors are vivid. Little reflection on my white ceiling and white walls. Huge upgrade over my Matte white screen!!!

M
Maria L.D.
Impressive

The screen while not simple to assemble was not particularly difficult either. About an hour of work start to finish and she was hanging on the wall. I have this paired with a Sony VPL40hw 40es and I can say that the results are very impressive. Went with the 120 inch and for under 3k I have a huge screen. The screen looks great even with significant ambient light, I decided against the velvet boarder and it's quite the show stopper with the boarderless look. Although it did require some tinkering to get the project lined up right without the forgiveness of a black boarder. Attached are couple of pics. I would definitely recommend it from my experiences so far.

M
MrFixit266
Fantastic Screen

The screen is well build and fairly easy to install. You will need two people and plenty of space.The picture is great however the screen is not light proof. I have a window behind my screen and in the daytime I could see light through the screen. I had a black diamond screen prior to this that costs 3 times as much. I only switched because my old one was 235:1 and I wanted 16:9. Honestly I other than this screen is not 100% light proof I cant really tell the difference. It is great and I would highly recommend this screen to anyone looking for a good quality screen at a good price.

a
alain
Amazing screen. Elite.

I am very happy with this improvement .100 inches Elite screenBetter than any Samsung tv.

F
Full F.
Cinegrey 3D 150" marvel

paired with proper projector, fe 9700ub, the screen will provide you with phenomenal black levels, crisp highlights, color pop, overal picture uniformity than say bedsheet or, God forbid, painted wall. I did all of it, trust me.Even with projector rated 1600 lumen output with 2000hr old lamp and engaged ECO lamp mode this screen just rocks. I cant believe how black in 2.4:1 mode black bars are!Having said that I must notice that light rejection feature is not working for me, at least when ceiling light are on I see glowing reflections on the screen. This is not bother me coz I watch movies in complete darkness anyway.Also you will need a second person to mount 150/135 and maybe 120 sizes on the wall. Of course you can try yourself if you aint afraid to collapse the frame and tear down the screen material.Thank you.

A
Amazon C.
Great screen and Awesome Customer Support!

Excellent product. I also appreciate the follow up email from customer support after purchasing the screen to let me know what to expect upon unboxing and installation. Thank you Elite!
