[Elite ProAV] Evanesce Tab-Tension Series

Description

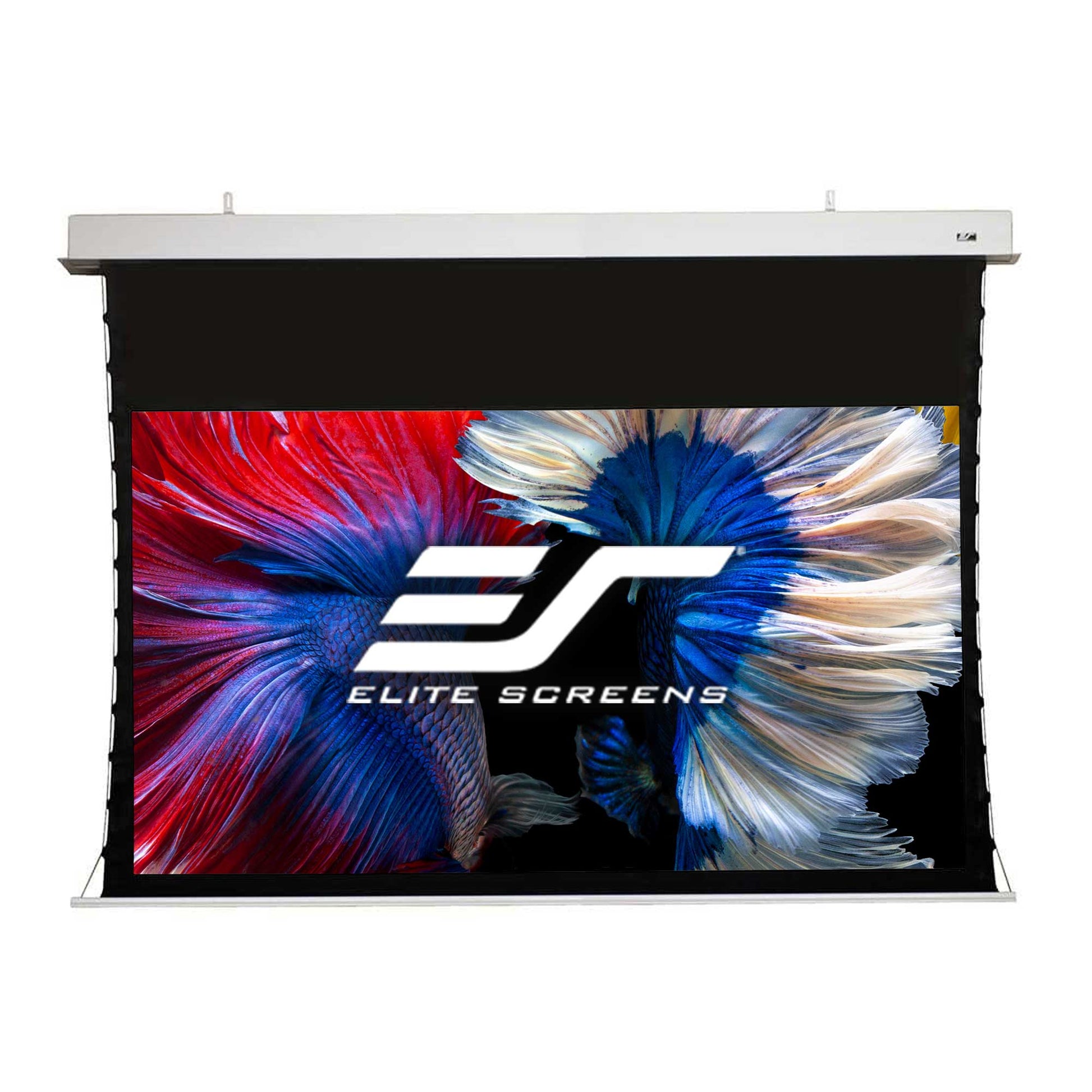

The Evanesce Tab-Tension is an in-ceiling recessed electric projection screen. It has the flexibility of being able to be installed above or below the ceiling. It is the perfect solution when there is a need for a concealed screen installation that conveniently disappears from view when not in use. It is Plenum Rated UL 2043 for safe installation in an “air-handling” space. It utilizes our award-winning CineWhite® 1.1 gain matte white tensioned-material which provides superb color temperature with wide diffusion uniformity. The screen is moved by a strong, fast-acting tubular motor and comes with Infrared and Radio Frequency remote controls, a wall box controller, and 12-volt capability to synchronize the screen’s operation with the projector’s power cycle.

Product Features

Screen Material

• CineWhite® 1.1 Gain front projection matte white material
• Provides excellent color balance and enhances projected imagery
• Black backing eliminates light penetration for superior color reproduction
• Black masking borders enhance picture contrast and absorb projector overshoot
• 180º wide-viewing angle allows viewers to see a clear picture form any angle
• 4K/8K Ultra HD, and HDR Ready
• Standard 8″ top drop
• Available in the following diagonal sizes:
  • 100″, 106″, 120″ and 135″ in 16:9 aspect ratio
  • 114, 139, and 165″ in 16:10 aspect ratio

Design and Installation

• Disappearing recessed in-ceiling design for non-dedicated media rooms

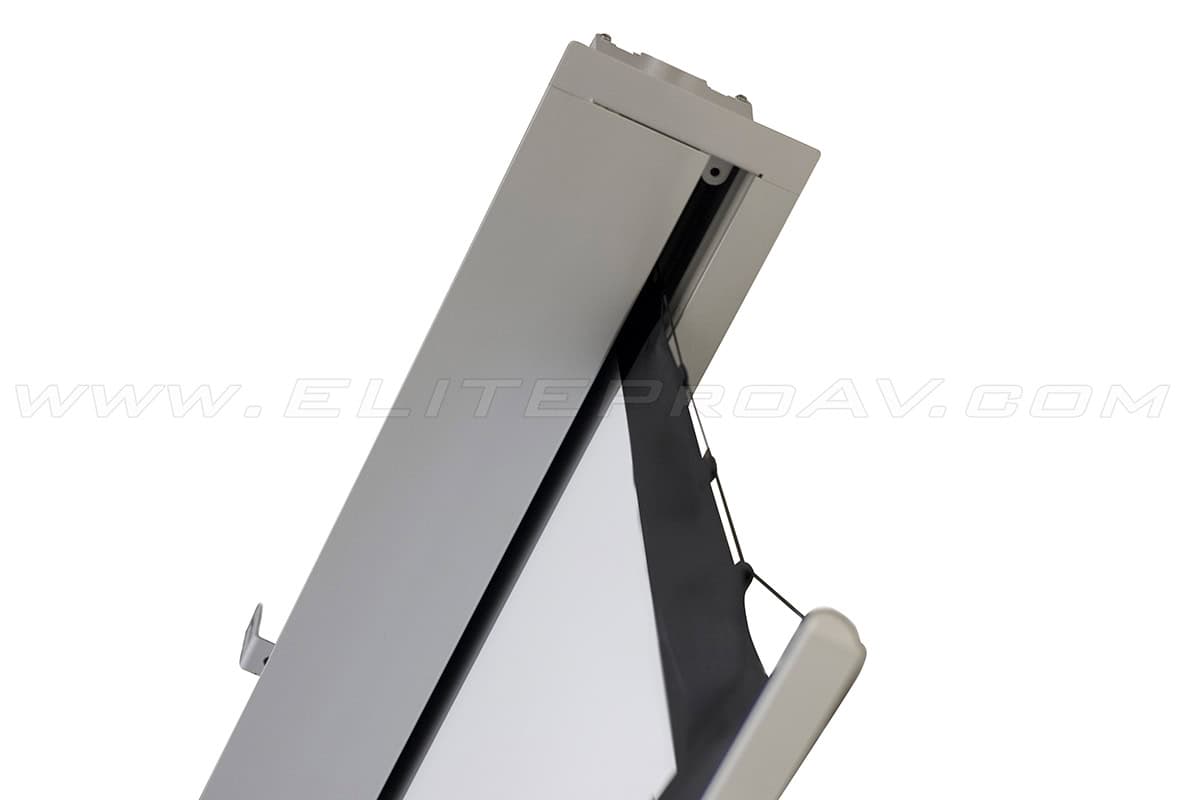

• Tab-tension cords provide uniform flatness on entire projection surface

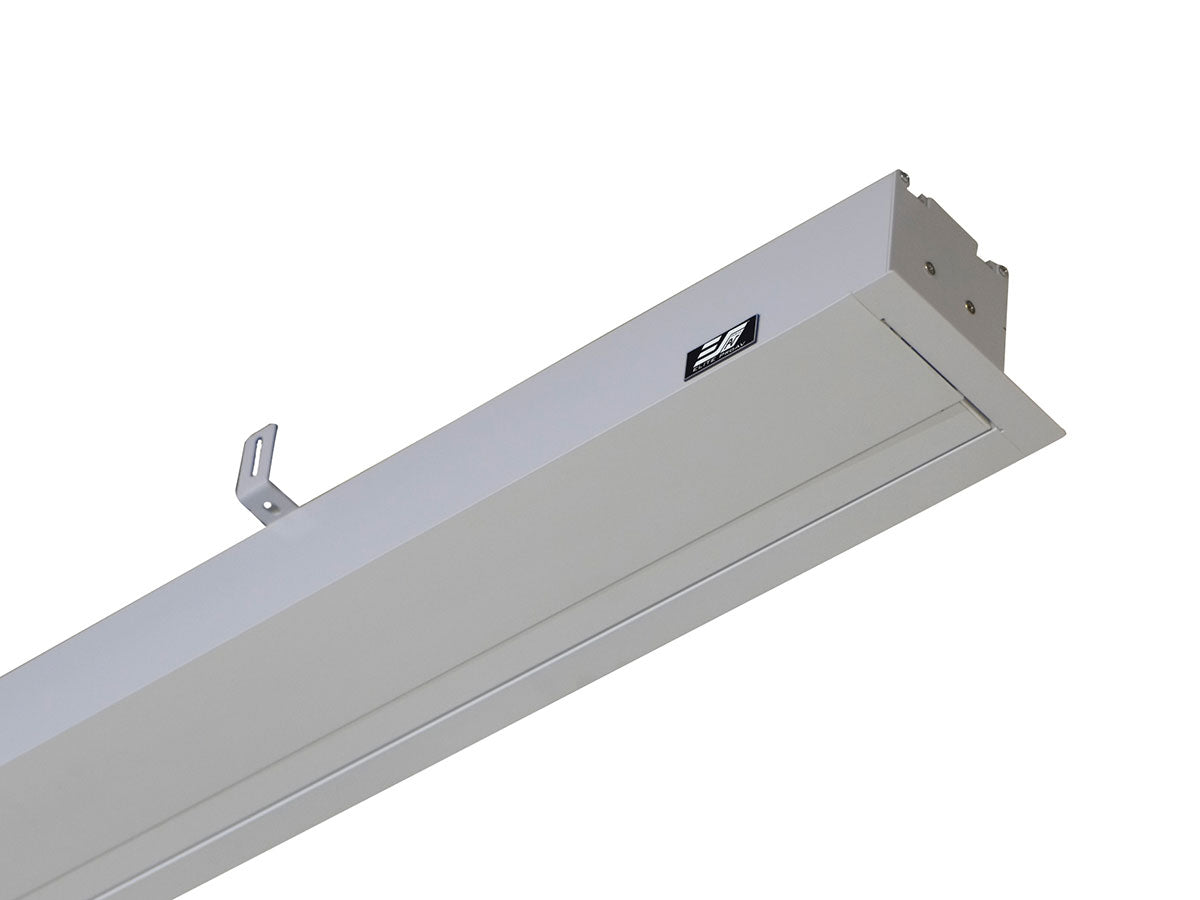

• Aluminum housing with white finish (RAL9003) is strong and moisture resistant
• Integrated ceiling projection screen ships fully assembled, ready to install
• Installation kit included for above or below ceiling

Control System

• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
  • Wired 12v trigger capability via wall box controller
  • Wireless 12v trigger capability via Radio Frequency remote control

Quality and Reliability

• ETL, FCC, CE, CB GOSTCE & ISO9001:2008
• Conforms to UL 2043 – Plenum Rated: Suitable for air-handling spaces
• 5-year warranty

Downloads

• Dimensions Table – Above Ceiling Installation (PDF)
• Dimensions Table – Below Ceiling Installation (PDF)
• Product Cut Sheet (PDF)
• CineWhite® Material Sheet (PDF)
• In-Ceiling Screens Comparison
• Screen Material Care Sheet
• User Guide (PDF)
