[Elite Screens] 123" (16:9) Aeon StarBright CLR 16 Series

Description

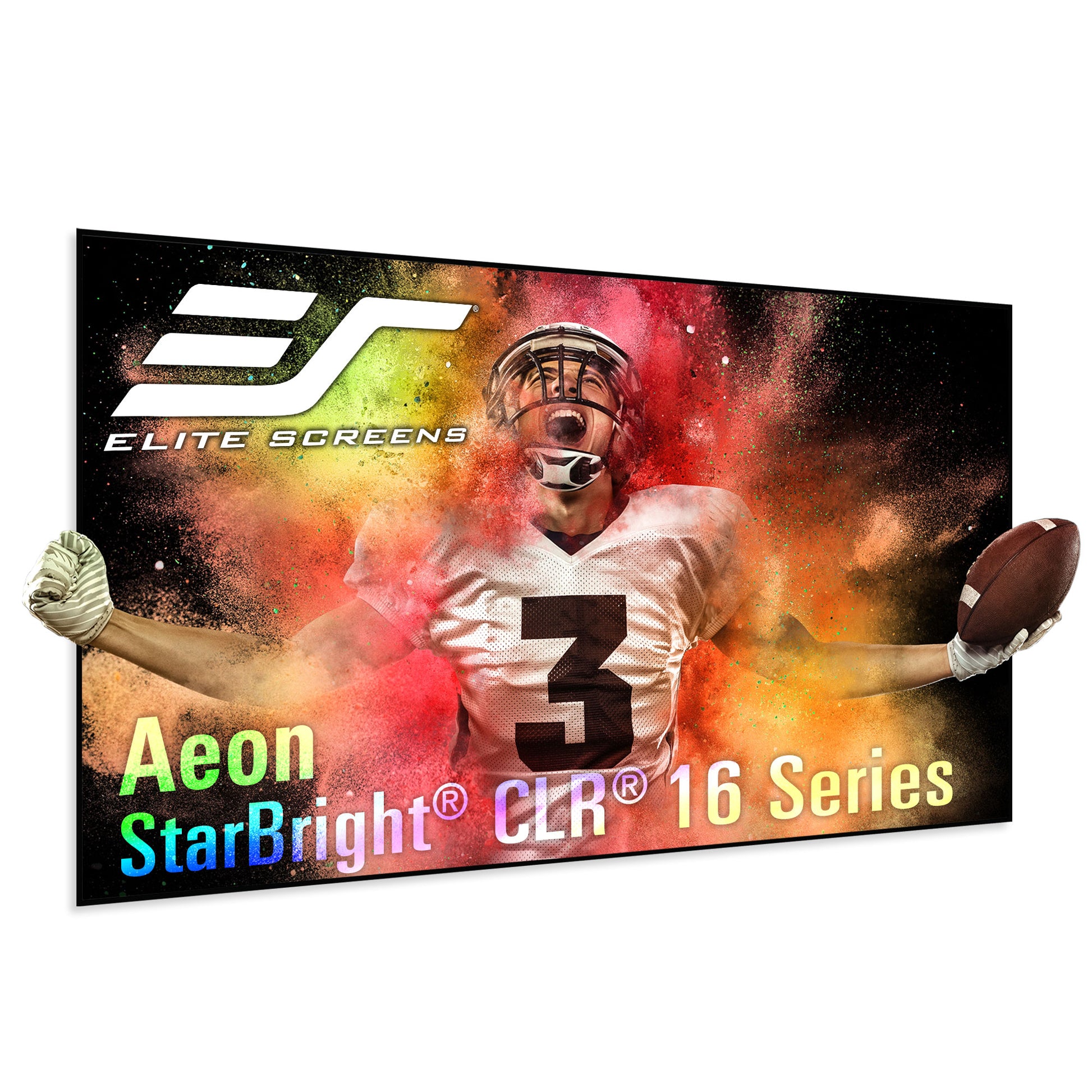

The EDGE FREE Aeon StarBright CLR 16 is a ceiling light rejecting fixed frame screen. It has a high gain front projection surface that increases projector brightness while absorbing overhead light to produce vivid, colorful, contrast-rich images in ambient light room environments.

The thin frame design maximizes the viewing area into a smaller footprint which is more appealing in appearance and in accommodating room decor. An LED light kit is included to enhance the frame appearance and room lighting.

Product Features

Screen Material

• StarBright CLR 16 angular-reflective front projection material for standard throw projectors
  • Not compatible with Ultra-short and Short-throw Projectors

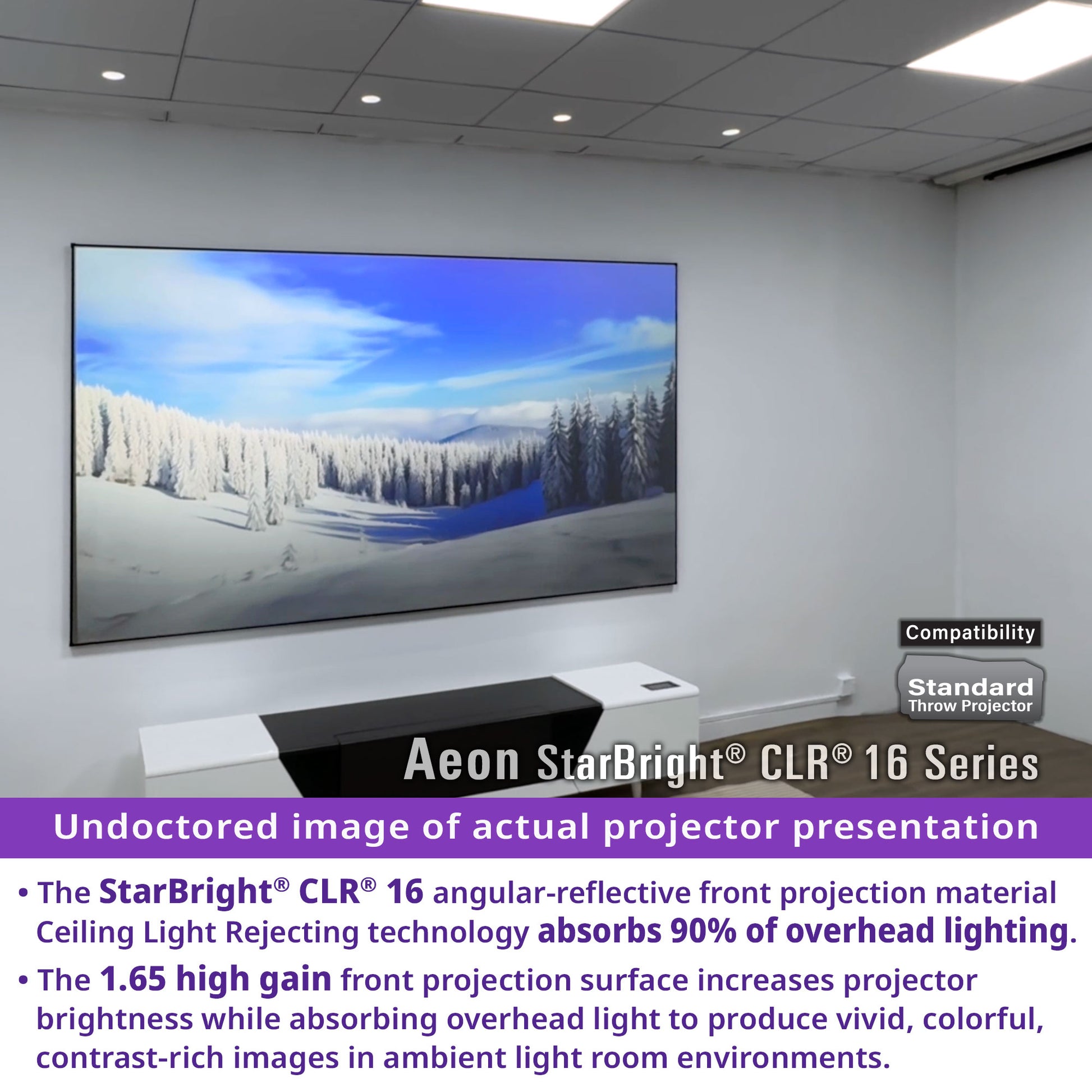

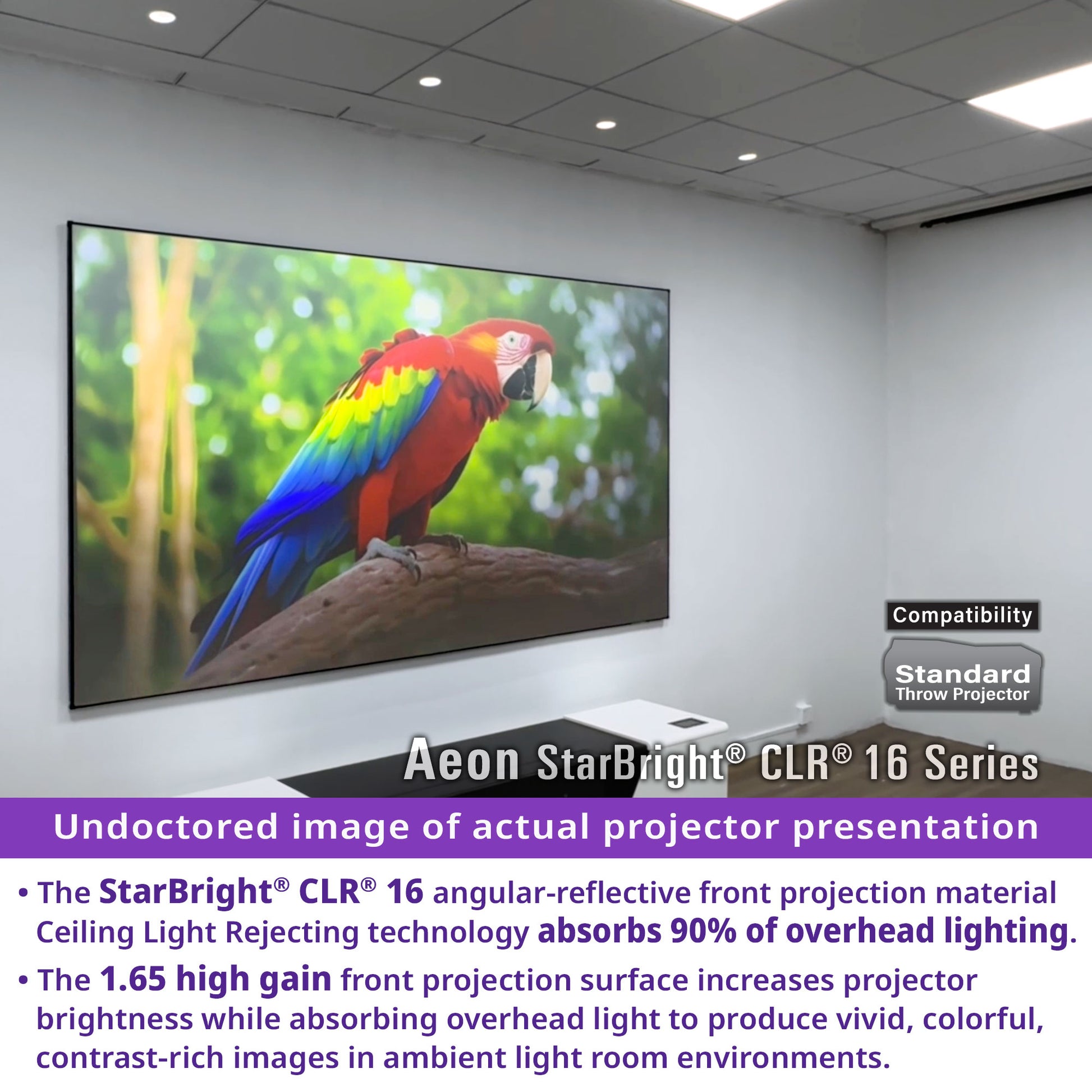

• Ceiling Light Rejecting technology absorbs 90% of overhead lighting.
• 1.65 Gain increases projector brightness to produce vibrant colors and high contrast images.
• Multi-layer optical microstructure relies on UV-resin to filter and absorb light from above.
• Smooth non-textured surface compatible with 4K/8K Ultra HD projectors.

Design and Installation

• Sleek EDGE FREE design maximizes viewing area into a smaller footprint.
• Screen material wraps around over internal framework for a tight-tensioned flat projection surface.
• Lightweight aluminum split-frame design for cost effective shipping and facilitates easy access to installation sites.

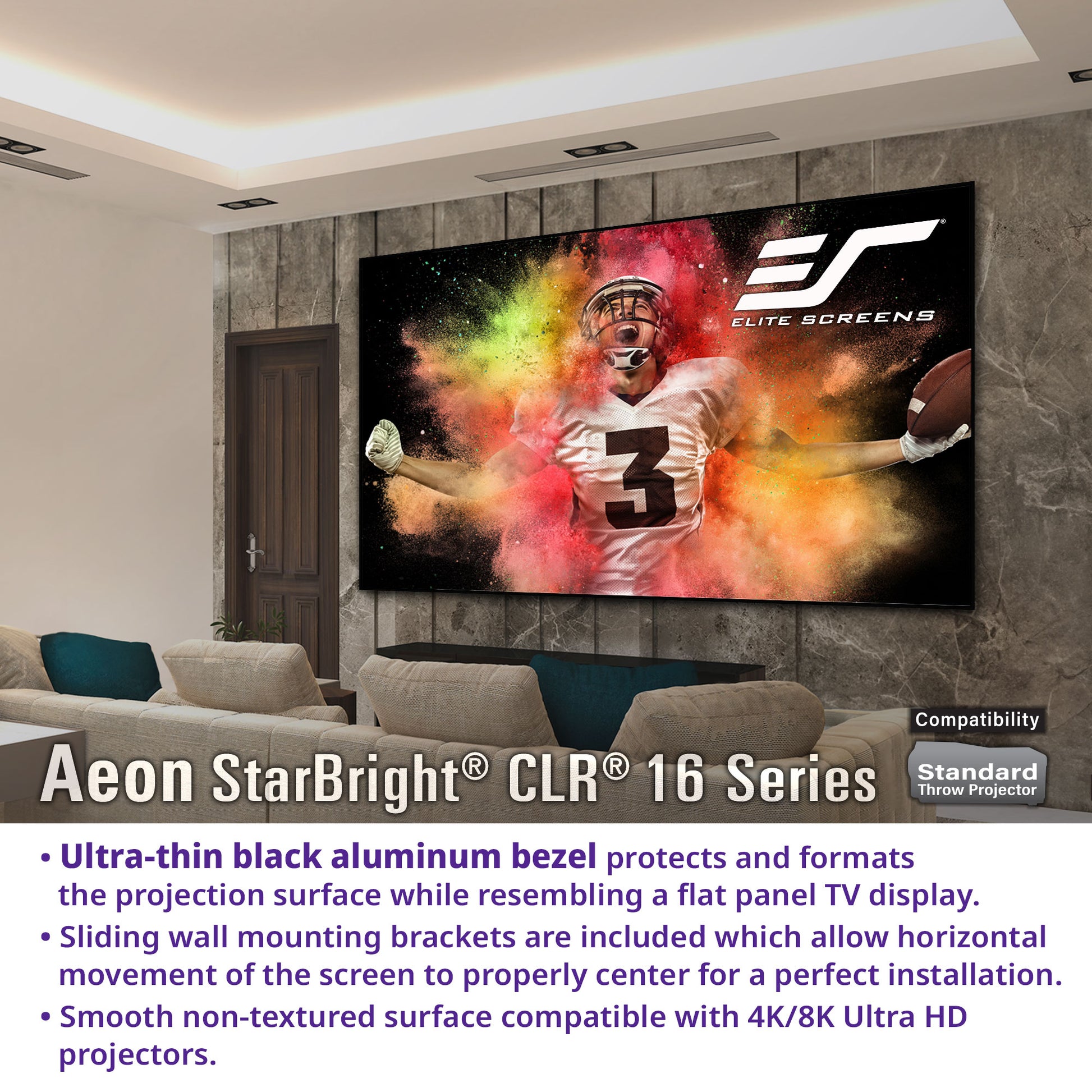

• Ultra-thin black aluminum bezel protects and formats the projection surface while resembling a flat panel TV display.
• Sliding wall mounting brackets are included which allow horizontal movement of screen to properly center for a perfect installation.
• LED kit included with Infrared remote for mood lighting and room ambiance.

Quality and Reliability

• 2-year limited warranty, and 3-year warranty for ENR-G - Education, Non-profit, Religious and Government/Military organizations
• Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.

Downloads

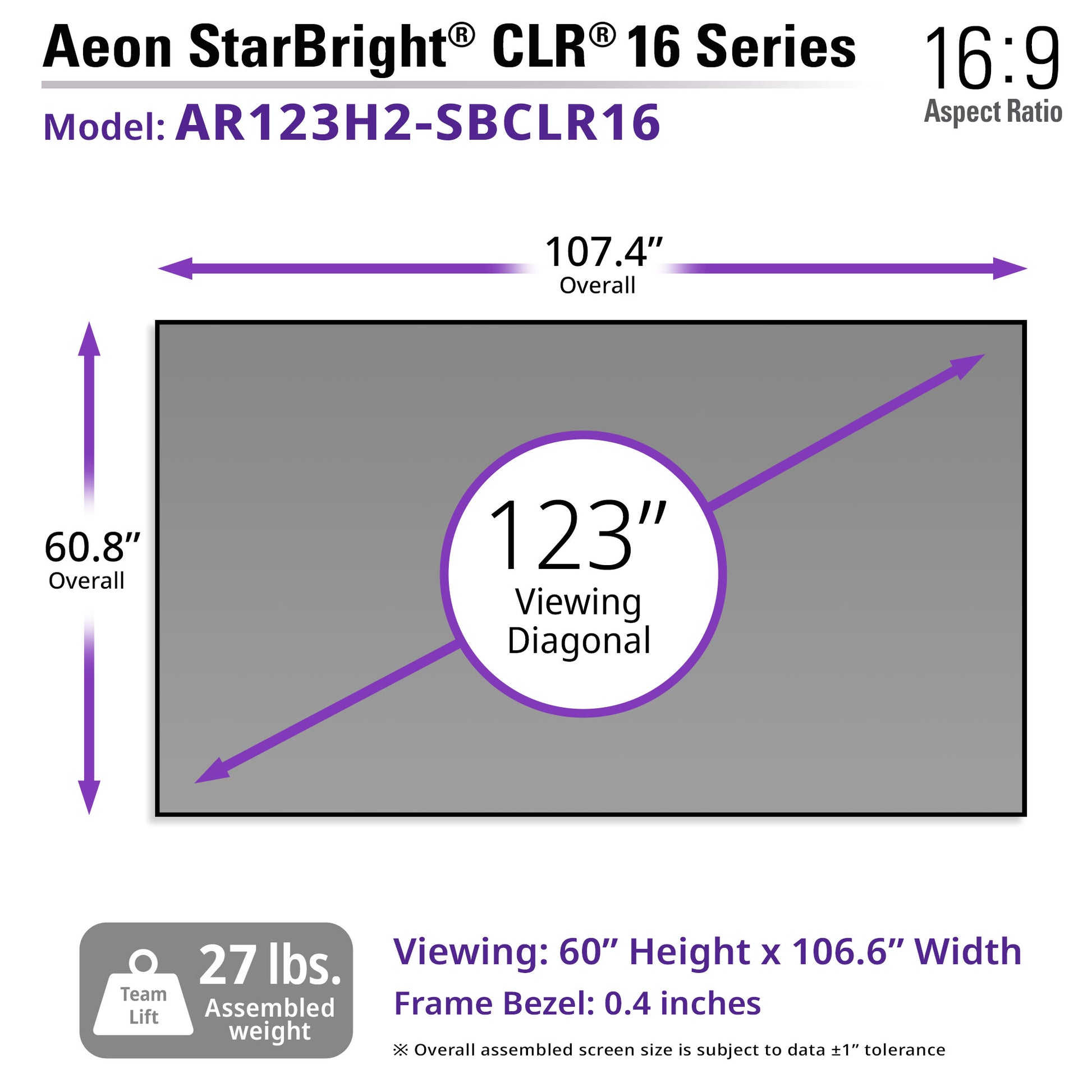

Dimensions Tables

• Dimensions Table (PDF)
• Frame Dimensions (PDF)

User Guides

• User Guide (PDF)

Others

• Product Cut Sheet (PDF)
• Fixed Frame Comparison Table (PDF)
• ALR/CLR Fixed Frame Comparison Table
• ALR CLR Materials Comparison Table (PDF)
• Screen Material Care Sheet
• TAA Compliant Product List (PDF)

Projector Placement

Projector Placement for StarBright CLR 16

Please use the following installation instructions to obtain superior optical performance from the StarBright CLR 16 (Ceiling/Ambient Light Rejecting) screen.

Make sure to follow these instructions for the StarBright CLR 16 to perform correctly.

1. Ambient light must not come from the same direction as the projector's light
2. For best results, standard throw projector must have a lens throw ratio of 1.35 or greater
3. Not compatible with Ultra-Short and Short-throw projectors
4. DO NOT install the projector higher or lower than the screen

Tip: Installing the projector in a 90-degree angle in the middle projection area will provide the best light dispersion for brightness uniformity.
